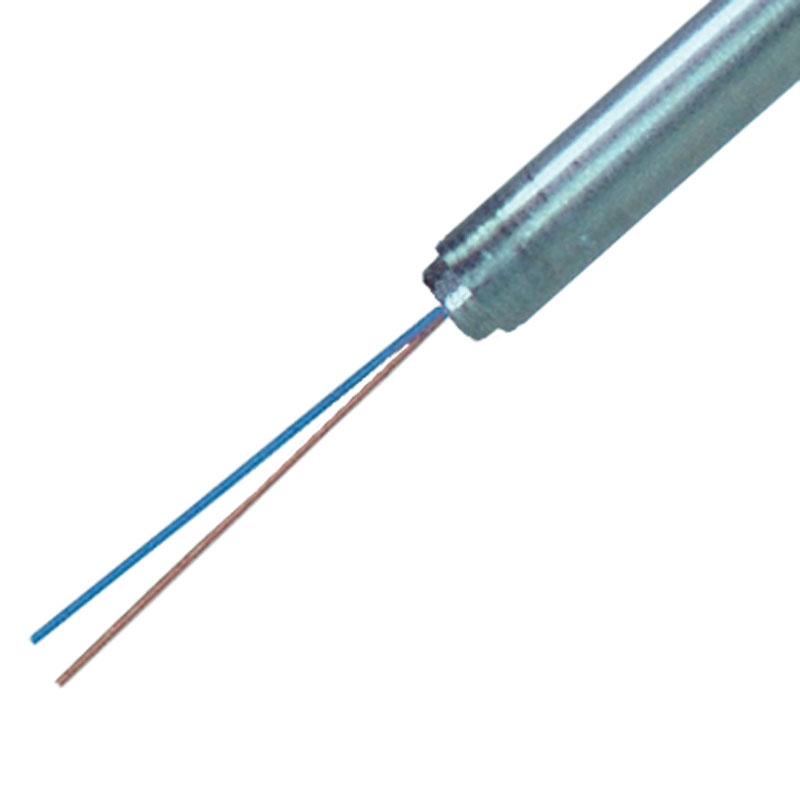

1 SPECIALTY FIBER OPTIC CABLE Specialty Fiber Optic Cable © 2008, AFL, all rights reserved. PP-1-00122, Revision 4, 2.4.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Stainless Steel Sensing Cable AFL’s Stainless Steel Sensing Cable provides a unique combination of size, robustness and strength that enables it to be the product of choice for temperature sensing applications. The product is suitable for installation in tunnels, roadways, airport runways, buried environments, gasifiers and any industrial application where there is a need for crush resistance, high temperature performance and quick thermal response. Cable Components Inner Tube Fiber Outer Tube Inside Tube Hydrogen Scavenging Gel Features • Small diameter • Low weight • Redundant hermetic seal • Encapsulation options • Lower cost • Patent pending Applications • Fire detection • Leak detection • Thermal mapping • Temperature monitoring Options and Specifications PARAMETER VALUE DOUBLE TUBE TRIPLE TUBE Outer Tube Diameter 0.125 0.125 Tube Wall Thickness 0.016 0.024 Tube Material Stainless Steel 316L, Incoloy™ 825 Fiber coating Carbon Polyimide, Silicon/PFA, Acrylate and others Gel types No gel, standard gel, hydrogen scavenging gel STAINLESS STEEL 316L OPTION Weight 21 lbs / 1,000 ft 28 lbs / 1,000 ft Tensile 760 lbs 1,060 lbs Collapse pressure 30,000 psi 44,000 psi Bend radius (dynamic) 12.6” 12.6” INCOLOY™ 825 OPTION Weight 22 lbs / 1,000 ft 28 lbs / 1,000 ft Tensile 814 lbs 1,134 lbs Collapse pressure 21,000 psi 32,000 psi Bend radius (dynamic) 12.6” 12.6”
