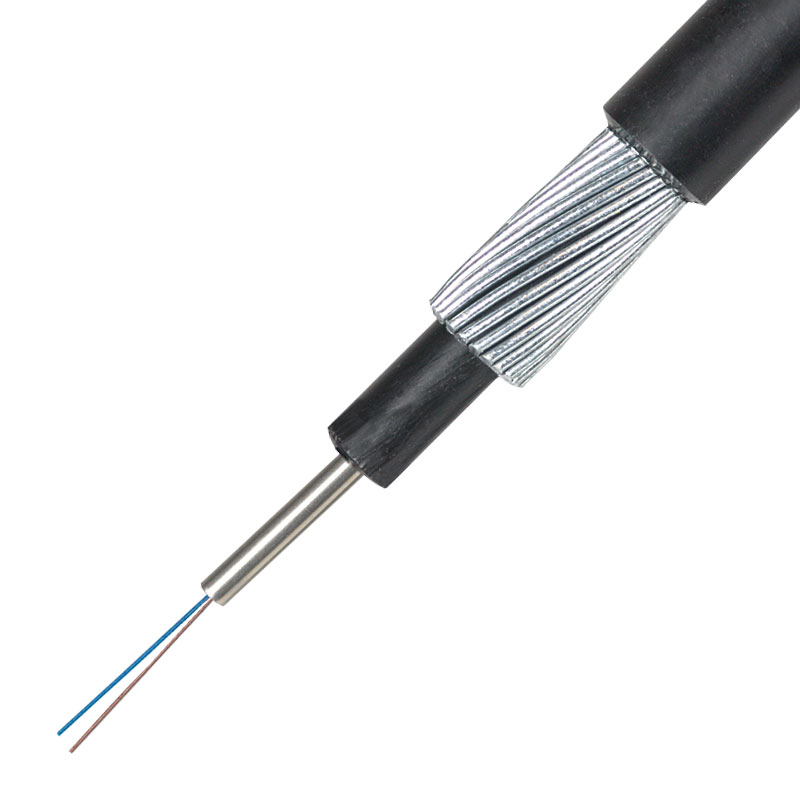

1 SPECIALTY FIBER OPTIC CABLE Specialty Fiber Optic Cable © 2008, AFL, all rights reserved. PP-1-00073, Revision 7, 2.4.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Fiber Optic Component for Umbilical Cable AFL’s Fiber Optic Component for Umbilical Cable is designed for subsea umbilical applications. AFL is the technology owner for hermetic stainless steel tubes which are the key building block for subsea cables. AFL provides customized designs to meet the most stringent requirements. AFL’s Fiber Optic Component is suitable for depths of 10,000 feet and beyond. Cable Components Options and Specifications PARAMETER VALUE Number of Fibers Up to 96 Fiber Single-mode, Multimode, 100 or 200 kpsi proof test Stainless Steel Tube Sizes 2.4 mm to 4.8 mm Stainless Steel Tube Types 304 or 316L Stainless Steel Armor Stranded wires, a range of tensile specifications are available Fiber Colors TIA/EIA 598 or customer specification Unit Weight 150 to 300 kg/km Overall Diameter 7 mm to 16 mm Storage Temperature Range -40 to +85°C Operating Temperature Range -40 to +85°C Breaking Load Up to 25 kN (dependant on armor selection) Bend Radius (design dependent) 120 mm to 320 mm Cable Marking To customer specification Features • Hermetic Stainless Steel Tube • High Strength Wire • Polyethylene Jacketed • Hydrogen scavenging gel • Long lengths • In-line splice technology • Proven technology • Long life expectancy • Custom Jacket Colors Stainless Steel Tube Outer Jacket Inner Jacket Armor Wires Optical Fiber
