The FlowScout OPM8 optical power meter represents the next generation of smart optical power meters.
250b59e9939b4ab7828c992e2055565b
AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. OPM8-00-2000 Revision AB 2024-09-28 Specifications are subject to change without notice. Test and Inspection FlowScout ® OPM8 Optical Power Meter 1 The FlowScout OPM8 optical power meter represents the next generation of smart optical power meters. Designed on the legacy of AFL/Noyes OPMs, the FlowScout OPM8 provides rapid loss testing with pass/fail results for use in enterprise LAN, data center, PON, and broadband networks. Intuitive operation: With a simple to use interface based on a color touchscreen, fiber technicians can quickly set-up, test, validate, and document installed fiber plant, as well as provide power measurements. The FlowScout OPM8 measures power levels and automatically evaluates them against user-set min/max limits. The large color touchscreen displays detected power levels with color-coded pass/fail indications. Wave ID for reduced test time and errors: When used with a Wave ID light source, such as the FlowScout OLS8, the power meter automatically synchronizes to source wavelengths, reducing test time and eliminating wavelength setting errors. The broadband power meter also automatically detects and reports the presence of 270 Hz, 330 Hz, 1 kHz, and 2 kHz fiber identifying tones. Full reporting capabilities: Measured power levels, pass/fail limits and status can be stored in internal memory for download via USB. Test results may be uploaded for subsequent analysis, editing, and reports generation with FlexReports PC software. Versatile and efficient: Rugged, ergonomic, and backed by an industry-best 5-year warranty, the hand-held FlowScout OPM8 is the most versatile power meter for fiber testing. A range of replaceable output adapters enables access for inspection and cleaning of optical ports and supports multiple connector styles. Equipped with rechargeable batteries and an AC charger, FlowScout OPM8 can operate while charging from AC. Features • Large color touchscreen with icon-driven user interface • Rapid pass/fail analysis based on user-set limits • Proprietary Wave ID functionality for accuracy and reduced test time • Rugged design backed by industry-best 5-year warranty • Internal test results storage • Reports generation using AFL’s FlexReporter ™ Test Results Manager Applications • Enterprise LAN and Data Center fiber networks • FTTH PON networks • High power broadband network testing • Multimode and single-mode fiber networks
AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. OPM8-00-2000 Revision AB 2024-09-28 Specifications are subject to change without notice. Test and Inspection FlowScout ® OPM8 Optical Power Meter 2 Field-replaceable output adapter Field-replaceable output adapters to support multiple connector styles. Large color display Large color touchscreen, visible in direct sunlight, displays a simple to use user interface. Rapid pass/fail analysis Measured power levels automatically evaluated against user-set min/max limits. Durable design for field use Rugged design backed by an industry-best 5-year warranty. Battery Operated Comprehensive Reporting Handheld USB Power Port / Software Upgrades Icon-driven Interface User-set Power and Loss Pass/Fail Limits Test Results Saved in OPM8 Internal Memory Test Results Transfer to FlexReports PC Software User-set File Naming Set Reference Instant Pass/Fail Analysis User Interface Highlights Product Highlights
AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. OPM8-00-2000 Revision AB 2024-09-28 Specifications are subject to change without notice. Test and Inspection FlowScout ® OPM8 Optical Power Meter 3 Specifications a,b Optical Model OPM8-H OPM8-L Calibrated Wavelengths 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1610, 1625, 1650 nm Detector Type Filtered InGaAs InGaAs Measurement Range +26 to -50 dBm +10 to -70 dBm Tone Detect Range +6 to -30 dBm +6 to -25 dBm for 850 nm +10 to -50 dBm +10 to -45 dBm for 850 nm Wavelength ID Range +6 to -30 dBm +6 to -25 dBm for 850 nm +10 to -50 dBm +10 to -45 dBm for 850 nm Measurement Accuracy ± 0.25 dB Display Resolution 0.01 dB/dBm Measurement Units dB, dBm Tone Detection Automatically detects 270 Hz, 330 Hz, 1 kHz, 2 kHz Wave ID Automatically detects and measures power & loss at one or more wavelengths using any AFL Wave ID source Stored References Stores separate reference for each calibration wavelength. Displays stored references Results Storage Stores > 1000 results in AFL .ATD (XML) format General Connector Adapters SC, FC, ST, LC, 2.5 mm Universal, 1.25 mm Universal Power 120/240 VAC input; 5VDC @ 2A output to USB-C Battery User replaceable Li-Pol; IEC 62133-2:2017 and UN38.3 certified Battery Operating Time (typical) c 16 hours continuous use Battery Recharge Time d 3 hours Operating Temperature -10 °C to +50 °C, 95% RH (non-condensing) Storage Temperature -30 °C to +60°C, 95% RH (non-condensing) IP Rating IP54 Shock & Vibration Withstands 1 m drop test on all 6 sides Data Interfaces USB-C and Bluetooth 5.1 (BLE and Bluetooth Classic) Data Storage Non-volatile memory for field-updateable software and results storage Display 3.5 in. color backlit LCD; capacitive touchscreen; 320 X 480 pixels Size (H x W x D) 14.0 x 8.0 x 3.3 cm (5.5 x 3.1 x 1.3 in) Weight ≤300 g (≤0.66 lb) Calibration N.I.S.T. traceable; ≥3 years between required re-calibration Warranty 5 years Notes: a. All specifications valid at 23°C ± 2°C unless otherwise specified. b. Accuracy measured at 25 ºC and -10 dBm per N.I.S.T. standards. c. Operating conditions: Display backlight at minimal brightness, Bluetooth off. d. Charging time data is provided for USB-C 2A charger.
AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. OPM8-00-2000 Revision AB 2024-09-28 Specifications are subject to change without notice. Test and Inspection FlowScout ® OPM8 Optical Power Meter 4 Ordering Information FlowScout OPM8 is available in two models: • OPM8-L (low power range: +10 to -70 dBm) • OPM8-H (high power range: +26 to -50 dBm) All OPM8 models include protective rubber boot, 2.5 mm Universal adapter, rechargeable Li-Pol battery, carry case and data/power cord. Test jumpers and connector adapters are required for operation and must be purchased separately. AFL NO. Description OPM8-SP3-BAS FlowScout OPM8-L Basic Kit. Includes: FlowScout OPM8-L power meter, AC charger and power cable, user guide, FlexReports Basic software with 60-day Advanced software trial and soft carry case. OPM8-SP4-BAS FlowScout OPM8-H Basic Kit. Includes: FlowScout OPM8-H power meter, AC charger and power cable, user guide, FlexReports Basic software with 60-day Advanced software trial and soft carry case. OPM8-SP3-PLUS FlowScout OPM8-L Advanced Kit. Includes: FlowScout OPM8-L power meter, AC charger and power cable, user guide, FlexReports Advanced software and soft carry case. OPM8-SP4-PLUS FlowScout OPM8-H Advanced Kit. Includes: FlowScout OPM8-H power meter, AC charger and power cable, user guide, FlexReports Advanced software trial and soft carry case. Accessories AFL NO. Description 2900-63-0001MR 1.25 mm Universal adapter cap 2900-63-0002MR 2.5 mm Universal adapter cap 2900-63-0003MR SC adapter cap for FlowScout OPM8 2900-63-0004MR LC adapter cap for FlowScout OPM8 2900-63-0005MR ST adapter cap for FlowScout OPM8 2900-63-0006MR FC adapter cap for FlowScout OPM8 8800-02-0087MZ FlowScout OPM8 dust cap 3900-06-0005MR Battery pack, 3.7V,3.0 AH, LI-POL, 3 -wire
AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. OPM8-00-2000 Revision AB 2024-09-28 Specifications are subject to change without notice. Test and Inspection FlowScout ® OPM8 Optical Power Meter 5 Qualificati ons Category Regulation/ Standard Qualification CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking UKCA Marking UK Compliant to relevant UK Directives on health, safety, and environmental protection, and certified with the UKCA marking Safety/EMC/EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment FCC Compliant to code of federal regulations FCC 47 CFR 15 on unlicensed transmissions RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method TIA Compliant to TIA-568.3-E for test and measurement requirements for optical fiber cabling and components IEC Compliant to IEC 11801 for test and measurement requirements for optical fiber cabling for use within premises EN Compliant to EN 50173 for test and measurement requirements for optical fiber cabling for use within premises AS/NZS Compliant to AS/NZS 3080 for test and measurement requirements for optical fiber cabling for use within premises TIA Compliant to TIA-526-7 for test procedures for installed optical fiber cable plant TIA Compliant to TIA-526-14 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 14763-3 for systems and methods for the inspection and testing of installed optical fiber cabling AS/NZS Compliant to AS/NZS 14763.3 for systems and methods for the inspection and testing of installed optical fiber cabling IEC Compliant to IEC 61280-4-1 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 61280-4-2 for test procedures for installed optical fiber cable plant Generic Requirement IEC Compliant to IEC 61315 for requirements on calibration of fiber optic power meters Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about OPM8 optical power meters. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts . Recommended Products FlexScan® FS300 (quad) and FS200 (single-mode) OTDRs • SmartAuto ® 1-button automated testing for fast results • LinkMap ® color-coded icons for easy troubleshooting • FleXpress ® mode (FS200) completes OTDR test in <5 seconds! • Integrated Source, Power Meter and VFL FS200 FS300 FlowScout OLS8 Optical Light Source • Large color touchscreen display with intuitive user interface • 5-year product warranty • Integrated LED and laser light sources
Funktionen:
- Großer Farb-Touchscreen mit symbolgesteuerter Benutzeroberfläche
- Schnelle Pass/Fail-Analyse basierend auf benutzerdefinierten Grenzwerten
- Proprietäre Wave ID-Funktion für Genauigkeit und verkürzte Testzeiten
- Robustes Design, unterstützt durch branchenführende 5-Jahres-Garantie
- Interner Speicher für Testergebnisse
- Berichtserstellung mit AFLs FlexReporter™ Test Results Manager
Anwendungen:
- Glasfasernetze in Enterprise-LANs und Rechenzentren
- FTTH-PON-Netze
- Tests von Hochleistungs-Breitband- und DWDM-Systemen
- Multimode- und Singlemode-Glasfasernetze
Präzise Leistungsmessung leicht gemacht
Das FlowScout OPM8 optische Leistungsmessgerät stellt die nächste Generation intelligenter optischer Leistungsmessgeräte dar. Basierend auf dem Erbe der AFL/Noyes OPMs bietet das FlowScout OPM8 schnelle Verlustmessungen mit Pass/Fail-Ergebnissen für den Einsatz in Enterprise-LANs, Rechenzentren, PON- und Breitbandnetzen.
Der Wettbewerbsvorteil
Intuitive Bedienung: Mit einer einfach zu bedienenden Benutzeroberfläche auf Basis eines Farb-Touchscreens können Fasertechniker installierte Glasfaserinfrastrukturen schnell einrichten, testen, validieren und dokumentieren sowie Leistungswerte messen. Das FlowScout OPM8 misst die Pegel und bewertet diese automatisch anhand der vom Benutzer festgelegten Minimal- und Maximalgrenzen. Der große Farb-Touchscreen zeigt die erfassten Leistungswerte mit farbcodierten Pass/Fail-Anzeigen an.

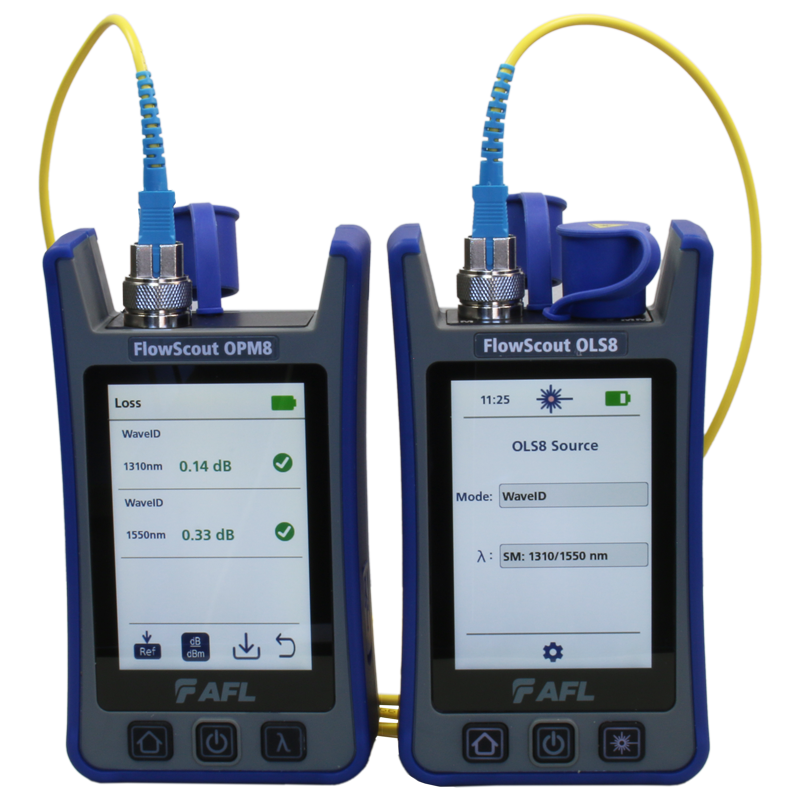

Wave ID für verkürzte Testzeiten und weniger Fehler: In Verbindung mit einer Wave ID Lichtquelle, wie dem FlowScout OLS8, synchronisiert sich das Leistungsmessgerät automatisch mit den Quellwellenlängen, wodurch die Testzeit verkürzt und Einstellfehler vermieden werden. Das Breitband-Leistungsmessgerät erkennt zudem automatisch die Anwesenheit von 270 Hz, 330 Hz, 1 kHz und 2 kHz Faser-Identifikationstönen und meldet diese.
Umfassende Berichtsoptionen: Gemessene Pegel, Pass/Fail-Grenzen und Status können im internen Speicher abgelegt und per USB heruntergeladen werden. Die Testergebnisse können anschließend für Analyse, Bearbeitung und Berichtserstellung mit der FlexReports-PC-Software hochgeladen werden.
Vielseitig und effizient: Robust, ergonomisch und unterstützt durch eine branchenführende 5-Jahres-Garantie ist das handliche FlowScout OPM8 das vielseitigste Leistungsmessgerät für Faserprüfungen. Eine Reihe austauschbarer Ausgangsadapater ermöglicht den Zugang zur Inspektion und Reinigung optischer Ports und unterstützt verschiedene Steckertypen. Ausgestattet mit wiederaufladbaren Batterien und einem Netzladegerät kann das FlowScout OPM8 auch während des Ladevorgangs betrieben werden.
Bestellinformationen
Das FlowScout OPM8 ist in zwei Modellen erhältlich:
- OPM8-L (Niedrigleistungsbereich: +10 bis -75 dBm)
- OPM8-H (Hochleistungsbereich: +26 bis -50 dBm)
Möchten Sie mehr erfahren? Sehen Sie sich das oben verlinkte Datenblatt an oder besuchen Sie unseren Buyers Guide für detaillierte Bestellinformationen.
