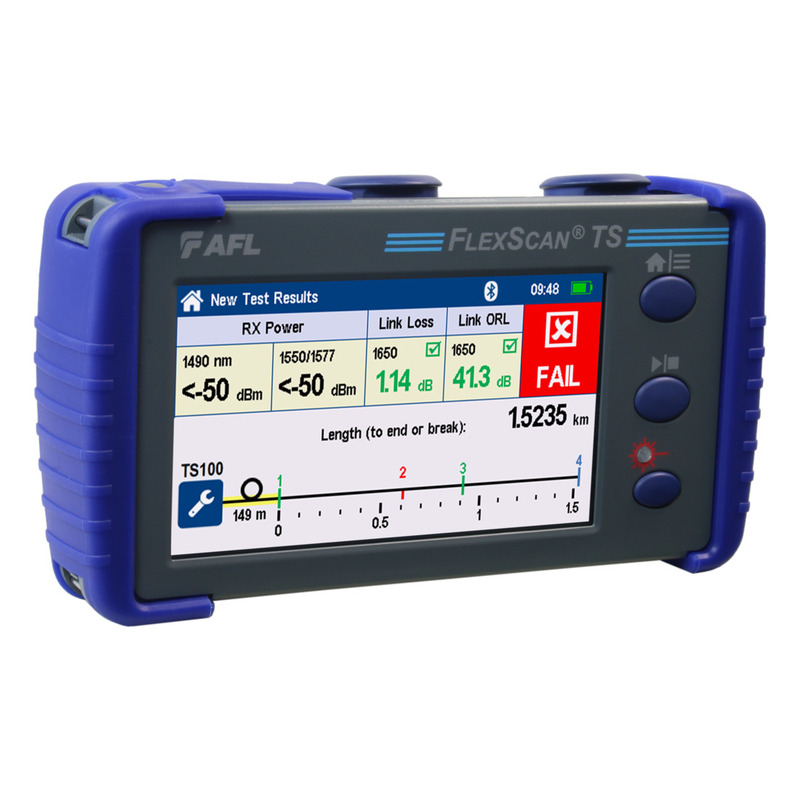

AFLglobal.com 1 (800) 235-3423 © 2021-2025, AFL, all rights reserved. TS100-00-2000 Revision AK 2025-07-25 Specifications are subject to change without notice. Test and Inspection FlexScan ® TS100 PON Troubleshooter 1 AFL’s FlexScan TS100 Optical Troubleshooter is an easy-to-use, all-in-one tool for detecting, identifying, locating, and resolving single-mode optical network issues. The TS100 has auto-configured settings to quickly measure received power, link length, loss, and ORL with the push of a button. The results are displayed using color-coded LinkMap ® icons for easy analysis. The FlexScan TS100 automates testing, shortens test time, interprets results, and recommends corrective actions, improving efficiency of frontline technicians and reducing costs. Diagnose your network in seconds: Just press Start and the TS100 immediately measures and displays received power levels when connected to a live GPON and/or 10G PON network. Within seconds, link length, loss, and ORL are displayed, along with faults exceeding industry or user-set pass/fail limits. The TS100 even recommends corrective actions based on test results making it easier for technicians to find and fix network problems. Requires minimal, if any, training: Designed primarily for field technicians activating and maintaining broadband access networks, the TS100 requires little training and no OTDR experience. SmartAuto ® auto-configures test settings and presents network test results in easy-to- understand, color-coded icons indicating passing or failing connections, splices, and splitters. OTDR and PON OPM test setups can also be saved and recalled to reduce repeated setup of common test configurations. All-in-one test capability: The FlexScan TS100 family includes options for integrated VFL, broadband and/or PON power meter, and light source capabilities. They can be easily paired to AFL’s FOCIS family of inspection scopes, ensuring technicians have everything they need to locate and quickly resolve optical network issues. Featuring automatic wavelength identification and synchronization, the light source and broadband power meter support AFL's Wave ID insertion loss testing. The units also generate and detect fiber-identifying tones. Designed for field use: FlexScan TS100 is small (3.5 x 6 x 1.75 in (86 x 160 x 43 mm)) and weighs less than a pound (0.4 kg). It has a bright indoor/outdoor touchscreen and rechargeable battery that lasts >12 hours for all-day operation. Multiple storing and reporting options: Results can be stored internally, saved to an external device via USB, or wirelessly uploaded via the free AFL's FlexApp for real-time reporting using the included FlexReports Test Results Manager software. Reports can also be viewed on FlexApp. Convenient cost-saving kits: Bundle the FlexScan TS100 with your choice of launch cable and FOCIS Flex connector inspection probe with adapter tips for significant cost-savings! Field-replaceable Optical Port Saver: With AFL's optional field-replaceable Optical Port Saver, avoid expensive service repairs to replace connector adapters damaged due to poor cleaning practices and/or normal wear-and-tear. Features • Locate faults in as fast as <3 seconds with the press of a button • Displays power and link length, loss, ORL, and pass/fail results • Single-ended test reduces time and cost • Rugged, lightweight, hand-held for field use • Available with field-replaceable connector adapter Applications • Troubleshoot PONs or Point-to-Point networks from one end • Diagnose faults exceeding industry or user pass/fail limits • Verify loss of PON splitters • Verify GPON, video and XG/XGS-PON or 10GEPON power levels • Verify insertion loss, TX output or RX input power levels • Pinpoint location and verify loss and reflectance of network events One-Touch Troubleshooting Flex Reporter ™ Software Suite Mobile App PC Software AFLglobal.com 1 (800) 235-3423 © 2021-2025, AFL, all rights reserved. TS100-00-2000 Revision AK 2025-07-25 Specifications are subject to change without notice. Test and Inspection FlexScan ® TS100 PON Troubleshooter 2 Verify RX Power, Link Length, Loss, and ORL in Seconds Link length, loss, and ORL are critical parameters to check when verifying optical networks. Within seconds of pressing Start, FlexScan TS100 options measure and report distance, loss, and ORL to the end of a Point-to-Point network or to the first splitter in a PON. Additionally, for an in-service PON, TS100 automatically detects and measures downstream power levels. Measurements of received power, link length, loss, and ORL may be compared to pass/fail limits to immediately identify any issues. Technicians can simply touch the failed measurement value to get information on why the measurement failed and what to do about it. Identifies & Locates Faults - Recommends Corrective Action TS100 automatically detects network events such as connectors, splices, and splitters. It displays these events with LinkMap ® easy-to-read, color-coded icons and enable users to quickly identify faults that require action. Touching each event icon displays its pass/fail status, location, loss, and reflectance as well as recommended corrective actions. More detail may be obtained by touching the measurement values for failing events. An event type can be changed if needed to another event type and the event analysis is repeated based on pass/fail limits of the new event type. FlexScan TS100 also supports OTDR and PON power meter test setups to be created, saved, transferred to other FlexScans, and recalled in the field, simplifying testing and avoiding user setup errors. Connectivity Results can be stored internally, saved to an external device via USB, or wirelessly uploaded via the free FlexApp to a smart device for real-time reporting using the included FlexReports Test Results Manager PC-based software. This real-time reporting can help avoid mistakes in the field that will require future truck rolls. FlexScan TS100 also pairs easily with AFL's award-winning FOCIS ® family of connector inspection probes for fast, easy one-button-push inspection of single-fiber and/or multi-fiber connector end-faces. Inspection data can be saved with TS100 results internally or transferred for archiving. PON Power Meter for GPON, Video, 10GPON FlexScan TS100-60/70 models include a broadband power meter and a downstream PON power meter, enabling users to immediately and independently verify 1490 nm GPON, 1550 nm video, and 1577 nm 10GPON (XG/XGS-PON or 10GEPON). FlexScan TS100-30 model includes a downstream PON power meter for verifying 1490 nm GPON and 1577 nm 10GPON (XG/XGS-PON or 10GEPON). The product family supports fiber-identifying tone generation and detection, as well as AFL's Wave ID insertion loss measurements. With Wave ID, the OPM auto-synchronizes to a single or multi- wavelength Wave ID optical signal transmitted by another FlexScan or AFL light source. The OPM reports detected wavelengths and measures loss at each wavelength, saving significant test time and eliminating setup errors. Flex Reporter ™ Software Suite Mobile App PC Software AFLglobal.com 1 (800) 235-3423 © 2021-2025, AFL, all rights reserved. TS100-00-2000 Revision AK 2025-07-25 Specifications are subject to change without notice. Test and Inspection FlexScan ® TS100 PON Troubleshooter 3 Specifications a FlexScan TS100-30/60/70 models support PON and Point-to-Point network troubleshooting at 1625/1650 nm and, depending the model, include optical light source (OLS), optical power meter (OPM), visual fault locator (VFL), internal results storage plus Bluetooth/Wi-Fi, & USB interfaces. VISUAL FAULT Locator - TS100-60/70 only Emitter Type Visible red laser, 650 ± 25 nm Output Power 1.5 mW (+2 dBm ± 0.5 dB) into single-mode fiber Safety Class b Class 3A / Class 3R Modes CW and 1 Hz flashing OPTICAL LASER SOURCE (OLS) - TS100-30/60/70 Emitter Type Laser Safety Class b Class I Fiber Type Compatible with all G.65x single-mode fiber Wavelengths (nm) TS100-30: 1625 nm, TS100-60/70: 1650 nm Center Tolerance (CW) ±20 nm Spectral Width (FWHM) ≤5 nm Internal Modulation 270, 330, 1000, 2000 Hz, TS110-60/70 only: CW, Wave ID Wave ID (TS100-60/70 only) Compatible with AFL's OLS/OPM Output Power Stability f ≤±0.5 dB Output Power > -5 dBm OPTICAL POWER METER (OPM) - TS100-30/60/70 Calibrated Wavelengths TS100-30: 1490, 1577 nm, TS100-60/70: 1270, 1310, 1490, 1550, 1577 nm Detector Type Filtered InGaAs (x2) Measurement Range +10 to -50 dBm Tone Detect Range +3 to -35 dBm; auto-detects 270, 330, 1k, 2k Hz WaveI ID Detect Range TS100-60/70 only: +3 to -35 dBm; auto-detects 1310/1550 Wave ID Accuracy ±0.5 dB at -10 dBm Loss Resolution 0.01 dB Measurement Units TS100-30: dBm, TS100-60/70: dB, dBm or Watts (nW, μW, mW) General - TS100-30/60/70 Size (in boot) 86 x 160 x 43 mm Weight 0.4 kg Operational Temperature g -10 oC to +50 oC, 0 to 95% RH (non-condensing) Storage Temperature -40 oC to +60 oC, 0 to 95% RH (non-condensing) Power Rechargeable Li-Pol or AC adapter Battery Life >12 hours, Telcordia test conditions Display 4.3 in color touchscreen LCD, 480x272, backlit USB Ports 1 host, 1 micro-USB function Bluetooth (optional, not available for TS100-30) Compatible with Windows PC, Android, iOS Notes: a. All specifications valid at 23 °C ± 3 °C unless otherwise specified. b. FDA 21 CFR 1040.10 & 1040.11, IEC 60825-1: 2014. c. Using 10 ns pulse width. d. Maximum link loss for which loss and distance to end or splitter can be reliably detected and measured. e. For a 5 km link with insertion loss ≤ 4 dB and reflectance ≥ -45 dB. Excludes uncertainty due to index of refraction. f. Applies when operating from battery with charge level >20%, or from AC when fully charged. g. Max temperature while charging is +45 °C . Splitter Support (TS100-70 only) Minimum Splitter Ratio 1:2 Fiber length before splitter (with minimum 150 m launch cable) 0 to 5 km Maximum fiber loss before splitter 2.5 dB MODEL TS100-30/60/70 FAULT LOCATOR Emitter Type Laser Safety Class b Class I Fiber Type Compatible with all G.65x single-mode fiber Wavelengths (nm) TS100-30: 1625 nm, TS100-60/70: 1650 nm Center Tolerance c ±20 nm Link Loss d TS100-30 ≤12 dB, TS100-60: ≤18 dB, TS100-70: ≤23 dB Test Through Splitter Up to 1:32 (TS100-70 only) Test Time To end or Splitter: TS100-30: ≤30 sec, TS100-60/70: ≤3 sec Through Splitter: ≤40 sec (TS100-70 only) Index of Refraction 1.3000 to 1.7000 Distance Resolution 0.1 m Distance Uncertainty e ±1.5 m Distance Units m, km, ft, kft, mi (user-selected) Loss Resolution 0.01 dB Linearity ±0.05 dB/dB Reflectance Resolution 0.1 dB Reflectance Accuracy ±2 dB (-20 to -50 dB) Results File Format Telcordia SR-4731 Issue 2 compatible .SOR Results Storage 4 GB internal memory (>5000 traces typical); External USB memory stick Data Transfer to PC USB cable or Bluetooth ® (option) Test Modes TS100-30: SmartAuto Fault Locate, OPM, Inspection TS100-60/70: SmartAuto-FleXpress ® Fault Locate, OLS/OPM, Inspection Live Fiber Protection No TS100 damage with input power ≤ +15 dBm for wavelength(s) in range 1260 to 1675 nm Live Fiber Detection Reports live fiber with input signal ≥ -35 dBm for wavelength(s) in range 1260 to 1675 nm PON Filter Isolation >50 dB for 1260 nm ≤ wavelength ≤1600 nm Live PON TS100 Test TS100-30: 1625 nm filtered detector TS100-60/70: 1650 nm filtered detector AFLglobal.com 1 (800) 235-3423 © 2021-2025, AFL, all rights reserved. TS100-00-2000 Revision AK 2025-07-25 Specifications are subject to change without notice. Test and Inspection FlexScan ® TS100 PON Troubleshooter 4 FlexScan TS100 Kit Configurations All kits include selected FlexScan TS100 with AC charger, battery, carry strap, SC/2.5 mm connector adapters, FlexReports, USB cable, and soft carry case. PLUS kits add a 150 m fiber ring, One-Click cleaner, and upgrade to FlexReports Advanced software. PRO kits add a FOCIS ® Flex auto- focusing connector inspection probe with IEC pass/fail analysis and two adapter tips. TS100s are manufactured with APC connectors. [TIP] b FOCIS Flex Tips & Cleaning (PRO only) Blank Option not available in Basic and PLUS kits SC SC-UPC bulkhead tip, 2.5 mm UPC ferrule tip, 2.5 mm One-Click FC FC-UPC bulkhead tip, 2.5 mm UPC ferrule tip, 2.5 mm One-Click LC LC-UPC bulkhead tip, 1.25 mm UPC ferrule tip, 1.25 mm One-Click ASC SC-APC bulkhead tip, 2.5 mm APC ferrule tip, 2.5 mm One-Click AFC FC-APC bulkhead tip, 2.5 mm APC ferrule tip, 2.5 mm One-Click ALC LC-APC bulkhead tip, 1.25 mm APC ferrule tip, 1.25 mm One-Click [MOD] TS100 Configuration 30 1625 nm filtered Live PON Troubleshooter; Test to Splitter 60 1650 nm filtered Live PON Troubleshooter; Test to Splitter 70 1650 nm filtered Live PON Troubleshooter; Test through Splitter [KIT] TS100 Kit Configuration/Kit Contents BAS Includes: TS100, soft case, FlexReports Basic, USB cable a PLUS Includes: BAS kit plus 150 m fiber ring, One-Click, FlexReports Advanced PRO Includes: PLUS kit plus FOCIS Flex with 2 adapter tips [Pn] Power Meter Option P2 TS100-60/70: Broadband power meter plus dual-wavelength PON power meter for GPON / Video / XG/XGS/10GE PON P3 Dual-Wavelength PON power meter for GPON / XG/XGS-PON [Wn] Bluetooth and Wi-Fi c Wireless Option W0 Disabled W1 Installed and enabled [AC] Destination Country AC Plugs US USA 2-pin, US EU European Union 2-pin, EU UK United Kingdom 3-pin, UK CN China, Australia 2-pin, SAA [LNG] Language ENG English CHS Chinese Simplified CHT Chinese Traditional CZE Czech DEU German DNK Danish FIN Finnish FRA French [LNG] Language ITA Italian JPN Japanese KOR Korean NOR Norwegian POL Polish POR Portuguese SPA Spanish TUR Turkish Ordering Information TS100-[MOD]-[KIT]-[Pn]-[Wn]-[LNG]-[AC]-[FR]-[TIP] where: Notes: a. Results can be transferred from FlexScan to FlexReports using USB cable, or uploaded via Bluetooth using FlexApp downloaded from 'Google play' or 'App Store'. b. For additional FOCIS Flex adapter tips, see the FOCIS Flex specification sheet or Buyer’s Guide. c. Wi-Fi not available for TS100-30. [FR1] 150 m SMF Fiber Ring Absent N/A in Basic kits ASC/USC FR-SMF-150-ASC-USC ASC/UFC FR-SMF-150-ASC-UFC ASC/ULC FR-SMF-150-ASC-ULC ASC/UST FR-SMF-150-ASC-UST ASC/ASC FR-SMF-150-ASC-ASC ASC/ALC FR-SMF-150-ASC-ALC AFLglobal.com 1 (800) 235-3423 © 2021-2025, AFL, all rights reserved. TS100-00-2000 Revision AK 2025-07-25 Specifications are subject to change without notice. Test and Inspection FlexScan ® TS100 PON Troubleshooter 5 Ordering Information Accessories AFL NO. Description 1400-05-0230PZ FlexScan wrist strap 1400-05-0231PZ FlexScan neck strap, 36” 4050-00-0931PR AC charger 100-240 VAC to 5 VDC 1400-01-0111PZ Soft carry case for TS100 kits with FOCIS Flex and Fiber Ring 1400-01-0128PZ Soft carry case for TS100 kits with FOCIS Flex, OFI-BIPMe and Fiber Ring 1400-01-0134PZ Hard carry case for TS100 kits with FOCIS Flex, OFI-BIPMe and Fiber Ring 1400-21-0004PZ Glove case with neck strap and carabiner 4050-00-0033MR Vehicle charger, 12VDC to 5VDC @2A 6000-00-0031MR Cable, USB-micro B, 5 pin, 6' 6000-00-0034PR 5V USB charging cable (1.5 m), type A to barrel (0.9 X 3.2 X 9 mm) Cleaning Supplies One-Clicks, fluid, wipes, etc. See www.AFLglobal.com Optical Port Saver Protect your FlexScan TS100 Troubleshooter ports from damage due to matin g with dirty or damaged launch cables or patch cords or normal wear-and-tear. Equip your FlexScan TS100 with a field-replaceable Optical Port Saver, which installs in seconds and accepts AFL’s tool-free interchangeable SC, LC, FC and ST con necto r adapters. Replace damaged port savers in the field - When normal wear-and-tear or poor cleaning practices damage the port saver’s end-face, replace it in seconds without having to return the troubleshooter to a service center for an expensive and time-consuming repair. AFL NO. Description 2900-58-0001MR Optical Port Saver; APC female to APC male 2900-58-0002MR Optical Port Saver; APC female to UPC male 2900-58-0003MR Optical Port Saver, UPC female to APC male 2900-58-0004MR Optical Port Saver; UPC female to UPC male Connector Adapters AFL NO. Connector Adapter OTDR/OLS Port OPM Port VFL Port 2900-50-0002MR 2900-52-0001MR N/A FC 2900-50-0003MR 2900-52-0002MR N/A SC 2900-50-0004MR 2900-52-0003MR N/A ST 2900-50-0006MR 2900-52-0004MR N/A LC 2900-50-0011MR N/A N/A SC/APC N/A 2900-52-0005MR 2900-50-0007MR 2.5 mm Universal N/A 2900-52-0006MR 2900-50-0010MR 1.25 mm Universal AFLglobal.com 1 (800) 235-3423 © 2021-2025, AFL, all rights reserved. TS100-00-2000 Revision AK 2025-07-25 Specifications are subject to change without notice. Test and Inspection FlexScan ® TS100 PON Troubleshooter 6 Qualificati ons Category Regulation/Standard Qualification CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking Safety/EMC/EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment Telcordia Compliant to GR-196-CORE 4.5.1 for requirements on electromagnetic interference FCC Compliant to code of federal regulations FCC 47 CFR 15 on unlicensed transmissions FDA Compliant to code of federal regulations FDA 21 CFR 1040.10 and 1040.11 on laser products IEC Compliant to IEC 60825-1 for safety of laser products RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method TIA Compliant to TIA-568.3-D for test and measurement requirements for premises optical fiber cabling and components IEC Compliant to IEC 11801 for test and measurement requirements for optical fiber cabling for use within premises AS/NZS Compliant to AS/NZS 3080 for test and measurement requirements for optical fiber cabling for use within premises TIA Compliant to TIA-526-7 for test procedures for installed optical fiber cable plant TIA Compliant to TIA-526-14 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 14763-3 for systems and methods for the inspection and testing of installed optical fiber cabling AS/NZS Compliant to AS/NZS 14763.3 for systems and methods for the inspection and testing of installed optical fiber cabling IEC Compliant to IEC 61280-4-1 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 61280-4-2 for test procedures for installed optical fiber cable plant Generic Requirement Telcordia Compliant to GR-196-CORE for generic requirements for OTDR-type equipment Telcordia Compliant to SR-4731 Issue 2 for OTDR data format IEC Compliant to IEC 61746-1 for requirements on calibration of OTDR Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about FlexScan TS100 Troubleshooters. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts Recommended Products FOCIS Flex and FOCIS Lightning2 Connector Inspection • Self-contained, tether-free, hand-held inspection solution • Auto-focus and auto-centering for fast, easy inspection • IEC, IPC and user-defined pass/fail analysis • FOCIS Lightning: extremely fast multi-fiber auto-analysis for datacom and telecom inspection applications OFI-BIPMe Optical Fiber Identifier • World class signal sensitivity • Trigger lock, positive stop for optimum detection • Integrated optical power meter option Test Management and Reporting Software AFL NO. Description RPTS-AD-USB-1 FlexReports Advanced, one seat license on USB RPTS-UP-TRM3-1 FLexReports Advanced, one seat, Upgrade from TRM ® 3 Advanced on USB. Users must have TRM-3 Advanced license FlexReports Basic FlexReports Basic, available for download on AFL Software Resources website FlexApp FlexApp data transfer mobile App, available on Google Play and Apple App Storee
