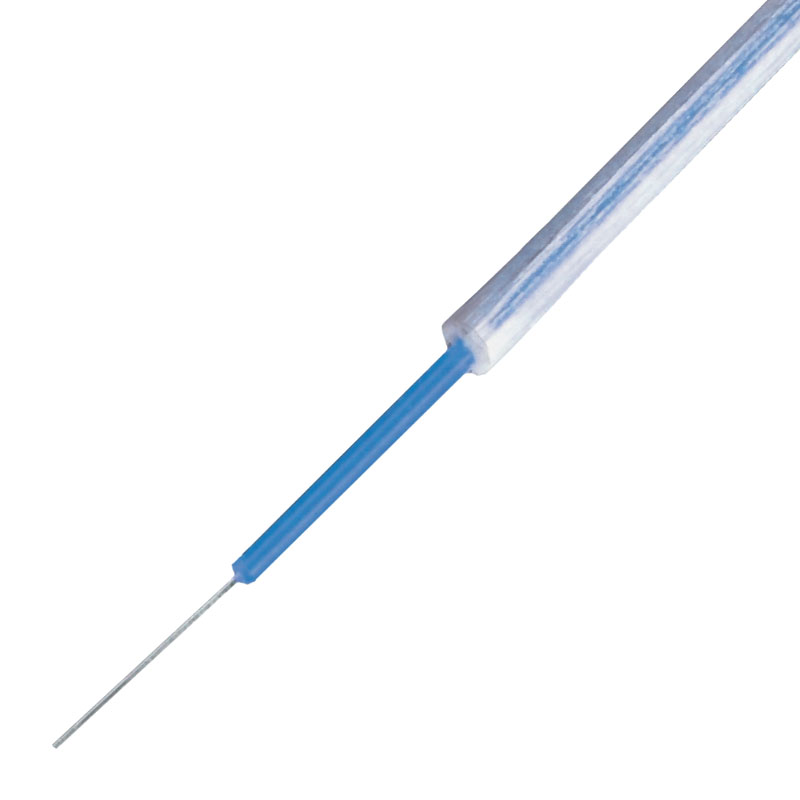

La varilla de fibra de AFL toma una fibra óptica de la elección del cliente y la encierra en una matriz reforzada de vidrio.
08bb2cacea4e4a2fb5beb428b0dbdd15
1 SPECIALTY FIBER OPTIC CABLE Specialty Fiber Optic Cable © 2008, AFL, all rights reserved. PP-1-00075, Revision 5, 2.4.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Fiber Rod Cable Components AFL’s Fiber Rod takes an optical fiber of the customer’s choice and encases it in a glass re-enforced matrix. The diameter of the structure is adjusted to provide the characteristics needed for the specific application. The performance of the optical fiber is retained in this structure providing for a very ruggedized fiber suitable for many harsh applications. Fiber Rod is best suited for high tensile or compressive requirements where the glass structure provides the rigidity to protect the optical fiber from harm. Additionally, AFL’s Fiber Rod does not exhibit the typical curvature coming off the payoff reel like that of most cables. This makes deployments in applications such as pipelines and oil wells simpler. Applications such as strain sensing and temperature sensing in a host of environments up to 200°C are ideal for this product. Specifications PARAMETER VALUE OD ( mm ) ID ( mm ) TOLERANCE (+/- mm ) 85°C Version Optical Fiber 0.125 n/a 0.001 Coating (Silicone PFA) 0.700 0.125 0.100 Features/Options • Strength – Variable as glass matrix diameter can be increased which increases strength • Bend Diameter – 50x the outer diameter • Temperature Performance – Standard is 85°C • Ruggedized Option – Product can be jacketed with various polymers such as PVDF, Hytrel, Polyethylene, Nylon, PVC, Fire Retardant PE, Polyurethane and others • Available in lengths of up to 6 kilometers
Características:
- Resistencia - Variable, ya que se puede aumentar el diámetro de la matriz de vidrio, lo que aumenta la resistencia
- Diámetro de curvatura - 50 veces el diámetro exterior
- Rendimiento de temperatura - El estándar es 100° C (200°C opcional)
- Opción reforzada - El producto puede revestirse con varios polímeros como PVDF, Hytrel, polietileno, nylon, PVC, PE ignífugo, poliuretano y otros.
- Disponible en longitudes de hasta 6 kilómetros
