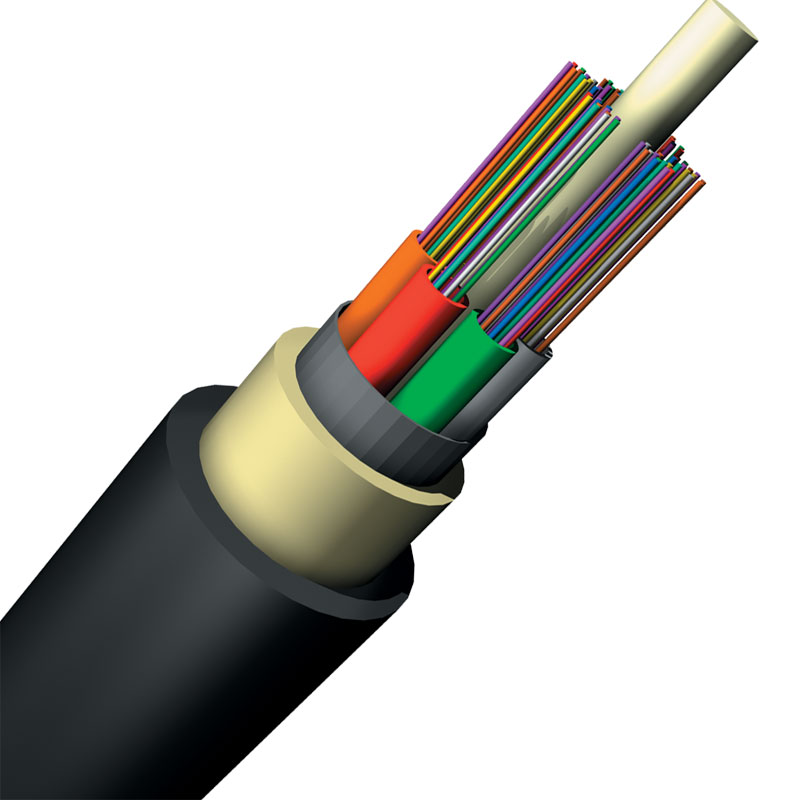

El tubo suelto trenzado para interior/exterior combina las robustas características mecánicas y ambientales de un cable de planta exterior con la flexibilidad de un cable de planta interior.
dc24722908d0463199b163190960fb47
1 © 2002, AFL, all rights reserved. P P -1-00010, Revision 11, 9.27.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Fiber Optic Cable Fiber Optic Cable Applications • Underground Duct • Long Haul Networking • Building Interconnections (Campus LAN) • Trunking Lines Direct to Telecommunications Closet • Local Loop • Intrabuilding Backbones • Distance Learning Features • Fiber counts up to 144 • Compact design • Gel-filled or gel-free tubes are reverse-oscillated (SZ stranded) to allow slack for mid-span access continued LV-Series Indoor/Outdoor Riser Loose Tube – Single Jacket Indoor/outdoor stranded loose tube combines the robust mechanical and environmental characteristics of an outside plant cable with the flexibility of an inside plant riser cable. By installing an indoor/outdoor stranded loose tube, splice locations entering into a building are avoided, being routed directly from the outside plant to telecommunications closets, or main distribution frames (MDF) through the riser of a building and eliminating the “50-foot rule.” Indoor/Outdoor Stranded Design loose tube cable is moisture and U.V. resistant and is SZ stranded to allow slack for mid-span access. Typical Lengths MAXIMUM LENGTHS* FIBER COUNT SINGLE-MODE MULTIMODE feet meters feet meters 6-144 22,900 7,000 22,900 7,000 * Longer lengths may be available. PVC jacket Strength elements Binder Water blocking system FRP central member Optical fiber Rip cord Loose buffer tube (gel-filled or gel-free) Cable Components Fiber Specifications CORE SIZE/FIBER TYPE AFL FIBER IDENTIFIER ISO/IEC MAXIMUM ATTENUATION ( dB/km ) OVERFILL LAUNCH MIN. BANDWIDTH ( MHz•km ) GIGABIT ETHERNET MAX. LINK DISTANCE ( meters ) 850 nm 1300 nm 1310 nm 1550 nm 850 nm 1300 nm 850 nm 1300 nm 62.5/125 GIGA-Link ™ 300 6 OM1 3.5 1.2 N/A N/A 200 600 300 550 50/125 GIGA-Link ™ 600 5 OM2 3.5 1.5 N/A N/A 500 500 600 600 50/125 Laser-Link ™ 300 L OM3 3.0 1.2 N/A N/A 1500 500 1000 550 50/125 Laser-Link ™ 300 C OM4 3.0 1.2 N/A N/A 3500 500 1040 550 Single-mode (ITU G.652.D/G.657.A1) 9 OS2 N/A N/A 0.35 0.25 N/A N/A N/A N/A Corning Single-mode (ITU G.652.D/G.657.A1 AZ OS2 N/A N/A 0.35 0.25 N/A N/A N/A N/A Gigabit Ethernet Minimum Link Distances are based on “bandwidth”/modal dispersion constraints. Actual link distances may be constrained by attenuation, depending on specific loss budget.
© 2002, AFL, all rights reserved. PP-1-00010, Revision 11, 9.27.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Fiber Optic Cable Fiber Optic Cable Temperature Specifications TEMPERATURE RANGE OPERATION -40 ° C to +70°C STORAGE -40°C to +70°C INSTALLATION -30°C to +70°C Contact AFL for your customized cable solution. Qualifications GOVERNING BODY STANDARD CODE COMPONENT Telcordia GR-20-CORE Cable UL 1666 (OFNR) Cable ICEA S-104-696 Cable CSA 22.2 (FT4) Cable TIA 598-D Fiber Ordering Information AFL NO. FIBER COUNT NUMBER OF TUBES/FIBERS NOMINAL DIAMETER NOMINAL WEIGHT MAXIMUM TENSILE LOAD MINIMUM BEND RADIUS lbs (N) inches (cm) inches (mm) lbs/1,000 ft (kg/km) SHORT TERM LONG TERM SHORT TERM LONG TERM GEL-FILLED LV012 C5101N1 12 1w/12 (4 fillers) 0.51 (12.9) 108 (160) 600 (2700) 200 (890) 10.2 (26) 7.7 (20) LV024 C5101N1 24 2w/12 (3 fillers) 0.51 (12.9) 108 (161) 600 (2700) 200 (890) 10.2 (26) 7.7 (20) LV036 C5101N1 36 3w/12 (2 fillers) 0.51 (12.9) 109 (162) 600 (2700) 200 (890) 10.2 (26) 7.7 (20) LV048 C5101N1 48 4w/12 (1 filler) 0.51 (12.9) 110 (164) 600 (2700) 200 (890) 10.2 (26) 7.7 (20) LV060 C5101N1 60 5w/12 (No fillers) 0.51 (12.9) 111 (165) 600 (2700) 200 (890) 10.2 (26) 7.7 (20) LV072 C6101N1 72 6w/12 (No fillers) 0.54 (13.7) 128 (190) 600 (2700) 200 (890) 10.8 (28) 8.1 (21) LV096 C8101N1 96 8w/12 (No fillers) 0.61 (15.5) 159 (237) 600 (2700) 200 (890) 12.2 (31) 9.2 (24) LV144 CC101N1 144 12w/12 (No fillers) 0.76 (19.3) 243 (361) 600 (2700) 200 (890) 15.2 (39) 11.4 (29) LV-Series Indoor/Outdoor Riser Loose Tube – Single Jacket Reel Information ITEM REEL A REEL B REEL C REEL D REEL E inches cm inches cm inches cm inches cm inches cm Reel Height 42 106.7 58 147.3 66 167.6 72 182.8 84 213.4 Reel Width Outside 36 91.4 38 96.5 42 106.7 42 106.7 40 101.6 Reel Width Inside 32 81.6 32 81.3 36 91.4 36 91.4 34 86.4 Drum Diameter 23 58.7 28 71.1 36 91.4 36 91.4 35 88.9 Arbor Hole Diameter 3 7.9 3 7.9 3 7.9 3 7.9 3 7.9 Reel Weight With Lagging 180 lbs 82 kg 420 lbs 191 kg 685 lbs 311 kg 710 lbs 320 kg 950 lbs 431 kg AFL typically provides Loose Tube cable on several standard sizes of non-returnable wooden reels. Non-standard reel sizes are available upon request. Larger reel sizes may be required to accommodate long cable lengths. GEL-FREE LV012 C5101N1D 12 1/12 (4 fillers) 0.48 (12.3) 100 (148) 600 (2670) 180 (800) 9.7 (25) 7.2 (19) LV024 C5101N1D 24 2/12 (3 fillers) 0.48 (12.3) 99 (146) 600 (2670) 180 (800) 9.7 (25) 7.2 (19) LV036 C5101N1D 36 3/12 (2 fillers) 0.48 (12.3) 99 (147) 600 (2670) 180 (800) 9.7 (25) 7.2 (19) LV048 C5101N1D 48 4/12 (1 filler) 0.48 (12.3) 99 (147) 600 (2670) 180 (800) 9.7 (25) 7.2 (19) LV060 C5101N1D 60 5/12 (no fillers) 0.48 (12.3) 98 (146) 600 (2670) 180 (800) 9.7 (25) 7.2 (19) LV072 C6101N1D 72 6/12 (no fillers) 0.52 (13.1) 103 (154) 600 (2670) 180 (800) 10.3 (26) 7.8 (20) LV096 C8101N1D 96 8/12 (no fillers) 0.58 (14.7) 138 (205) 600 (2670) 180 (800) 11.6 (29) 8.7 (23) LV144 CC101N1D 144 12/12 (no fillers) 0.72 (18.2) 198 (295) 600 (2670) 180 (800) 14.3 (37) 10.8 (28) Note: Diameter and weight subject to change without notice Fiber Types – Replace asterisk ( ) in AFL number with AFL Fiber Identifier in the Fiber Specifications table on previous page.
Características:
- Recuento de fibras de hasta 144
- Diseño compacto
- Los tubos rellenos de gel o sin gel son de oscilación inversa (trenzado SZ) para permitir la holgura para el acceso a mitad del tramo
Aplicaciones:
- Conducto subterráneo
- Redes de largo recorrido
- Interconexiones de edificios (LAN de campus)
- Líneas troncales directas al armario de telecomunicaciones
- Bucle local
- Redes troncales dentro de los edificios
- Aprendizaje a distancia
El tubo suelto trenzado para interior/exterior combina las robustas características mecánicas y ambientales de un cable de planta exterior con la flexibilidad de un cable de planta interior. Al instalar un tubo suelto trenzado interior/exterior, se evitan las ubicaciones de empalme que entran en un edificio, dirigiéndose directamente desde la planta exterior a los armarios de telecomunicaciones, o a los cuadros de distribución principal (MDF) a través del tubo vertical de un edificio y eliminando la regla de los 50 pies de “.” El cable de tubo suelto de diseño interior/exterior es resistente a la humedad y a los rayos U.V. y está trenzado en SZ para permitir la holgura para el acceso a mitad del tramo, está catalogado para su uso en OFNR según las normas UL y puede utilizarse tanto en aplicaciones de conductos como en aplicaciones trenzadas.
