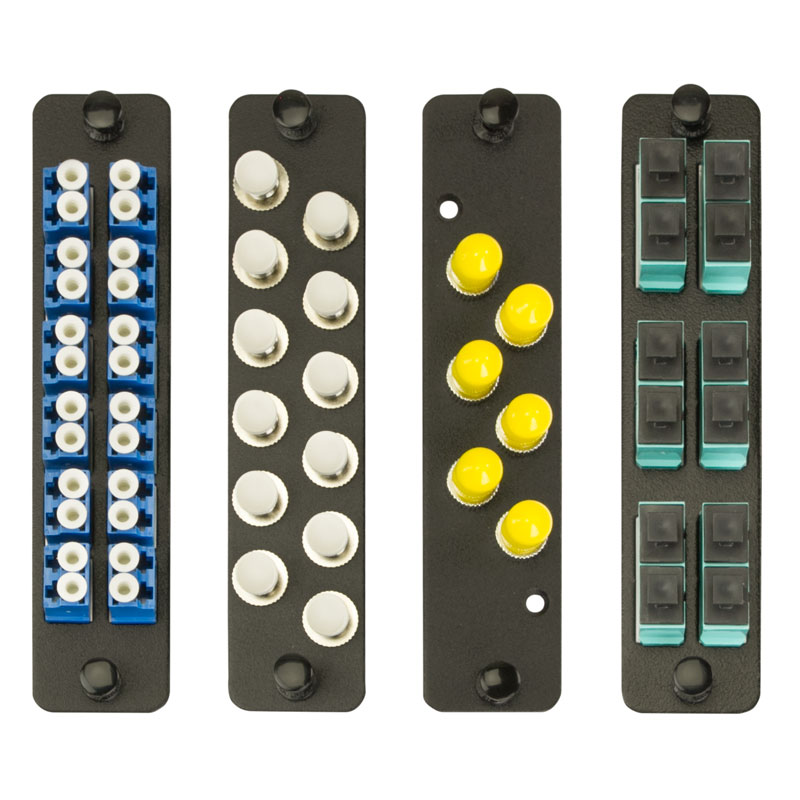

Las placas adaptadoras AFL son el componente básico de nuestra cartera de productos de gestión de la fibra. Están disponibles en multitud de configuraciones diferentes, y sirven como punto de interfaz principal en un panel de conexiones.
5a58e2742c064c19b481da738da84bfc
1 AFLglobal.com 1 (800) 866-7385 © 2010, AFL, all rights reserved. PP-2-00169, Revision 10, 3.28.2025 Speci cations are subject to change without notice. Optical Connectivity 1 Features • Metal Plate with Nylatches • Polyurethane powder coated (white or black) • LGX ® compatible LightLink Adapter Plates LightLink Adapter Plates add versatility to AFL’s panel product line. Adapter plates are compatible with industry standard platforms allowing for easy upgrades to existing panels. Adapter Plates come preloaded with adapters and are available in 6, 8, 12 and 24 pack versions for single-fiber adapters. Higher fiber counts are achievable with multi-fiber adapters. Blank plates are also available for unused space in panels. LGX is a registered trademark of Furukawa Electric North America, Inc. Ordering Information AFL No. Adapter Type Simplex/Duplex/Quad Adapter Color Fiber Count Plate Height Plate Color Blank FM003072 BLANK BLANK NA 0 LGX (118) BLACK FM003462 BLANK BLANK NA 0 LGX (118) WHITE FM000343 BLANK BLANK NA 0 LGX (118) SMOOTH BLACK FM003434 BLANK BLANK NA 0 LGX (170) BLACK FM003433 BLANK BLANK NA 0 LGX (170) WHITE SC FM003295 SC DUPLEX AQUA 12F LGX (118) BLACK FM002272 SC DUPLEX AQUA 12F LGX (118) WHITE FM003293 SC DUPLEX BEIGE 12F LGX (118) BLACK FM002273 SC DUPLEX BEIGE 12F LGX (118) WHITE FM003301 SC DUPLEX BLACK 12F LGX (118) BLACK FM003297 SC DUPLEX BLUE 12F LGX (118) BLACK FM002271 SC DUPLEX BLUE 12F LGX (118) WHITE FM002633 SC DUPLEX GREEN 12F LGX (118) BLACK FM002634 SC DUPLEX GREEN 12F LGX (118) WHITE FM000149 SC DUPLEX BEIGE 12F LGX (170) WHITE FM000148 SC DUPLEX BEIGE 12F LGX (170) BLACK FM000144 SC DUPLEX BLUE 12F LGX (170) BLACK FM000145 SC DUPLEX BLUE 12F LGX (170) WHITE FM000152 SC DUPLEX GREEN 12F LGX (170) BLACK FM000153 SC DUPLEX GREEN 12F LGX (170) WHITE FM003287 SC DUPLEX AQUA 6F LGX (118) BLACK FM003285 SC DUPLEX BEIGE 6F LGX (118) BLACK FM003398 SC DUPLEX BEIGE 6F LGX (118) WHITE FM003299 SC DUPLEX BLACK 6F LGX (118) BLACK FM003289 SC DUPLEX BLUE 6F LGX (118) BLACK FM003458 SC DUPLEX BLUE 6F LGX (118) WHITE FM003283 SC DUPLEX GREEN 6F LGX (118) BLACK FM000115 SC DUPLEX GREEN 6F LGX (118) WHITE LC FC ST SC Dimension A 118 mm LGX ® 170 mm LGX ® Specifications
2 AFLglobal.com 1 (800) 866-7385 © 2010, AFL, all rights reserved. PP-2-00169, Revision 10, 3.28.2025 Speci cations are subject to change without notice. Optical Connectivity 2 LightLink Adapter Plates Ordering Information (cont.) AFL No. Adapter Type Simplex/Duplex/Quad Adapter Color Fiber Count Plate Height Plate Color SC FM003120 SC SIMPLEX AQUA 12F LGX (118) BLACK FM003118 SC SIMPLEX BEIGE 12F LGX (118) BLACK FM003242 SC SIMPLEX BLACK 12F LGX (118) BLACK FM003122 SC SIMPLEX BLUE 12F LGX (118) BLACK FM002842-TW SC SIMPLEX BLUE 12F LGX (118) WHITE FM003116 SC SIMPLEX GREEN 12F LGX (118) BLACK FM000800-TW SC SIMPLEX GREEN 12F LGX (118) WHITE FM003411 SC SIMPLEX BEIGE 12F LGX (170) WHITE FM003409 SC SIMPLEX BLUE 12F LGX (170) BLACK FM003407 SC SIMPLEX BLUE 12F LGX (170) WHITE FM003414 SC SIMPLEX GREEN 12F LGX (170) BLACK FM003455 SC SIMPLEX GREEN 12F LGX (170) WHITE FM003098 SC SIMPLEX AQUA 6F LGX (118) BLACK FM003096 SC SIMPLEX BEIGE 6F LGX (118) BLACK FM003403 SC SIMPLEX BEIGE 6F LGX (118) WHITE FM003238 SC SIMPLEX BLACK 6F LGX (118) BLACK FM003100 SC SIMPLEX BLUE 6F LGX (118) BLACK FM003467 SC SIMPLEX BLUE 6F LGX (118) WHITE FM003094 SC SIMPLEX GREEN 6F LGX (118) BLACK FM000480 SC SIMPLEX GREEN 6F LGX (118) WHITE FM000156 SC SIMPLEX BLUE 8F LGX (118) BLACK FM003435 SC SIMPLEX BLUE 8F LGX (118) WHITE FM002841 SC SIMPLEX GREEN 8F LGX (118) BLACK FM000158 SC SIMPLEX GREEN 8F LGX (118) WHITE LC FM001004 LC DUPLEX GREEN 12F LGX (118) WHITE FM001303 LC DUPLEX AQUA 12F LGX (118) WHITE FM003108 LC DUPLEX GREEN 12F LGX (118) BLACK FM003110 LC DUPLEX BEIGE 12F LGX (118) BLACK FM003112 LC DUPLEX AQUA 12F LGX (118) BLACK FM001185 LC QUAD AQUA 12F LGX (118) BLACK FM000297 LC DUPLEX BLUE 12F LGX (170) WHITE FM000298 LC DUPLEX BLUE 12F LGX (170) BLACK FM000301 LC DUPLEX GREEN 12F LGX (170) WHITE FM000302 LC DUPLEX GREEN 12F LGX (170) BLACK FM000838 LC DUPLEX BLUE 24F LGX (118) WHITE FM000851 LC DUPLEX BEIGE 24F LGX (118) WHITE FM000853 LC DUPLEX AQUA 24F LGX (118) WHITE FM003069 LC DUPLEX GREEN 24F LGX (118) WHITE FM001184 LC QUAD AQUA 24F LGX (118) BLACK FM000129 LC DUPLEX BLUE 24F LGX (170) WHITE FM000130 LC DUPLEX BLUE 24F LGX (170) BLACK FM000338 LC DUPLEX GREEN 24F LGX (170) WHITE FM000339 LC DUPLEX GREEN 24F LGX (170) BLACK FM000348 LC DUPLEX BEIGE 24F LGX (170) WHITE FM000349 LC DUPLEX BEIGE 24F LGX (170) BLACK FM000289 LC DUPLEX BLUE 6F LGX (118) WHITE FM000293 LC DUPLEX GREEN 6F LGX (118) WHITE FM000294 LC DUPLEX GREEN 6F LGX (118) BLACK FM003092 LC DUPLEX BLUE 6F LGX (118) BLACK FM003429 LC DUPLEX BEIGE 6F LGX (118) WHITE FM004252 LC DUPLEX AQUA 6F LGX (118) BLACK
3 AFLglobal.com 1 (800) 866-7385 © 2010, AFL, all rights reserved. PP-2-00169, Revision 10, 3.28.2025 Speci cations are subject to change without notice. Optical Connectivity 3 LightLink Adapter Plates Ordering Information (cont.) AFL No. Adapter Type Simplex/Duplex/Quad Adapter Color Fiber Count Plate Height Plate Color LC FM003240 LC DUPLEX BLACK 12F LGX (118) BLACK FM003425 LC DUPLEX BLUE 12F LGX (118) WHITE FM003465 LC DUPLEX BLUE 12F LGX (118) BLACK FM003202 LC DUPLEX GREEN 24F LGX (118) BLACK FM003204 LC DUPLEX BEIGE 24F LGX (118) BLACK FM003206 LC DUPLEX AQUA 24F LGX (118) BLACK FM003208 LC DUPLEX BLUE 24F LGX (118) BLACK FM003244 LC DUPLEX BLACK 24F LGX (118) BLACK ST FM003126 ST SIMPLEX METAL SM/MM 12F LGX (118) BLACK FM003456 ST SIMPLEX METAL SM/MM 12F LGX (118) WHITE FM000286 ST SIMPLEX METAL SM/MM 12F LGX (170) BLACK FM000285 ST SIMPLEX METAL SM/MM 12F LGX (170) WHITE FM003104 ST SIMPLEX METAL SM/MM 6F LGX (118) BLACK FM003422 ST SIMPLEX METAL SM/MM 6F LGX (118) WHITE FM003102 ST SIMPLEX METAL SM/MM 6F LGX (118) BLACK FM003441 ST SIMPLEX METAL SM/MM 8F LGX (118) BLACK FM003439 ST SIMPLEX METAL SM/MM 8F LGX (118) WHITE FC FM000284 FC SIMPLEX METAL 12F LGX (118) BLACK FM000283 FC SIMPLEX METAL 12F LGX (118) WHITE FM003447 FC SIMPLEX METAL 12F LGX (170) BLACK FM003446 FC SIMPLEX METAL 12F LGX (170) WHITE FM003420 FC SIMPLEX METAL, GREEN DUST CAP 6F LGX (118) BLACK FM003419 FC SIMPLEX METAL, GREEN DUST CAP 6F LGX (118) WHITE FM003443 FC SIMPLEX METAL 8F LGX (118) BLACK FM003442 FC SIMPLEX METAL 8F LGX (118) WHITE MISC FM003430 MTP SIMPLEX BLACK 36F LGX (118) BLACK FM003437 SC-ST HYBRID SIMPLEX BLUE-METAL 6F LGX (118) WHITE FM001606 MTP SIMPLEX BLACK 72F LGX (118) BLACK FM003005 MTP SIMPLEX BLACK 96F LGX (118) BLACK
Características:
- Placa metálica con pestillos
- Recubrimiento de polvo de poliuretano (blanco o negro)
- LGX®
compatible
Aplicaciones:
- Carcasas de conectores compatibles con LGX
- Carcasas de montaje en pared
- Armarios de montaje en rack
- Armarios de planta exterior
Las placas adaptadoras AFL añaden versatilidad a la línea de productos de paneles AFL'. Las placas adaptadoras son compatibles con las plataformas estándar del sector, lo que permite actualizar fácilmente los paneles existentes. Las placas adaptadoras vienen precargadas y están disponibles en versiones de 6, 8 y 12 paquetes, y están disponibles en prácticamente cualquier configuración de adaptador.
