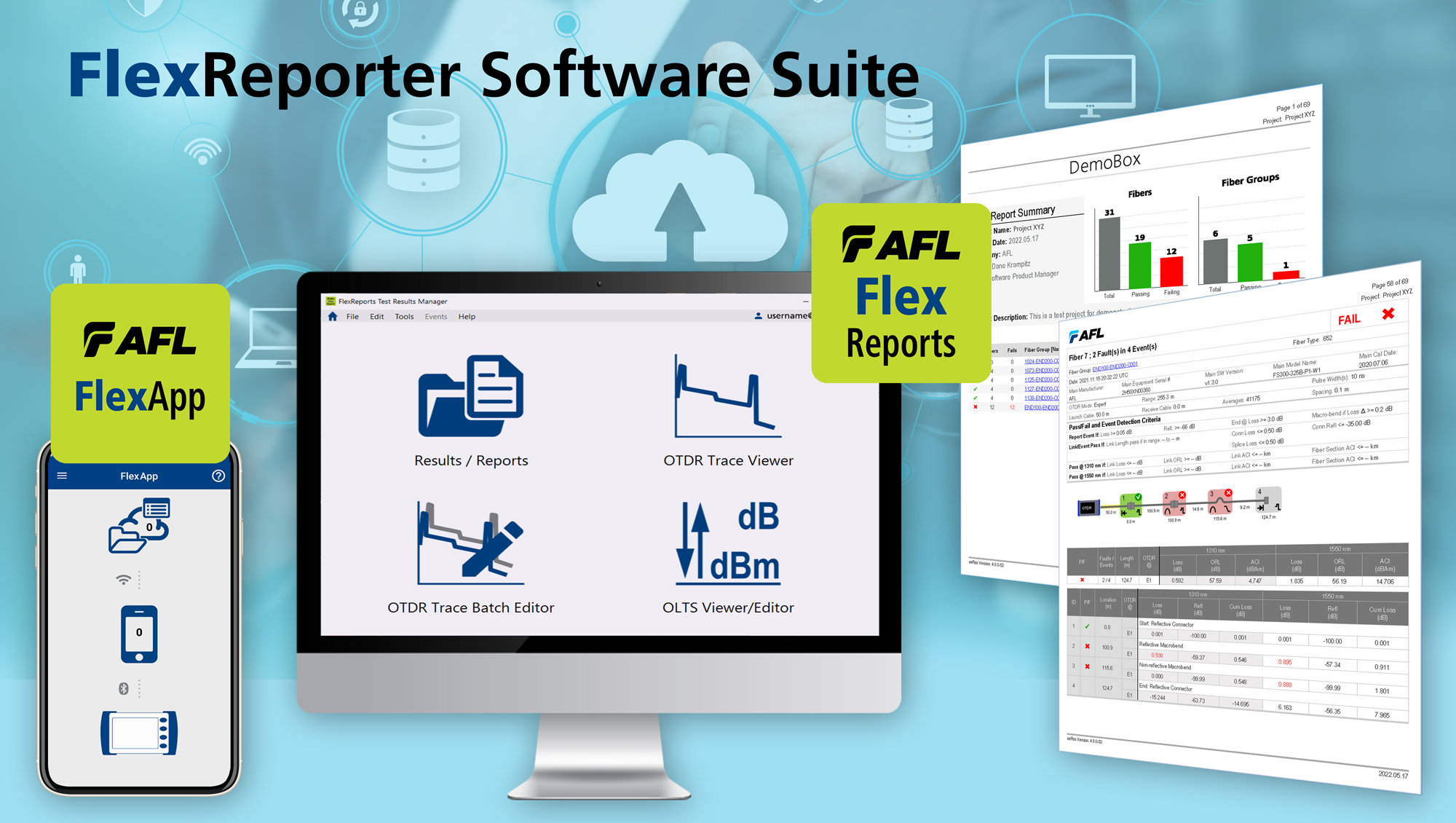

FlexReporter software suite works with AFL Test and Inspection instruments to provide a simple-to-use, high performance cloud enabled reporting platform.
4304f1c72cb04945a85b3ad02782117b
AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. RPTS-00-2000 Revision AC, 2024-07-05 Specifications are subject to change without notice. Test and Inspection FlexReporter ™ Software Suite 1 Features • Single software platform supporting AFL test and inspection instruments • Wireless field upload of test data using the FlexApp Mobile App • Results viewing, editing, and reporting using the FlexReports PC software • Reports generation with 3-step configuration using revolutionary, fast cloud-based reporting • Comprehensive Bi-directional OTDR, OLTS, and Inspection reporting capability • PDF and Excel report formats • Simple report navigation with hyperlinked reports • Report flexibility and customization with Report Wizard configurations Applications • Generate acceptance test reports and certify fiber results to Industry Standards • Analyze OTDR traces with Bi-directional trace averaging and Macrobend/Microbend detection • OTDR event correction • Batch-edit OTDR test results to correct improper settings Comprehensive Cloud-based Analysis and Reporting Tools FlexReporter software suite works with AFL Test and Inspection instruments to provide a simple-to-use, high performance cloud enabled reporting platform. FlexReporter combines FlexApp, a mobile App that wirelessly transfers test results to FlexReporter-Cloud from the field with FlexReports, a fast, comprehensive, 3-step PC software reporting solution. The FlexReporter software suite was developed to make the complicated task of reporting faster, simpler, and easy-to-use. FlexReports for simple, ultra-fast report generation: FlexReports is a Windows ® -compatible PC software that provides comprehensive test results analysis and reporting for AFL FlexScan OTDRs, FOCIS inspection systems, OLTS, and OPM products. It is available in both Basic and Advanced versions. FlexReports Basic software enables users to quickly view and analyze results. It allows users to generate simple single-fiber OTDR and OLTS reports and includes a 60-day Advanced trial that includes full reporting and OTDR Trace Batch Editing. FlexReports Advanced is a full featured reporting and post-processing solution for generation of professional acceptance reports using Industry Standards. It enables users to generate Bi-directional reports showing dual-wavelength traces and event tables, end-face image, event map and loss data for each fiber. Users can apply Pass/Fail thresholds to OTDR event, OLTS measurements, and create and apply application rules per Industry Standards. FlexReports OTDR Trace Batch Editor enables users to edit and analyze multiple trace files simultaneously. PDF and Excel report formats available. FlexApp for wireless transfer of data: FlexApp is a mobile Android and iOS App that supports AFL’s FlexScan ® OTDRs and FOCIS connector inspection products (FOCIS Flex, FOCIS Lightning). FlexApp wirelessly transfers test results from any FlexScan OTDR or FOCIS inspection probe directly to FlexReporter-Cloud from the field for subsequent analysis, editing, and reports generation with FlexReports PC software. Flex Reporter Software Suite Remote Site Flex App on Mobile Device AFL Testers Main Office Flex Reports on PC Flex Reporter-Cloud
AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. RPTS-00-2000 Revision AC, 2024-07-05 Specifications are subject to change without notice. Test and Inspection FlexReporter ™ Software Suite 2 User friendly interface makes reporting and reviewing results easy: OTDR, certification, inspection, and OPM test results are indicated by specific icons to simplify selection of test results to report and review. Report performance, flexibility and customization: Features a fast and easy to configure cloud report service for large OTDR reports. Also Includes a highly configurable Report Wizard that enables users to generate personalized reports for customer’s job acceptance. Generated reports meet accepted industry documentation and feature customized cover pages with customer’s logos. Can create dedicated inspection, insertion loss and OTDR reports, as well as reports combining OTDR, power meter, and inspection results. Industry Standard and user-defined reports: Test to Industry Standards (ISO/TIA/EN), Application Rules (IEEE/ ANSI), or create User Rules and User Application Rules. As new rules and applications develop, compare existing test results to the new rules, such as emerging Ethernet standards. Supports industry-standard 10GbE IEEE 802.3ae specification using pre-configured 10GbE application rules. Produces detailed 10GbE test report. Include inspection results in reports: FlexReports software allow integration of fiber inspection results from the FOCIS family inspection products to be included in customized test reports. FlexReports supports Bellcore/Telcordia .SOR file formats. Basic and Advanced Software Comparison FLEXREPORTS FEATURES BASIC LICENSE ADVANCED LICENSE OTDR Trace Viewer, OLTS Viewer/Editor OTDR Trace analysis with Bi-directional and Macrobend analysis OTDR Add/Delete events from the Trace Viewer Single fiber PDF reports for OTDR trace and OLTS results 60-Day Reporting and OTDR Trace Batch Editor license trial Download of test results stored in the FlexReporter-Cloud Cloud Reports - 3-step reporting using new fast FlexReporter cloud report service Bi-directional OTDR, OLTS, Inspection reports Hyperlinked PDF test reports with clear Pass/Fail indicators PDF and Excel format OTDR reports PC Reports Wizard, compatible with TRM ® Batch editing of OTDR .SOR files for renaming results, correcting Pass/Fail limits and launch cable settings Ordering Information FlexReports Basic software is available as free download on AFL Software Resources website. FlexReports Basic includes a 60-day Advanced software trial. Once the evaluation period ends, users must upgrade to FlexReports Advanced software license to continue using FlexReports Advanced features. DESCRIPTION AFL NO. FlexReports Advanced, one seat license on USB RPTS-AD-USB-1 FLexReports Advanced, one seat, Upgrade from TRM ® 3 Advanced on USB. Users must have TRM-3 Advanced license RPTS-UP-TRM3-1 FlexReports Basic, available for download on AFL Software Resources website FlexReports Basic FlexApp data transfer mobile App, available on Google Play and Apple App Storee FlexApp • English • French • German FlexReports Supported Languages • Italian • Polish • Portuguese • Russian • Spanish • Turkish • Chinese • Japanese
AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. RPTS-00-2000 Revision AC, 2024-07-05 Specifications are subject to change without notice. Test and Inspection FlexReporter ™ Software Suite 3 Extremely Fast Reporting with FlexReports Functionality FlexReports features simple 3-step configuration reporting option and uses FlexReporter-Cloud report service for large projects and fast reporting. Simple Navigation with Hyperlinked Fiber Groups (Cables) and Fiber Numbers Navigation in FlexReports is simple and easy with hyperlinked Fiber Groups and Fiber Numbers. • Project Summary page - Displays summarized Report Summary, clear Pass/Fail Summary, and Fiber Groups Summary. • Fiber Group /Cable page - Displays compact Fiber Group report with Link Metric. • Fiber Details page - Displays detailed test results of a fiber with LinkMap ® and Event Table. Example of Bi-directional OTDR Test Report Project Summary page Fiber Group / Cable page Fiber Details page 1 3 2
AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. RPTS-00-2000 Revision AC, 2024-07-05 Specifications are subject to change without notice. Test and Inspection FlexReporter ™ Software Suite 4 Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about FlexReports. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts Batch Processing allows users to add, delete, and change event types using the OTDR Batch editor. Users can add missing events into the event table, for example, splices with a loss that is too small to be detected by OTDR event analysis. Users can also remove echo, ghost, or false events picked up by an OTDR when there are very high reflectance events in the test network ensuring cleaner and more accurate event tables. Analysis • Edit cables or groups of fibers in one batch session • Modify event Pass/Fail thresholds: Loss, ORL, Link Loss, Link ORL • Add, remove, or adjust Launch and Receive cables • Adjust the location of the cursors Documentation - Add and/or E d it • Trace File Names (Fiber Number, Cable ID, End 1, End 2, and Direction of test) • Cable Information (Cable Type and GIR) • Job Information (Company, Main Operator, Second Operator, and Comment) Reporting • Generate professional reports by applying edits to a group of fibers for consistency of information and uniformity of results. • By utilizing the FlexReporter-Cloud, comprehensive reports are generated quickly, ensuring faster report generation. • Handle large report sizes with ease, making it ideal for comprehensive cable analysis. Powerful Batch Processing Create Professional Personalized Reports Featuring the Report Wizard - a powerful tool for creating test reports, FlexReports allows users to generate personalized professional reports for customer’s job acceptance. Generated reports meet accepted industry documentation and can be personalized by customizing cover pages to include customer’s logos. Create dedicated inspection, insertion loss and OTDR reports, as well as reports combining OTDR, power meter and inspection results.
FEATURES:
- Single software platform supporting AFL test and inspection instruments
- Wireless field upload of test data using the FlexApp Mobile App
- Results viewing, editing, and reporting using the FlexReports PC software
- Reports generation with 3-step configuration using revolutionary, fast cloud-based reporting
- Comprehensive OTDR, OLTS, and Inspection reporting capability
- Simple report navigation with hyperlinked test reports
- Report flexibility and customization with Report Wizard configurations
