AFL’s MTP® Micro Cable assemblies offers high-performing plug and play solutions for indoor multi-fibre installations.
34515a8a83e84e5bb150dbbe43945288

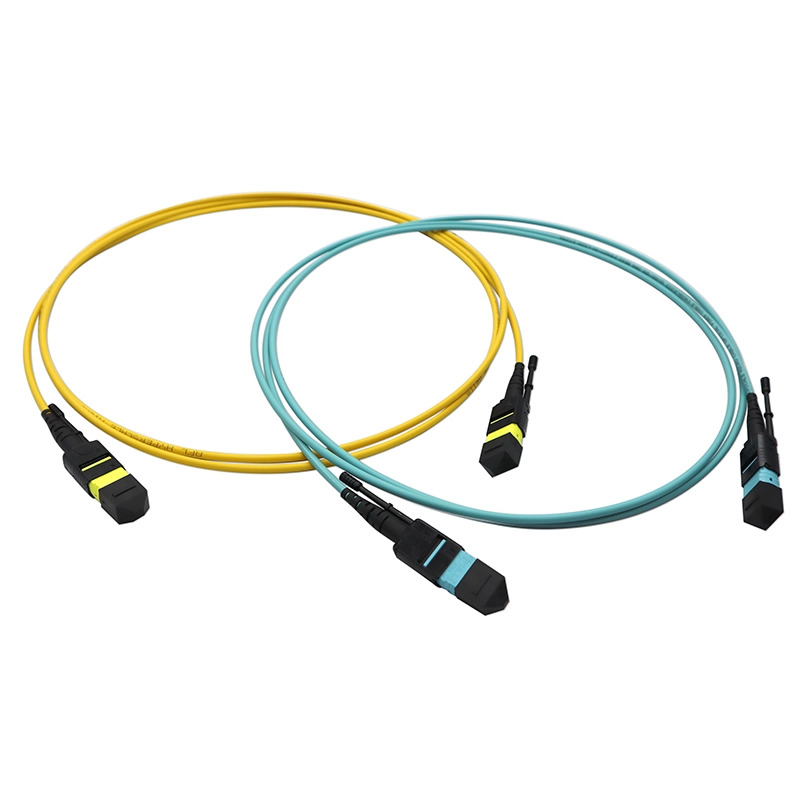

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Assemblies 1 © 2002-2023, AFL, all rights reserved. 2115, Revision 00, 03.03.23 Specifications are subject to change without notice. MTP ® Cable Assemblies AFL’s MTP ® Micro Cable assemblies provide a high-performance plug and play solution for any multi-fibre installation. Utilising several Micro Cable construction types, our assemblies cater to any network requirement, from: • 12 or 24 fibres in a 3 mm single element or 4.8/4.5 mm ruggedised (double jacket). • 24 up to 144 fibres in a sub-unitised cable, featuring 2 mm sub-units with 12 fibre per sub. All MTP ® -MTP ® trunk (backbone) assemblies are pre-terminated with Low loss MTP Elite ® Connectors, offering reliable and consistent performance. MTP ® to discrete connector (LC,SC) harnesses (fanouts) are also available on all Micro Cable types and fibre counts. AFL’s Micro Cables provide space saving and higher fibre density within cable trays, raceways and internal conduits. All Micro Cable outer and inner jackets are made from LSZH materials. Used in conjunction with AFL’s MTP ® fibre management systems, our pre-terminated MTP ® Micro Cable assemblies provide a compact high fibre count solution that is scalable for future network requirements. Single Element MTP ® Micro Cable assemblies feature 12 or 24 (SM or OM4) fibres in a single element, allowing for the smallest possible cable diameter while not compromising strength and fibre protection. Single Element cable assemblies are configurable with 12F or 24F MTP ® Connectors on both ends (trunk) or with discrete connectors on one end (harness) via a breakout module. Applications • Data Centres • Structured Cabling Networks • 10G/40G/100G backbone cables • Direct patch cables • Extension cables Features • Available in a range of Micro Cable constructions and colours • Low loss MTP Elite ® Connectors featuring push/pull tabs • High quality, machine polished connectors for consistent low loss performance • Configurable options to suit connector gender, network polarity and fibre count requirements, and more MTP ® Cable Assembly Configurations Single Element (12F, 24F) 250 μm Coated Fibres Aramid Strength Members 3 mm Outer Jacket 12F and 24F SM/OM4 Single Element MTP ® 144F SM Sub-unitised MTP ® 12F OM4 Single Element MTP ® Fanout MTP is a registered trademark of US Conec Ltd.
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Assemblies 2 © 2002-2023, AFL, all rights reserved. 2115, Revision 00, 03.03.23 Specifications are subject to change without notice. 250 μm Coated Fibres Central Strength Member 2 mm Sub-units Outer Jacket Aramid Strength Members Ripcord 250 μm Coated Fibres 3 mm Sub-unit 4.8 mm Outer Jacket (12F) Aramid Strength Members Ruggedised MTP ® Micro Cable Assemblies feature 12 or 24 (SM or OM4) fibres in a single element, protected by a second 4.5 mm or 4.8 mm jacket (12F 4.8 mm, 24F 4.5 mm) and extra Aramid strength members. These assemblies provide extra protection while maintaining a small footprint. Ruggedised Cable Assemblies are configurable with 12F or 24F MTP ® Connectors on both ends (trunk) or with discrete connectors on one end (harness) via a breakout module. AFL’s Sub-unitised MTP ® Cable Assemblies provide a high density/small footprint backbone cabling solution. These cables feature 2 mm sub-units, with 12 fibres per sub. Fibre core counts are available from 24-144F in both SM and OM4. Sub-unitised Cable Assemblies are configurable with 12F MTP ® Connectors on both ends (trunk) or with discrete connectors on one end (harness) via a breakout module. Ruggedised (12F, 24F) Sub-unitised (24F to 144F) Specifications Assembly Dimensions Total cable assembly length is measured from connector ferrule to connector ferrule. Breakout length is measured from the breakout point to the connector ferrule. MTP ® Cable Assemblies Cable Assembly Length END A END B Cable Assembly Length END A END B Cable Assembly Length Cable Assembly Length Single Element Cable Assemblies (12F, 24F)
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Assemblies 3 © 2002-2023, AFL, all rights reserved. 2115, Revision 00, 03.03.23 Specifications are subject to change without notice. Connector Specifications MTP Elite ® OPTICAL PERFORMANCE MULTIMODE 850 nm (PC POLISH) SINGLE-MODE 1310 nm (APC POLISH) TEST METHOD Insertion Loss (Max.) ≤ 0.35 dB ≤ 0.35 dB IEC 61300-3-4 Return Loss (Max.) ≥ 20 dB ≥ 60 dB IEC 61300-3-6 Discrete Connectors (SC, LC) OPTICAL PERFORMANCE VALUE TEST METHOD Insertion Loss (Max.) ≤ 0.25 dB IEC 61300-3-4 Return Loss (SM, UPC) ≥ 55 dB IEC 61300-3-6 Return Loss (SM, APC) ≥ 65 dB IEC 61300-3-6 Note: For cable, see the Indoor Premise Micro Cable datasheet for details. Specifications Cable Assembly Length END A END B Cable Assembly Length END A END B END A END B Cable Assembly Length END A Breakout Length END B Breakout Length Breakout Point Breakout Point END A END B Cable Assembly Length END A Breakout Length END B Breakout Length Breakout Point Breakout Point Breakout Point Breakout Point Cable Assembly Length END A END B END A END B END A END B Cable Assembly Length END A Breakout Length END A Breakout Length Breakout Point Breakout Point END A END B Cable Assembly Length END A Breakout Length END B Breakout Length Breakout Point Breakout Point Breakout Point Breakout Point Cable Assembly Length Ruggedised Cable Assemblies (12F, 24F) Sub-unitised Cable Assemblies (48F assembly shown) MTP ® Cable Assemblies
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Assemblies 4 © 2002-2023, AFL, all rights reserved. 2115, Revision 00, 03.03.23 Specifications are subject to change without notice. Fibre Type: 1 = SM, G657.A1 4 = OM4, Bend Tolerant Cable Jacket Colour: YL = Yellow* AQ = Aqua # * Standard cable jacket colour for SM assemblies is Yellow # Standard cable jacket colour for OM4 assemblies is Aqua See Cable Jacket Colour Options below for more colours Fibre Count Single Element & Ruggedised 8 - 8F (Fanout Only) 12 - 12F 24 - 24F Sub-unitised 24 - 24F 36 - 36F 48 - 48F 72 - 72F 96 - 96F 144 - 144F Cable Type: S = Single Element 3 mm, LSZH R = Ruggedised, 4.8/4.5 mm, LSZH U = Sub-unitised, LSZH Connector End A: MTF = 12F MTP ® Female M2F = 24F MTP ® Female % MTM = 12F MTP ® Male M2M = 24F MTP ® Male % Connector End B: F = MTP ® Female ^ M = MTP ® Male ^ LD = LC/UPC Duplex LC = LC/UPC Simplex LA = LC/APC Duplex LS = LC/APC Simplex LB = LC/UPC Uniboot SC = SC/UPC Simplex SA = SC/APC Simplex X = Blunt (Pigtail) Product Type: MC = Micro Cable Pre- Terminated Assemblies Length: 2M = 2 Metres 2.5M = 2.5 Metres 100M = 100 Metres Internal Use Polarity: A = Type A B = Type B C = Type C F = Type F (Fanout Only) Ordering Information U MC 1 YL MTF F C 33112 999M S 144 % 24F MTP ® connectors available on MCS and MCR cable assemblies only. 24F MTP ® Method C configurations use custom polarity. Please contact AFL for more details. ^ End B MTP ® connector to match fibre count of End A connector & Recommended breakout for Ruggedised (MCR), Sub-unitised (MCU) and MTP ® -Fanout assemblies is 500 mm when used with AFL's static and sliding MTP ® FMS products. $ Oversleeving only required on fanout assemblies e.g. MTP ® -LC. Overlseeving colour matches cable jacket colour. @ Shipping Reel requirement dictated by assembly length, cable type and fibre count. Contact AFL for more details. Cable Jacket Colour Options BU - Blue RD - Red OR - Orange BK - Black GN - Green YL - Yellow BR - Brown PK - Pink GY - Grey EV - Erika Violet WH - White 3 3 1 1 2 Breakout Length & End A Breakout Length & End B Oversleeving $ End B Installation Aids Shipping Reel @ 0 N/A 0 N/A 1 N/A 1 Not Required 1 N/A 1 300 mm 1 300 mm 2 2 mm 4 Protective Mesh End A 2 Shipping Reel 2 400 mm 2 400 mm 3 500 mm 3 500 mm 5 Protective Mesh End A&B 4 600 mm 4 600 mm 5 700 mm 5 700 mm 6 800 mm 6 800 mm 7 900 mm 7 900 mm 8 1000 mm 8 1000 mm 9 2000 mm 9 2000 mm Note : Single-mode MTP ® connectors are APC polished. Multimode MTP ® connectors are UPC polished. MTP ® Cable Assemblies
Features:
- Available in a range of Micro Cable constructions and colours
- Low loss MTP Elite® Connectors featuring push/pull tabs
- High quality, machine polished connectors for consistent low loss performance
- Configurable options to suit connector gender, network polarity and fibre count requirements, and more
Applications:
- Data Centres
- Structured Cabling Networks
- 10G/40G/100G backbone cables
- Direct patch cables
- Extension cables
AFL’s MTP® Micro Cable assemblies utilise several Micro Cable construction types, from 12F to 288F, providing a low loss solution for any density, network, and installation requirements.
ASCEND Fiber Housings,ASCEND Fanout Cassettes,ASCEND Splice Cassettes,ASCEND Patch Cassettes,ASCEND Conversion Cassettes,ASCEND Tap Cassettes,ASCEND Trunk Cable Assemblies,ASCEND Patch Cord Assemblies,ASCEND Optical Cassettes,ASCEND Outback Clip Management OCM Bracket,MXHD Range,XHD Range,MTP Outdoor Cable Assemblies,HD MTP Range,SD MTP Range
1790
MTP® Indoor Cable Assemblies
Close
MTP® Indoor Cable Assemblies
Features:
- Available in a range of Micro Cable constructions and colours
- Low loss MTP Elite® Connectors featuring push/pull tabs
- High quality, machine polished connectors for consistent low loss performance
- Configurable options to suit connector gender, network polarity and fibre count requirements, and more
Applications:
- Data Centres
- Structured Cabling Networks
- 10G/40G/100G backbone cables
- Direct patch cables
- Extension cables
PRODUCT DESCRIPTION
AFL’s MTP® Micro Cable assemblies utilise several Micro Cable construction types, from 12F to 288F, providing a low loss solution for any density, network, and installation requirements.
