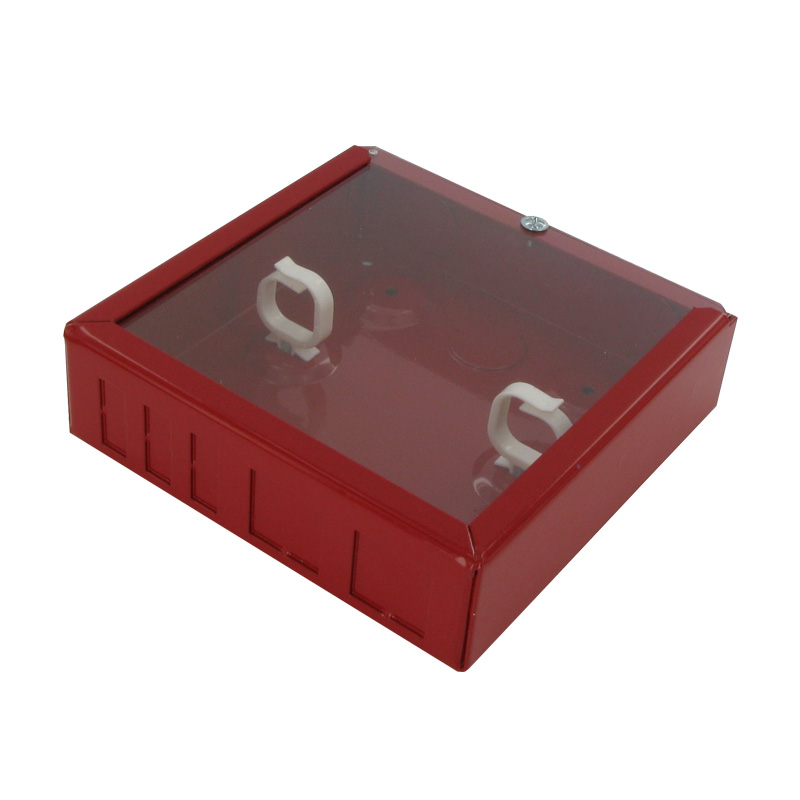

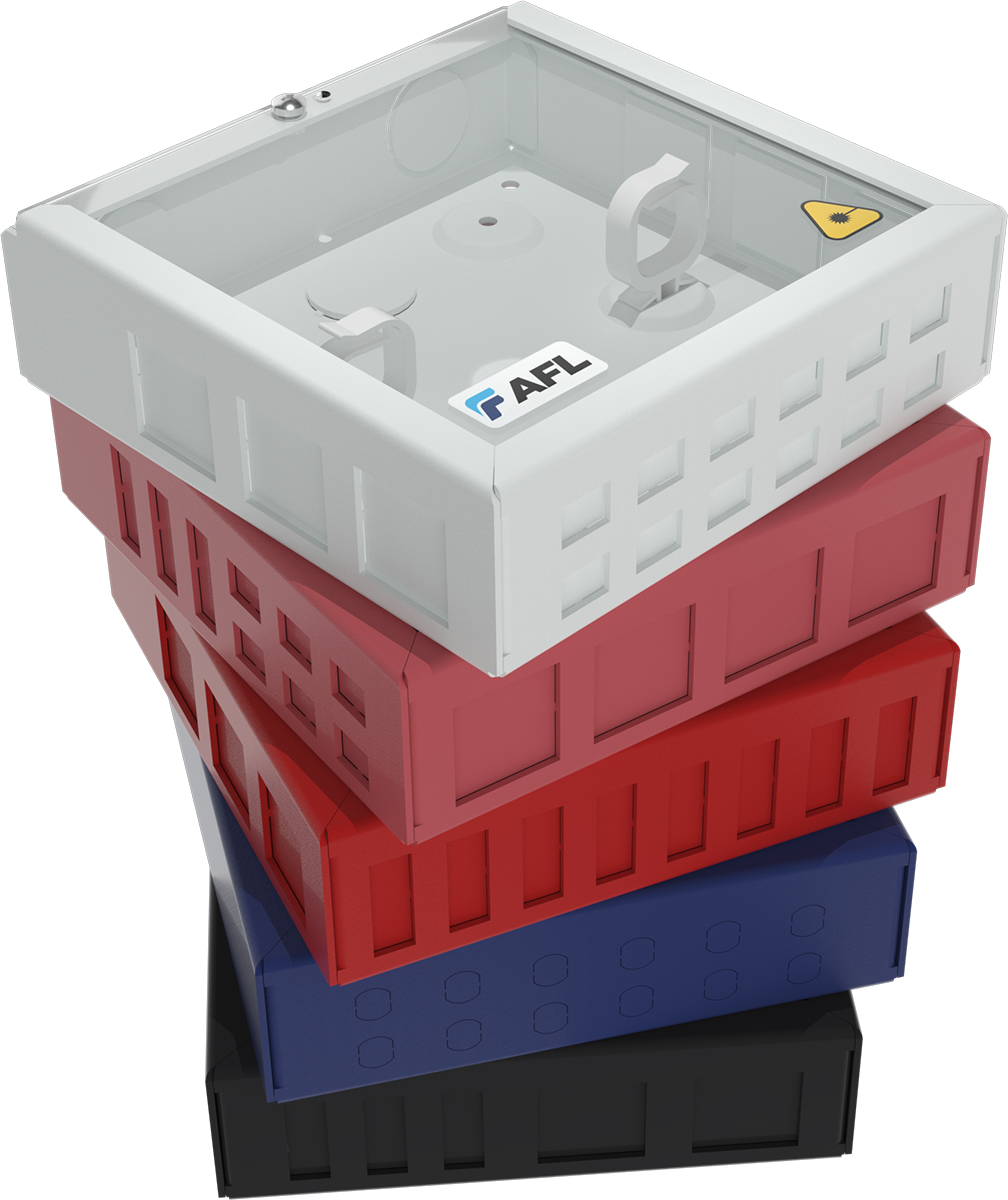

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2024, AFL, all rights reserved. 0 0 52, Revision 8 , 17.06.24 Specifications are subject to change without notice. Multi-User Telecommunications Outlet (MUTO) - Mini Sliding Features • Compact size for greater versatility • Clear polycarbonate cover • Security features including provisions for anti-tamper security seal • Thick gauge mild steel construction with knockout adapter and cable openings • Configurations available to splice up to 24 fibres or terminate up to 6 x RJ45 • Cable entry holes for wall mounted and concealed cable entry • Internal fibre management and cable strain relief Applications • Remote cable terminations within building • Defence requirements for identifying tampering or accidental fibre disconnections • Fibre-to-the-desk (FTTD) applications • Suitable for direct termination of riser fibre cable and UTP copper cable The AFL Mini Sliding MUTO is specifically designed for the direct termination of fibre and copper UTP cables. Incorporated are security features which make it well suited for security managed fibre-to-the-desk environments such as Government and Defence. MUTOs provide a consolidation point for single or multiple cables running between a floor distribution room and interconnect to a work area via a patch cord. Available in various colours to comply with the Australian Government Information Security Manual (ISM). Technical Specifications Dimensions (mm) 150 (H) x 150 (W) x 44 (D) Weight 0.8 kg (unloaded) Material - Body Powder-coated 1.6 mm Mild Steel sheet - Cover 2.0 mm Polycarbonate cover Connector Type Various configurations to suit SC, LCD, SCD, LCQ, ST, and RJ45 outlets. Cable Entry 2 x 25 mm (wall mount) 1 x 25 mm (concealed entry) Ingress Protection IP20 Standard Accessories 2 x nylon cable saddles, polycarbonate cover with laser warning triangle, M4 x 6 mm Phillips screw PART NUMBER DESCRIPTION QTY OF KNOCKOUT PORTS* FIG. SCD/LCQ SC/LCD ST/FC RJ45 FWE-MS6SCDK12SCK4RJK-xx Mini Wall Box S/Lid 6 X SCD K/O 12 X SC K/O 4 X RJ, xx 6 12 - 4 01 FWE-MS3SCDK6SCK6RJK-xx Mini Wall Box S/Lid 3 X SCD 6 X SC 6 X RJ45, xx 3 6 - 6 02 FWE-MS3SCDK2RJK-xx Mini Wall Box S/Lid 3 X SCD & 2 X RJ45 K/O, xx 3 - - 2 03 FWE-MS8SCDK4RJK-xx Mini Wall Box S/Lid 8 X SCD & 4 X RJ45 K/O, xx 8 - - 4 04 FWE-MS12STK-xx Mini Wall Box S/Lid 12 X ST K/O, xx - - 12 - 05 Replace xx in the part number with the following colour codes: RD = Red, PK = Pink, GN = Green, BU = Blue, BL = Black, WH = White, OR = Orange, GY = Grey, YL = Yellow, VLT = Dark violet (MOQ may apply) Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 2 © 2002-2024, AFL, all rights reserved. 0 0 52, Revision 8 , 17.06.24 Specifications are subject to change without notice. Multi-User Telecommunications Outlet (MUTO) - Mini Sliding FIG.01 FIG.03 FIG.05 FIG.02 FIG.04 KNOCKOUT LEGEND TOP BOTTOM LEFT RIGHT SC/LCD SCD/LCQ RJ45 ST/FC 25 mm Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 3 © 2002-2024, AFL, all rights reserved. 0 0 52, Revision 8 , 17.06.24 Specifications are subject to change without notice. Multi-User Telecommunications Outlet (MUTO) - Mini Sliding Accesories (Ordered Separately) PART NUMBER DESCRIPTION FWE-MS-ACCKIT-12BU MUTO Kit including comb, protectors, saddles, anchor and screw Refer to respective Product Guide Adapters (Suitable for SC, LCD, SCD and LCQ reduced flange only) Shutters RJ45 Outlets, Adaptor & Bezels Pigtails Contact Sales Team Cable Glands & Conduit Adaptors FANKIT-T-6C-0.6M 6F Loose-Tube Fanout Kit FANKIT-T-12C-0.6M 12F Loose-Tube Fanout Kit, tube fixing Refer to respective Product Guide Field Installable Connectors
