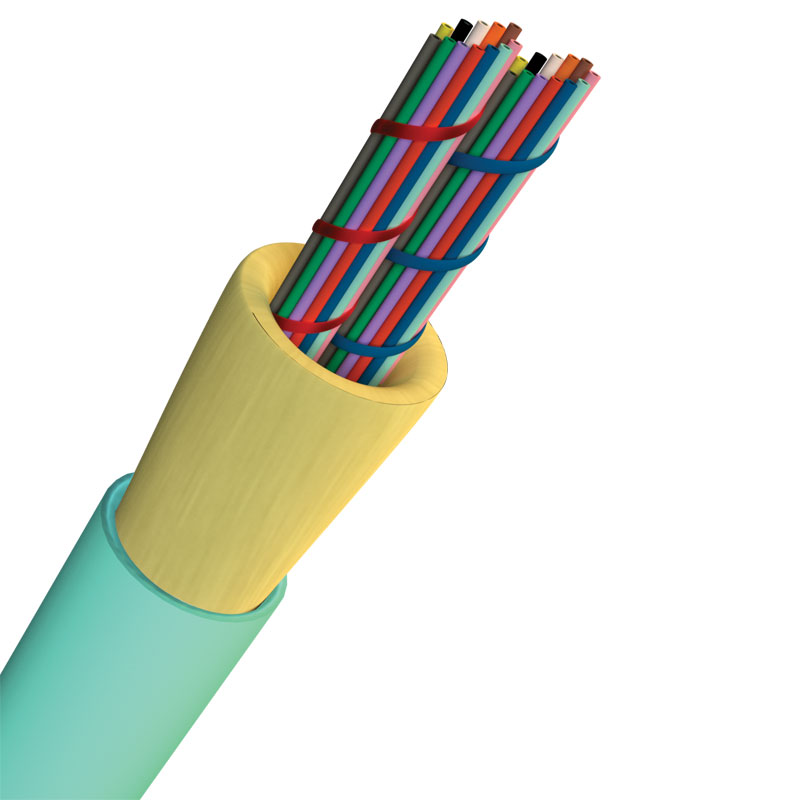

1 FIBER OPTIC CABLE Fiber Optic Cable © 2017, AFL, all rights reserved. PP-1-00056, Revision 8, 9.27.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued Interconnect Premise MicroCore ® Cable with SpiderWeb Ribbon ® (SWR ® ) Technology Interconnect Premise MicroCore cables with SWR are designed for MTP terminations and meet the interconnect standards of Telcordia ® GR-409. To minimize the cable’s diameter, SWR and aramid strands are packaged in a high performance PVC or LSZH jacket. Fiber counts of 12 and 24 are available. Both Simplex and Zipcord designs are available. SWR is a bonded fiber design allowing for either a highly efficient ribbonizing application or for individual fiber breakouts. This flexibility allows for the application of a single cable design to cover a diverse set of applications. High-density round designs allow for the most efficient use of space and materials, resulting in a cost-effective solution. Features • 3.0 mm Outer Diameter for Round Boot 12-fiber MTP Cables • 3.0 mm or 3.8 mm Outer Diameter for Round Boot 24-fiber MTP Cables • Exceptional skew performance Applications • Building Interconnections • Data Centers and Central Offices • Anywhere MTP connections can be used • High-density Interconnects • 40 Gbit and 100 Gbit Ethernet Architecture coated fiber aramid yarn outer jacket aramid yarn coated fiber outer jacket string binder aramid yarn SWR bundles outer jacket 12 Fiber Simplex 24 Fiber Zipcord (3.0 mm only) coated fiber aramid yarn outer jacket aramid yarn coated fiber outer jacket string binder aramid yarn SWR bundles outer jacket 24 Fiber Simplex coated fiber aramid yarn outer jacket aramid yarn coated fiber outer jacket string binder aramid yarn SWR bundles outer jacket Cable Components SpiderWeb Ribbon Technology SWR Fiber Specifications CORE SIZE/FIBER TYPE ISO MAX. ATTENUATION (dB/km) OVERFILL LAUNCH MIN. BANDWIDTH (MHz•km) EMBC (MHz•km) GIGABIT ETHERNET MAX. LINK DISTANCE (meters) 10 GIGABIT ETHERNET MAX. LINK DISTANCE (meters) 850 nm 1300 nm 1550 nm 850 nm 1300 nm 850 nm 1300 nm 850 nm 1300 nm (P) AFL Bend-Insensitive Single-mode (ITU G.652.D/G.657.A1) OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000 © 2017, AFL, all rights reserved. PP-1-00056, Revision 8, 9.27.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Fiber Optic Cable Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE COMPONENT NFPA 262 (ONFP) Jacket IEC 60332, 60754, 61034 LSZH/ONFR-LS Jacket Telcordia GR-409-CORE Jacket RoHS 2002/95/EC Jacket Interconnect Premise MicroCore ® Cable with SpiderWeb Ribbon ® (SWR ® ) Technology Mechanical Data CABLE TYPE FIBER COUNT NOMINAL DIAMETER WEIGHT TENSION lbs (N) BENDING RADIUS inches (cm) inches (mm) lbs/1000 ft (kg/km) INSTALLATION LONG TERM INSTALLATION LONG TERM SINGLE SMALL FORM 24 0.12 (3.0) 5.3 (7.9) 22 (98) 7 (30) 1.8 (4.5) 1.2 (3.0) SIMPLEX 12 0.12 (3.0) 5.3 (7.9) 50 (220) 17 (75) 1.8 (4.5) 1.2 (3.0) 24 0.15 (3.8) 10.1 (15.0) 75 (330) 25 (110) 2.2 (5.7) 1.5 (3.8) ZIPCORD 24 0.12 (3.0) 12.4 (18.4) 100 (445) 33 (147) 1.8 (4.5) 1.2 (3.0) Ordering Information CABLE TYPE FIBER COUNT AFL NO. SINGLE-MODE PLENUM LSZH SINGLE SMALL FORM 24 SP024P301#0R SE024P301#0R SIMPLEX 12 SP012P301#0R SE012P301#0R 24 SP024P381#0R SE024P381#0R ZIPCORD 24 ZP024P301#0R ZE024P301#0R Replace # with number corresponding to desired jacket color from Cable Jacket Color Options table below. Cable Jacket Color Options 1 - Blue 6 - White B - Rose 2 - Orange 7 - Red C - Aqua (OM3 and OM4) 3 - Green 8 - Black K - Erika Violet (OM4) 4 - Brown 9 - Yellow (SM) L - Lime 5 - Slate A- Violet Temperature Specifications TEMPERATURE RANGE INSTALLATION 0°C to +70°C OPERATING 0°C to +70°C STORAGE -40°C to +75°C
