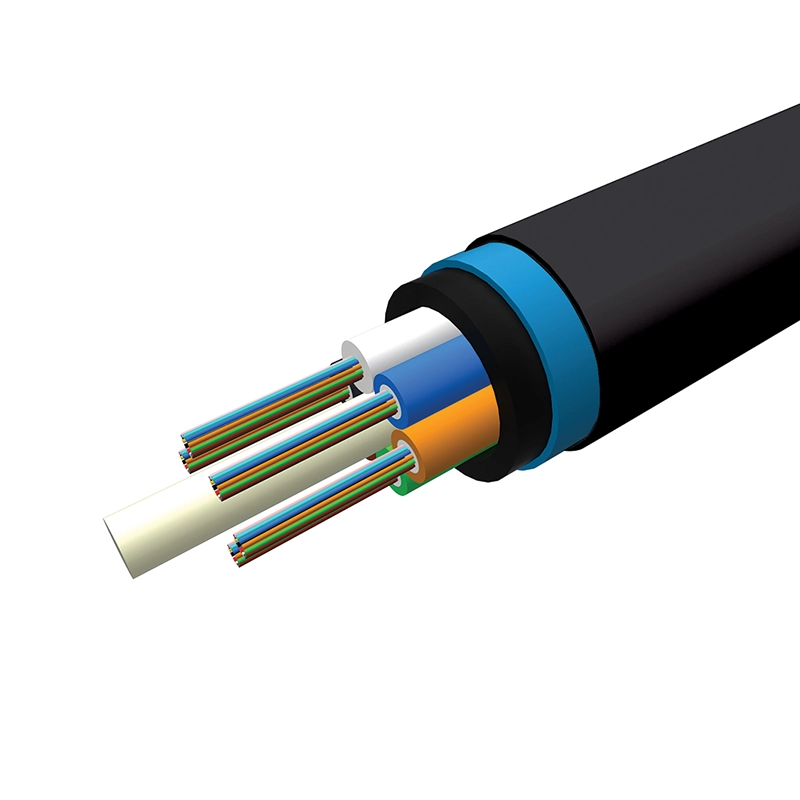

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 1 © 2002-2024, AFL, all rights reserved. 2159, Revision 1, 05.08.24 Specifications are subject to change without notice. Actual finished product may vary from illustration. 72 Fibre High Strength Stranded Loose Tube Cable with Sacrificial Sheath Stranded cable comprising up to 72 optical fibres contained in jelly-filled loose tubes (up to 12 fibres per tube). The tubes and fillers are laid around a central strength member and contained within a dry, water blocked cable core, sheathed with polyethylene (PE), termite resistant Nylon jacket forming a conventional HS1 cable with an additional UV stable sacrificial PE outer sheath. Surface printing includes length marking at one metre intervals. Part Number LMK6**J$0††BK LKK6**J$0¥¥BK Applicable Specifications AS/CA S008, AS 1049, AS/NZS 11801-1, TIA-598-D, IEC 60793, IEC 60794, ITU-T Recommendations Applications High strength stranded loose tube cable is ideal for long-haul, backbone applications where the cable is being installed in rocky or expansive soils, suitable for duct & direct-burial applications. Cable has been rigorously tested for lateral & axial compressive loads to simulate the demands of expansive black soil. The addition of an outer black PE sacrificial sheath protects the inner termite resistant Nylon from damage during installation. UV stabilised outer jacket as per AS 1049. Cable Components Physical Characteristics SPECIFICATION UNIT VALUE Nominal Tube Diameter mm 3.2 Nominal Cable Diameter mm 15.6 Nominal Weight kg/km 195 Temperature Range °C -40 to 70 Max. Pulling Tension - Install kN 6 Min. Bending Radius - Under Load mm 20 x OD Min. Bending Radius - No Load mm 10 x OD Max. Crush Resistance Short-term (10 min) kN/100 mm 6 Long-term (120 min) kN/100 mm 3 Impact kg.m 1.5 ** Represents any fibre type, 1D = SM G.652.D "LWP", 1E = SM Premium G.652.D, 62 = 62.5 μm multimode "OM1", 53 = 50 μm multimode "OM3", 55 = 50 μm multimode "OM4". Contact AFL for other fibre types. †† Represents any fibre-count up to 72 (LMK6 - 12F/Tube). $ Represents Outer Sacrificial Polyethylene Sheath colour type, A = Black, B = Colours other than Black. ¥¥ Represents any fibre-count up to 36 (LKK6 - 6F/Tube). Supplied with BK = Black sheath as standard, the following colours are available upon request: BE = Blue, GY = Grey, YW = Yellow, WE = White. Refer to OSP Cable - Optical Characteristics for further information. Sacrificial Polyethylene Sheath Termite Resistant Nylon Jacket Inner Polyethylene Sheath Moisture Resistant Jelly-Filled Loose Tube Optical Fibre Dry Water Blocked Core Central Strength Member
Features
- Insect Resistant Nylon Inner Sheath
- Protective outer PE Sheath
- High crush resistance
- High tensile strength
Applications
- Underground in conduit
- Underground direct burial
- Short and long haul backbone applications
- Mining, Backbone, Backhaul
- Shifting soil, black soil, expanding soil
High strength stranded loose tube cable is ideal for long-haul, backbone applications where the cable is being installed in rocky or expansive soils, suitable for duct & direct-burial applications. Cable has been rigorously tested for lateral & axial compressive loads to simulate the demands of expansive black soil. The addition of an outer black PE sacrificial sheath protects the inner termite resistant Nylon from damage during installation. UV stabilised outer jacket as per AS 1049.
