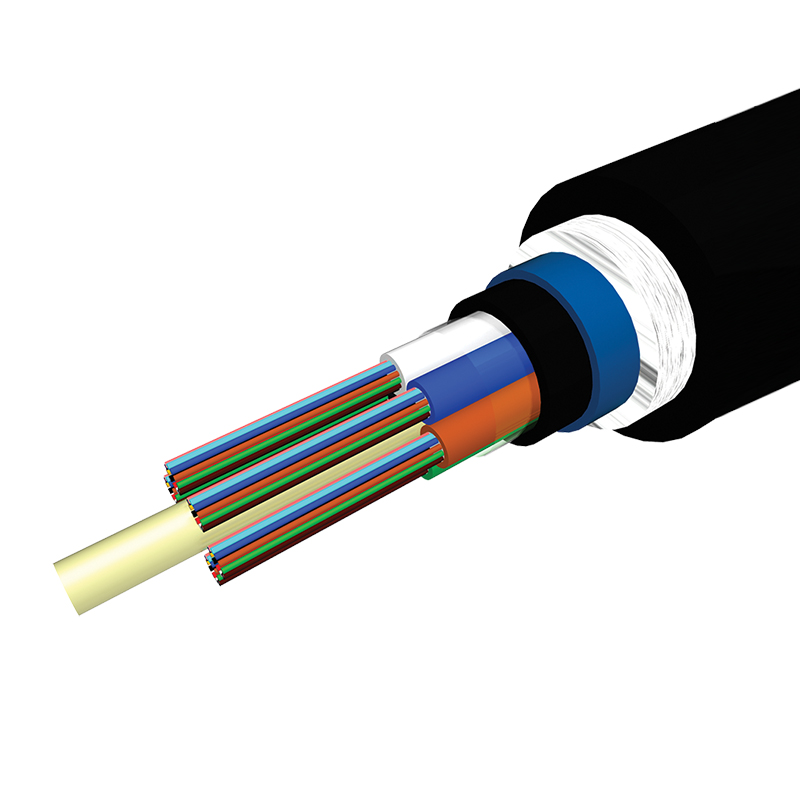

Non-metallic armoured stranded loose tube cable is ideal for short and long haul backbone applications and can be installed in-duct or direct-buried. The glass composite armour improves resistance to rodent attack and provides an additional layer of protection to the inner insect resistant Nylon barrier.
91c6ad03643f43dfbe210c3c185f7ca5
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 1 © 2002-2023, AFL, all rights reserved. 1380, Revision 3, 24.10.23 Specifications are subject to change without notice. Actual finished product may vary from illustration. 72 Fibre Non-Metallic Armoured Stranded Loose Tube Cable Stranded cable comprising up to 72 optical fibres contained in jelly-filled loose tubes (up to 12 fibres per tube). The tubes and fillers are laid around a central strength member and contained within a dry, water blocked cable core, sheathed with polyethylene (PE), termite resistant nylon, glass composite armour and outer UV stable, polyethylene sheath. Surface printing includes length marking at one metre intervals. Part Number NMD6**PB0††## NKD6**PB0¥¥## Applicable Specifications AS/CA S008, AS 1049, AS/NZS 11801-1, TIA-598-D, IEC 60793, IEC 60794, ITU-T Recommendations Applications Non-metallic armoured stranded loose tube cable is ideal for short and long-haul, point-to-point, point-to-multipoint, backbone applications and can be installed in-duct or direct-buried. The glass composite armour over the Nylon Jacket provides rodent resistance and robustness to the cable, whilst increasing the tensile strength. UV stabilised outer jacket as per AS 1049. Cable Components Outer Polyethylene Sheath Rodent Resistant Glass Composite Armour Termite Resistant Nylon Jacket Inner Polyethylene Sheath Moisture Resistant Jelly-Filled Loose Tube Optical Fibre Dry Water Blocked Core Central Strength Member Physical Characteristics SPECIFICATION UNIT VALUE Nominal Tube Diameter mm 2.0 Nominal Cable Diameter mm 14.5 Nominal Weight kg/km 200 Temperature Range °C -40 to 70 Max. Pulling Tension - Install kN 5 Min. Bending Radius - Under Load mm 20 x OD Min. Bending Radius - No Load mm 10 x OD Max. Crush Resistance Short-term (10 min) kN/100 mm 2.5 Long-term (120 min) kN/100 mm 2.5 Impact kg.m 1.5 ** Represents any fibre type, 1D = SM G.652.D "LWP", 1E = SM premium G.652.D "LWP", 1F = SM G.657.A1, 62 = 62.5 μm multimode "OM1", 53 = 50 μm multimode "OM3", 55 = 50 μm multimode "OM4". Contact AFL for other fibre types. †† Repr esents any fibre-count up to 72 (NMD6 - 12F/Tube). ¥¥ Represents any fibre-count up to 36 (NKD6 - 6F/Tube). ## Represents sheath colour, BK = Black (standard), the following colours are available upon request: BE = Blue, GY = Grey, YW = Yellow, WE = White. Refer to OSP Cable - Optical Characteristics for further information.
Features:
- Protection from rodents, burrowing animals and termites
- All dielectric, Non-metallic Armoured (NMA) construction
- High crush resistance
- High tensile strength
- Drycore construction resulting in less mess and time lost for fibre breakout
- Various Sheath Options available (Speak to your AFL Representative)
Applications:
- Short & Long Haul Backbone Applications
- Underground in conduit
- Underground direct buried
- Ideal for rugged applications
Non-metallic armoured stranded loose tube cable is ideal for short and long haul backbone applications and can be installed in-duct or direct-buried. The glass composite armour improves resistance to rodent attack and provides an additional layer of protection to the inner insect resistant Nylon barrier. These additional layers also increase tensile strength and general cable robustness. The water blocked, dry cable core stranded design suits point-point and point-multipoint fibre installations where spur cables are spliced from the backbone.
The tubes and fillers are laid around a central strength member, taped and contained within a dry, water blocked cable core which is sheathed with polyethylene (PE), insect resistant nylon, glass composite armour and outer PE jacket. Surface printing includes length marking at one metre intervals.
