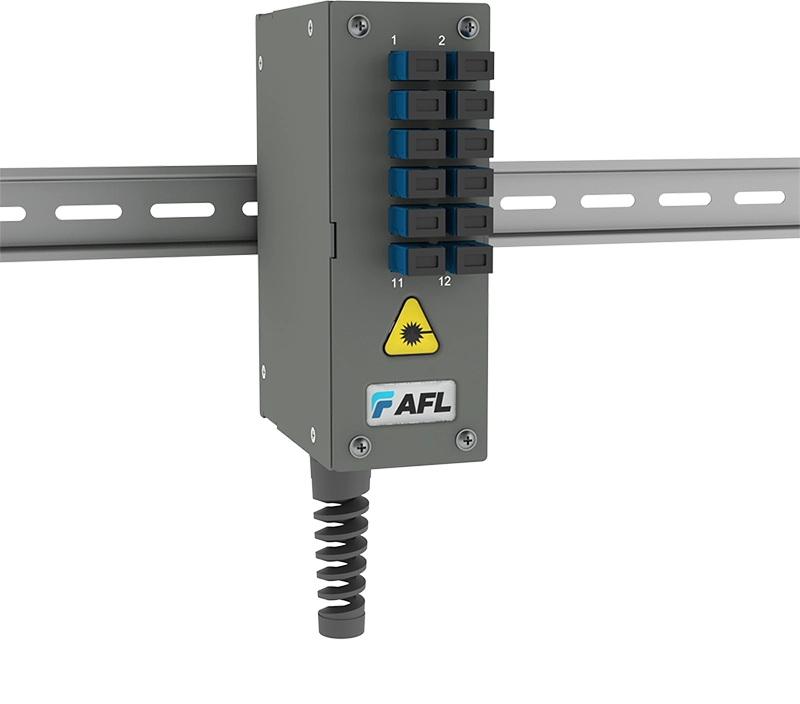

AFL’s range of Mini DIN Rail Mounted Fibre Optic Enclosures are the ideal solution for terminating fibre optic cables within shallow cabinets in industrial control applications for connection to automation and control equipment.
248841885fc445c4b36e8e61d1dc3ce9
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2024, AFL, all rights reserved. 0079, Revision 04, 14.11.24 Specifications are subject to change without notice. Features • Up to 24 fibre SC, ST or FC splice and patch • Up to 48 fibre LC splice and patch • Top and bottom slotted cable entries with knockouts • Slotted entry for housing pre-terminated cables • Lightweight, small size and easy to install making it very versatile • Comprehensive list of customisable options including additional and enlarged cable ports for demanding applications Applications • Process automation and control • Intelligent transport system • Rail signalling and control networks • Power systems and control Mini DIN Rail Mounted Enclosure AFL’s range of Mini DIN Rail Mounted Enclosures are the ideal solution for terminating fibre optic cables within shallow cabinets in industrial control applications for connection to automation and control equipment. Technical Specifications DESCRIPTION 12 PORT MINI DIN RAIL ENCLOSURE 24 PORT MINI DIN RAIL ENCLOSURE (55mm wide) (61mm wide) (110mm wide) (122mm wide) Fascia 1 (Shown without adapters) Max. Splice Capacity 12F SC/ST/FC/LC 24F LC 24F SC/ST/FC 48F LC Max. Patch Capacity 12F SC/ST/FC 24F LC NA 2 24F SC/ST/FC 48F LC NA 2 M20 Cable Entry Ports 1 top and 1 bottom 3 2 top and 2 bottom 3 Dimensions (mm) (W) x (H) x (D) 55 x 155 x 113 61 x 155 x 113 110 x 155 x 113 122 x 155 x 113 Weight Unloaded (kg) 0.75 0.83 1.5 1.7 Enclosure Material & Colour 1.6mm mild-steel - Powder-coated Mercury Grey Standard Accessories Refer to table on Page 3 – Standard Accessories Optional Accessories Refer to table on Page 3 – Optional Accessories 1. ST/FC Fascia Images depicted on Page 3 2. Not offered for patching applications, use 55mm/110mm wide enclosures 3. Additional/enlarged cable ports available, refer to Cable Entry Port Options on Page 2 12 Fibre SC SM Loaded Enclosure 48 Fibre LC OM4 Splice Enclosure 24F LC SM Splice Enclosure (shown with optional accessories)
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 2 © 2002-2024, AFL, all rights reserved. 0079, Revision 04, 14.11.24 Specifications are subject to change without notice. Cable Entry Port Options CABLE ENTRY PORT CODE (BLANK) -T20 -T25 DESCRIPTION Default top entry port Additional 20mm hole in top Enlarged 25mm hole in top CABLE ENTRY PORT CODE (BLANK) -B20 -B25 DESCRIPTION Default bottom entry port Additional 20mm hole in bottom Enlarged 25mm hole in bottom 61mm wide 12 Port Mini DIN Rail Enclosure shown, entry options available for all enclosures Dual compartment enclosures (110 and 122mm wide) will have the additional or enlarged hole on the left-hand side compartment Ø20 Knockout Ø20 Knockout Top Bottom Ø25 Hole Ø25 Hole Ø20 Hole Ø20 Hole 26 26 28 28 73 73 Mini DIN Rail Mounted Enclosure Fibre DIN Enclosure Fibre Count 2 4 6 8 10 12 18 24 36 48 Adapter Type SC SCA LC LCA ST FC FCA Shutters (blank) = No shutters S = External shutters Enclosure Function S = Pigtail splicing P = Patching pre-terminated or FIC terminated cables only Cable Entry Port (blank) = no additional entry ports -T20 = Top 20mm additional hole -T25 = Top 25mm enlarged hole -B20 = Bottom 20mm additional hole -B25 = Bottom 25mm enlarged hole Additions ( blank) = No additions -1SG20 = 1 x M20 Spiral Gland -1CG20 = 1 x M20 Compression Gland -2CG20 = 2 x M20 Compression Glands -1CG25 = 1 x M25 Gland Fibre Type 1 = 9/125μm SM OS1 3 = 50/125μm MM OM3 4 = 50/125μm MM OM4 6 = 62.5/125μm MM OM1 Ordering Information FDE 1 SC 12 S S -B25 -1CG25 Notes: SCA, LCA and FCA options stand for APC adapter types All enclosures are supplied with adapters and blanking plugs (where required) to match the fibre count selected All splice variants are supplied with pigtails, splice tray/cassettes and splice protectors to terminate the fibre count selected
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 3 © 2002-2024, AFL, all rights reserved. 0079, Revision 04, 14.11.24 Specifications are subject to change without notice. Mini DIN Rail Mounted Enclosure Pre-Terminated Fibre Assembly Requirements (Order separately) • 500mm breakout length • Suitably sized compression gland pre-installed on assembly (M20 or M25 to match cable entry point) Refer to relevant Fibre Assembly product guide for ordering information ST/FC Fascia DESCRIPTION 12 PORT MINI DIN RAIL ENCLOSURE 24 PORT MINI DIN RAIL ENCLOSURE (55mm wide) (110mm wide) Fascia (Adapters not shown) Standard Accessories DESCRIPTION 12 PORT MINI DIN RAIL ENCLOSURE 24 PORT MINI DIN RAIL ENCLOSURE (55mm wide) (61mm wide) (110mm wide) (122mm wide) QUANTITY DIN Rail mounting clip to suit 35mm rail - fitted 1 2 SC/ST/FC & LCD adapters (SM & MM) - fitted Max. 12 Max. 24 M20 spiral compression gland (6.9-11.9mm cable OD) 1 2 Cable strength member anchor (7mm maximum diameter) - fitted 1 2 Adhesive cable saddles 2 4
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 4 © 2002-2024, AFL, all rights reserved. 0079, Revision 04, 14.11.24 Specifications are subject to change without notice. Mini DIN Rail Mounted Enclosure Optional Accessories DESCRIPTION 12 PORT MINI DIN RAIL ENCLOSURE 24 PORT MINI DIN RAIL ENCLOSURE (55mm wide) (61mm wide) (110mm wide) (122mm wide) MAXIMUM QUANTITY 12F mini splice tray/cassette with splice protectors 3 x 45mm long (SPLPROT-HS-3/45) - fitted 1 2 2 4 Fibre optic pigtails – pack of 12 (2m) 1 x 12pk 2 x 12pk 2 x 12pk 4 x 12pk M20 spiral compression gland (6.9-11.9mm cable OD) 1 2 1 2 M20 compression gland (8-12mm cable OD) 2* 4* 2* 4* M25 compression gland (9-18mm cable OD) 1* 1* 1* 1* Blanking plug for SC/LCD & ST/FC - fitted 11 11 6 6 External shutters for SC & LCD adapters (SM & MM) - fitted 12 12 24 24 *Additional Cable Entry Port required with these gland options
Features
- Up to 24 fibre SC, ST or FC splice and patch
- Up to 48 fibre LC splice and patch
- Top and bottom slotted cable entries with knockouts
- Slotted entry for housing pre-terminated cables
- Lightweight, small size and easy to install making it very versatile
- Comprehensive list of customisable options including additional and enlarged cable
ports for demanding applications
Applications
- Process automation and control
- Intelligent transport system
- Rail signalling and control networks
- Power systems and control
AFL’s Mini DIN Rail Mounted Enclosure is a compact, versatile solution for terminating fibre optic cables in industrial environments. Designed for shallow cabinets, it supports up to 24 fibres (SC, ST, FC) or 48 fibres (LC) with splice and patch options. Featuring top and bottom slotted cable entries, knockouts, and customizable port configurations, this enclosure is ideal for process automation, intelligent transport systems, rail signalling, and power control networks. Its lightweight, durable design ensures easy installation and reliable performance in demanding applications.
