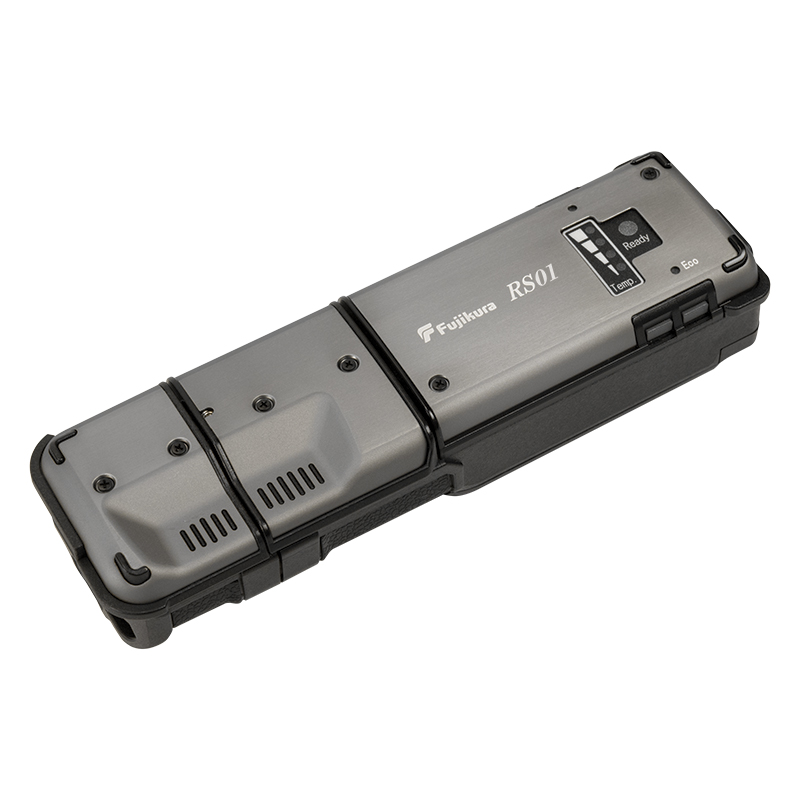

Thermal Strippers The RS01, RS02, RS03 and RS03-80 Thermal Strippers provide superior stripping performance for both single and multi-fiber stripping. The fast heating time of 3 seconds speeds productivity. The ergonomic design, combined with the low level of force needed for stripping, makes the RS series comfortable and easy to use for high fiber count applications. The strippers are also capable of stripping 200 μm coated fibers and ribbons. An audible beep and illuminated LED signal indicate that the proper heating temperature has been reached. A temperature selection switch permits easy field optimization for different fibers or operating conditions. These strippers accept all Fujikura field and factory style fiber holders. Bluetooth ® capabilities on the RS02 and RS03 models provide a convenient way to program the stripper for user preferences via an Android or iOS smartphone app. The RS03 model includes a powerful Lithium-Ion battery that delivers enough power for 600 stripping cycles. The RS03-80 is offered for stripping 80 μm cladding fiber applications. For those situations and locations where Bluetooth-enabled devices are not permitted, the RS01 model is available with all of the features of the RS02 model but without the Bluetooth technology. Features • 3 Second heating time with beep and LED notification • Low pulling force needed for stripping • Stripping capability for 200 μm coated fibers and ribbons • Ergonomic design • Bluetooth capable for wireless connection with smartphones (RS02, RS03 and RS03-80) • High capacity battery provides approximately 600 stripping cycles (RS03 and RS03-80) RS02 RS01 RS03 RS03-80 Ordering Information Description AFL No. Strippers RS01 Thermal Stripper Includes: RS01 Thermal Stripper, DCC-11 and Instruction manual S016815 RS02 Thermal Stripper Includes: RS02 Thermal Stripper, DCC-11, HEX-01 Hex Wrench, BRS-02 Brush and Instruction manual S016816 RS03 Thermal Stripper Includes: RS03 Thermal Stripper, BTR-12 Battery Pack, ADC-09A AC Adapter for RS Series Thermal Strippers, ACC-09 AC Power Cord (for ADC-09A), HEX-01 Hex Wrench, BRS-02 Brush and Instruction manual S016817 RS03-80 Thermal Stripper Includes: RS03-80 Thermal Stripper, BTR-12 Battery Pack, ADC-09A AC Adapter for RS Series Thermal Strippers, ACC-09 AC Power Cord (for ADC-09A), HEX-01 Hex Wrench, BRS-02 Brush and Instruction manual S016842 POWER SUPPLY ADC-09A AC Adapter (RS01/RS02/RS03) S016820 ACC-09 Power cord S014390 BTR-12 Battery (RS03) S016832 Miscellaneous SPA-RS02-08 SPACER S016818 1 AFLglobal.com 1 (800) 235-3423 © 2017, AFL, all rights reserved. PP-4-00103, Revision 12, 1.3.2025 Specifications are subject to change without notice. Fusion Splicing Systems 1 Thermal Strippers Specifications Model RS01 RS02 RS03 RS03-80 Applicable optical fiber Glass optical fibers, capillary Fiber count 1 to 16 Single Cladding diameter 125 μm 80 μm Coating diameter 200 to 400 μm 150 to 250 μm Stripping length Up to 35 mm Typical heating time 3 sec. 5 sec. at Eco mode Heating temperature 85° - 140°C Fiber holder All FH-40, FH-50, FH-60, FH-70, and FH-100 series fiber holders (except FH-50-250 and FH-50-900) Wireless connectivity N/A Bluetooth ® 4.1 LE*1 OS:Android 5.0 or above , iOS 8.0 or above (iPhone6 or above) Dimensions 155.5 (W) × 48.7 (D) × 32.5 (H) mm 155.5 (W) × 48.7 (D) × 36.8 (H) mm Weight 185 g 265 g (with Battery) Power supply AC Adaptor Input: 100 to 240V, 50/60 Hz, Max – 0.58 A Output: Approx. DC 12 V, Max 2A DC External Supply: DC10 to 17V, Max – 1A AC Adaptor Input: 100 to 240V, 50/60 Hz, Max – 0.58 A Output: Approx. DC 12 V, Max 2 A DC External Supply: DC10 to 17 V, Max – 1 A BTR-12 Battery: DC7.2 V, 1840 mAh (Rechargeable Lithium Ion) Battery capacity N/A Approx. 600 strips with Eco mode Recharge Time Approx. 2 hr from empty Battery Life Approx. 500 recharge cycles Operating conditions Temperature: -10 to 50°C, Humidity: 0 to 95% RH (Non-condensing) Storage conditions Temperature: -20 to 60°C, Humidity: 0 to 95% RH (Non-condensing) 2 AFLglobal.com 1 (800) 235-3423 © 2017, AFL, all rights reserved. PP-4-00103, Revision 12, 1.3.2025 Specifications are subject to change without notice. Fusion Splicing Systems 2
