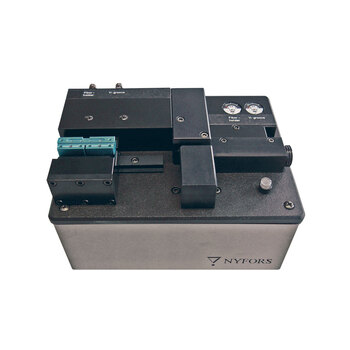

NYFORS AutoCleaver S2

The NYFORS AutoCleaver S2 is a modified version of the standard AutoCleaver. The addition of a specially controlled clamping system allows for cleaving of "air clad" optical fibers.

d7bcc37b73c04786bb5033cda5435255

Features:

Individually adjustable fiber clamp pressure
Cleave angles typically <0.5 degrees
Fully automatic
Waste fiber deposition
PC controllable

ARCMaster® FSM100M and FSM100P Fusion Splicers,Fiber Processing Software FPS,LAZERMaster LZM 125MLZM 125P Splicing System,LAZERMaster LZM125A Splicing System,LAZERMaster LZM125MLZM125P Splicing System,LZM 100 LAZERMaster Laser Splicing System,LZM120A LAZERMaster Splicing System,AFL PowerCleave,CT104+ Fiber Cleaver,CT105+ Fiber Cleaver,CT106+ Fiber Cleaver,CT-114 CT-115 and CT-116 Fiber Cleavers,CT52 Fiber Cleaver,CT58 Fiber Cleaver

763

NYFORS AutoCleaver S2™

Features:

Individually adjustable fiber clamp pressure
Cleave angles typically <0.5 degrees
Fully automatic
Waste fiber deposition
PC controllable

PRODUCT DESCRIPTION

The NYFORS AutoCleaver S2 is a modified version of the standard AutoCleaver. The addition of a specially controlled clamping system allows for cleaving of "air clad" optical fibers. Fibers from 125um to 1000um can be accurately cleaved with typical end angles of <0.5°. A built-in microprocessor controls all parameters and settings such as clamping, tension, and the exact position and speed of the diamond blade.

Resources

Specification Sheet

Download Specification Sheet

VIEW

Document

Nyfors AutoCleaver-S2

VIEW
