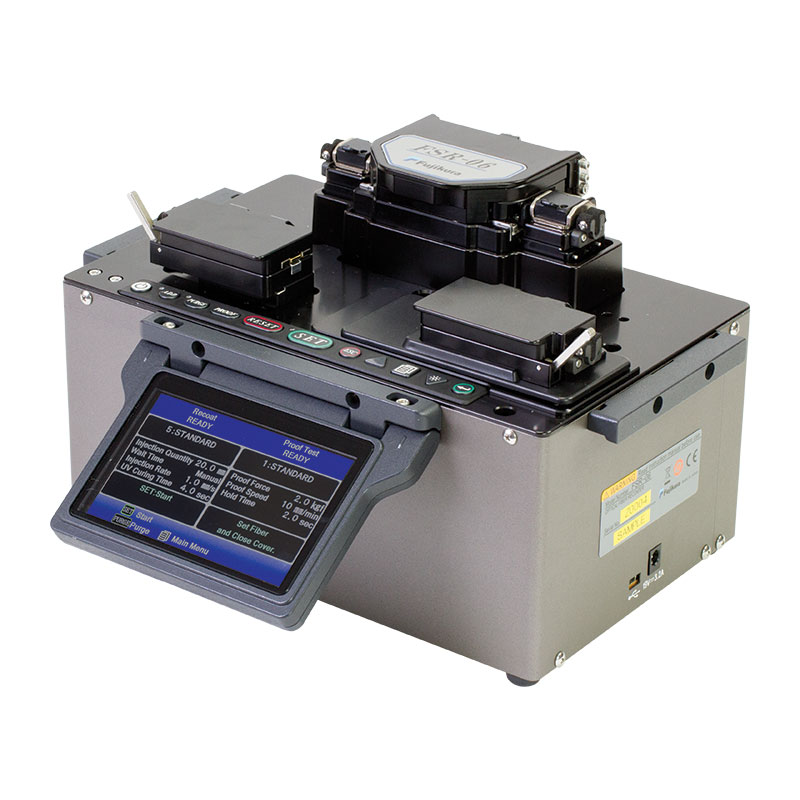

© 2015, AFL, all rights reserved. PP-4-00081, Revision 12, 2.18.20 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 43 Fusion Splicing Recoaters & Splice Protection AFL offers a complete lineup of high quality fiber recoaters to address the small packaging needs of the fiber optic industry. The FSR series recoaters provide automatic operation with an easily exchangeable, low cost, mold design. A quick change resin bottle and pump assembly make messy, cumbersome, and time consuming acrylate changes a thing of the past. The pump system also provides a purge cavity for elimination of bubbles in the acrylate material. A programmable resin injection system provides an exact volume of resin to the mold cavity to ensure consistent and repeatable recoat performance. While the base model FSR-05 provides only recoating functions, the FSR-06 and FSR- 07 also provide programmable rate and force proof-testing capabilities up to 2 kgf or 10 kgf respectively. All of the recoaters are compatible with special recoating resins to provide higher stiffness recoating for 900 μm jacketed fibers, as well as specialty low-index resins for recoating of double-clad fibers. A USB - PC interface allows the user to control and store key parameters associated with the recoating process. The quartz mold technology provides very consistent recoating quality and have an estimated lifetime of 10,000 recoats per mold set. Specifications PARAMETER FSR-05 FSR-06 FSR-07 Applicable fiber coating Colored and non-colored Recoating diameter 195 μm, 255 μm, 280 μm, 450 μm, 670 μm, 1000 μm Custom sizes are available Recoating length 4 to 50 mm Recoating time Injection 20 sec/Curing 4 sec (Jacket diameter 250 μm with 280 μm MOLD) Resin injection Volume and speed are programmable Recoat material UV curable Acrylate Recommended specification for other viscosity 2000-6000 cps Curing wavelength 365± 15 nm DSM Desotech DesoLite(R) 950-200 recommended Material of mold Quartz Recoat modes 100 modes All variables programmable Proof-test modes — 30 modes Speed, force, time programmable Load application — Linear Clamp Mandrel Tension — 0.5 kgf ~ 2.0 kgf 0.5 kgf ~ 10.0 kgf Dimensions 252 mm (W) x 135 mm (D) x 169 mm (H) 252 mm (W) x 175 mm (D) x 169 mm (H) Weight 2.9 kg 4.3 kg 4.5 kg Power source AC 100 to 240 C /50 to 60 Hz (External AC adaptor ADC-19) LCD monitor 4.7 inch, Tilt angle PC interface USB 2.0 Type B mini Operating condition 10 to 30°C, 0 to 90% (non dew) Storage condition -40 to 60°C (non dew, no resin) Features • Easy mold, resin and pump exchange • Quartz molds for high-quality, consistent recoating • Wide selection of available mold sizes • Automated operation • Bubble elimination system • Programmable resin injection • Selectable proof–tester • PC interface with USB FSR-05 FSR-05, FSR-06 and FSR-07 Optical Fiber Recoaters FSR-06 FSR-07 © 2015, AFL, all rights reserved. PP-4-00081, Revision 12, 2.18.20 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 44 Fusion Splicing Recoaters & Splice Protection DESCRIPTION AFL NO. MISCELLANEOUS Fiber protect cover for FSR-06: PC-02 S016107 Fiber protect cover for FSR-07: PC-03 S016108 Tube set: FSR-05-TUBE-01 S016109 Pump head: FSR-05-PUMP-01 S016110 UV resin bottle: FSR-05-BTL-01 S016112 Force gauge adaptor: FGA-02 S016113 AC adapter ADC-19 S015523 AC power cord ACC-09 S014390 Accessories DESCRIPTION AFL NO. MOLDS FSR-05-MOLD-195 S016133 FSR-05-MOLD-255 S016134 FSR-05-MOLD-280 S016106 FSR-05-MOLD-320 S016829 FSR-05-MOLD-450 S016135 FSR-05-MOLD-600 S016830 FSR-05-MOLD-650 S016947 FSR-05-MOLD-670 S016136 FSR-05-MOLD-850 S016950 FSR-05-MOLD-1000 S016137 FSR-05, FSR-06 and FSR-07 Optical Fiber Recoaters Ordering Information DESCRIPTION AFL NO. FSR-05 with 255 μm mold Includes: 255 μm mold, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable and M-FSR05 instruction manual. S017436 FSR-05 with 280 μm mold Includes: 280 μm mold, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable and M-FSR05 instruction manual. S016103 FSR-05 with 320 μm mold Includes: 320 μm mold, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable and M-FSR05 instruction manual. S016833 FSR-05 with 450 μm mold Includes: 450 μm mold, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable and M-FSR05 instruction manual. S016276 FSR-05 with 600 μm mold Includes: 600 μm mold, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable and M-FSR05 instruction manual. S016834 FSR-05 with 650 μm mold Includes: 650 μm mold, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable and M-FSR05 instruction manual. S016946 FSR-05 with 670 μm mold Includes: 670 μm mold, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable and M-FSR05 instruction manual. S017385 FSR-05 with 850 μm mold Includes: 850 μm mold, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable and M-FSR05 instruction manual. S016949 FSR-05 with 1000 μm mold Includes: 1000 μm mold, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable and M-FSR05 instruction manual. S016998 FSR-06 with 280 μm mold Includes: 280 μm mold, 2 kgf Proof Tester, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable, PC-02 Fiber protect cover and M-FSR05 instruction manual. S016104 FSR-06 with 320 μm mold Includes: 320 μm mold, 2 kgf Proof Tester, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable, PC-02 Fiber protect cover and M-FSR05 instruction manual. S016835 FSR-06 with 450 μm mold Includes: 450 μm mold, 2 kgf Proof Tester, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable, PC-02 Fiber protect cover and M-FSR05 instruction manual. S016186 FSR-06 with 600 μm mold Includes: 600 μm mold, 2 kgf Proof Tester, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable, PC-02 Fiber protect cover and M-FSR05 instruction manual. S016836 FSR-06 with 1000 μm mold Includes: 1000 μm mold, 2 kgf Proof Tester, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable, PC-02 Fiber protect cover and M-FSR05 instruction manual. S017001 FSR-07 with 280 μm mold Includes: 280 μm mold, 10 kgf Proof Tester, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable, PC-03 Fiber protect cover and M-FSR05 instruction manual. S016105 FSR-07 with 600 μm mold Includes: 600 μm mold, 10 kgf Proof Tester, ADC-19 AC adapter, ACC-09 AC power cord, USB-01 USB Cable, PC-03 Fiber protect cover and M-FSR05 instruction manual. S016999 © 2015, AFL, all rights reserved. PP-4-00081, Revision 12, 2.18.20 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 45 Fusion Splicing Recoaters & Splice Protection FSR-05, FSR-06 and FSR-07 Optical Fiber Recoaters • Easy mold, resin and pump exchange • Factory installation is not required Resin and pump exchange Spare Pump for quickly changing UV resin type: FSR-05-pump-01 Mold exchange Bubble Separator Performance Bubble Separator
