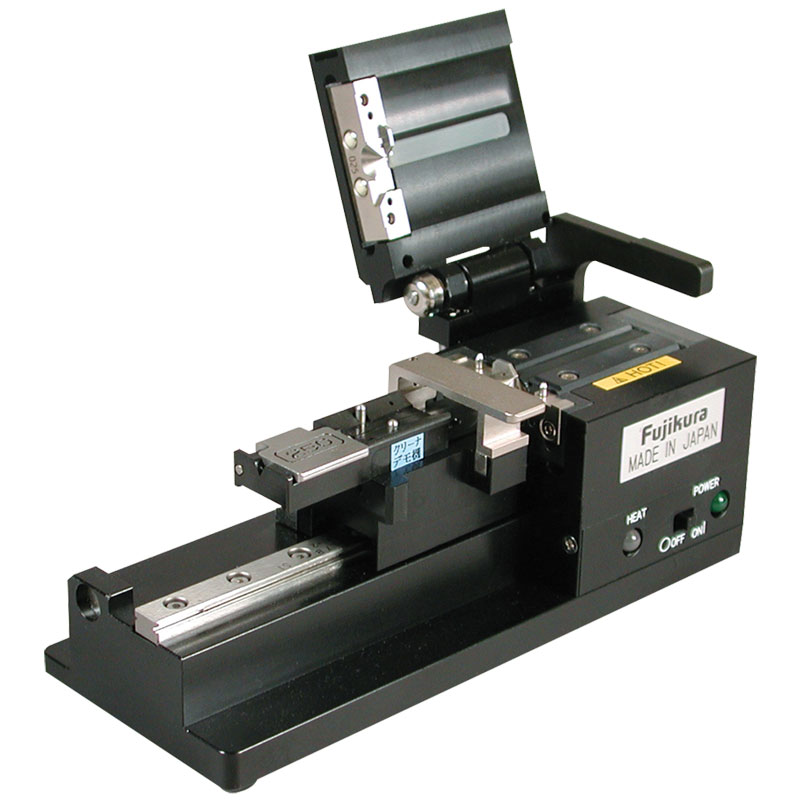

1 AFLglobal.com 1 (800) 235-3423 © 2 0 0 2 , A F L , a l l r i g h t s r e s e r v e d . P P - 4 - 0 0 0 3 0 , R e v i s i o n 6 , 9 . 2 9 . 2 0 2 5 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Fusion Splicing Systems 1 High Tensile Stripper The Fujikura high tensile stripper HTS-12 provides excellent strength performance when removing 250 μm and 400 μm buffer from optical fibers. Heating temperature and duration are fully adjustable for a variety of buffer materials. Self centering blades eliminate the need for an external guide and make replacement quick and easy. Designed for use with the FSM-40F/PM fiber holder system, the HTS-12 is an ideal solution for stripping when high strength fusion splices are a must. Ordering Information Description AFL No. HTS-12 High Tensile Stripper w/ 250 μm Blades and One-year factory warranty S012094 80/160 μm Blade for HTS-12 S016841 125/400 μm Blade for HTS-12 S011946 125/250 μm Blade for HTS-12 S011942 ADC-08 AC Adapter S010996 ACC-09 AC Power Cord S014390 Specifications Parameter Value Applicable Fiber: Cladding Diameter Coating Diameter 125 μm (80 μm optional with 160 μm coating) 250 μm (160 μm / 400 μm optional) Fiber Count Single Stripping Length 35 mm max Temperature Settings 120º, 140º, 160º, or 180º C (adjustable) Heating Time 3 seconds approximate Applicable Fiber Holders FH-40 & FH-100 series Power Supply 100 to 240 VAC (50 to 60 Hz) Dimensions (W x D x H) 140 x 60 x 60 (mm) / 5.51 x 2.36 x 2.36 (inches) Weight 600 g / 1.3 lbs
