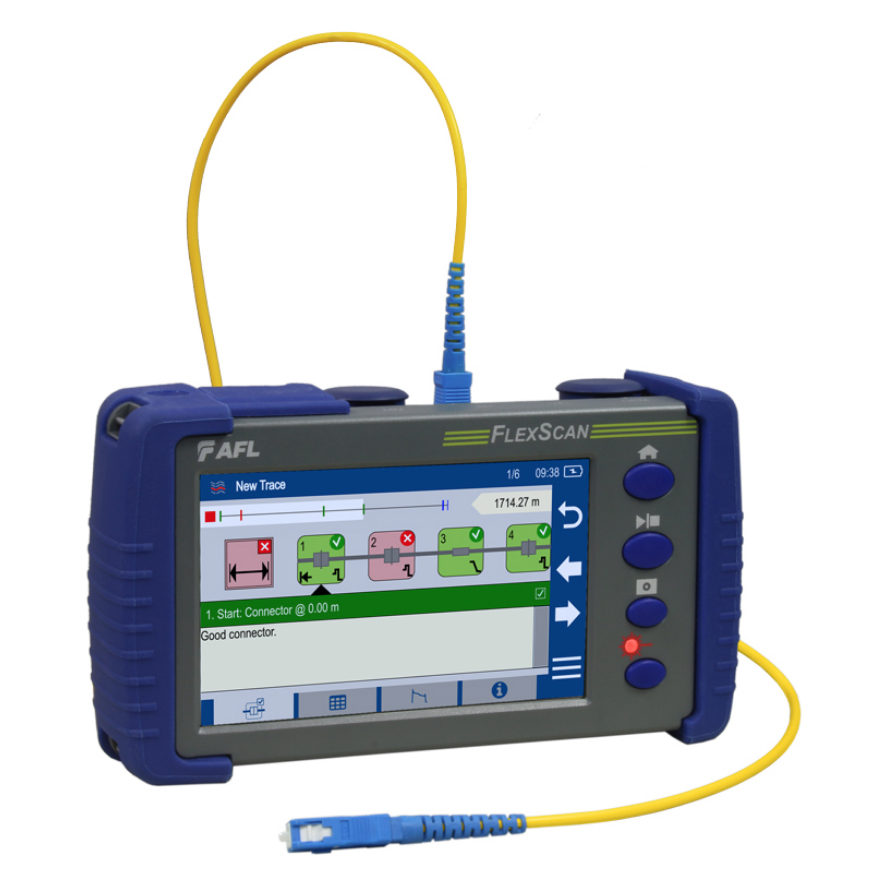

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 1 © 2002-2020, AFL, all rights reserved. 1827 Revision 3, 09.09.20 Specifications are subject to change without notice. FlexScan ® FS300 Quad OTDR Be ready for anything with this all-in-one solution Features • Multi-mode and Singlemode OTDR, including PON test • SmartAuto ® 1-button automated testing for fast results • Pocket-sized, weighs less than 1 pound, 12-hour battery • LinkMap ® colour-coded icons for easy troubleshooting • Integrated Source, Power Meter and VFL • Robust reporting including Print-to-PDF Applications • OTDR and insertion loss test and reporting • Fast, accurate Pt-to-Pt and PON verification and troubleshooting • Locate faults exceeding industry or user pass/fail thresholds • Visually pinpoint location of macrobends or breaks AFL’s FlexScan FS300 Quad OTDR is an all-in-one solution for detecting, identifying, locating and resolving singlemode and multi- mode optical network issues. It is designed for both novice and expert technicians working in a range of environments from data centers to fibre-to-the-home, as well as local and wide area networks. The FlexScan FS300 automates test setup, shortens test time and simplifies results interpretation, improving efficiency and reducing costs. All-in-one test capability: The FlexScan FS300 includes an integrated VFL, power meter and light source. It can be easily paired to AFL’s award-winning FOCIS family of inspection scopes for single-fibre and/or MPO and OptiTip ® multifibre inspection, ensuring technicians have everything they need to locate and resolve optical network issues. Performance-packed: With SmartAuto automated multi-pulse acquisition, 37 dB dynamic range and best-in-class dead zones, FlexScan Quad OTDRs test multi-mode and singlemode networks – including FTTH PONs and POLANs up to 1:64 split ratio – while still detecting and measuring events <2 meters apart. User-friendly: The FS300 enables both expert and novice technicians to quickly and accurately detect, locate, identify and measure optical network components and faults. It applies industry-standard or user-set pass/fail criteria and displays results using LinkMap colour-coded icons that immediately show the health of the network. Pocket-sized: The FlexScan FS300’s small form factor still delivers 12-hour battery operation plus a large, bright, indoor/outdoor, 5-inch, 800 x 480 pixel touchscreen display that doesn’t need a stylus. Multiple Reporting Options: Reports can be generated directly from the unit using Print-to-PDF feature or files can be transferred wirelessly or uploaded via USB to the included Windows ® compatible TRM ® 3.0 Test Results Manager software. Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 2 © 2002-2020, AFL, all rights reserved. 1827 Revision 3, 09.09.20 Specifications are subject to change without notice. FlexScan ® FS300 Quad OTDR Dramatically Reduces Test Time In SmartAuto mode, FlexScan OTDRs automatically analyze and test the network using a variety of network-optimised settings to precisely locate, characterise and identify network events with one button push. Loss and reflectance are measured for connectors, splices, splitters and macro-bends. FlexScan even checks for live fibre and verifies OTDR launch quality before initiating a test. Simplifies Network Troubleshooting LinkMap® colour-coded icons enable even novice users to easily and accurately troubleshoot optical networks. LinkMap clearly identifies fibre start, end, connectors, splices, PON splitters, and macro-bends. A LinkMap Summary provides end-to-end link length, loss and ORL. Loss and reflectance of detected events is compared to industry-standard or user-defined pass/ fail thresholds and displayed with clear pass/fail indications. Users can instantly toggle between LinkMap and Trace views. Multi-mode and Singlemode plus PON Testing in One OTDR FlexScan Quad OTDRs are the ideal test tool for verifying and/or maintaining both singlemode and multi-mode networks. Unlike most Quad OTDRs, FS300 OTDRs test both point-to-point networks and FTTH PONs/Passive Optical LANs (POLANs). Connectivity FlexScan OTDRs easily pair with AFL's ward-winning FOCIS ® family of connector inspection probes for fast, easy single-fibre and/or multi-fibre connector end-face inspection. Images and pass/fail results can be transferred to the FlexScan for display and/or archiving with OTDR results. FlexScan results can be transferred wirelessly via the free FlexScan App to a smart device for real-time reporting using the included Windows-based TRM® 3.0 Test Results Manager software. Monitoring test results in real-time can detect mistakes while the tech is still in the field, preventing future truck rolls. OTDR, OLTS, and VFL Testing with a Single Tool FlexScan optionally includes a Wave ID optical light source (OLS) and optical power meter (OPM). With Wave ID, the OPM auto-synchronizes to a single or multi- wavelength Wave ID optical signal transmitted by an AFL light source. The OPM reports detected wavelengths and measures power and loss at each wavelength, saving significant test time and eliminating setup errors. The integrated Visual Fault Locator’s eye-safe red laser enables users to visually pinpoint the location of macro-bends and fibre breaks often found in splice closures and fibre cabinets. Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 3 © 2002-2020, AFL, all rights reserved. 1827 Revision 3, 09.09.20 Specifications are subject to change without notice. FlexScan ® FS300 Quad OTDR Specifications a OTDR MULTI-MODE SINGLEMODE Emitter Type Laser Safety Class b Class I Fibre Type Multi-mode; compatible with OM1-OM5 Singlemode; compatible with all G.65x Wavelengths c 850/1300 ±20 nm 1310/1550 ±20 nm Network Type Point-to-point Point-to-point & PON up to 1:64 Connector Type User-specified APC or UPC ferrule with interchangeable UCI adapters Dynamic Range d ≥29/29 dB @ 850/1300 nm ≥37/36 dB @ 1310/1550 nm Event Dead Zone e ≤0.8 m @ 850/1300 nm typical ≤0.8 m @ 1310/1550 nm typical Attenuation Dead Zone f ≤3.0 m ≤3.5 m PON Dead Zone g Not applicable ≤25m Pulse Widths 3, 5, 10, 20, 30, 50, 100, 200, 300, 500 ns; 1 μs 3, 5, 10, 20, 30, 50, 100, 200, 300, 500 ns; 1, 2, 3, 5, 10,20 μs Range Settings 250 m to 30 km 250 m to 240 km Data Points Up to 300,000 Data Spacing ≤5 cm to ≤16 m Group Index of Refraction 1.3000 to 1.7000 Distance Uncertainty ±(1 + 0.0025% x distance + data point spacing) m Linearity ±0.03 dB/dB Loss Resolution 0.001 dB Reflectance Range 850: -20 to -58 dB; 1300: -20 to -63 dB 1310/1550 nm: -20 to -65 dB Reflectance Resolution 0.01 dB Reflectance Accuracy ±2 dB ORL Range 20 to 60 dB ORL Resolution 0.01 dB ORL Accuracy ±2 dB over range 30 to 55 dB; ±4 dB over range 20-30 dB and 55-60 dB Trace File Format .SOR, Telcordia SR-4731 Issue 2 OTDR Results Storage Internal or external USB memory Internal Storage Minimum 4 GB internal non-volatile memory (App SW + > 1000 traces) Internal Launch Fibre ≥30 m internal MM launch fibre ≥50 m internal SM launch fibre OTDR Modes Supports SmartAuto, Expert, Real-Time for PON & point-to-point networks Real-time Refresh Rate 1 to 4 Hz Live Fibre Protection No OTDR damage when connected to live fibre delivering ≤ +3 dBm at wavelength(s) in range 825 to 1675 nm Live Fibre Detection Reports live fibre with input signal ≥ -35 dBm for wavelength(s) in range 825 to 1675 nm Notes : a. All specifications valid at 25 °C unless otherwise specified. b. FDA 21 CFR 1040.10 & 1040.11, IEC 60825-1: 2014. c. Measured with laser in CW mode at 23 °C ±3 °C. d. SNR=1, longest range and pulse width, 3 minute averaging. e. Maximum distance between two points 1.5 dB down each side of a reflective peak caused by an event with a -45 dB (or smaller) reflectance. Test pulse width is 3 or 5 ns. f. Maximum distance from the start of a trace spike caused by an event with a -45 dB (or smaller) reflectance, to the point where the trace returns to and stays within ±0.5 dB of backscatter. Test pulse width is 3 or 5 ns. g. Recovery to within 0.5 dB of backscatter after 1:16 splitter (≤13 dB loss) using 100 ns pulse width. Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 4 © 2002-2020, AFL, all rights reserved. 1827 Revision 3, 09.09.20 Specifications are subject to change without notice. FlexScan ® FS300 Quad OTDR Specifications a Accessories and Connector Adapters OPM - OPTICAL POWER METER (P1 OPTION) Calibrated Wavelengths 850, 1300, 1310, 1490, 1550, 1625, 1650 nm Detector Type InGaAs PIN, 2 mm diameter Measurement Range +3 to -70 dBm (+3 to -65 dBm @ 850 nm) Tone Auto-Detect +3 to -50 dBm @1300, 1310, 1550 nm; +3 to -40 dBm @850 nm; Wave ID Auto-synchronizes & measures 1, 2 or 3 wavelengths Wave ID Range +3 to -50 dBm @1300, 1310, 1550 nm; +3 to -40 dBm @850 nm Accuracy ±5% @ -10 dBm Linearity ±0.1 dB (-3 to -40 dBm); ±0.25 dB (-40 to -70 dBm) Resolution 0.01 dB Measurement Units Power in dBm, nW, μW, mW; Loss in dB GENERAL Size (in boot) 98 x 175 x 52.5 mm Weight 0.8 kg Operating Temperature -10 ° C to +50 ° C, 0 to 95% RH (non-condensing) Storage Temperature -30 ° C to +70 ° C, 0 to 95% RH (non-condensing, battery removed) -20 ° C to +60 ° C, 0 to 95% RH (non-condensing, battery installed) Power Rechargeable Lithium polymer battery; AC adapter AC Adapter 100-240 VAC, 50-60 Hz input; 5VDC, 2A output Battery Life (OTDR) ≥ 12 hours, Telcordia test conditions, 4 hours recharge Display 5-inch colour LCD, 800 x 480 pixels, backlit Shock and Vibration GR-196-CORE, drop test, 0.75 m (30 in.), 6 planes Dust Protection GR-196-CORE, rubber dust caps for all ports OTDR/OLS Ports MM: UPC; SM: UPC or APC; includes tool-free, interchangeable SC adapters OPM and VFL Ports Universal, 2.5 mm adapter (SC, FC, ST); others available USB Ports USB host port; micro-USB function port Bluetooth Interface W1 option; compatible with Windows PC and Android WiFi Interface W1 option; compatible with IEEE 802.11 / WLAN CE Safety Compliant with EN61010-1 CE EMI/RFI EN55011, EN61326-1, GR-196-CORE 4.5.1 RoHS Compliant with RoHS directive 2011/65/EU DESCRIPTION AFL NO. FlexScan wrist strap 1400-05-0230PZ FlexScan neck strap, 36" 1400-05-0231PZ Soft carry case for FlexScan, Fibre Ring, FOCIS Flex, OFI 1400-01-0167PZ Vehicle charger, 12 VDC to 5 VDC @ 2 A 4050-00-0033MR AC adapter 100-240 VAC to 5 VDC 4050-00-0931PR Replacement Li-Pol Battery Pack; 3.7 VDC, 6.8 AH 3900-06-0001MR Cable, USB-micro B, 5 pin, 6' 6000-00-0031MR 5V USB charging cable type A to barrel 6000-00-0034PR Bundle of 5V USB charging cable and 10K mAh external USB battery pack 4050-01-0001PR One-Clicks, fluid, wipes, etc. See www.AFLglobal.com/au Cleaning Supplies CONNECTOR ADAPTER AFL NO. OTDR/OLS PORT OPM PORT VFL PORT FC 2900-50-0002MR 2900-52-0001MR N/A SC 2900-50-0003MR 2900-52-0002MR N/A ST 2900-50-0004MR 2900-52-0003MR N/A LC 2900-50-0006MR 2900-52-0004MR N/A SC/APC 2900-50-0011MR N/A N/A 2.5 mm Universal N/A 2900-52-0005MR 2900-50-0007MR 1.25 mm Universal N/A 2900-52-0006MR 2900-50-0010MR OLS - OPTICAL LIGHT SOURCE (P1 OPTION) Wavelengths 850/1300/1310/1550 nm Emitter Type InGaAs PIN, 2 mm diameter Safety Class Class I b Launch Condition Controlled Launch at 850 nm (comparable to encircled flux on OM4 fibre) Center λ (CW Mode) ±20 nm Spectral Width 5 nm maximum (FWHM, CW Mode) Internal Modulation 270 Hz, 330 Hz, 1 kHz, 2 kHz, CW, Wave ID SM Output Stability Short-term c : ±0.1 dB; Long-term d : ±0.05 dB MM Output Stability Short-term e : ±0.20 dB; Long-term f : ±0.15 dB Output Power 1310/1550 nm: -7 dBm ±1.5 dB (CW, G.652.C/D) 1300 nm: -7 dBm ±1.5 dB (CW, 50 μm MMF) 850 nm: 0 dBm ±1.5 dB (CW, 50 μm MMF) VFL - VISUAL FAULT LOCATOR Emitter Type Laser, Class IIIa / Class 3R b Wavelength 635 nm ±10 nm Output Power 1.5 mW (~+2 dBm ±0.5 dB) into SMF-28 Modes CW and 1 Hz flashing Notes: a. All specifications valid at 25 °C unless otherwise specified. b. FDA 21 CFR 1040.10 and 1040.11, and IEC 60825-1:2014. c. Typical maximum deviation over 15 minute after 15 minute warm-up. d. Typical maximum deviation over 8 hours after 1 hour warm-up. e. 15 minutes after 30 minutes warm-up. f. 8 hours after 1 hour warm-up. Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 5 © 2002-2020, AFL, all rights reserved. 1827 Revision 3, 09.09.20 Specifications are subject to change without notice. FlexScan ® FS300 Quad OTDR FlexScan FS300 Quad OTDR Kit Configurations FlexScan FS300 models are available in the kit configurations: Basic, PLUS, and PRO. All kits include FS300 with AC charger, battery, carry strap, SC/2.5 mm connector adapters, TRM ® 3.0, quick reference user guide and carry case. PLUS Kits add 150 m fibre rings and One-Click cleaner. PRO kits additionally include a FOCIS Flex auto-focusing connector inspection probe with IEC pass/fail analysis and two adapter tips. FlexScans equipped with Bluetooth option (W1) support Bluetooth transfer of results via FlexScan App for remote reporting using TRM 3.0. The FlexScan App is available as a free download from Google play store. Ordering Information PART NUMBER OTDR / OLS λ (MM) PON OTDR OLS / OPM WIFI BLUETOOTH FS300-325-[Kit]-W-[KX] Quad: 850/1300 MM; 1310/1550 SM • • • FS300-325-[Kit]-PW-[KX] Quad: 850/1300 MM; 1310/1550 SM • • • • FlexScan FS300 Quad OTDR Kit Configuration KIT FS300 FLEXSCAN KIT CONFIGURATION BAS Basic kit with soft case, TRM 2.0 Basic, USB cable PLUS PLUS kit adds 150 m SMF & OM3 Fibre rings, One-Click cleaner, TRM 2.0 Advanced PRO PRO kit adds FOCIS Flex, 2 adapter tips, 150 m SMF & OM3 Fibre rings, One-Click cleaner, TRM 2.0 Advanced FlexScan FS300 Quad OTDR Port & Inspection Tip Configuration [KX] OTDR PORT FIBRE RING END A FIBRE RING END B PORT INSPECTION TIP PATCHLEAD INSPECTION TIP KS01 SM: SCA SM: SCA SM: SCA SCA Uni 2.5 mm Angled MM: SC MM: SC MM:SC KS02 SM: SCA SM: SCA SM: LC LC Uni 1.5 mm MM: SC MM: SC MM: LC KS03 SM: SCA SM: SCA SM: SC SC Uni 2.5 mm MM: SC MM: SC MM:SC KS04 SM: SCA SM: SCA SM: ST ST Uni 2.5 mm MM: SC MM: SC MM: ST Inspection Tips only included in Pro Kits. Additional tips required where hybrid fibre rings are used (sold separately). Notes: a. Results can be transferred from FlexScan to TRM using USB cable, or performed wirelessly (W1 option) after downloading FlexScan App from Google play store. b. For additional FOCIS Flex adapter tips, see FOCIS Flex data sheet or Buyer’s Guide. Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 6 © 2002-2020, AFL, all rights reserved. 1827 Revision 3, 09.09.20 Specifications are subject to change without notice. F lex S can ® FS300 Quad OTDR Test Management and Reporting Software DESCRIPTION AFL NO. TRM 3.0 with Basic License (OTDR Trace/OLTS Viewer, Batch Editor and Reports), USB delivery (included with all FS300 kits) TRM3-BASIC TRM 3.0 upgrade from Basic to Advanced License, USB delivery TRM3-UPGRADE TRM 3.0 upgrade from Basic to Advanced License, email delivery TRM3-UP-EMAIL FlexScan App (Android Google Play) Free Download Recommended Products Qualifications CATEGORY REGULATION/STANDARD QUALIFICATION CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking Safety/EMC/EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment Telcordia Compliant to GR-196-CORE 4.5.1 for requirements on electromagnetic interference FCC Compliant to code of federal regulations FCC 47 CFR 15 on unlicensed transmissions FDA Compliant to code of federal regulations FDA 21 CFR 1040.10 and 1040.11 on laser products IEC Compliant to IEC 60825-1 for safety of laser products RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method TIA Compliant to TIA-568.3-D for test and measurement requirements for premises optical fibre cabling and components IEC Compliant to IEC 11801 for test and measurement requirements for optical fibre cabling for use within premises EN Compliant to EN 50173 for test and measurement requirements for optical fibre cabling for use within premises AS/NZS Compliant to AS/NZS 3080 for test and measurement requirements for optical fibre cabling for use within premises TIA Compliant to TIA-526-7 for test procedures for installed optical fibre cable plant TIA Compliant to TIA-526-14 for test procedures for installed optical fibre cable plant IEC Compliant to IEC 14763-3 for systems and methods for the inspection and testing of installed optical fibre cabling AS/NZS Compliant to AS/NZS 14763.3 for systems and methods for the inspection and testing of installed optical fibre cabling IEC Compliant to IEC 61280-4-1 for test procedures for installed optical fibre cable plant IEC Compliant to IEC 61280-4-2 for test procedures for installed optical fibre cable plant Generic Requirement Telcordia Compliant to GR-196-CORE for generic requirements for OTDR-type equipment Telcordia Compliant to SR-4731 Issue 2 for OTDR data format IEC Compliant to IEC 61746-1 for requirements on calibration of OTDR FOCIS Flex and FOCIS Lightning (Multi-Fibre) Connector Inspection • Self-contained, tether-free, hand-held inspection solution • Auto-focus and auto-centering for fast, easy inspection • IEC, IPC and user-defined pass/fail analysis • FOCIS Lightning: extremely fast multi-fibre auto-analysis for datacom and telecom inspection applications Fujikura Optical Fibre Identifier • Works on all fibre types including BIF • Trigger lock, positive stop for optimum detection • Integrated optical power meter Contact AUSSales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about FlexScan FS300 OTDR. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts
