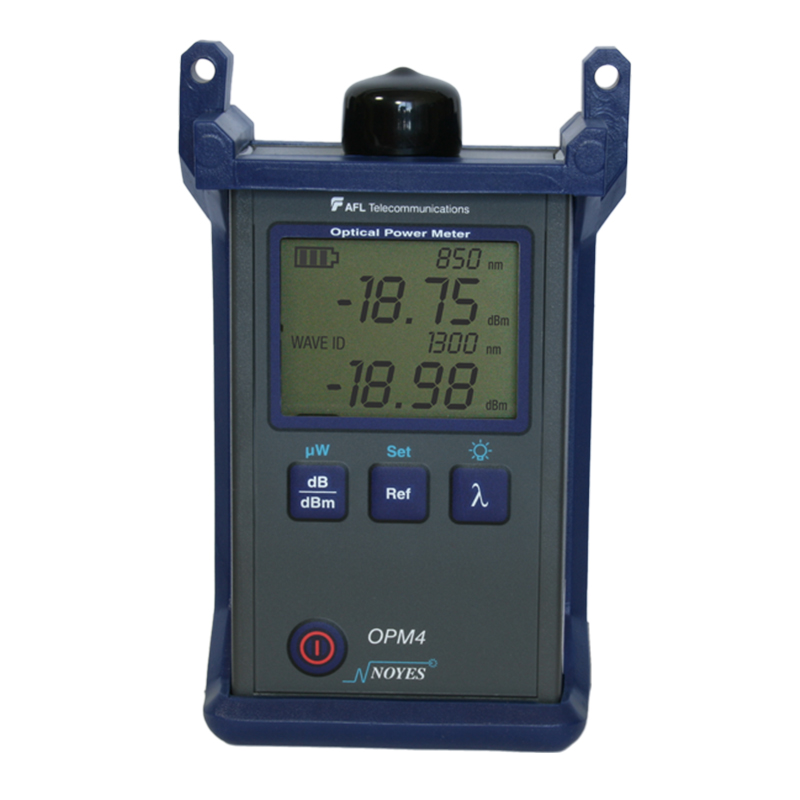

1 Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection © 2020, AFL, all rights reserved. OPM0-00-2000 1318 Revision 2, 22.12.20 Speciflcations are subject to change without notice. OPM5 and OPM4 Optical Power Meters Features • Rugged, dependable, and backed by industry-best 5-Year Warranty • Wave ID supports tests up to three wavelengths simultaneously - slashing test time • Field-swappable connector adapters for maximum flexibility • Long battery life from globally available AA batteries Applications • Passive Optical Networks (PON) testing • OPM(5/4)-4D (Filtered-InGaAs) for high power (+26 dBm) CATV broadband networks or DWDM system applications • OPM(5/4)-3D (InGaAs) for telecommunications networks • OPM(5/4)-2D (Ge) for premises LAN/WAN multimode or single-mode networks • OPM4-1D (Silicon) for multimode / plastic optical fibre applications OPM5 Optical Power Meter AFL is a trusted supplier of optical testing equipment with more than 30 years of experience and tens of thousands of units in use in the field. AFL’s full range of power meters are used for testing single-mode and/or multimode fibre networks. Power meters with wave ID can detect two or more wavelengths simultaneously – decreasing test time and reducing user errors when paired with AFL wave ID light sources. Designed for the real world: AFL’s power meters are designed to meet the demands of the outside plant environment. They with - stand the one-meter drop test and have splash resistant controls that are easy to use, even with gloves on. Flexible and efficient: A range of field-swappable output adapters enables access for cleaning optical ports and supports multiple connector styles. The efficient design provides long test time from globally available AA batteries. Equipped with five-minute auto- off feature to save power. Reduce test time and errors: Wave ID (Triple, Dual, or Single) decreases test time while reducing technician errors. Stores test results: AFL’s OPM5 stores optical reference at each calibrated wavelength. This enables technicians to organize test results into multiple files and transfer stored results via USB to the included PC-based TRM ® 2.0 software for analyzing, generating reports, and printing. Users can generate network Pass/Fail results demonstrating compliance to industry standards and illustrate headroom. Fully N.I.S.T. traceable. 2 Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection © 2020, AFL, all rights reserved. OPM0-00-2000 1318 Revision 2, 22.12.20 Speciflcations are subject to change without notice. GENERAL Power 2 x AA batteries, accepts standard mini-USB power adapter Adapter Caps Order with one: 1.25 mm Universal, 2.5 mm Universal, FC, SC, ST, LC. Other connector adapters available Battery Life 300 hours Operating Temperature -10 °C to 50 °C, 90 % RH (non-condensing) Storage Temperature -30 °C to 60 °C, 90 % RH (non-condensing) Size (H x W x D) 14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in) Weight 0.26 kg (0.58 lb) Notes: a. All specifications valid at 25°C unless otherwise specified b. Accuracy measured at 25 ºC and -10 dBm per N.I.S.T. standards OPM5 and OPM4 Optical Power Meters Ordering Information All OPM models include optical power meter, 2 AA batteries, protective rubber boot, customer specified adapter cap, and carry case. OPM5 models also include TRM ® 2.0 software (Basic License). CC M N OPM Detector Type (N) N = 4, 3, 2, 1 Connector (CC) CC = FC, SC, ST, LC, 2.5 mm, 1.25 mm (ONE ONLY!) Model Number (M) M = 5, 4 MODEL CALIBRATED WAVELENGTHS (nm) DETECTOR TYPE MEASUREMENT RANGE (dBm) PC SOFTWARE 650 660 780 850 980 1300 1310 1490 1550 1625 OPM5-4D InGaAs +26 to -50 TRM 2.0 OPM5-3D InGaAs +10 to -75 TRM 2.0 OPM5-2D Germanium +6 to -60 TRM 2.0 OPM4-4D InGaAs +26 to -50 OPM4-3D InGaAs +10 to -75 OPM4-2D Germanium +6 to -60 OPM4-1D Silicon +6 to -70 When placing an order, select options as follows: • Model Number (M), • Detector Type (N), • Connector Configuration (CC) Specifications a OPTICAL MODEL OPM5-4D, OPM4-4D OPM5-3D, OPM4-3D OPM5-2D, OPM4-2D OPM4-1D Calibrated Wavelengths 850, 980, 1300, 1310, 1490, 1550, 1625 nm 850, 1300, 1310, 1490, 1550, 1625 nm 850, 1300, 1310, 1490, 1550 nm 650, 660, 780, 850 nm Detector Type Filtered InGaAs InGaAs Germanium (Ge) Silicon (Si) Measurement Range +26 to -50 dBm +10 to -75 dBm +6 to -60 dBm +6 to -70 dBm Tone Detect Range +6 to -30 dBm +6 to -25 dBm for 850 nm +10 to -50 dBm +10 to -45 dBm for 850 nm +6 to -50 dBm +6 to -45 dBm for 850 nm +6 to -45 dBm Wavelength ID Range +6 to -30 dBm +6 to -25 dBm for 850 nm +10 to -50 dBm +10 to -45 dBm for 850 nm +6 to -50 dBm +6 to -45 dBm for 850 nm — Accuracy b ±0.25 dB Resolution 0.01 dB Measurement Units dB, dBm, μW 3 Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection © 2020, AFL, all rights reserved. OPM0-00-2000 1318 Revision 2, 22.12.20 Speciflcations are subject to change without notice. OPM5 and OPM4 Optical Power Meters OPM Accessories DESCRIPTION AFL NO. ADAPTER CAPS 2.5 mm Universal (accepts FC, SC, and ST ferrules) 8800-00-0214 1.25 mm Universal (accepts LC and MU ferrules) 8800-00-0224 FC 8800-00-0200 SC 8800-00-0209 ST ® 8800-00-0202 LC simplex 8800-00-0225 E-2000 8800-00-0221 2.5 mm open Universal. Accepts SC duplex, OptiTap connector for measuring optical power. 8800-00-0219 SMA 8800-00-0203 D4 8800-00-0201 Biconic 8800-00-0204 USB CABLE USB Cable: PC (USB-A) to OPM (USB-MINI B): • Connect OPM to PC for data upload to TRM ® 2.0 • External Power for OPM (when used with customer supplied USB-A power source) OPM5 MODEL OPM4 MODEL 6000-00-0024MR Connect to PC and External power External power only Test Management and Reporting Software DESCRIPTION AFL NO. TRM ® 2.0 with Basic License (OTDR Trace/OLTS Viewer, Batch Editor and Reports), USB delivery TRM-00-0900PR 4 Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection © 2020, AFL, all rights reserved. OPM0-00-2000 1318 Revision 2, 22.12.20 Speciflcations are subject to change without notice. OPM5 and OPM4 Optical Power Meters Recommended Products Qualifications CATEGORY REGULATION/STANDARD QUALIFICATION CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking Safety/EMC/EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method TIA Compliant to TIA-568.3-D for test and measurement requirements for premises optical fibre cabling and components* IEC Compliant to IEC 11801 for test and measurement requirements for optical fibre cabling for use within premises* EN Compliant to EN 50173 for test and measurement requirements for optical fibre cabling for use within premises* AS/NZS Compliant to AS/NZS 3080 for test and measurement requirements for optical fibre cabling for use within premises* TIA Compliant to TIA-526-7 for test procedures for installed optical fibre cable plant TIA Compliant to TIA-526-14 for test procedures for installed optical fibre cable plant* IEC Compliant to IEC 14763-3 for systems and methods for the inspection and testing of installed optical fibre cabling* AS/NZS Compliant to AS/NZS 14763.3 for systems and methods for the inspection and testing of installed optical fibre cabling* IEC Compliant to IEC 61280-4-1 for test procedures for installed optical fibre cable plant* IEC Compliant to IEC 61280-4-2 for test procedures for installed optical fibre cable plant Generic Requirement IEC Compliant to IEC 61315 for requirements on calibration of fibre-optic power meters Contact AUSSales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about OPM5 and OPM4 optical power meters. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts • Encircled Flux Compliant • 5-Year Product Warranty • Integrated LED and Laser light sources FlexScan® FS300 (quad) and FS200 (single-mode) OTDRs Optical Light Sources • SmartAuto ® 1-button automated testing for fast results • LinkMap ® colour-coded icons for easy troubleshooting • FleXpress ® mode (FS200) completes OTDR test in <5 seconds! • Integrated Source, Power Meter and VFL
