• OPM5 Optical Power Meter with Data Storage

    Features:

    • Rugged, dependable, and backed by industry-best 5-Year Warranty
    • Wave ID supports tests up to three wavelengths simultaneously - slashing test time
    • Field-swappable connector adapters for maximum flexibility
    • Long battery life from globally available AA batteries

    Applications:

    • Passive Optical Networks (PON) testing
    • OPM(5/4)-4D (Filtered-InGaAs) for high power (+26 dBm) CATV broadband networks or DWDM system applications
    • OPM(5/4)-3D (InGaAs) for telecommunications networks
    • OPM(5/4)-2D (Ge) for premises LAN/WAN multimode or single-mode networks
    • OPM4-1D (Silicon) for multimode / plastic optical fibre applications

PRODUCT DESCRIPTION

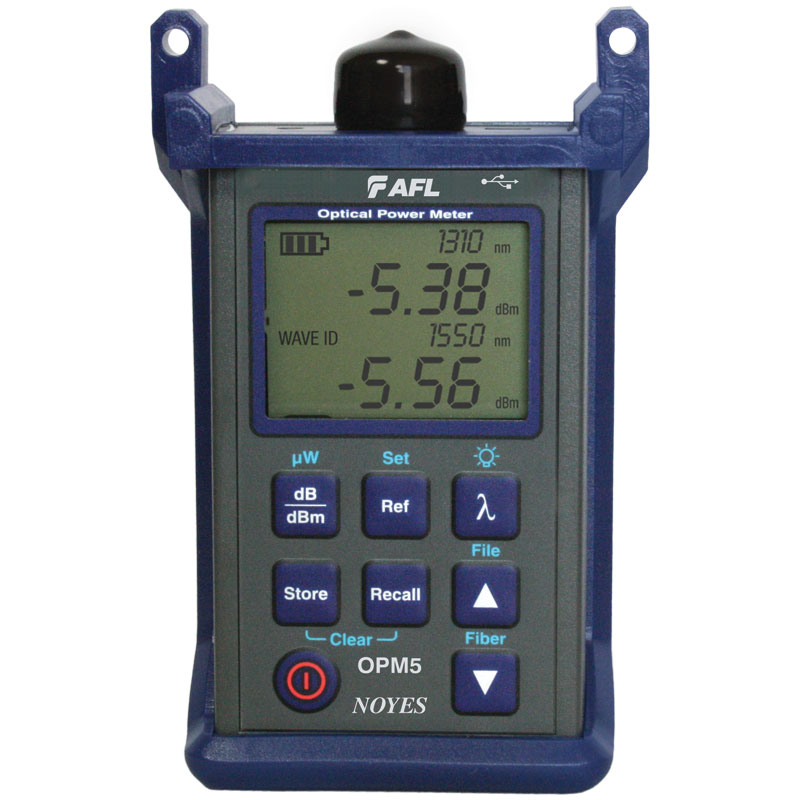

Full-featured, handheld optical power meter

OPM5 is designed for measuring optical power in all network types and performing insertion loss measurements on multimode or single-mode fibre optic links.



The OPM5 is fully N.I.S.T. traceable.



Automatic Wavelength Identification Significantly Increases Efficiency

The standard Wave ID feature automatically detects and sets the receive wavelength(s), preventing setup and measurement errors (when used with OLS series light sources). It significantly increases efficiency and reduces technician errors—and saves testing time—by eliminating the need to test each wavelength individually.



Optical References Storage

The OPM5 stores optical references for each calibrated wavelength and offers multiple test tone detection for fibre identification.



Test Results Storage, Transfer and Post Processing with TRM® 2.0

OPM5 File Management system allows technicians to organise test results into multiple files.  Stored OPM results may be transferred to PC via USB port for viewing, analysis, and professional report generation using the included Windows® compatible TRM® 2.0 Basic Test Results Manager software.  TRM® 2.0 allows users to apply industry standards based rules to test results and create comprehensive certification reports complete with Pass/Fail results and calculated headroom.



Key Specifications



  • Measurement Units: dB, dBm, μW
  • Power: 2 x AA batteries
  • Battery Life: 300 hours



Calibration Wavelengths

OPM5-2D – 850, 1300, 1310, 1490, 1550 nm

OPM5-3D – 850, 1300, 1310, 1550, 1490, 1625 nm

OPM5-4D – 850, 980, 1310, 1550, 1490, 1625 nm



Ordering Information



OPM5 models

Three Models provide options to cover all network needs:



OPM5-2D-CC   Germanium (Ge) Detector suited for Premises (LAN/WAN) multimode networks

OPM5-3D-CC   InGaAs Detector suited for single-mode networks

OPM5-4D-CC   Hi-Power InGaAs Detector suited for CATV and other networks up to +26 dBm



NOTE: CC = Connector Configuration.  Select one of the following when ordering:

FC, SC, ST, LC, 2.5mm Universal, 1.25mm Universal



OPM5 Accessories

Model

Description

8800-00-0200

FC adapter

8800-00-0209

SC adapter

8800-00-0202

ST® adapter

8800-00-0225

LC adapter

8800-00-0214

2.5 mm Universal (Accepts FC, SC, ST, etc. ferrules)

8800-00-0224

1.25 mm Universal (Accepts LC, MU ferrules)

6000-00-0024MR

Cable, USB-MINI B connect to PC



Resources


Document

opm0-00-2000

VIEW

Document

opm0-00-2000

VIEW
