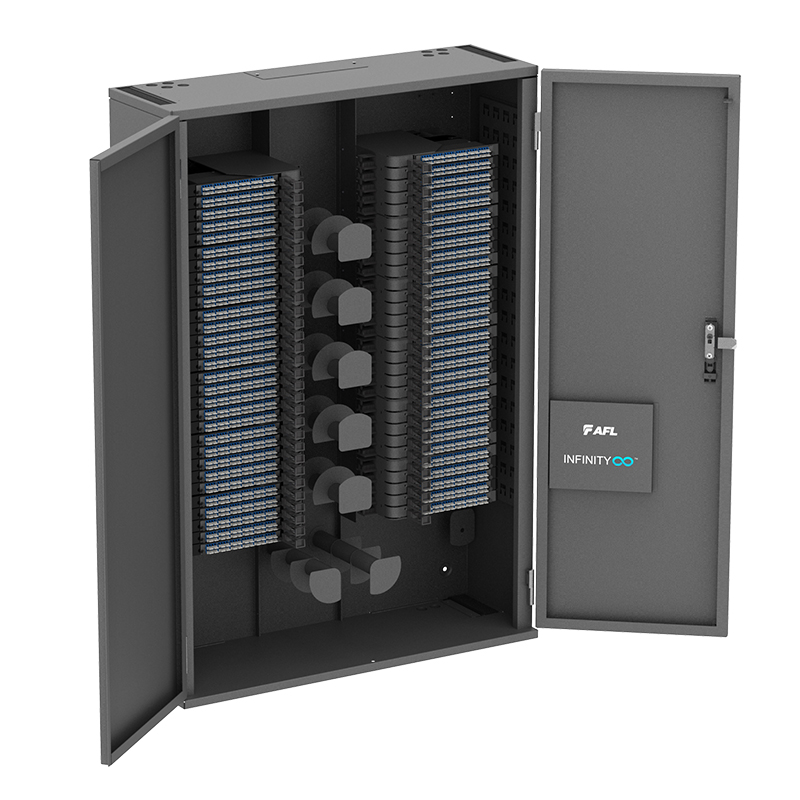

Mini IFDF wall mounted cross-connect splicing and patching frame.
38de94903bb84daf8663c3a64f14a4c5
Infinity Fibre Distribution Frame
2 www.AFLglobal.com
Infinity Fibre Distribution Frame 1 The Infinity Fibre Distribution Frame (IFDF) is a high density optical interconnect solution suited to a range of communications environments. Modular in design, the IFDF offers a unique solution for high density fibre management in Data Centres, Co-location and Telecommunication environments. The IFDF is a left and right sectioned mounting frame that is populated with modular swing out sub frames as required. The left and right sections allow inbound or outbound cables to be separated. Each section on the full height frame will accommodate 13 sub frames, totaling 26 when both are fully populated. The swing out sub frames are fitted as required and accommodate 5 modules each. A range of modules are available to suit fusion splicing, patching, passive device module patching and MTP patching. Based on a maximum module capacity of 24 fibres, the full height IFDF can present 3120 spliced terminations making it one of the highest density frames on the market. Applications • Termination and management of large fibre count cables • Termination and management of multiple incoming and outgoing cables • Management of incoming and outgoing pre-terminated cables (including MTP) • Patching between terminated cables, passive devices and patching interfaces/cross-connects • Termination and management of A/B diverse route networks • Cross-connect between DC switches, servers and SAN devices Splicing • Single fibre LC/SC fusion spliced pigtail • FuseConnect • Through Splicing Patching • MTP • SC • LC Passive Device Modules • Optical splitters • WDMs • CWDMs Infinity Fibre Distribution Frame
2 www.AFLglobal.com Features and Benefits • Individual modules allow access without adjacent circuit disruption • Top and bottom cable entry suitable for both overhead and under floor cabling • Left and right side fibre guide system supports and manages incoming and outgoing cables • Central storage bay accommodates patch cord routing and storage • Modular design allows expansion of the network when required • All front access design to suit wall mounting • Large capacity lower cable raceway for inter-rack patching on full height frame only • Fixed length patch cords suits all patching requirements, minimising inventory • Shipped assembled ready for installation • Label tags are supplied for the swing out modules for identifying individual trays • Supplied with full installation instructions for splicing and connecting pre-terminated assemblies • Doors fitted with documentation storage Specifications PART NUMBER AFL-IFDF-FRAME-UL-V2 AFL-IFDF-FRAME-UL-V2-M AFL-IFDF-FRAME-UL-V2-MC DESCRIPTION Infinity Fibre Distribution Frame Infinity Fibre Distribution Frame – Mini Infinity Fibre Distribution Frame – Micro DIMENSIONS 900 mm (W) x 2200 mm (H) x 300 mm (D) 900 mm (W) x 1295 mm (H) x 300 mm (D) 900 mm (W) x 790 mm (H) x 300 mm (D) UNLOADED WEIGHT WITHOUT SUB-FRAMES 120 kg 75 kg 25 kg INSTALLATION OPTIONS Bayed, back to back, wall or free-standing Wall mountable or free-standing Wall mountable SUB-FRAME CAPACITY 13 Sub-frames per side (26 total) 6 Sub-frames per side (12 total) 3 Sub-frames per side (6 total) CASSETTE/PATCH PANEL CAPACITY 130 60 30 SPLICE CAPACITY 3,120 1,440 720 X-PATCHING CAPACITY: 2.0 mm 3.0 mm 1,560 Fibre cords 780 Fibre cords 720 Fibre cords 720 Fibre cords 360 Fibre cords 360 Fibre cords PRE-TERMINATED CABLE CAPACITY: (BUNDLED MTP AND/OR PRE-TERMINATED 24F LC) 130 Cables 60 Cables 30 Cables FEATURES Top: Cable entry points with brush strips, 8x M25 cable knockouts, central fibre cord exit with cover Underfloor: Cable entries with covers Top: Cable entry points with brush strips, 8x M25 cable knockouts, central fibre cord exit with cover Bottom: Cable entry points with brush strips, 4 x M25 cable knockouts Integrated lower duct for cross patching side- to-side with removable covers N/A MATERIAL Zinc coated mild steel Aluminium COLOUR Matte black textured powdercoat FEATURES Central patch cord management spools Integrated cable tray and tie-off points L&R for cable retention Fibre tube management guides for all modules ID tag sheet for labelling trays & integrated document pocket
Infinity Fibre Distribution Frame 3 Removable sub-frame modules Front door with document holder and 3 point lock Cable raceway on full height frame Cable management spools with dividers Fully Loaded Frame with 26 Sub-Frame Modules
4 www.AFLglobal.com 1 2 3 4 5 6 7 8 9 KEY 1. Incoming external lead in cable(s) to co-location room 2. Fusion spliced IFDF module with LC / SC / SCA connector interfaces 3. Passive multiplexing IFDF modules 4. MTP / LC / SC patching module 5. Structured high fibre count cabling to data hall or other location 6. Zone distribution enclosure MTP / LC / SC 7. Structured lower fibre count distribution cables 8. EoR (End of Row) cross-connect racks 9. Equipment racks with ToR (Top of Rack) patching fields Telecommunications Co-location with Horizontal Distribution Network
Infinity Fibre Distribution Frame 5 Data hall 1 Data hall 2 Data hall 3 Data hall 4 Data centre IFDF Zone distribution enclosures HD riser cables Top of rack distribution enclosure MTP MTP 1 2 3 4 5 6 7 KEY 1. Incoming external lead in cable(s) to co-location room 2. Fusion spliced IFDF module with LC / SC / SCA connector interfaces 3. Passive multiplexing IFDF modules 4. MTP / LC / SC patching module 5. Structured riser backbone cabling to data hall on multiple floors 6. Zone distribution enclosure MTP / LC / SC 7. Structured lower fibre count distribution cables to ToR patching fields in equipment racks Telecommunications Co-location with Vertical Distribution Network
6 www.AFLglobal.com 1 2 3 4 5 DC / Pod or External IFDF Cross-Connect DC / Pod Servers SAN Directors Storage Array Data Centre (DC) and SAN (Storage Area Network) Cross-Connect Architecture
Infinity Fibre Distribution Frame 7 2 4 5 DC / Pod Switches Gateways Fabric Extenders NAS 1 2 3 KEY 1. Active equipment 2. LC-LC Patch cable 3. ToR Patching field 4. Structured MTP cabling 5. MTP-LC IFDF module Shown is an MTP cross-connect housed in an IFDF. The IFDF cross-connect can sit with, or adjacent to the network equipment, or in another location. Data Centre cross-connects allow device interfaces to be pre-cabled from day one using structured cabling. Structured cabling offers scalability, reduced connection errors and a higher level of equipment protection and security. The cross-connect patching interface mirror switch ports and server ports. All connects and disconnects are made at the patch panel with patch cords. An ‘any to all’ configuration can be achieved with a cross-connect, any switch port can be connected to any equipment port.
8 FRAME DESCRIPTION PART NUMBERS Supplied unloaded as standard. IFDF Frame Unloaded, Standard AFL-IFDF-FRAME-UL-V2 IFDF Frame Unloaded, Mini AFL-IFDF-FRAME-UL-V2-M IFDF Frame Unloaded, Micro AFL-lFDF-FRAME-UL-V2-MC SPLICE MODULES & SPLICE ACCESSORIES Fusion splice cassettes available with a maximum of 24 splices. 24F SCA SM Loaded Fibre Splice Cassette AFL-IFDF-24SCGN-1A-V2 24F LC SM Loaded Fibre Splice Cassette AFL-IFDF-24LCBU-1-V2 24F LC OM4 Loaded Fibre Splice Cassette AFL-IFDF-24LCAQ4V2 24F Splice / Thru-Splice Cassette Suits IFDF AFL-IFDF-24FSPLICE Thru-Splice Gland Kit Suit Cable 2.5mm Max. (6 Pack) CABGN-DDH-2.5-6KIT Thru-Splice Gland Kit Suit Cable 3.5mm Max. (6 Pack) CABGN-DDH-3.5-6KIT MTP MODULES MTP-LC cassettes available with a maximum of 48 LC connections. These cassettes form part of a plug and play system within the IFDF. MTPM LCQ Extra High Density 24F SM Cassette (2 x 12) IFC-24MTPMALCQ-1XHD MTPM LCAQ Extra High Density 24F SM Cassette (2 x 12) IFC-24MTPMALCAQ-1XHD MTPM-LCQ Extra High Density 24F OM4 Cassette (2 x 12) IFC-24MTPMLCQ-4XHD MTP2M-LCQ Extra High Density 24F SM Cassette (1 x 24) IFC-24MTP2MALCQ-1XHD MTP2M-LCQ Extra High Density 24F 0M4 Cassette (1 x 24) IFC-24MTP2MLCQ-4XHD MTP2M-LCQ Extra High Density 48F SM Cassette (2 x 24) IFC-48MTP2MALCQ-1XHD MTP2M-LCQ Extra High Density 48F OM4 Cassette (2 x 24) IFC-48MTP2MLCQ-4XHD PATCH MODULES Adapter panels are used in conjunction with incoming pre- terminated cable assemblies. They can accommodate a maximum of 12SC, 24LC or 96MTP connections. 24F LC Loaded Patch Panel for IFDF Sub-Frame, Blue AFL-IFDF-24LCBU-P 24F LCA Loaded Patch Panel for IFDF Sub-Frame, Green AFL-IFDF-24LCAGN-P 24F LC Loaded Patch Panel for IFDF Sub-Frame, Aqua AFL-IFDF-24LCAQ-P 12F SC Loaded Patch Panel for IFDF Sub-frame, Blue AFL-IFDF-12SCBU-P 12F SCA Loaded Patch Panel for IFDF Sub-frame, Green AFL-IFDF-12SCGN-P 12F SCA Loaded Patch Panel for IFDF Sub-frame, Aqua AFL-IFDF-12SCAQ-P MTP 8 Port XHD Panel Flat Loaded W/ 8 x Black IFC-MTP08XHD-FL-BK MTP 8 Port XHD Panel Flat Loaded W/ 8 x Aqua IFC-MTP08XHD-FL-AQ PASSIVE DEVICES AFL fibre passive devices can be used to multiplex optical signals in single mode networks. This allows better utilisation of installed infrastructure by combining multiple transmissions over less fibres. 12 x 1310 nm Circulator SCA/LC, IFDF FPD-OC113SCALC12-F1 12 x 1550 nm Circulator SCA/LC, IFDF FPD-OC115SCALC12-F1 Options Available
Infinity Fibre Distribution Frame 9 ACCESSORIES DESCRIPTION PART NUMBERS SUB-FRAME MODULE Left hand side sub frame module to hold up to 5 cassettes or panels. - AFL-IFDF-FRAME-UL-V2 (Max. capacity 13) -AFL-IFDF-FRAME-UL-V2-M (Max. capacity 6) -AFL-IFDF-FRAME-UL-V2-MC (Max. capacity 3) IFDF LHS Sub-Frame Module - 5 Trays AFL-IFDF-SUBLH Right hand side sub frame module to hold up to 5 cassettes or panels. - AFL-IFDF-FRAME-UL-V2 (Max. capacity 13) -AFL-IFDF-FRAME-UL-V2-M (Max. capacity 6) -AFL-IFDF-FRAME-UL-V2-MC (Max. capacity 3) IFDF RHS Sub-Frame Module - 5 Trays AFL-IFDF-SUBRH PATCH CORDS Used for cross patching within a frame between any two points. The overlength is stored on central management spools. Recommended length: 5m for ‘Standard’ 3.5m for ‘Mini’ 2.5m for ‘Micro’ (Replace ‘5M’ with ‘3.5M’ or ‘2.5M’ in part number respectively for ordering.) 2.0mm SC simplex and 2.0mm LC uniboot patch cords recommended to achieve maximum cross-patch capacity and minimise congestion within slack storage area. LCUP Round DX G657.A1 5m 2mm Lead LSZH Yellow DR1LCUP5M-YL-EA1-2L-S LCAUP Round DX G657.A1 5m 2mm Lead LSZH Yellow DR1LCAUP5M-YL-EA1-2L-S LC-SC Duplex SM 5m 2mm Lead LSZH Yellow D1LCSC5M-YL-SA1-2L-S SC-SC Duplex SM 5m 2mm Lead LSZH Yellow D1SCSC5M-YL-SA1-2L-S LC-SCA Duplex SM 5m 2mm Lead LSZH Yellow D1LCSCA5M-YL-SA1-2L-S SCA-SCA Duplex SM 5m 2mm Lead LSZH Yellow D1SCASCA5M-YL-SA1-2L-S SC-SCA Duplex SM 5m 2mm Lead LSZH Yellow D1SCSCA5M-YL-SA1-2L-S LCUP Round DX OM4 5m 2mm Lead LSZH Aqua DR4LCUP5M-AQ-EBT-2L-S LC-SC Duplex OM4 5m 2mm LEAD LSZH Aqua D4LCSC5M-AQ-SBT-2L-S SC-SC Duplex OM4 5m 2mm LEAD LSZH Aqua D4SCSC5M-AQ-SBT-2L-S Options Available
AFL Copper Products AFL Fibre Optic Products www.AFLglobal.com Australia 1300 232 476 | New Zealand (0) 9 927 7140 © 2025 AFL, all rights reserved. 1225 08.2025
Features:
- Supports up to 12 sub-frames
- Wall or floor mounting
- Internal patchcord management
- Suitable for splicing and pre-terminated cables
Applications:
- Modular design allows expansion of the network when required
- Individual modules allow access without adjacent circuit disruption
- Central storage bay accommodates patchlead routing and storage
The IFDF is a left and right sectioned mounting frame that is populated with modular swing out sub frames as required. The left and right sections allow inbound or outbound cables to be separated. Each section will accommodate 6 sub frames, totalling 12 when both are fully populated. The swing out sub frames are fitted as required and accommodate 5 modules each. A range of modules are available to suit fusion splicing, patching, passive device module patching and MTP patching. Based on a maximum module capacity of 24 fibres, the IFDF can present 1440 spliced terminations making it one of the highest density frames on the market.
IFDF Infinity Fibre Distribution Frame,Overhead Optical Distribution Frame
