AFL’s Sidewinder Rapid Cable Deployment System allows for fast deployment and retrieval of tactical cable assemblies.
a51fa44413354a1998a61f743e8e6c69,5854b287f3394516bcf940825dcbceac

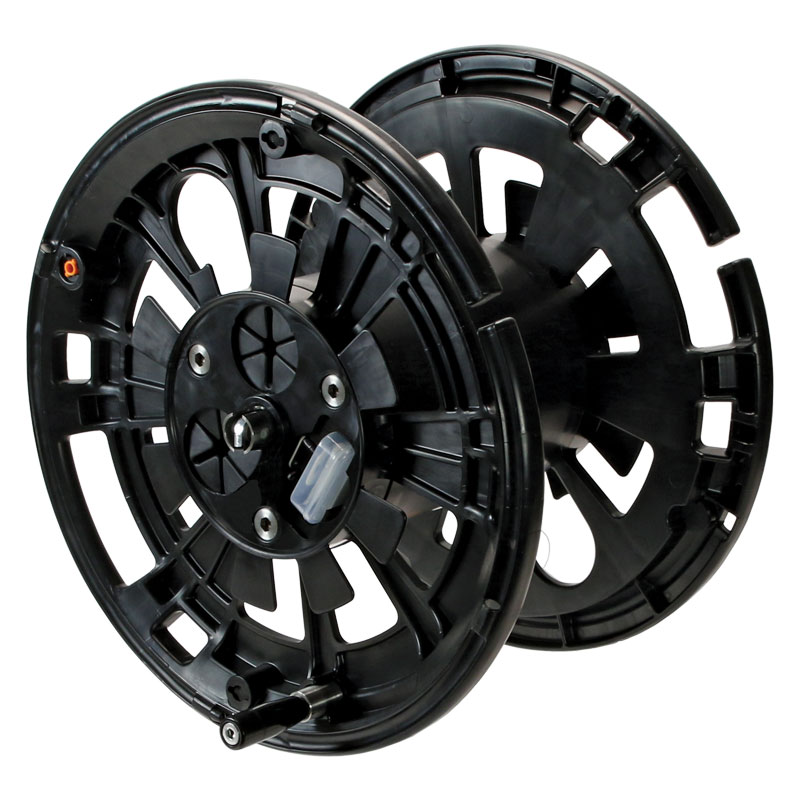

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 1 © 2002-2019, AFL, all rights reserved. 1717, Revision 5, 08.07.19 Specifications are subject to change without notice. Sidewinder ™ Rapid Cable Deployment System AFL’s Sidewinder Rapid Cable Deployment System allows for fast deployment and retrieval of tactical fibre optic cables used in field deployment applications. The system is made using lightweight high impact polymer that is non-corrosive and able to withstand extreme temperatures. Additionally, the reel features built-in connector storage in the centre hub as well as a folding handle for fast sidewinding action. The unique design of the reel allows them to be stacked and locked together for transport or for field deployment. The specially engineered foam insert within the hub allows safe storage of the connectors when not in use. The reel is available in 4 sizes, to store cables up to 1000mts in length (when using 5.5 mm cable). They can also be supplied with reel stands, connector cleaning kits and military approved transit cases. Features Reels • The reel is made from lightweight high impact materials. All assembly parts are made from 316/304 grade stainless steel. This makes them well suited for use in mining and marine environments. • The reels can be easily stacked together for storage and transportation. They also have 4 points of contact when secured to another reel. Once fastened together, they can be secured using the two locking latches. • The connector at the inner end of the cable can be stored within the hub. The outer flange can store up to 5 metres of cable slack for maximum access once deployed. The outer connector of the cable assembly is stored in the adjacent opening. • The centre hub is internally lined with a foam insert and connector retention grommets for ultimate connector storage and protection. • The reel is supplied with a 1” round hole to suit the deployment stand. A 1” square hole option is also available for applications requiring simultaneous cable deployments. • An optional cleaning kit is available to maintain the performance of the connectors. This kit is housed within the center hub. • The folding handle allows for quick retrieval of the cable after deployment. Stand - 500mt • The sturdy folding stand is made from durable 304 grade stainless steel and well suited in any environment • Accommodates both the 300mt and 500mt reels. A collar is used to keep the reel in a single position during cable deployment • Removable pin to allow for quick assembly of the two pieces • Can also be used as a caddy to pull the reel along the ground. This reduces the need for heavy lifting and simplifies transport of cable systems • Able to be set up within the transit case to allow for easy cable deployment Stand - 1000mt • Heavy duty folding stand incorporates a trolley for transporting and rapid cable deployment • Accommodates both the 800mt and 1000mt reels • Plastic coated bearings for quiet operation during deployment • Heavy duty pneumatic tyres to allow easy movement over difficult terrains • Mounting points for permanent fixing. Eg on the back of a vehicle Applications • Mobile telecommunication systems • Military tactical communication systems • Field deployable broadcast communications • Mining • Oil and gas Sidewinder ™ Cable Reel Sidewinder ™ Cable Reel Mounted on Stand Sidewinder ™ Reel Stand with Deployment Trolley
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 2 © 2002-2019, AFL, all rights reserved. 1717, Revision 5, 08.07.19 Specifications are subject to change without notice. Sidewinder ™ Rapid Cable Deployment System Technical Specifications REEL CHARACTERISTIC PART NUMBER AFLA-REEL-300-XXX AFLA-REEL-500-XXX AFLA-REEL-800-XXX AFLA-REEL-1000-XXX Cable Capacity (using 5.5 mm Cable) 300 mts 500 mts 800 mts 1000 mts Reel Flange Diameter 420 mm 420 mm 420 mm 420 mm Hub Diameter 170 mm 170 mm 170 mm 170 mm Reel Width 208 mm 273 mm 387 mm 475 mm Reel Weight 2.83 kg 3.08 kg 3.60 kg 4.20 kg Maximum Connector Diameter 53 mm 53 mm 53 mm 53 mm CASE CHARACTERISTIC Case Dimensions 550 mm W x 550 mm L x 550 mm H Weight Deployment Case 16.1 kg, Transit Case 15 kg IP Rating Weather proof with pressure release valve Colours Available Black is standard. Desert Tan and Olive Drab are also available Ordering Information PART NUMBER DESCRIPTION REEL AFLA-REEL-300-BKR Cable deployment reel. 300 mts, Black with round hole AFLA-REEL-300-DTR Cable deployment reel. 300 mts, Desert Tan with round hole AFLA-REEL-300-ODR Cable deployment reel. 300 mts, Olive Drab with round hole AFLA-REEL-500-BKR Cable deployment reel. 500 mts, Black with round hole AFLA-REEL-500-DTR Cable deployment reel. 500 mts, Desert Tan with round hole AFLA-REEL-500-ODR Cable deployment reel. 500 mts, Olive Drab with round hole AFLA-REEL-800-BKR Cable deployment reel. 800 mts, Black with round hole AFLA-REEL-800-DTR Cable deployment reel. 800 mts, Desert Tan with round hole AFLA-REEL-800-ODR Cable deployment reel. 800 mts, Olive Drab with round hole AFLA-REEL-1000-BKR Cable deployment reel. 1000 mts, Black with round hole AFLA-REEL-1000-DTR Cable deployment reel. 1000 mts, Desert Tan with round hole AFLA-REEL-1000-ODR Cable deployment reel. 1000 mts, Olive Drab with round hole OPTIONAL ACCESSORIES AFL-REELSTAND-500-SS Folding stand for 300/500 mts cable deployment reel, Stainless Steel AFL-REELSTAND-1000 Reel stand with deployment trolley - 1000 mts reel AFL-REEL-500-CASE-DT Deployment case, 300/500 mts reels and stand, Desert Tan AFL-REEL-500-CASE-BK Deployment case, 300/500 mts reels and stand, Black AFL-REEL-500-CASE-OD Deployment case, 300/500 mts reels and stand, Olive Drab AFL-REEL-TRANSCASE-DT Transit case for all Sidewinder reels, Desert Tan AFL-REEL-TRANSCASE-BK Transit case for all Sidewinder reels, Black AFL-REEL-TRANSCASE-OD Transit case for all Sidewinder reels, Olive Drab AFL-REELSTAND-COL-25MM Replacement collar for AFL cable stand Transit Case, Black Deployment Case, 300/500 mts Reel and Stand, Desert Tan 300/500 mts Folding Reel Deployment Stand Cable Calculator The table below can be used to calculate the correct reel to suit a particular cable diameter and required length. “D” is the cable diameter in mm. Capacity is in metres. CABLE REEL CAPACITY 300 mts Reel Max capacity = 9000/D² 500 mts Reel Max capacity = 15000/D² 800 mts Reel Max capacity = 24000/D² 1000 mts Reel Max capacity = 30000/D²
Features:
- The reel is made from lightweight high impact materials
- The reels can be easily stacked and secured together for storage and transportation
- The connector at the inner end of the cable can be stored within the hub
- The centre hub is internally lined with a foam insert and connector retention grommets for ultimate connector storage and protection
Applications:
- Mobile telecommunication systems
- Military tactical communication systems
- Field deployable broadcast communications
- Mining
- Oil and gas
AFL's Sidewinder Rapid Cable Deployment System reels are made from a lightweight high impact polymer, making them the ideal solution for the deployment and redeployment of ruggedised cable assemblies in harsh environments. When paired with the Sidewinder Cable Reel Stand or Trolley, cable assemblies can be quickly deployed and retreived as required.
