1RU enclosure with full extension sliding tray for splicing up to 72 fibres and presenting up to 96 fibres
bbe409b76f364da0ac0d53c1ea29bd52
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2018, AFL, all rights reserved. 0770, Revision 4, 12.04.18 Speci cations are subject to change without notice. AFL’s range of sliding enclosures are proudly designed and assembled in Australia. This range of enclosures cater for a variety of cable types, including loose tube and tight buffered cables. The range has various sizes and panel arrangements available and is perfectly suited for a wide range of applications. Fibre Optic Rack Enclosure – Sliding Technical Specifications PART NUMBER FRE-1RU-MOD-S FRE-2RU-MOD-S FRE-3RU-MOD-S FRE-3RU-MOD-S-V Description 1RU 2 panel modular sliding enclosure 2RU 4 panel modular sliding enclosure 3RU 8 panel modular sliding enclosure 3RU 12 panel modular sliding enclosure Dimensions (Mm) (W) X (D) X (H) 433 x 300 x 44 433 x 330 x 88 433 x 365 x 132 433 x 365 x 132 Weight (Kg) 4.2 5.6 6.6 6.6 Max Modular Front Panels 2 horizontal 4 horizontal 8 horizontal 12 vertical Max Fibre Count Utilising Afl Coupler Panels 96 LC 48 ST, FC, SC and 96 LC 96 ST, FC, SC and 192 LC 288 LC Max Splice Capacity (Single Stacked/Double Stacked) 72 72/144 144/288 288 Max Recommended Incoming Cables 2 per side 4 per side 4 per side 4 per side High Density Simplex SC/Duplex LC Faceplates Available 36 port angled 48 port flat 72 port angled 96 port flat N/A N/A Max Recommended Incoming Cables Yes Yes Yes Yes Slotted Rear Bracket Option Available Yes No No No Material and Colour Powdercoated 1.6 mm steel—Charcoal Grey Accessory Kit Standard accessory kit includes: cable management clips, strain relief post, cable ties, fixing bolts and nuts, 1 cable gland, velcro strap and connection record sheet • 1RU sliding enclosures are capable of splicing up to 72 fibres and presenting up to 96 fibres with pre-terminated cables. • 3RU sliding enclosures are capable of splicing a presenting up to 288 fibres. Applications • Fusion splicing of loose tube or tight buffer cables • Direct termination of tight buffer cables • Pre-terminated riser cables • Low volume through to high-density applications • AFL SD MTP ® Cassettes Features and Benefits • Modular apertures to suit AFL flat or angled panels for various connector types, modes and densities • Internal fibre clips for managing incoming cables and terminated fibres • Standard ‘M’ shaped, angled brackets on the rear of the enclosure allow for efficient management of the cable entering the enclosure • Double extendable ball bearing slide rails allow for smooth sliding tray mechanism and to provide maximum internal access • Silkscreen panel locators for ease of fibre identification • A range of alternate faceplates available for higher density applications
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 2 © 2002-2018, AFL, all rights reserved. 0770, Revision 4, 12.04.18 Speci cations are subject to change without notice. Ordering Information FRE 1RU MOD S Fibre Rack-mount Enclosure Rack-mount Enclosure size Front Panel Options (see chart below) Cable Entry Options (see chart below) CABLE ENTRY OPTIONS S Standard "M" shaped angled rear cable entry bracket. Suits 4 (8 on 2/3RU) incoming cables. SB Angled rear sloted cable entry, especially suited to bundles of pre-terminated tight buffer cable (1RU only) SFL Flat rear bracket perfectly suited to pre-glanded cable assemblies (1RU only) SRP Rodent proofing cable entry with multipart knockouts to ensure enclosure integrity is maintained (-V) 3RU 12 Panel Only FRONT PANEL OPTIONS MOD Standard panel apertures to suit AFL's wide range of coupler panels 36SCV Angled 36 Port fixed facia to suit SC simplex or LC duplex style adapters (1RU only) 48SCV Flat 48 Port fixed facia to suit SC simplex or LC duplex style adapters (1RU only) 72SCV Angled 72 Port fixed facia to suit SC simplex or LC duplex style adapters (2RU only) 96SCV Flat 96 Port fixed facia to suit SC simplex or LC duplex style adapters (2RU only) Fibre Optic Rack Enclosure – Sliding
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 3 © 2002-2018, AFL, all rights reserved. 0770, Revision 4, 12.04.18 Speci cations are subject to change without notice. Ordering Information PANELS FRE-BLANK Blank Panel FRE-BLANK-SML Blank Panel 1/2 Size (8 Panel 3RU only) FRE-SC06H-FL1/6 SC/LCD 6P Panel 1-6HP Flat FRE-SC06H-AL1/6 SC/LCD 6P Panel 1-6HP Angle left FRE-SC06H-AR1/6 SC/LCD 6P Panel 1-6HP Angle right FRE-SC12D-FL1/12 SC/LCD 12P Panel 1-12DP Flat FRE-SC12D-FL13/24 SC/LCD 12P Panel 13-24DP Flat FRE-SC12H-AL1/12 SC/LCD 12P Panel 1-12HP Angle left FRE-SC12H-AR1/12 SC/LCD 12P Panel 1-12HP Angle right FRE-SC12V-AL1/12 SC/LCD 12P Panel 1-12VP Angle left FRE-SC12V-AR13/24 SC/LCD 12P Panel 13-24VP Angle right FRE-SCD03H-FL1/6-C SC Duplex 3P Panel 1-6HP Flat FRE-SCD03H-AL1/6 SC Duplex 3P Panel 1-6HP Angle left FRE-SCD03H-AR1/6 SC Duplex 3P Panel 1-6HP Angle right FRE-SCD06D-FL1/12-C SC Duplex 6P Panel 1-12DP Flat FRE-SCD06H-AL1/12 SC Duplex 6P Panel 1-12HP Angle left FRE-SCD06H-AR1/12 SC Duplex 6P Panel 1-12HP Angle right FRE-ST06H-FL1/6-C ST/FC 6P Panel 1-6HP Flat FRE-ST06H-AL1/6 ST/FC 6P Panel 1-6HP Angle left FRE-ST06H-AR1/6 ST/FC 6P Panel 1-6HP Angle right FRE-ST12D-FL1/12-C ST/FC 12P Panel 1-12DP Flat FRE-ST12D-FL13/24 ST/FC 12P Panel 13-24DP Flat These panels suit the MOD-12 faceplate fitted to 3RU Enclosures. All adaptor panels are angled and can be used in the left or right hand side of the front panel. Fibre Optic Rack Enclosure – Sliding FRE-SCD06V-AU 6 Port SC Duplex Vertical Angled FRE-SC12V-AU 12 Port SC/LCD Vertical Angled FRE-SC06V-AU 6 Port SC/LCD Vertical Angled FRE-BLANK-V Vertical Blank Panel
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 4 © 2002-2018, AFL, all rights reserved. 0770, Revision 4, 12.04.18 Speci cations are subject to change without notice. Accessories PART NUMBER DESCRIPTION SPLCASS-LSH-HD-12/24K Splice cassette kit, lge stack HD combs 12/24f SPLCASS-LSH-HD-24/48K Splice cassette kit, lge stack HD combs 24/48F Cassette Kits for up to 288 fibres are available FRE-1RU-CTRAY 1RU front mount cable tray with ID strips FRE-1RU-CTRAY-LP 1RU front mount cable tray low profile FRE-1RU-CTRAY-HG 1RU front mount cable tray with hinged cover FRE-2RU-CTRAY-HG 2RU front mount cable tray with hinged cover FRE-3RU-CTRAY-HG 3RU front mount cable tray with hinged cover FRE-1RU-STO 1RU sliding storage tray FRE-2RUCOVER-CT Suits 2RU enclosure with C-tray FRE-3RUCOVER-CT Suits 3RU enclosure with C-tray FRE-4RUCOVER-STO Suits 3RU enclosure with storage tray FRE-1RUXEAR21 19" to 21" 1RU mounting ear—suits RU and SU racks FRE-2RUXEAR21 19" to 21" 2RU mounting ear—suits RU and SU racks FRE-3RUXEAR21 19" to 21" 3RU mounting ear—suits RU and SU racks FRE-CTRAY-1-PBL/R-K Patchcord management L/R brackets for C-tray–1RU kit FRE-CTRAY-2-PBL/R-K Patchcord management L/R brackets for C-tray–2RU kit FRE-CTRAY-3-PBL/R-K Patchcord management L/R brackets for C-tray–3RU kit The kit comes complete with left and right brackets, patchcord mounting block and mounting screws. Suitable for all 2 mm and 3 mm patchcords. Full range of additional accessories available including: • Pigtails • Simplex and duplex adapters • Splicing consumables • Termination consumables • Internal cable management blocks (see insert) These optional accessories can be ordered as a kit with any enclosure. Contact AFL for part numbers. Fibre Optic Rack Enclosure – Sliding
Features:
- Modular apertures accommodate AFL's extensive range of flat or angled coupler panels for various connector types, modes, and densities
- Robust double extendable ball bearing drawer slides enable smooth sliding tray mechanism and maximum internal access
- Indelible port numbering for ease of fibre identification and record keeping
- Internal fibre saddles manage incoming cables and terminated fibres
- Flat and angled rodent protected cable entry options available throughout the range
- Available pre-assembled as a single part number, ready for cable termination and fibre presentation
Applications:
- Fusion splicing and termination of fibre optic cables
- Patching of pre-terminated fibre optic cables
- Enterprise, Industrial and service provider installations

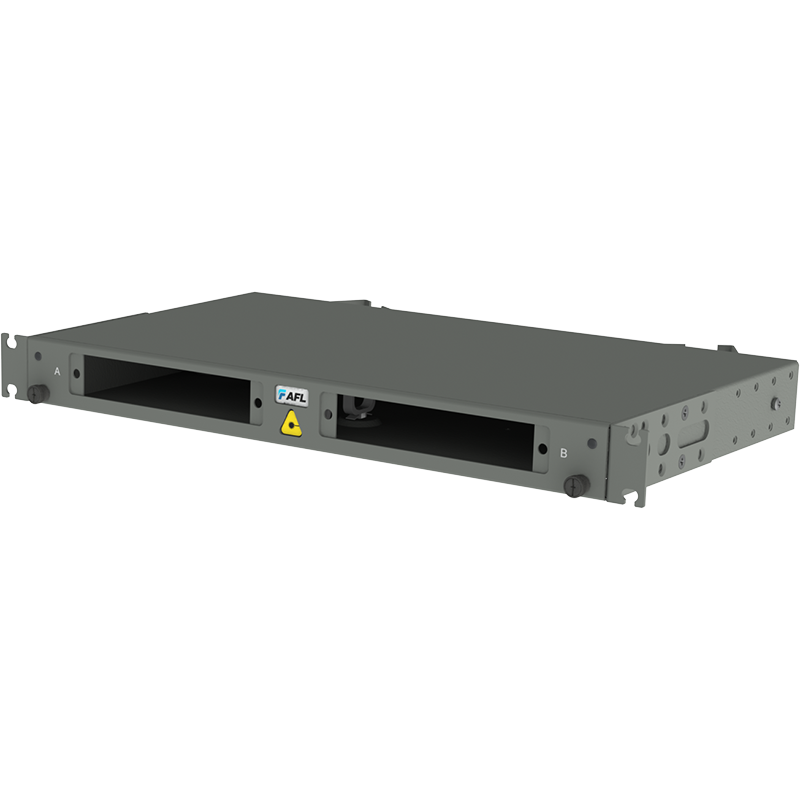

AFL's 1RU sliding enclosure accommodates modular and fixed front fascias presenting a maximum of 96 fibres and splicing up to 72 fibres. It features an angled cable rear entry which reduces the space needed for cable installation and makes it ideal for shallow racks.
