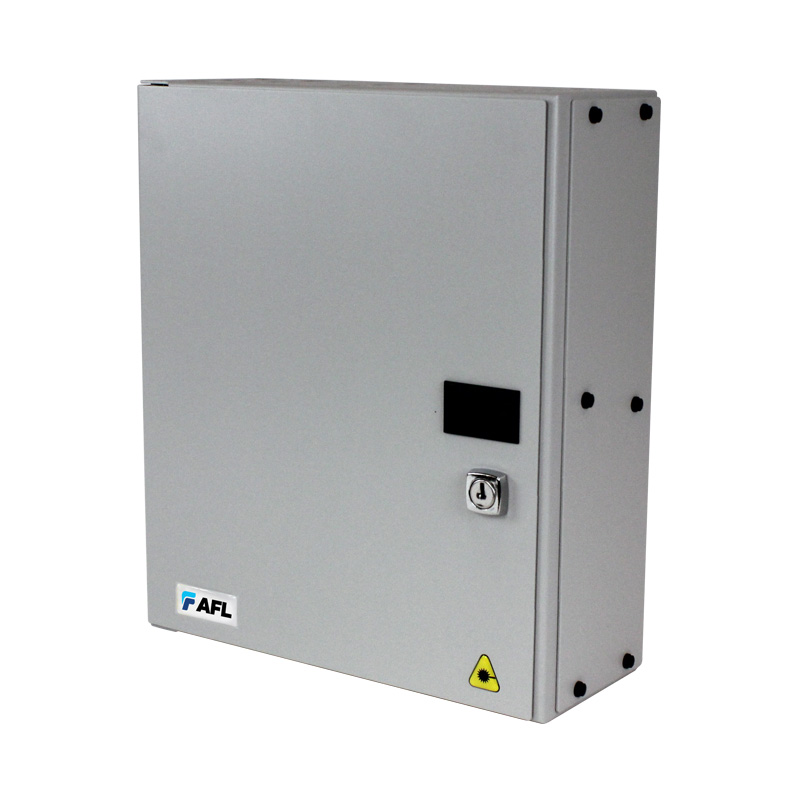

AFL's wall-mountable Fibre Optic Splice Enclosure is a simple and compact enclosure that is ideal for splicing fibre optic cables of up to 240 fibres.
7f027a10304246109c583f486d43a21a,a9ae024db4c6437aa2f74ac7d1e30137
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2020, AFL, all rights reserved. 0196, Revision 3, 10.12.20 Specifications are subject to change without notice. Fibre Optic Splice Enclosure (FWE) Features • Can accommodate up to 10 large splice cassettes (maximum 240 single fibre splices) • Able to present externally up to 72 SC or 144 LC fibres across six modular coupler panels or Standard Density MTP cassettes • 12 cable entry knockouts top and bottom for incoming and outgoing cables Applications • Indoor fusion splicing and direct termination of loose tube and tight buffered cables • Remote cable terminations (i.e. communications rooms, warehouses, campuses, high-rise buildings, etc.) • Repairing damaged high core count cables AFL's wall-mounted Fibre Optic Splice Enclosure features one splicing compartment and several cable entry openings on the top and bottom for incoming and outgoing cables. The enclosure is also suitable for external patching as it accommodates up to six modular panels, available separately or as a kit. The professional appearance of this enclosure makes it well suited for building entrance terminals, telecommunication closets, computer rooms or in any office environment Technical Specifications Part Number FWE-SPLICE Description Single door splice through wall enclosure Dimensions (mm) (w) x (d) x (h) 290 x 115 x 330 Weight (kg) 4.3 Maximum modular side panels 6 Max fibre capacity (present) 72 ST, SC, FC & 144 LC Max fibre capacity (splice) 240 fibres (10 cassettes) Maximum incoming/outgoing cable ports Top: 8 x 20 mm and 4 x 25 mm Bottom: 8 x 20 mm and 4 x 25 mm Material and colour 1.2 mm Mild Steel Sheet, Light Grey (RAL7035) Accessory kit Standard accessory kit includes: cable management clips, strain relief post, cable ties, velcro strap, cable gland, connection record documentation
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 2 © 2002-2020, AFL, all rights reserved. 0196, Revision 3, 10.12.20 Specifications are subject to change without notice. Ordering Information PANELS FRE-BLANK Blank Panel FRE-SC06H-FL1/6 SC/LCD 6P Panel 1-6HP Flat FRE-SC06H-AL1/6 SC/LCD 6P Panel 1-6HP Angle left FRE-SC06H-AR1/6 SC/LCD 6P Panel 1-6HP Angle right FRE-SC12D-FL1/12 SC/LCD 12P Panel 1-12DP Flat FRE-SC12D-FL13/24 SC/LCD 12P Panel 13-24DP Flat FRE-SC12H-AL1/12 SC/LCD 12P Panel 1-12HP Angle left FRE-SC12H-AR1/12 SC/LCD 12P Panel 1-12HP Angle right FRE-SC12V-AL1/12 SC/LCD 12P Panel 1-12VP Angle left FRE-SC12V-AR13/24 SC/LCD 12P Panel 13-24VP Angle right FRE-SCD03H-FL1/6 SC Duplex 3P Panel 1-6HP Flat FRE-SCD03H-AL1/6 SC Duplex 3P Panel 1-6HP Angle left FRE-SCD03H-AR1/6 SC Duplex 3P Panel 1-6HP Angle right FRE-SCD06D-FL1/12 SC Duplex 6P Panel 1-12DP Flat FRE-SCD06H-AL1/12 SC Duplex 6P Panel 1-12HP Angle left FRE-SCD06H-AR1/12 SC Duplex 6P Panel 1-12HP Angle right FRE-ST06H-FL1/6 ST/FC 6P Panel 1-6HP Flat FRE-ST06H-AL1/6 ST/FC 6P Panel 1-6HP Angle left FRE-ST06H-AR1/6 ST/FC 6P Panel 1-6HP Angle right FRE-ST12D-FL1/12 ST/FC 12P Panel 1-12DP Flat FRE-ST12D-FL13/24 ST/FC 12P Panel 13-24DP Flat FWE Fibre Optic Splice Enclosure
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 3 © 2002-2020, AFL, all rights reserved. 0196, Revision 3, 10.12.20 Specifications are subject to change without notice. FWE Fibre Optic Splice Enclosure Optional Accessories PART NUMBER DESCRIPTION S PLCASS-LSH-HD-12/24K Splice Cassette Kit with HD Comb for up to 24 Splices SPLCASS-LSH-HD-24/48K Splice Cassette Kit with HD Combs for up to 48 Splices SPLCASS-LSH-HD-36/72K Splice Cassette Kit with HD Combs for up to 72 Splices SPLCASS-LSH-HD-48/96K Splice Cassette Kit with HD Combs for up to 96 Splices SPLCASS-LSH-HD-60/120K Splice Cassette Kit with HD Combs for up to 120 Splices SPLCASS-LSH-HD-72/144K Splice Cassette Kit with HD Combs for up to 144 Splices SPLCASS-LSH-HD-84/168K Splice Cassette Kit with HD Combs for up to 168 Splices SPLCASS-LSH-HD-96/192K Splice Cassette Kit with HD Combs for up to 192 Splices SPLCASS-LSH-HD-108/216K Splice Cassette Kit with HD Combs for up to 216 Splices Full range of additional accessories available including: • Pigtails • Simplex and duplex adapters • Additional glands • MTP flat or angled cassettes (a larger size gland will be required for cable entry when MTP cassettes are being installed) • Splicing consumables • Termination consumables These optional accessories can be ordered as a kit with the enclosure. Contact AFL for part numbers.
Features:
- Can accommodate up to 10 large splice cassettes (maximum 240 single fibre splices)
- Able to present externally up to 72 SC or 144 LC fibres across six modular coupler panels or Standard Density MTP cassettes
- 12 cable entry knockouts top and bottom for incoming and outgoing cables
Applications:
- Indoor fusion splicing and direct termination of loose tube and tight buffered cables
- Remote cable terminations (i.e. communications rooms, warehouses, campuses, high-rise buildings, etc.)
- Repairing damaged high core count cables
AFL's wall-mounted Fibre Optic Splice Enclosure features one splicing compartment and several cable entry openings on the top and bottom for incoming and outgoing cables. The enclosure is also suitable for external patching as it accommodates up to six modular panels, available separately or as a kit.
The professional appearance of this enclosure makes it well suited for building entrance terminals, telecommunication closets, computer rooms or in any office environment.
