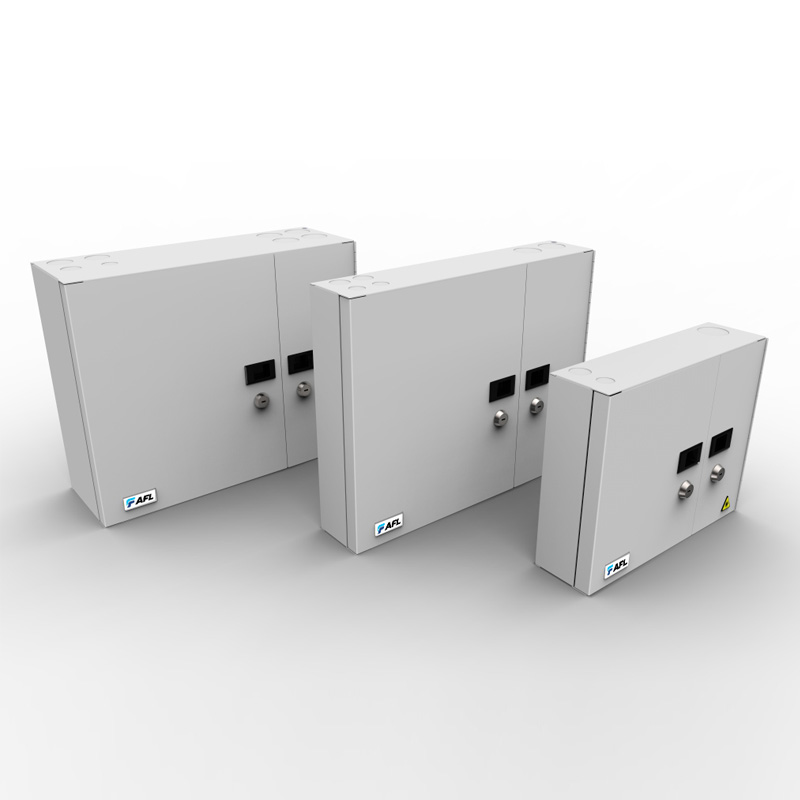

AFL’s range of wall-mounted enclosures provide mechanical protection and internal fibre management for all cable types.
7f027a10304246109c583f486d43a21a,a9ae024db4c6437aa2f74ac7d1e30137
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2020, AFL, all rights reserved. 0 171, Revision 7 , 12.11.20 Speciflcations are subject to change without notice. Fibre Optic Wall Enclosure (FWE) Features • Modular apertures in the internal panel, to suit flat or angled panels for various connector types and densities • Lockable compartments for restricted entry • Internal fibre clips for managing incoming cables and fibre pigtails • Top and bottom cable entry/exit points for ceiling or floor access • Large knockout with grommet on customer side • Double hinged door on the customer patching side to accommodate modular MTP cassettes Applications • Indoor fusion splicing and direct termination of loose tube and tight buffered cables • Remote cable terminations (i.e. communications rooms, warehouses, campuses, high-rise buildings, etc.) • Data centre and SAN environments requiring MTP or pre-terminated cabling solutions AFL's Fibre Optic Wall Enclosure's (FWE) professional appearance makes them ideal for any office or corporate installation or where space is at a premium and racks cannot be used. They are especially suited for direct termination, or fusion splicing. The dual compartments comprise a left termination compartment and a right side customer patching compartment. Both sides can be locked independently to prevent unauthorised entry. Technical Specifications PART NUMBER FWE-MOD-12-C FWE-MOD-24-C FWE-MOD-8PNL Description 2 Panel Compact Modular Wall Enclosure 4 Panel Mid Range Wall Enclosure 8 Panel Large Modular Wall Enclosure Dimensions (mm) (w) x (d) x (h) 310 x 90 x 250 410 x 90 x 330 410 x 150 x 330 Weight (kg) 2.8 4.2 5.1 Maximum modular internal panels or MTP cassettes 2 4 8 Maximum fibre count 24 ST, SC, FC & 48 LC 48 ST, SC, FC & 96 LC 96 ST, SC, FC & 192 LC Maximum Incoming/Outgoing cable ports: Top LHS / Top RHS 1 x 20mm , 1 x 25mm / 1 x 38.5mm 2 x 20mm, 2 x 25mm / 2 x 38.5mm 1 x 21mm , 1 x 25mm , 2 x 32mm / 4 x 38.5mm Bottom LHS / Bottom RHS 1 x 20mm , 1 x 25mm / 1 x 38.5mm 2 x 20mm, 2 x 25mm / 2 x 38.5mm 1 x 21mm , 1 x 25mm , 2 x 32mm / 4 x 38.5mm Material and colour 1.2mm Mild Steel Sheet, Light Grey (RAL7035) Accessory kit Standard accessory kit includes: cable management clips, strain relief post, cable ties, velcro strap, rubber grommets to suit 38.5mm holes and connection record sheet 4 Panel Enclosure with 48F tight buffered pre-terminated cable 2 Panel Enclosure loaded with two splice cassettes and pigtails, mounted in the termination compartment
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 2 © 2002-2020, AFL, all rights reserved. 0 171, Revision 7 , 12.11.20 Speciflcations are subject to change without notice. Ordering Information PANELS FRE-BLANK Blank Panel FRE-SC06H-FL1/6 SC/LCD 6P Panel 1-6HP Flat FRE-SC06H-AL1/6 SC/LCD 6P Panel 1-6HP Angle left FRE-SC06H-AR1/6 SC/LCD 6P Panel 1-6HP Angle right FRE-SC12D-FL1/12 SC/LCD 12P Panel 1-12DP Flat FRE-SC12D-FL13/24 SC/LCD 12P Panel 13-24DP Flat FRE-SC12H-AL1/12 SC/LCD 12P Panel 1-12HP Angle left FRE-SC12H-AR1/12 SC/LCD 12P Panel 1-12HP Angle right FRE-SC12V-AL1/12 SC/LCD 12P Panel 1-12VP Angle left FRE-SC12V-AR13/24 SC/LCD 12P Panel 13-24VP Angle right FRE-SCD03H-FL1/6 SC Duplex 3P Panel 1-6HP Flat FRE-SCD03H-AL1/6 Duplex 3P Panel 1-6HP Angle left FRE-SCD03H-AR1/6 Duplex 3P Panel 1-6HP Angle right FRE-SCD06D-FL1/12 SC Duplex 6P Panel 1-12DP Flat FRE-SCD06H-AL1/12 SC Duplex 6P Panel 1-12HP Angle left FRE-SCD06H-AR1/12 SC Duplex 6P Panel 1-12HP Angle right FRE-ST06H-FL1/6 ST/FC 6P Panel 1-6HP Flat FRE-ST06H-AL1/6 ST/FC 6P Panel 1-6HP Angle left FRE-ST06H-AR1/6 ST/FC 6P Panel 1-6HP Angle right FRE-ST12D-FL1/12 ST/FC 12P Panel 1-12DP Flat FRE-ST12D-FL13/24 ST/FC 12P Panel 13-24DP Flat FWE Fibre Optic Wall Enclosure
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 3 © 2002-2020, AFL, all rights reserved. 0 171, Revision 7 , 12.11.20 Speciflcations are subject to change without notice. FWE Fibre Optic Wall Enclosure Optional Accessories PART NUMBER DESCRIPTION S PLCASS-SSH-HD-6/12K S plice Cassette Kit, Small Stack HD COMBS 6/12F Suits 2 Panel Enclosures only SPLCASS-SSH-HD-12/24K Splice Cassette Kit, Small Stack HD COMBS 12/24F SPLCASS-SSH-HD-18/36K Splice Cassette Kit, Small Stack HD COMBS 18/36F SPLCASS-SSH-HD-24/48K Splice Cassette Kit, Small Stack HD COMBS 24/48F S PLCASS-LSH-HD-12/24K Splice Cassette Kit with HD Comb for up to 24 Splices Suits 4 and 8 Panel Enclosures only SPLCASS-LSH-HD-24/48K Splice Cassette Kit with HD Combs for up to 48 Splices SPLCASS-LSH-HD-36/72K Splice Cassette Kit with HD Combs for up to 72 Splices SPLCASS-LSH-HD-48/96K Splice Cassette Kit with HD Combs for up to 96 Splices SPLCASS-LSH-HD-60/120K Splice Cassette Kit with HD Combs for up to 120 Splices SPLCASS-LSH-HD-72/144K Splice Cassette Kit with HD Combs for up to 144 Splices SPLCASS-LSH-HD-84/168K Splice Cassette Kit with HD Combs for up to 168 Splices SPLCASS-LSH-HD-96/192K Splice Cassette Kit with HD Combs for up to 192 Splices FWE-KEYLOCK Both key locks are supplied with the same key. A different key lock can be supplied for the termination compartment to prevent unauthorised entry. Lock is supplied with 2 keys Full range of additional accessories available including: • Pigtails • Simplex and duplex adapters • MTP flat or angled cassettes (a larger size gland will be required for cable entry when MTP cassettes are being installed) • Splicing consumables • Termination consumables • These optional accessories can be ordered as a kit with any enclosure. Contact AFL for part numbers.
Features:
- Modular apertures in the internal panel, to suit flat or angled panels for various connector types and densities
- Lockable compartments for restricted entry
- Internal fibre clips for managing incoming cables and fibre pigtails
- Top and bottom cable entry/exit points for ceiling or floor access
- Large knockout with grommet on customer side
- Double hinged door on the customer patching side to accommodate modular MTP cassettes
Applications:
- Indoor fusion splicing and direct termination of loose tube and tight buffered cables
- Remote cable terminations (i.e. communications rooms, warehouses, campuses, high-rise buildings, etc.)
- Data centre and SAN environments requiring MTP or pre-terminated cabling solutions
AFL's Fibre Optic Wall Enclosure's (FWE) professional appearance makes them ideal for any office or corporate installation or where space is at a premium and racks cannot be used. They are especially suited for direct termination, fusion splicing or MTP applications using modular cassettes. The dual compartments comprise a left termination compartment and a right side patching compartment. Both sides can be locked to prevent unauthorised entry.
