Axial loose tube cable is ideal for short and long haul point to point backbone applications. The water blocked, dry cable core design can be installed in-duct or direct-buried. Whilst the Nylon is UV stabilised, AFL recommends the use of an additional sacrificial black PE sheath where the cable will be directly exposed to UV rays.
798f592363444f7a9072750af283759e
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 1 © 2002-2023, AFL, all rights reserved. 1405, Revision 2, 14.08.23 Specifications are subject to change without notice. Actual finished product may vary from illustration. Axial Loose Tube Optical Fibre Cable Axial loose tube cable comprising up to 24 optical fibres contained in a jelly- filled loose tube strengthened with flexible non-metallic elements bonded to a polyethylene (PE) sheath and an outer UV stable, termite resistant Nylon jacket. Surface printing includes length marking at one metre intervals. Part Number LQD1**EA0††BE Applicable Specifications AS/CA S008, AS 1049, AS/NZS 11801-1, TIA-598-D, IEC 60793, IEC 60794, ITU-T Recommendations Applications Axial loose tube cable is ideal for short and long-haul, point-to-point backbone applications. The water blocked, dry cable core design can be installed in-duct or direct-buried. UV stabilised outer jacket as per AS 1049. Cable Components Physical Characteristics SPECIFICATION UNIT VALUE Nominal Tube Diameter mm 3.2 Nominal Cable Diameter mm 8.5 Nominal Weight kg/km 58 Temperature Range °C -40 to 70 Max. Pulling Tension - Install kN 2 Min. Bending Radius - Under Load mm 20 x OD Min. Bending Radius - No Load mm 10 x OD Max. Crush Resistance kN/100 mm 2 Impact kg.m 1 ** Represents any fibre type, 1D = SM G.652.D "LWP", 1F = SM G.657.A1, 62 = 62.5 μm multimode "OM1", 53 = 50 μm multimode "OM3", 55 = 50 μm multimode "OM4". Contact AFL for other fibre types. †† Represents any fibre-count up to 24 for single-mode, up to 12 for multimode. Refer to OSP Cable - Optical Characteristics for further information. Termite Resistant Nylon Jacket Polyethylene Sheath Flexible Non-metallic Strength Element Moisture Resistant Jelly-Filled Loose Tube Optical Fibre
Features:
- 6 & 12 Fibre Counts ex-stock- no MOQs or manufacturing lead times
- Single Tube Compact Design using less conduit/duct space
- Drycore construction resulting in less mess and time lost for fibre breakout
- Various Sheath Options available (Speak to your AFL Representative)
Applications:
- Underground in conduit
- Underground direct buried
- Short & Long Haul Backbone Applications

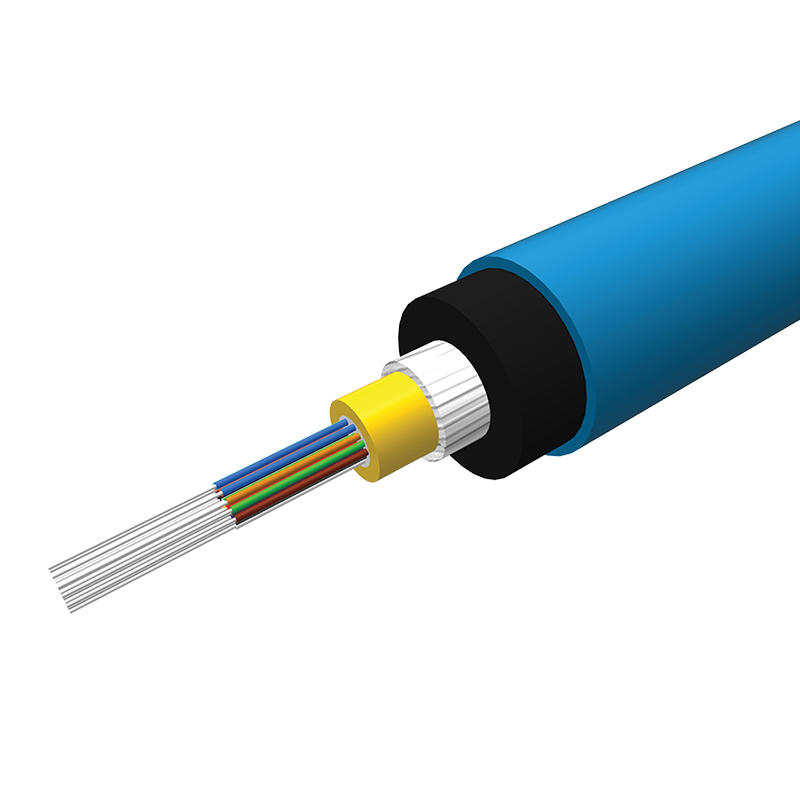

Axial loose tube cable comprising up to 24 optical fibres contained in a jelly filled loose tube strengthened with flexible non-metallic armour bonded to a polyethylene (PE) sheath and an outer insect resistant Nylon jacket. Surface printing includes length marking at one metre intervals.
Axial loose tube cable is ideal for short and long haul point to point backbone applications. The water blocked, dry cable core design can be installed in-duct or direct-buried. Whilst the Nylon is UV stabilised, AFL recommends the use of an additional sacrificial black PE sheath where the cable will be directly exposed to UV rays.
