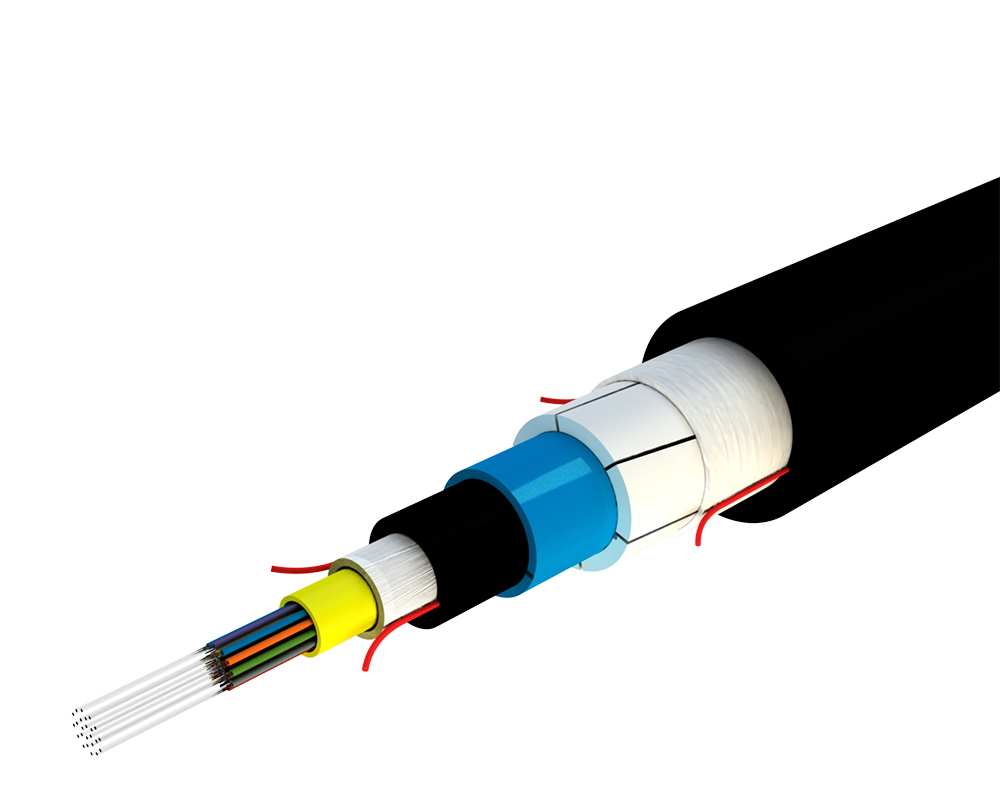

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 1 © 2002-2025, AFL, all rights reserved. 2206, Revision 6, 15.07.25 Specifications are subject to change without notice. Actual finished product may vary from illustration. Non-Metallic Flat FRP Armoured Loose Tube Cable Engineered to withstand high tensile and crush loads, the Non-metallic Flat FRP Armoured Cable integrates up to 24 fibres in a gel-filled axial loose tube construction. Key to the high strength design is the use of 6 x Flat FRP strength elements providing enhanced tensile and crush performance characteristics. Coupled with the Flat FRP Armour against rodent attack, the Nylon jacket provides an insect (termite) resistant layer, strategically positioned to ensure longevity. The cable is then sheathed with an outer UV stabilized Polyethylene compound. Cable Components Outer Polyethylene Sheath Flat FRP Rod Armour Termite Resistant Nylon Jacket Inner Polyethylene Sheath Flexible Non-metallic Strength Element Moisture Resistant Jelly-Filled Loose Tube Optical Fibre Features • Axial Loose Tube • Up to 24 fibres • Robust design • Termite & Rodent Resistant • Increased mechanical performance over traditional stranded Loose Tube Cables • Small Diameter • Light Weight • Made in Australia Applications • Long-Haul, Campus Backbone, Point-to-Point installations • Duct or Direct Buried • Directly exposed to the elements - UV stable • SCADA Optical Fibre Specifications FIBRE DESIGNATOR ** FIBRE TYPE MAXIMUM ATTENUATION (CABLED) dB/km 1310 NM 1550 NM 850 NM 1300 NM 1D Single-mode G.652.D “LWP” ≤0.36 ≤0.22 N/A N/A 1E Single-mode Premium G.652.D "LWP" ≤0.33 ≤0.19 N/A N/A 62 Multimode OM1 62.5 μ m N/A N/A ≤3.0 ≤1.0 53 Multimode OM3 50 μ m N/A N/A ≤3.0 ≤1.0 55 Multimode OM4 50 μ m N/A N/A ≤3.0 ≤1.0 Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 2 © 2002-2025, AFL, all rights reserved. 2206, Revision 6, 15.07.25 Specifications are subject to change without notice. Actual finished product may vary from illustration. Non-Metallic Flat FRP Armoured Loose Tube Cable PART NUMBER FIBRE COUNT TUBE DIAMETER NOM. DIAMETER NOM. WEIGHT MAX. TENSILE LOAD MIN. BEND RADIUS CRUSH IMPACT MM MM KG/KM (KN) INSTALLATION OPERATION (kN/100MM) KG.M INSTALLATION SHORT TERM (10 MIN) LONG TERM (120 MIN) RLD1**FB002 BK 2 2.3 10.5 95 6 20 x OD 10 x OD 4 3 1.5 RLD1**FB004 BK 4 RLD1**FB006 BK 6 RLD1**FB008 BK 8 RLD1**FB012 BK 12 RLD1**FB016 BK 16 RLD1**FB024 BK 24 ** Rep resents fibre type in the Optical Fibre Specifications table on previous page. Up to 24 fibres for single-mode. Up to 12 fibres for multimode. Supplied with BK = Black sheath as standard, the following colours are available upon request: BE = Blue, GY = Grey, YW = Yellow, WE = White. Qualifications GOVERNING BODY STANDARD CODE COMPONENT AS/CA S008 Cable IEC 60794 Cable AS/NZS 11801-1 Cable Standards Australia AS 1049 Materials IEC 60793 Fibre ITU-T G.652 / G.657.A1 / G.651.1 Fibre TIA 598-D Fibre Temperature Specifications TEMPERATURE RANGE Installation -30°C to +60°C Operation -40°C to +70°C Storage -40°C to +70°C Contact AFL for additional information or cable design assistance. Mechanical Data - Termite & Rodent Resistant Cable (Non-Metallic Armoured)
