Stranded loose tube cable is ideal for short and long haul backbone applications and can be installed in-duct or direct-buried. The water blocked, dry cable core stranded design suits point-point and point-multipoint fibre installations where spur cables are spliced from the backbone. Whilst the Nylon is UV stabilised, AFL recommends the use of an additional sacrificial black PE sheath where the cable will be directly exposed to UV rays.
035c12787b1c4fb787f911b889352278
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 1 © 2002-2023, AFL, all rights reserved. 1274, Revision 3, 16.08.23 Specifications are subject to change without notice. Actual finished product may vary from illustration. 72 Fibre Stranded Loose Tube Cable Stranded cable comprising up to 72 optical fibres contained in jelly-filled loose tubes (up to 12 fibres per tube). The tubes and fillers are laid around a central strength member and contained within a dry, water blocked cable core, sheathed with polyethylene (PE) and UV stable, termite resistant nylon jacket. Surface printing includes length marking at one metre intervals. Part Number LMD6**PA0††BE LKD6**PA0¥¥BE Applicable Specifications AS/CA S008, AS 1049, AS/NZS 11801-1, TIA-598-D, IEC 60793, IEC 60794, ITU-T Recommendations Applications Stranded loose tube cable is ideal for short and long-haul, point-to-point and point- to-multipoint backbone applications, and can be installed in-duct or direct-buried. UV stabilised outer jacket as per AS 1049. Cable Components Physical Characteristics SPECIFICATION UNIT VALUE Nominal Tube Diameter mm 2.0 Nominal Cable Diameter mm 9.6 Nominal Weight kg/km 75 Temperature Range °C -40 to 70 Max. Pulling Tension - Install kN 2 Min. Bending Radius - Under Load mm 20 x OD Min. Bending Radius - No Load mm 10 x OD Max. Crush Resistance Short-term (10 min) kN/100 mm 2 Long-term (120 min) kN/100 mm 2 Impact kg.m 1 ** Represents any fibre type, 1D = SM G.652.D "LWP", 1E = SM premium G.652.D "LWP", 1F = SM G.657.A1, 62 = 62.5 μm multimode "OM1", 53 = 50 μm multimode "OM3", 55 = 50 μm multimode "OM4". Contact AFL for other fibre types. †† Represents any fibre-count up to 72 (LMD6 - 12F/Tube). ¥¥ Represents any fibre-count up to 36 (LKD6 - 6F/Tube ). Refer to OSP Cable - Optical Characteristics for further information. Polyethylene Sheath Termite Resistant Nylon Jacket Moisture Resistant Jelly-Filled Loose Tube Optical Fibre Dry Water Blocked Core Central Strength Member

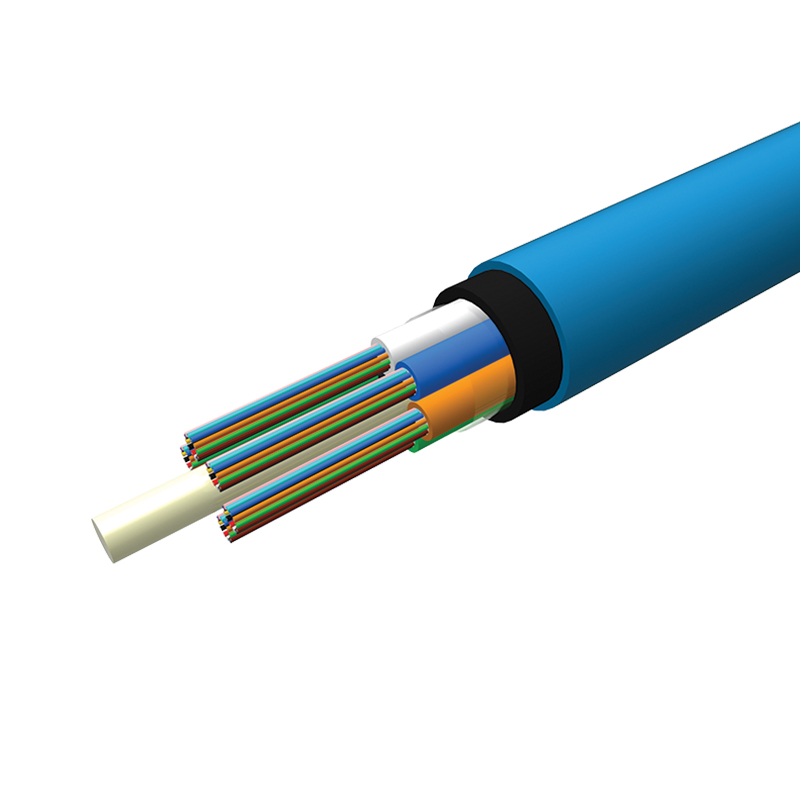

Features:
- Common Fibre Counts ex-stock- no MOQs or manufacturing lead time
- Insect Resistant Nylon Sheath
- Drycore construction resulting in less mess and time lost for fibre breakout
- Various Sheath Options available (Speak to your AFL Representative)
Applications:
- Short & Long Haul Backbone Applications
- Underground in conduit
- Underground direct buried
Stranded loose tube cable is ideal for short and long haul backbone applications and can be installed in-duct or direct-buried. The water blocked, dry cable core stranded design suits point-point and point-multipoint fibre installations where spur cables are spliced from the backbone. Whilst the Nylon is UV stabilised, AFL recommends the use of an additional sacrificial black PE sheath where the cable will be directly exposed to UV rays.
The tubes and fillers are laid around a central strength member, taped and contained within a dry, water blocked cable core which is sheathed with polyethylene (PE) and insect resistant nylon jacket. Surface printing includes length marking at one metre intervals.
