Stranded loose tube cable is ideal for short and long haul backbone applications and can be installed in-duct or direct-buried.
035c12787b1c4fb787f911b889352278

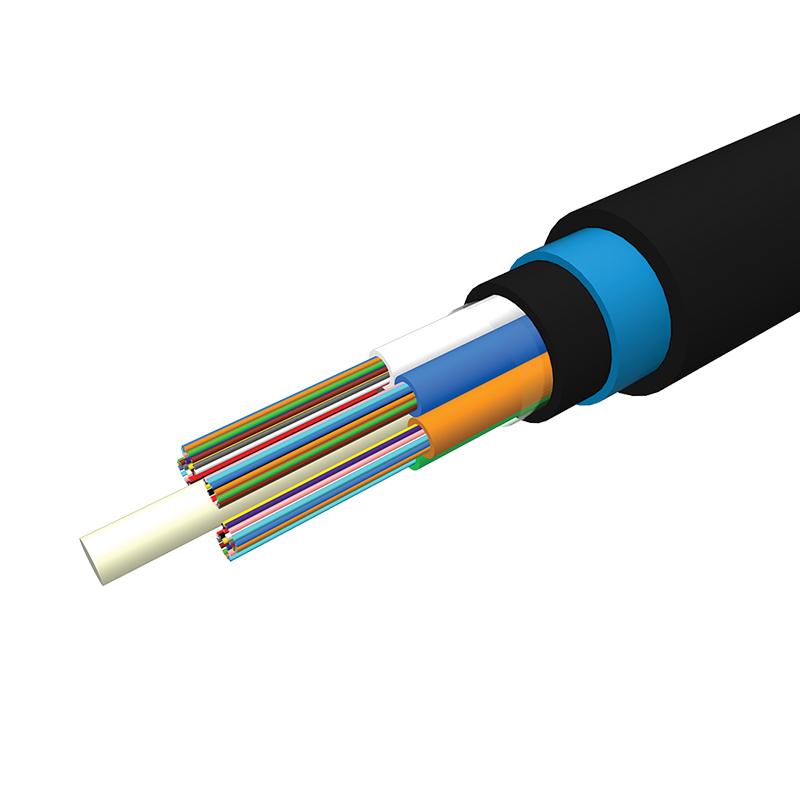

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 1 © 2002-2023, AFL, all rights reserved. 1336, Revision 3, 08.12.23 Specifications are subject to change without notice. Actual finished product may vary from illustration. 72 Fibre Stranded Loose Tube Cable with Sacrificial Sheath Stranded cable comprising up to 72 optical fibres contained in jelly-filled loose tubes (up to 12 fibres per tube). The tubes and fillers are laid around a central strength member and contained within a dry, water blocked cable core, sheathed with polyethylene (PE), termite resistant nylon jacket and an additional UV stable, sacrificial PE outer sheath. Surface printing includes length marking at one metre intervals. Part Number LMH6**P$0†† BK LKH6**P$0¥¥ BK Applicable Specifications AS/CA S008, AS 1049, AS/NZS 11801-1, TIA-598-D, IEC 60793, IEC 60794, ITU-T Recommendations Applications Stranded loose tube cable is ideal for short and long-haul, point-to-point and point-to-multipoint backbone applications and can be installed in-duct or direct- buried. The addition of an outer black PE sacrificial sheath protects the inner termite resistant Nylon barrier from damage during installation. UV stabilised outer jacket as per AS 1049. Cable Components Sacrificial Polyethylene Sheath Termite Resistant Nylon Jacket Inner Polyethylene Sheath Moisture Resistant Jelly-Filled Loose Tube Optical Fibre Dry Water Blocked Core Central Strength Member Physical Characteristics SPECIFICATION UNIT VALUE Nominal Tube Diameter mm 2.0 Nominal Cable Diameter mm 11.6 Nominal Weight kg/km 106 Temperature Range °C -40 to 70 Max. Pulling Tension - Install kN 2 Min. Bending Radius - Under Load mm 20 x OD Min. Bending Radius - No Load mm 10 x OD Max. Crush Resistance Short-term (10 min) kN/100 mm 2 Long-term (120 min) kN/100 mm 2 Impact kg.m 1 ** Represents any fibre type, 1D = SM G.652.D "LWP", 1E = SM premium G.652.D "LWP", 1F = SM G.657.A1, 62 = 62.5 μm multimode "OM1", 53 = 50 μm multimode "OM3", 55 = 50 μm multimode "OM4". Contact AFL for other fibre types. $ Represents Outer Sacrificial Polyethylene Sheath colour type, A = Black, B = Colours other than Black. †† Represents any fibre-count up to 72 (LMH6 - 12F/Tube). ¥¥ Represents any fibre-count up to 36 (LKH6 - 6F/Tube). Supplied with BK = Black sheath as standard, the following colours are available upon request: BE = Blue, GY = Grey, YW = Yellow, WE = White. Refer to OSP Cable - Optical Characteristics for further information.
Features:
- Drycore construction resulting in less mess and time lost for fibre breakouts
- LSZH Sheath minimizes flammability content.
- Termite resistant Nylon jacket
Applications:
- Ideal for short & long-haul backbone applications.
- Point-to-Point drop cable for limited duct space.
- Indoor free draining duct & conduit.
Stranded loose tube cable is ideal for short and long-haul, point-to-point and
point-to-multipoint backbone applications.
The addition of LSZH (Low-Smoke Zero Halogen) sheath protects the inner termite resistant Nylon barrier and minimizes the flammability content of the cable making it suitable for use in indoor, free draining duct/conduit, protected (non-UV exposed environments such as road/rail tunnels.
