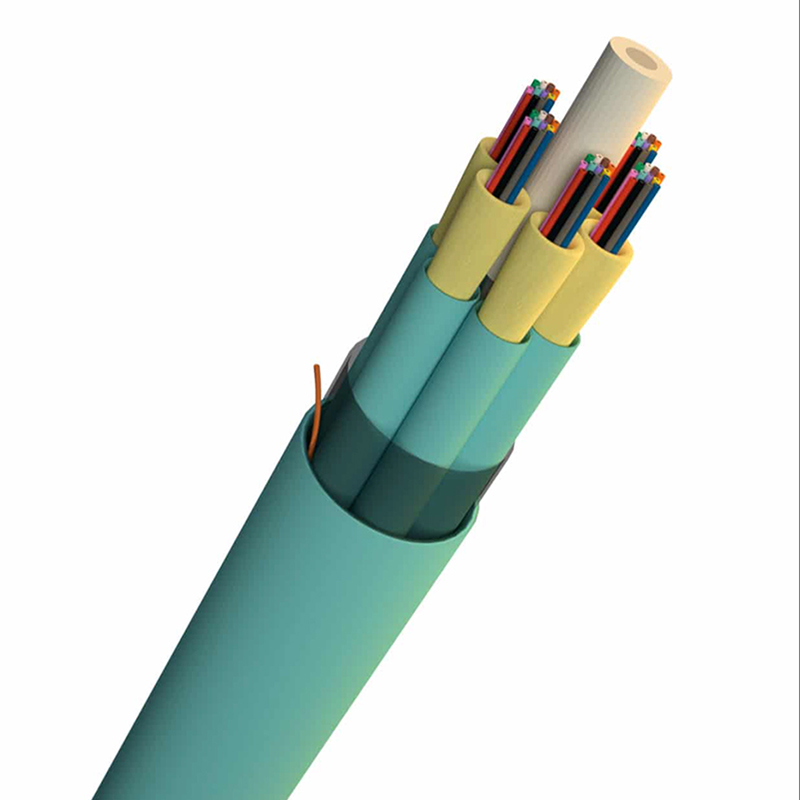

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 1 © 2002-2025, AFL, all rights reserved. 2090, Revision 02, 20.06.25 Specifications are subject to change without notice. Indoor Premise Micro Cable Indoor Premise Micro Cables are constructed using 250-micron fibres, available in single element construction for 12-24F fibre applications, as well as high fibre count sub-unitised cables from 24-144F. All Micro Cable sheaths are LSZH, including internal sub-unit jackets in the ruggedised and sub-unitised cables. Features • Single element 3mm, 12F to 24F • Single element ruggedised, 4.8mm (12F) and 4.5mm (24F) • Sub-unitised, 2mm 12F subs, 24F to 144F • LSZH inner and outer jackets • Aramid or centre tensile strength members within all cables Applications • Headend termination to a fibre 'backbone' • Termination of fibre rack systems • Intra-building 'backbones' • MTP to MTP or MTP to single fibre connector terminations Cable Components Fibre Specifications PART NO. DESIGNATOR* FIBRE TYPE ISO/IEC MAXIMUM ATTENUATION ( d B/ km ) 850 nm 1300 nm 1310 nm 1550 nm 4 Multimode OM4 OM4 2.3 0.6 N/A N/A K Single-mode G.657.A1 OS1/OS2 N/A N/A 0.34 0.20 Single Element 12F, 3mm Ruggedised 12F, 4.8mm Sub-unitised 144F, 12 x 2mm 12F Subs 250μm Coated Fibres Central Strength Member 2 mm Sub-units Outer Jacket Aramid Strength Members Ripcord 250μm Coated Fibres Aramid Strength Members 3 mm Outer Jacket Sub-unitised Micro Cable 250μm Coated Fibres 3 mm Sub-unit 4.8 mm Outer Jacket (12F) Aramid Strength Members Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 2 © 2002-2025, AFL, all rights reserved. 2090, Revision 02, 20.06.25 Specifications are subject to change without notice. Indoor Premise Micro Cable Outer Jacket Colour (†) 1 - Blue 8 - Black 2 - Orange 9 - Yellow 3 - Green A - Violet 4 - Brown B - Pink 5 - Grey C - Aqua 6 - White D - Erika Violet 7 - Red Qualifications GOVERNING BODY STANDARD CODE COMPONENT IEC 61034-1, 61034-2 Cable IEC 60332-1 Cable IEC 60754-1, 60754-2 Cable IEC 60794 Cable IEC 60793 Fibre ITU-T G.657.A1 / G.651.1 Fibre ISO/IEC 11801 Fibre Temperature Specifications TEMPERATURE RANGE Installation 0°C to +50°C Operation -20°C to +60°C Storage -20°C to +60°C Contact AFL for further details Mechanical Data CABLE TYPE PART NO. FIBRE COUNT NOMINAL DIAMETER NOMINAL WEIGHT MAX. TENSILE (INSTALLATION) MIN BEND RADIUS ( mm ) ( mm ) ( KG/KM ) (N) UNDER LOAD NO LOAD Single Element C*DQAJ†ZZZ 12 3 7 200 62 31 C*DQCJ†ZZZ 24 3 7 200 62 31 Ruggedised C*GKAJ†EZZ 12 4.8 20 660 100 50 C*DSCJ†ZZZ 24 4.5 22 400 94 47 12-Fibre Sub-units C*FUCJ†ZZZ 24 7.0 49 660 105 70 C*FUEJ†ZZZ 36 7.0 49 660 105 70 C*FUFJ†ZZZ 48 7.0 49 660 105 70 C*FWHJ†ZZZ 72 10.5 125 660 158 105 C*FWRJ†ZZZ 96 10.5 125 660 158 105 C*FXKJ†ZZZ 144 10.3 100 660 155 103 Note: Fibre Type - Replace (*) in part number with character in the Fibre Specifications table on previous page. † Outer Jacket Colour – Replace (†) in the part number with character in the Cable Jacket Colour table below..
