Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2025, AFL, all rights reserved. 0411, Revision 5, 17.11.25 Speciflcations are subject to change without notice. Fibre Optic Through Adapters Features • Single piece moulded or ultrasonically welded construction for increased strength and durability • SC and LC metal aperture latching clips provide superior mounting, negating internal clearance issues • Reduced flange or standard flange design to suit a variety of mounting environments • High performance zirconia alignment sleeves provide optimum network performance and stability • Dust caps supplied as standard to minimise contamination • Large range of standard and hybrid adapters stocked to cover a wide range of applications Applicable Standards • RoHS compliant • Compliant adapter interface dimensions as per IEC 61754 • Suitable for both controlled and uncontrolled environments as detailed in IEC 61753-1-1 • Fibre Optic Connector Intermateability Standard TIA-604 • Colour coded to Telcordia and IEC standards Also known as couplers, AFL’s range of fibre optic through adapters provide a high performance interface for fibre optic networks. AFL through adapters offer ease of circuit patching while maintaining industry leading performance. Through adapters are used in all fibre optic communication applications including Enterprise, Telecommunications, Industrial and Infrastructure. Suited for use with AFL’s range of: • Fibre optic patchleads • Fibre optic pre-terminated multi fibre assemblies • Fibre optic pigtails • FRE, FDE, FWE and FHE industrial enclosures AFL through adapters are suited for multi environment patching scenarios where network performance, interoperability and long term stability are critical.
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 2 © 2002-2025, AFL, all rights reserved. 0411, Revision 5, 17.11.25 Speciflcations are subject to change without notice. Fibre Optic Through Adapters LC and SC Adapters • SC adapters available in both simplex and duplex varieties • LC adapters available in both duplex and quad varieties • LC adapters utilise a SC mounting footprint • Supports the use of retrofittable external shutters Specifications Operating Temperature -40º to +85ºC Durability 1000 mating cycles Material Body: PBT Dust Caps: PP Sleeve: Zirconia Clip: Stainless Steel Ordering Information Adapter Body Style: RDF = Reduced Flange STF = Standard Flange Colour: AQ = Aqua (Multimode OM3/4) BE = Beige (Multimode OM1) BU = Blue (Single-mode UPC) GN = Green (Single-mode APC) Adapter Type: SC = SC Simplex SCD = SC Duplex LCD = LC Duplex LCQ = LC Quad RDF BU SCD ADPT LC Duplex Reduced Flange Adapter, Aqua LC Quad Reduced Flange Adapter, Beige SC Simplex Reduced Flange, Blue SC Duplex Reduced Flange Adapter, Green LC Duplex Standard Flange Adapter, Blue Max. panel thickness of 1.7mm. All dimensions in mm. Port Size Diagrams SC Simplex / LC Duplex Port SC Duplex / LC Quad Port
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 3 © 2002-2025, AFL, all rights reserved. 0411, Revision 5, 17.11.25 Speciflcations are subject to change without notice. Fibre Optic Through Adapters ST and FC Adapters • All metal construction, supplied with internal lock washer and nut • Wide keyways for both FC and FCA adapters Specifications Operating Temperature -40º to +85ºC Durability 1000 mating cycles Material Body: Nickel Plated Brass Dust Caps: PP/PVC Sleeve: Zirconia Washer: Stainless Steel Nut: Stainless Steel Ordering Information Adapter Body Style: DDH = Double D Hole Mount Colour: MRD = Metal construction Red Dust Cap MYL = Metal construction Yellow Dust Cap MGN = Metal construction Green Dust Cap Adapter Type: ST = ST Simplex FC = FC Simplex FCA = FC/APC Simplex DDH MRD ST ADPT ST Simplex Double D Adapter Metal Body, Red ST Simplex Double D Adapter Metal Body, Yellow ST Simplex Double D Adapter Metal Body, no Dust Caps FC APC Simplex Double D Adapter Metal Body, Yellow FC APC Simplex Double D Adapter Metal Body, Green FC APC Simplex Double D Adapter Metal Body, no Dust Caps ST/FC Port Port Size Diagram Max. panel thickness of 2mm. All dimensions in mm. Standard Colours: ST Yellow dust caps (Single-mode) ST Red dust caps (Multimode) FC Yellow dust caps (Single-mode, UPC & multimode) FCA Green dust caps (Single-mode APC)

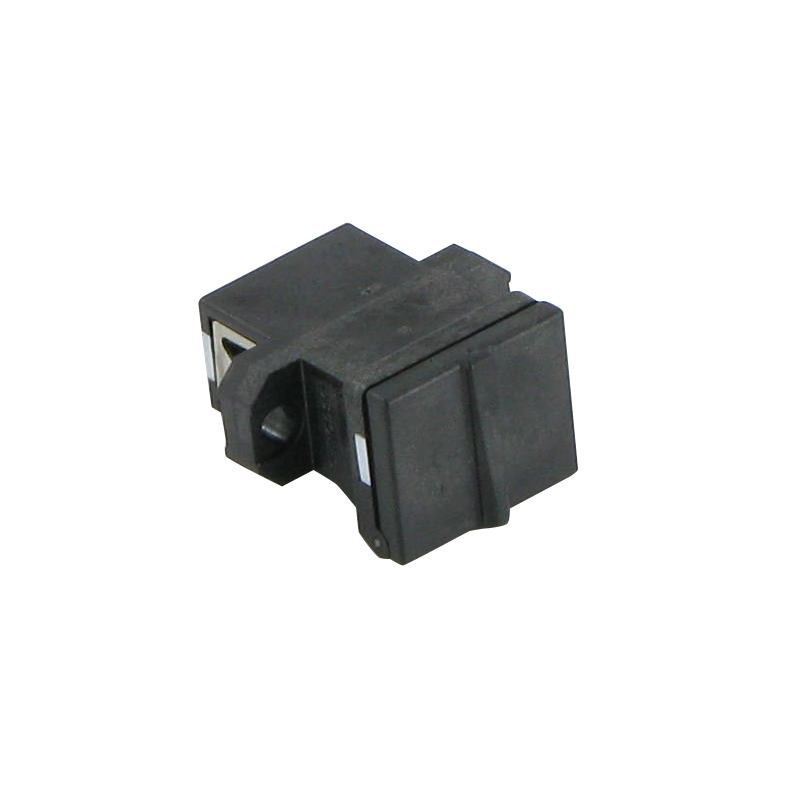

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 4 © 2002-2025, AFL, all rights reserved. 0411, Revision 5, 17.11.25 Speciflcations are subject to change without notice. Fibre Optic Through Adapters MTP Adapters • Fully compliant with MPO intermateability standards • Available in MTP and SC mounting footprints • Available with an integrated shutter Specifications Operating Temperature -40º to +85ºC Durability 500 mating cycles Material Body: PEI Dust Caps: PC Clip: Stainless Steel Ordering Information Adapter Body Style: SCRDF = SC Footprint, Reduced Flange STFS = MTP Footprint, Standard Flange, Shuttered Colour: AQ = Aqua (Multimode OM3/4) BK = Black (Single-mode) Adapter Type: MTP SCRDF AQ MTP ADPT MTP Simplex Adapter, MTP Footprint, Standard Flange, Integrated Shutter, Black MTP Simplex Adapter, MTP Footprint, Standard Flange, Integrated Shutter, Aqua MTP Simplex Adapter, SC Footprint, Reduced Flange, Black MTP Simplex Adapter, SC Footprint, Reduced Flange, Aqua Port Size Diagrams Max. panel thickness of 1.7mm. All dimensions in mm. MTP SC Footprint Port MTP Port
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 5 © 2002-2025, AFL, all rights reserved. 0411, Revision 5, 17.11.25 Speciflcations are subject to change without notice. Fibre Optic Through Adapters Accessories PART NUMBER DESCRIPTION SPECIFICATIONS IMAGE FAS0078-RDF SC/LCD Port Blanking Plug Dimensions:16 (w) x 12 (h) x 10.5 (d) mm Panel thickness: 1.4 - 3.5mm Material: Nylon 6/6 FAS0079 SCD/LCQ Port Blanking Plug Dimensions: 34.8 (w) x 12 (h) x 10.5 (d) mm Panel thickness: 1.4 - 3.5mm Material: Nylon 6/6 FAS0077 ST/FC Double D Port Blanking Plug Dimensions: 12 ø x 10.5 (d) mm Panel thickness: 1.4 - 3.5mm Material: Nylon 6/6 LCD6CSHCOVER* LC Duplex External Shutter, Aqua Dimensions: 14.1 (w) x 12.8 (h) x 18.2 (d) mm Material: Engineering plastic and stainless steel LCD3CSHCOVER LC Duplex External Shutter, Beige LCD1CSHCOVER LC Duplex External Shutter, Blue LCAD1CSHCOVER LC Duplex External Shutter, Green SC6CSHCOVER SC Simplex External Shutter, Aqua Dimensions 17 (w) x 10.8 (h) x 15.6 (d) mm Material: Engineering plastic and stainless steel SC3CSHCOVER SC Simplex External Shutter, Beige SC1CSHCOVER* SC Simplex External Shutter, Blue SCA1CSHCOVER SC Simplex External Shutter, Green DUSTCAP-LCDADPT LC Duplex Dust Cap Material: TPV DUSTCAP-SCADPT-CLR SC Simplex Dust Cap, Clear Material: PP *Indicates shown item Specialty Adapters In addition to standard connectivity, AFL are also able to provide a range of specialty adapters and accessories to suit a wide range of specific applications. Including: • Internally shuttered • H ybrid adapters • Specialty colours Please contact AFL for availability and additional information.
