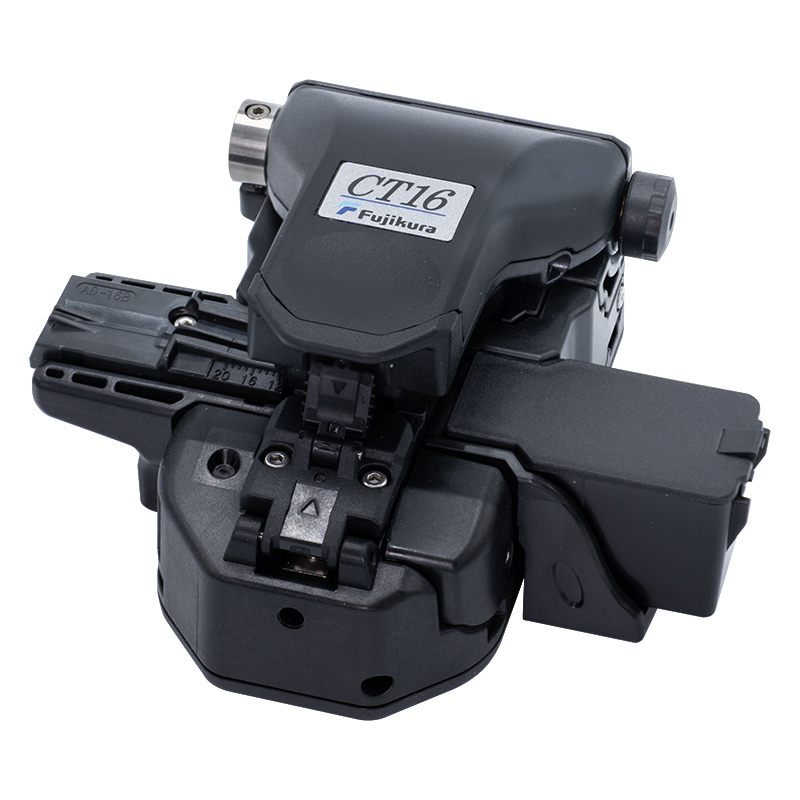

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Termination and Splicing 1 © 2002-2023, AFL, all rights reserved. 2184, Revision 1, 06.11.23 Specifications are subject to change without notice. The CT16 Fibre Cleaver from Fujikura was designed for FTTH or other space constrained applications where ergonomics and durability are key. It is compact, can be operated ambidextrously, and features a unique fibre adapter, allowing users to cleave two bare fibres simultaneously when paired with the dual fibre stripper, the SS-05. The scrap collector and fibre adapter side can be swapped by the user for left or right-handed preference, or as environmental constraints dictate. Furthermore, the thumbwheel on the bottom of the cleaver is utilised for blade rotations as opposed to previous tedious processes to rotate a cleaver blade. The top lever opens past vertical allowing for easy viewing, cleaning, and adjustment of the cleave length. The blade is retracted when the top lever is opened and the blade activates to score the fibre when it is closed, making this a true one-step cleaver. Like its predecessor, this cleaver can withstand a 30” drop from any of six different orientations and still maintain factory specified cleave angle performance. The cleaver blade and fibre clamping mechanisms are easy to replace in the field, mitigating the need to send this cleaver in for service. Features • Dual fibre adapter plate for single or two fibre cleaving • Ambidextrous operation available • Field replaceable fibre clamp pads and cleaver blade • Shock resistant for drops up to 30" in any of six different orientations • Compact form factor and tool-less blade rotations Applications • Small cell site • FTTx drops and terminations • MDF/IDF splices and terminations • Rural fibre deployments and restorations CT16 Fibre Cleaver Ordering Information DESCRIPTION AFL NO. CT16 Fibre Cleaver includes : FDB-06 scrap collector, AD-16A fibre adapter, HEX-01 hex wrench (1.5 mm), M-CT16-E instruction manual, CC-46 carrying case S018330-AD16A FDB-06 Scrap Collector S018329 CB-09 Replacement Cleaver Blade S018335 ARM-CT16-01 Replacement Fibre Clamp Pads S018373 AD-16A Fibre Adapter (up to 900 μm coating) S018328 AD-16B Fibre Adapter (up to 3.0 mm jacket) S018331 CC-46 Carrying Case S018374 Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Termination and Splicing 2 © 2002-2023, AFL, all rights reserved. 2184, Revision 1, 06.11.23 Specifications are subject to change without notice. CT16 Fibre Cleaver Specifications PARAMETER VALUE Applicable Fibre Fibre type Single-mode optical fibre Multimode optical fibre Fibre count 2 Single fibres Cladding diameter Approx. 125 μm Applicable Coating Adapter plate AD-16A: Max 900 μm coating diameter single fibre or 250 μm coating diameter for two fibres AD-16B: Max. 3 mm jacket diameter Fibre holders FH-60 and FH-70 series – coating diameter dictated by specific fibre holder Cleave Length Adapter plate AD-16A: 5 – 20 mm *1 AD-16B: Coating diameter – 250 μm or less: 5-20 mm *1 251 μm-900 μm: 10-20 mm 901 μm-3 mm: 14-20 mm Fibre holder Approx. 10 mm Cleave Angle *2 Single fibre Avg. 0.3 to 0.9 degrees Blade Life *3 Approx. 48,000 fibre cleaves Physical Description Dimensions W Approx. 106 mm without projection *4 Dimensions D Approx. 95.5 mm without projection *4 Dimensions H Approx. 49 mm without projection *4 Weight Approx. 190 g including AD-16A Environmental Condition Temperature Operate : -10 to 50ºC Storage : -40 to 80ºC Humidity Operate : 0 to 95%RH non-condensing Storage : 0 to 95%RH non-condensing Other Features Blade rotation Manual dial underneath cleaver Replaceable parts Cleaver blade Fibre clamp pads Fibre adapter base and scrap collector Can be swapped position for ambidextrous operation Cleave count Up to two individual bare fibres Notes 1. When the cleave length is less than 10 mm, the coating diameter should be 250 μm or less. Also, a blade height adjustment is required before cleaving. The average cleave angle quality will decrease when the cleave length is less than 10 mm. 2. Measured with an interferometer at room temperature, not with a splicer. A new blade was used to cleave the single fibres. The average cleave angle changes depending on the environmental conditions, blade condition, operating method, and cleanliness. 3. The blade life changes depending on the environmental conditions, operating method, and the fibre type cleaved. 4. Measured with the top lever closed.
