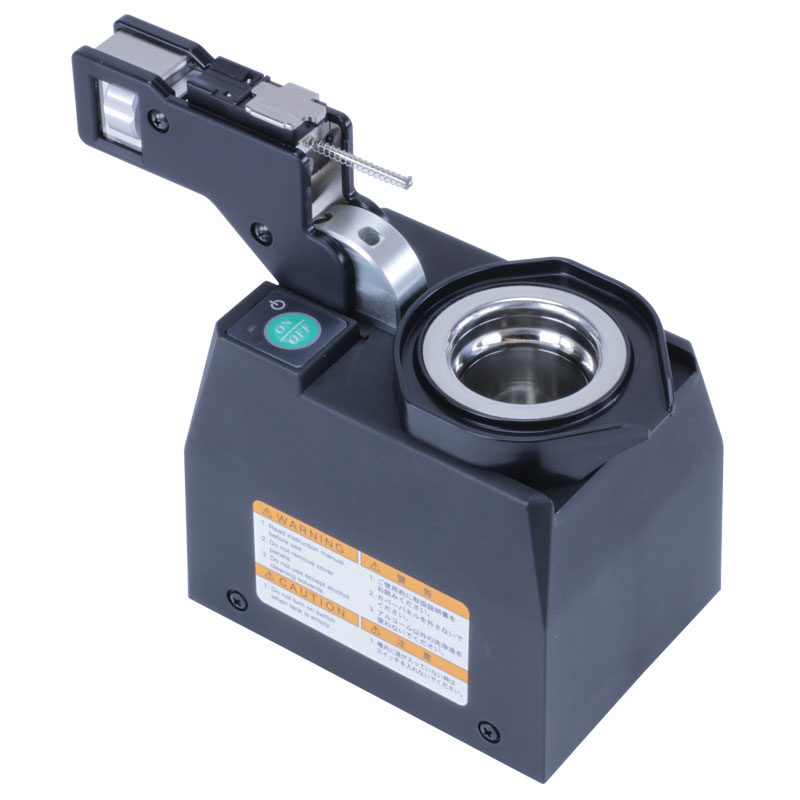

The Fujikura ultrasonic cleaner model USC-03 provides a simple and cost effective method for cleaning optical fibers when high strength fusion splices are required. This ultrasonic cleaner readily accepts all FH-40-XXX, FH-50-XXX, FH-60-XXX and FH-100-XXX series fiber holders.
66db9363c8b54fa2807a66b508613fe0
1 AFLglobal.com 1 (800) 235-3423 © 2 0 0 2 , A F L , a l l r i g h t s r e s e r v e d . P P - 4 - 0 0 0 6 4 , R e v i s i o n 6 , 9 . 2 9 . 2 0 2 5 S p e c i c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Fusion Splicing Systems 1 Specifications Parameter Value Applicable Fibers Single optical fiber Applicable Fiber Holders FH-40, 50, 70 and 100 series Recommended Fluid ≥99% Ethyl alcohol or Isopropyl alcohol Tank Capacity 43 - 53 cm^3 Ultrasonic Frequency 50 kHz Fiber Cleaning Length 49 mm (max), adjustable Output Power 3.0 W (max) Timer Range 1 to 99 seconds Power Requirement AC 100 to 240 V / 50 Hz to 60 Hz Operating Environment 0oC to 40oC, 0 to 95% RH, non-condensing Storage Environment -20˚C to 60˚C, non-condensing humidity Dimensions (W x D x H) 95 x 190 x 162 (mm) / 3.74 x 7.48 x 6.38 (inches) Weight 1 kg / 2.2 lbs Ordering Information Description AFL No. USC-03 S014783 Universal Fiber Holder Adapter S013568 ADC-10 Power Adapter S012548 ACC-09 Power Cord S014390 Features • Built-in timer assures correct cleaning time • Adjustable high intensity vibratory cleaning action • Adjustment knob allows fine-tuning of fiber submersion depth • Alcohol bath lid prevents cleaning fluid evaporation when machine is idle USC-03 Ultrasonic Cleaner The Fujikura ultrasonic cleaner model USC-03 provides a simple and cost effective method for cleaning optical fibers when high strength fusion splices are required. This ultrasonic cleaner readily accepts all FH-40-XXX, FH-50-XXX, FH-70-XXX and FH-100-XXX series fiber holders. The Universal Fiber Holder Adapter, available as an optional accessory, enables the use of FH-XXX series fiber holders. The high frequency ultrasonic action cleans debris and coating residue without damaging the exposed cladding and a built-in timer ensures that the required cleaning time is consistently used for all fibers processed. This cleaner, when used in conjunction with high strength stripping and cleaving accessories, produces outstanding results for the most demanding high strength applications. Included Accessories
Features:
- Built-in timer assures correct cleaning time
- High intensity vibratory cleaning action
- Alcohol bath lid prevents cleaning fluid evaporation when machine is idle
- Adjustment knob allows fine-tuning of fiber submersion depth
The Fujikura ultrasonic cleaner model USC-03 provides a simple and cost effective
method for cleaning optical bers when high strength fusion splices are required.
This ultrasonic cleaner readily accepts all FH-40-XXX, FH-50-XXX, FH-60-XXX and
FH-100-XXX series ber holders. The Universal Fiber Holder Adapter, available as an
optional accessory, enables the use of FH-XXX series ber holders.
The high frequency ultrasonic action cleans debris and coating residue without damaging the exposed cladding and a built-in timer ensures that the required cleaning time is consistently used for all fibers processed. This cleaner, when used in conjunction with high strength stripping and cleaving accessories, produces outstanding results for the most demanding high strength applications.
