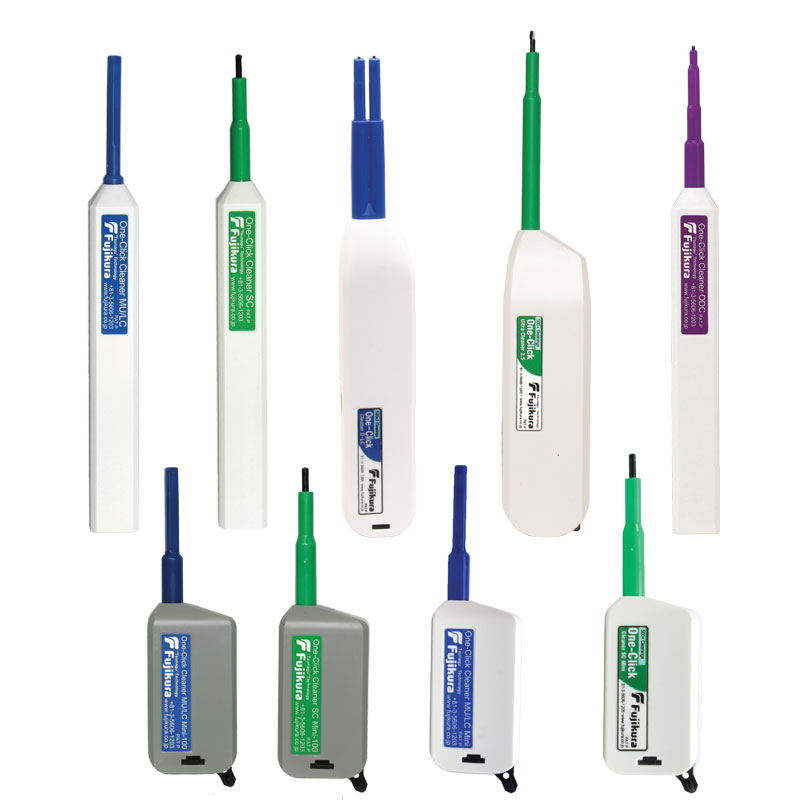

The One-Click® Cleaner is an easy-to-use option for cleaning connectors on jumpers and in adapters. Simply insert the One-Click Cleaner into an adapter and push until an audible “click” is heard. The One-Click Cleaner uses the mechanical push action to advance an optical grade cleaning tape while the cleaning tip is rotated to ensure the fibre end-face is effectively, but gently cleaned.
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 1 © 2002-2021, AFL, all rights reserved. 1596, Revision 4, 13.08.21 Specifications are subject to change without notice. Push-Type Cleaners One-Click ® Cleaner Features • Patented single-action cleaning in a small ergonomic design • Variety of sizes and types for different connector styles • Cleans connectors in both jumpers and bulkhead adaptors • Low cost per clean Applications • Removing oil, dust and dirt without damaging delicate fibre end-faces • Both dry and wet cleaning (add cleaning fluid) • Clean connectors in tight spaces • Field or laboratory use One-Click Cleaner Easy-to-use solution for cleaning fibre optic connectors on jumpers and in adaptors. Since over 85% of network outages are attributed to dirty and/or damaged connectors, it is critical to clean every connector! The patented One-Click Cleaner uses the mechanical push action to advance an optical grade cleaning tape while the cleaning tip is rotated to ensure the fibre end-face is effectively, but gently, cleaned. It is a favourite of field technicians for its ease of use, durability, effectiveness, and small size. One-Click Ultra Cleaner 2.5 The One-Click Ultra Cleaner 2.5 has an enlarged cleaning area to clean more of the connector end-face. Cleaning up to a 2 mm diameter area of the connector end-face, the One-Click Ultra Cleaner 2.5 is a superior cleaner for SC, ST, and FC connectors. Compact One-Click Cleaner Mini Offering the same technology and performance as the original, the One-Click Cleaner Mini enables cleaning connectors in tighter places. Its smaller size also makes it a great addition to test kits and cleaning kits. The Mini One-Click Cleaners come in both 100+ or 500+ cleans per unit. 1 Test & Inspection AFLglobal.com | 800.235.3423 Push-Type Cleaners ©2020, AFL, all rights reserved. PTC-00-2000 Revision AA 2020-10-22 Specifications are subject to change without notice . Features • Patented single-action cleaning in a small ergonomic design • Variety of sizes and types for different connector styles • Cleans connectors in both jumpers and bulkhead adapters • Low cost per clean Applications • Removing oil, dust, and dirt without damaging delicate fiber end-faces • Both dry and wet cleaning (add cleaning fluid) • Clean connectors in tight spaces • Field or laboratory use One-Click Cleaner Easy-to-use solution for cleaning fiber optic connectors on jumpers and in adapters. Since over 85% of network outages are attributed to dirty and/or damaged connectors, it is critical to clean every connector! The patented One-Click Cleaner uses the mechanical push action to advance an optical grade cleaning tape while the cleaning tip is rotated to ensure the fiber end-face is effectively, but gently, cleaned. It is a favorite of field technicians for its ease of use, durability, effectiveness, and small size. One-Click Ultra Cleaner 2.5 The One-Click Ultra Cleaner 2.5 has an enlarged cleaning area to clean more of the connector end-face. Cleaning up to a 2 mm diameter area of the connector end-face, the One-Click Ultra Cleaner 2.5 is a superior cleaner for SC, ST, and FC connectors. Compact One-Click Cleaner Mini Offering the same technology and performance as the original, the One-Click Cleaner mini enables cleaning connectors in tighter places. Its smaller size also makes it a great addition to test kits and cleaning kits. The mini One-Click Cleaners come in both 100+ or 500+ cleans per unit. One-Click ® Cleaners SC/ST/FC MU/LC Ultra 2.5 Mini-100 SC, ST, FC Mini-100 MU/LC
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 2 © 2002-2021, AFL, all rights reserved. 1596, Revision 4, 13.08.21 Specifications are subject to change without notice. MPO One-Click Cleaner D-LC (Duplex LC) The One-Click Cleaner D-LC cuts cleaning time in half by effectively cleaning both connectors of a duplex LC connector simultaneously. Available in a long-lasting 500+ clean pen shape. One-Click Cleaner MPO The One-Click Cleaner MPO is a revolutionary push-type cleaner that simplifies cleaning of the ferrule end-face of MPO/MTP ® connector frequently found in data centres and other high density optical networks One-Click MPO-16 The One-Click MPO-16 cleans 16-fibre MPO/MTP connectors, both pinned (male) and socketed (female). MPO-16 is used with IEEE 802.3bs 400G trunk cabling with each fibre carrying 25 Gbps data signales (400GBASE-SR16 for example), among other applications. Ordering Information DESCRIPTION AFL NO. One-Click Cleaner SC, ST, FC (500+ cleans) 8500-05-0001MZ One-Click Cleaner MU/LC (500+ cleans) 8500-05-0002MZ One-Click Cleaner ODC, outdoor connector (500+ cleans) 8500-05-0004MZ One-Click Cleaner Mini-100 SC, ST, FC (100+ cleans) 8500-05-0005MZ One-Click Mini-100 MU/LC (100+ cleans) 8500-05-0006MZ One-Click Cleaner Mini-500 SC, ST, FC (500+ cleans) 8500-05-0009MZ One-Click Cleaner Mini-500 MU/LC (500+ cleans) 8500-05-0010MZ One-Click Ultra Cleaner 2.5 (enlarged cleaning) SC, ST, FC (500+ cleans) 8500-05-0007MZ One-Click Cleaner D-LC, Duplex LC (2 x 500+ cleans) 8500-05-0008MZ One-Click Cleaner MPO (500+ cleans) 8500-05-0030MZ One-Click Cleaner MPO-16 (500+ cleans) 8500-05-0013MZ One-Click Cleaner MT-RJ (500+ cleans) 8500-05-0031MZ One-Click Cleaner M20, 2.0 mm ferrule (500+ cleans) 8500-05-0014MZ One-Click Cleaner HOC, Hardened Optic Connectors (500+ cleans) 8500-05-0018MZ D-LC MPO-16 Push-Type Cleaners One-Click ® Cleaner
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 3 © 2002-2021, AFL, all rights reserved. 1596, Revision 4, 13.08.21 Specifications are subject to change without notice. Features • Push action • Replaceable cleaning cartridge - 750 cleaning per cartridge (NEOCLEAN-E) • Low cost per clean Applications • Cleans connectors on jumpers or in adapters • SC, FC, ST, E2000, LC and MU connectors • MPO and MTP connectors • Suitable for field or laboratory use Ordering Information MODEL APPLICABLE CONNECTORS & DESCRIPTION # OF CLEANS AFL NO. NEOCLEAN-E1 For MU, LC with UPC/APC polishes 750+ 8500-15-0900MZ NEOCLEAN-E2 For SC, FC with UPC/APC polishes; OptiTap 8500-15-0901MZ NEOCLEAN-E3 For SC, ST, FC, E2000 with UPC/APC polishes; OptiTap 8500-15-0902MZ NEOCLEAN-ES1 Pack of 3 replacement cartridges for NEOCLEAN-E1 8500-15-0903MZ NEOCLEAN-ES2 Pack of 3 replacement cartridges for NEOCLEAN-E2 8500-15-0904MZ NEOCLEAN-ES3 Pack of 3 replacement cartridges for NEOCLEAN-E3 8500-15-0905MZ NEOCLEAN-M For MPO/MTP 600+ 8500-15-0909MZ NEOCLEAN-M2 For MPO-16/MPT-16 8500-15-0910MZ Push-Type Cleaners NEOCLEAN Cleaners NEOCLEAN-E uses a push action to clean contamination from the end-face of connectors on jumpers or in adapters. The replaceable cleaning cartridge can perform 750 cleans, reducing cleaning cost. NEOCLEAN-M is designed for cleaning MPO and MTP multi-fibre connecors used in data centres and other high-density optical networks. It uses a one-push operation, which simplifies cleaning of the ferrule end-face of both MPO and MTP connectos and connectors in adapters. NEOCLEAN-M2 is designed for cleaning MPO-16 and MTP-16 multi-fibre multi-row connectors used in data centres and other high-density optical network environments 3 Test & Inspection AFLglobal.com | 800.235.3423 Push-Type Cleaners ©2020, AFL, all rights reserved. PTC-00-2000 Revision AA 2020-10-22 Specifications are subject to change without notice . Features • Push action • Replaceable cleaning cartridge - 750 cleaning per cartridge (NEOCLEAN-E) • Low cost per clean Applications • Cleans connectors on jumpers or in adapters • SC, FC, ST, E2000, LC, and MU connectors • MPO and MTP connectors • Suitable for field or laboratory use NEOCLEAN-E uses a push action to clean contamination from the end-face of connectors on jumpers or in adapters. The replaceable cleaning cartridge can perform 750 cleans, reducing cleaning cost. NEOCLEAN-M is designed for cleaning MPO and MTP multi-fiber connectors used in data centers and other high-density optical networks. It uses a one-push operation, which simplifies cleaning of the ferrule end-face of both MPO and MTP connectors and connectors in adapters. NEOCLEAN-M2 is designed for cleaning MPO-16 and MTP-16 multi-fiber multi-row connectors used in data centers and other high-density optical network environments. Ordering Information MODEL APPLICABLE CONNECTORS & DESCRIPTION # OF CLEANS AFL NO. NEOCLEAN-E1 For MU, LC with UPC/APC polishes 750+ 8500-15-0900MZ NEOCLEAN-E2 For SC,FC with UPC/APC polishes; OptiTap 8500-15-0901MZ NEOCLEAN-E3 For SC, ST, FC, E2000 with UPC/APC polishes; OptiTap 8500-15-0902MZ NEOCLEAN-ES1 Pack of 3 replacement cartridges for NEOCLEAN-E1 8500-15-0903MZ NEOCLEAN-ES2 Pack of 3 replacement cartridges for NEOCLEAN-E2 8500-15-0904MZ NEOCLEAN-ES3 Pack of 3 Replacement cartridges for NEOCLEAN-E3 8500-15-0905MZ NEOCLEAN-M For MPO/MTP 600+ 8500-15-0909MZ NEOCLEAN-M2 For MPO-16/MPT-16 8500-15-0910MZ NEOCLEAN Cleaners Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Clean to learn more about Push-Type Cleaners. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts FOCIS Flex Connector Inspection • Self-contained, tether-free, hand-held • Auto-focus and auto-centering for fast, easy inspection • IEC, IPC and user-defined pass/fail analysis Recommended Products Cletop Cleaners • Simple push-button shutter application • Easily replaceable cost- effective tape cartridges • Over 400 wipes per tape NEOCLEAN-E Models (E1, E2, E3) NEOCLEAN-M and NEOCLEAN-M2 FCC2 Cleaning Fluid • Unique dispenser for use with AFL Connector Cleaning Tips and FiberWipes • Dissipates static charge • Up to 400+ cleanings per can 3 Test & Inspection AFLglobal.com | 800.235.3423 Cleaning Supplies Push-Type Cleaners ©2020, AFL, all rights reserved. PTC-00-2000 Revision AA 2020-10-22 Specifications are subject to change without notice . Features • Push action • Replaceable cleaning cartridge - 750 cleaning per cartridge (NEOCLEAN-E) • Low cost per clean Applications • Cleans connectors on jumpers or in adapters • SC, FC, ST, E2000, LC, and MU connectors • MPO and MTP connectors • Suitable for field or laboratory use NEOCLEAN-E uses a push action to clean contamination from the end-face of connectors on jumpers or in adapters. The replaceable cleaning cartridge can perform 750 cleans, reducing cleaning cost. NEOCLEAN-M is designed for cleaning MPO and MTP multi-fiber connectors used in data centers and other high-density optical networks. It uses a one-push operation, which simplifies cleaning of the ferrule end-face of both MPO and MTP connectors and connectors in adapters. NEOCLEAN-M2 is designed for cleaning MPO-16 and MTP-16 multi-fiber multi-row connectors used in data centers and other high-density optical network environments. Ordering Information MODEL APPLICABLE CONNECTORS & DESCRIPTION # OF CLEANS AFL NO. NEOCLEAN-E1 For MU, LC with UPC/APC polishes 750+ 8500-15-0900MZ NEOCLEAN-E2 For SC,FC with UPC/APC polishes; OptiTap 8500-15-0901MZ NEOCLEAN-E3 For SC, ST, FC, E2000 with UPC/APC polishes; OptiTap 8500-15-0902MZ NEOCLEAN-ES1 Pack of 3 replacement cartridges for NEOCLEAN-E1 8500-15-0903MZ NEOCLEAN-ES2 Pack of 3 replacement cartridges for NEOCLEAN-E2 8500-15-0904MZ NEOCLEAN-ES3 Pack of 3 Replacement cartridges for NEOCLEAN-E3 8500-15-0905MZ NEOCLEAN-M For MPO/MTP 600+ 8500-15-0909MZ NEOCLEAN-M2 For MPO-16/MPT-16 8500-15-0910MZ NEOCLEAN Cleaners Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Clean to learn more about Push-Type Cleaners. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts FOCIS Flex Connector Inspection • Self-contained, tether-free, hand-held • Auto-focus and auto-centering for fast, easy inspection • IEC, IPC and user-defined pass/fail analysis Recommended Products Cletop Cleaners • Simple push-button shutter application • Easily replaceable cost- effective tape cartridges • Over 400 wipes per tape NEOCLEAN-E Models (E1, E2, E3) NEOCLEAN-M and NEOCLEAN-M2 FCC2 Cleaning Fluid • Unique dispenser for use with AFL Connector Cleaning Tips and FiberWipes • Dissipates static charge • Up to 400+ cleanings per can Recommended Products Contact AUSSales@AFLglobal.com to schedule a demonstration or learn how to buy. International Sales and Service Contact information available at www.AFLglobal.com/Test/Contacts
Features:
- Ergonomic, comfortable design with single action cleaning
- Precise mechanical action delivers consistent cleaning results
- Automatically advance ensures each clean is performed with fresh cleaning tape
- Low cost per clean
Applications:
- Cleans connectors on jumpers and in adapters
- Effective on a variety of connector styles
- A must-have for field technicians
Cleaning saves time and money. Dirty connectors cause a major percentage of fibre optic network failures. Prevention is a simple as cleaning connectors!
With Innovative Push-to-Clean Design
The One-Click® Cleaner is an easy-to-use option for cleaning connectors on jumpers and in adapters. Simply insert the One-Click Cleaner into an adapter and push until an audible “click” is heard. The One-Click Cleaner uses the mechanical push action to advance an optical grade cleaning tape while the cleaning tip is rotated to ensure the fibre end-face is effectively, but gently cleaned. The One-Click Cleaner is a must-have for field technicians. Small enough to fit in a shirt pocket and a great addition to cleaning kits. Save your wrist – no more twist!
With the increasing demand of Outdoor Connector (ODC) plug and socket styles, the ODC One-Click Cleaner, which cleans the ferrules in ODC plug, socket and 1.25 mm ferrules, is an essential cleaning tool for WiMax Base Station, Fibre-to-the-Antenna, Broadcasting and Surveillance Video technicians.
One-Click Cleaner U.S. Patent No.: 7,212,719 & 8,087,118
Cleaning Facts:
• Cleaning saves time and money!
• Dirty connectors cause a major percentage of fibre optic network failures
• Prevention is simple – clean connectors!
• Proper cleaning saves money by eliminating service calls caused by dirty connectors
• Proper cleaning extends the life of connects and reduces replacement costs
• Clean connectors maximise the performance of the network and reduce repair cost
