Our full featured OFI includes a touch screen, positive stop trigger and several easy to select options. These identifiers can be used with any SM fibre – including bend insensitive fibre, bare fibres, ribbon fibre and up to 3mm jacketed fibre. The –BIPM model includes an integrated optical power meter. Not only can you identify live fibres and trace fibres, you can use this tool to check power levels as well. These units can also be customized for ONU detection.
ec1846cecee14ec48c0705a2032c7192
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 1 © 2002-2020, AFL, all rights reserved. 1022, Revision 4, 27.08.20 Specifications are subject to change without notice. Fujikura Optical Fibre Identifiers The Fujikura FID optical fibre identifier is an easy-to-use tool that determines if a fibre is live, the transmission direction, and the relative core power on standard and bend-insensitive singlemode and multi-mode fibres. Its positive-stop trigger mechanism provides the right amount of pressure every time to assure proper detection, while keeping loss to a minimum. This ensures that traffic will not be interrupted and the fibre will not be damaged. Nicknamed “The Job saver” : The Fujikura FID optical fibre identifier removes the need to access the optical fibre at a connection or splice point, eliminating the possibility of interrupting service to a customer. No heads to change or lose: The universal head of the Fujikura FID optical fibre identifier eliminates the need to change an adapter head for jacketed, coated, or ribbon fibres, making it extremely easy to use in the field. Integrated optical power meter: The optical power meter mode verifies power levels during installation or troubleshooting. Colour touchscreen: The touchscreen provides simple-to-follow setup instructions and clear results that are easy to read. Field technician favourite: The Fujikura FID optical fibre identifier is a favorite of technicians for its accuracy, ease of use, integrated power meter, and ergonomic design. Doesn’t damage delicate fibres: The positive-stop trigger ensures that the right pressure is applied every time, while the slim head makes it easier to reach and test tightly-packed fibres without damaging them. Features • World-class signal detection sensitivity • Positive-stop trigger lock for optimum detection • Integrated optical power meter • 2.4” colour touchscreen with backlight Applications • Maintenance of fibre optic networks • Troubleshooting network issues • Identification of live fibres or trace fibres • Power levels verification
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 2 © 2002-2020, AFL, all rights reserved. 1022, Revision 4, 27.08.20 Specifications are subject to change without notice. Specifications OPTICAL FID Fibre Type 0.25 mm SM and MM fibre; SM and MM ribbon fibre (up to 12 ribbon fibre) 1.1 mm/1.5 mm/1.7 mm/2.0 mm/3.0 mm SM and jacketed fibre Optical Characteristic Wavelength Range 900 to 1700 nm Detectable Light Signals CW, Traffic or 270 Hz/1 kHz/2 kHz Modulated light b Insertion Loss (IL) & Minimum Detect Level c at Normal, Fast or Fine operation mode Wavelength 1310 nm 1550 nm 1650 nm Fibre Type IL (dB) Normal/Fast/Fine (dBm) IL (dB) Normal/Fast/Fine (dBm) IL (dB) Normal/Fast/Fine (dBm) 0.25 mm (R=30 mm) 0.2 -58/-53/-64 1.0 -67/-62/-73 2.5 -67/-62/-73 0.25 mm (R=15 mm), Ribbon 0.1 -44/-39/-50 0.3 -57/-52/-63 1.0 -57/-52/-63 0.5 mm (R=15 mm) 0.2 -58/-53/-64 1.0 -67/-62/-73 2.5 -67/-62/-73 1.1 mm/1.5 mm Jacketed 0.3 -43/-37/-53 1.0 -55/-50/-61 2.5 -57/-52/-63 1.7 mm/2.0 mm Jacketed 0.5 -22/-17/-28 2.0 -27/-22/-33 3.0 -27/-22/-33 3.0 mm Jacketed 1.0 -20/-15/-25 3.0 -23/-18/-28 3.0 -23/-18/-28 POWER METER (OPM) Wavelength 1310 nm, 1490 nm, 1550 nm Detectable Light Signal CW, Traffic or 270 Hz/1 kHz/2 kHz Modulated light Detector Sensitivity +10 to -60 dBm at modulated tone; +10 to -40 dBm at CW or Traffic b Accuracy d ±0.3 dB @1310/1550 nm; ±0.6 dB @1490 nm GENERAL) Operation Conditions -10 to +50 °C, 0 to 95 % RH (non-condensing) Storage Conditions -20 to +60 °C, 0 to 95 % RH (non-condensing) Power Supply 2 x AA batteries; 1.2 to 1.5 V DC Battery Life 8 hours e Dimensions (W x H x D) 5.0 x 11.5 x 21.2 cm (1.9 x 4.5 x 8.3 in) f Weight 230 g (8.1 oz) including battery Notes : a. All specifications valid at 25°C unless otherwise specified. b. Traffic is a light signal modulated by a random data sequence. c. Typical value. The minimum detect level (core power) the insertion loss varies due to coating material, colour, etc. d. Under the condition of temperature 25°C with input power at -20 dBm. e. Using 2 Alkaline AA Batteries. f. Except protruding part. Fujikura Optical Fibre Identifiers
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 3 © 2002-2020, AFL, all rights reserved. 1022, Revision 4, 27.08.20 Specifications are subject to change without notice. Ordering Information PART NUMBER DESCRIPTION FUJFID30R Optical Fibre Identifier w/ Power Meter FUJFID31R Optical Fibre Identifier Standard Package • Fibre Identifier • Carry case • Instruction manual (on CD) • Quick reference guide • 2.5 mm universal power meter adapter (FID-30R only) Optional Items PART NUMBER DESCRIPTION FUJFID-30R-ADPT- xx Power Meter Port Adapter for FID-30R xx = SC, ST, FC, LC dedicated connector type Fujikura Optical Fibre Identifiers Qualifications CATEGORY REGULATION/STANDARD QUALIFICATION CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking Safety /EMC /EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment FCC Compliant to code of federal regulations FCC 47 CFR 15 on unlicensed transmissions RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Contact AUSsales@AFLglobal.com to schedule a demonstration or learn more. Recommended Products FlexScan ® FS300 (quad) and FS200 (single-mode) OTDRs • SmartAuto ® 1-button automated testing for fast results • LinkMap ® colour-coded icons for easy troubleshooting • FleXpress ® mode (FS200) completes OTDR test in <5 seconds! • Integrated Source, Power Meter and VFL Optical Light Sources • Encircled Flux Compliant • 5-Y ear Product Warranty • Integrated LED and Laser light sources FS300 FS200 OLS2-Dual OLS4
Features:
- World class signal sensitivity
- Trigger lock, positive stop for optimum detection
- Integrated optical power meter option (-BIPM model only)
- 2.4” colour touchscreen with backlight
Applications:
- Maintenance of fibre optic networks
- Troubleshooting network issues
- Identification of live fibres or trace fibres
- Power levels verification (–BIPM model only)

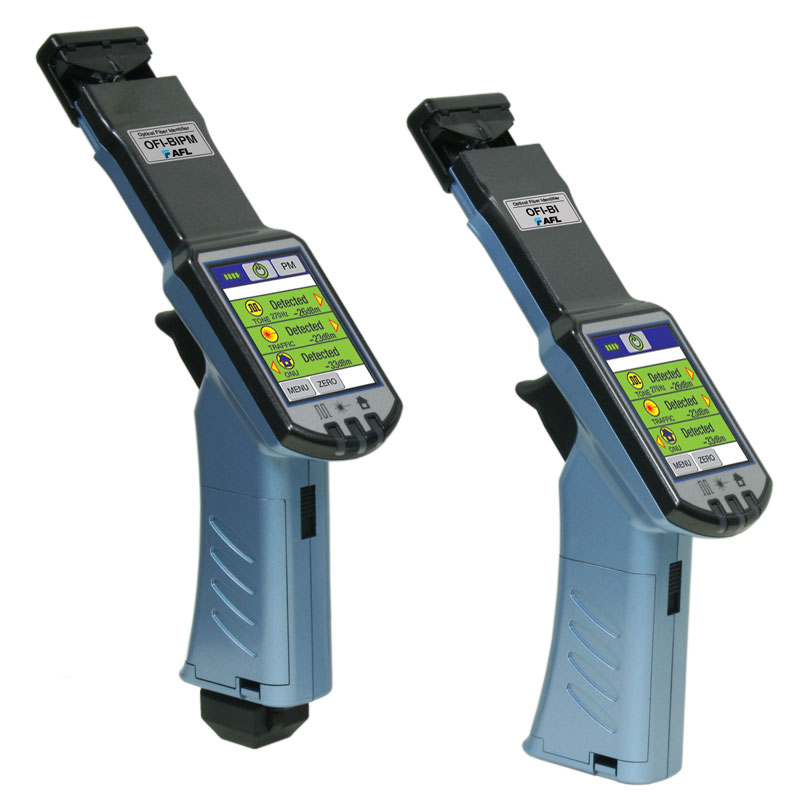

The FUJFID-30R and FUJFID-31R are easy to use tools that determine if a fibre is live, the transmission direction and the relative core power on standard and bend-insensitive single-mode fibres. Its positive stop plunger mechanism provides the right pressure to assure proper detection while keeping loss to a minimum. The design assures traffic will not be interrupted and fibres will not be damaged.
The FUJFID-31R fibre identifier eliminates the need to access the optical fibre at a connection or splice point eliminating the possibility of interrupting service to a valued customer. FUJFID-30R model provides an integrated optical power meter for verification of power levels during installation or troubleshooting activities. The universal head of these OFI’s eliminates the need to change adapter heads for jacketed, coated or ribbon fibres, making them extremely easy to use in the field. The touchscreen features provide simple to follow setup and clear to read results.
FUJFID-30R and FUJFID-31R Optical Fibre Identifiers are warranted against defective material and workmanship for a period of one year from the date of delivery to the end user.
