Optical Loss Test Kits - Encircled Flux (EF) compliant by design for testing fibre links per TIA/EIA 526-14-B and IEC 61280-4-1 Ed. 2.0.
1e0f8761e8d14f0a98cc562758df4bae
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 1 © 2002-2021, AFL, all rights reserved. 1569, Revision 2, 22.06.21 Specifications are subject to change without notice. Encircled Flux (EF) Compliant Light Sources and Test Kits Features • EF Complaint light sources and test kits per TIA 526-14-B and IEC 61280-4-1 Ed. 2.0 • EF Compliant by design – no additional equipment required • Industry-leading 5-year warranty • Wave ID for error free testing of multiple wavelengths simultaneously • Test cords included Applications • MMF and SMF testing requiring EF Compliant equipment • Passive Optical Network (PON) testing • Certify multimode and single-mode links to TIA/EIA standards • Certification report generation with TRM ® 2.0 software Designed for use in outside plant environments: AFL OLTS are extremely rugged and withstand one-meter drops, have splash resistant controls that are easy to use with gloves on, and the field-swappable connector adapters provide flexibility and access for cleaning optical ports at time of test. Test faster with fewer errors: AFL’s Wave ID increases test speed by performing simultaneous multi-wavelength testing that cuts loss measurement time in half or more. AFL’s automatic wavelength identification eliminates setup errors and simplifies coordination between users at opposite ends of fibre.
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 2 © 2002-2021, AFL, all rights reserved. 1569, Revision 2, 22.06.21 Specifications are subject to change without notice. Encircled Flux (EF) Compliant Light Sources and Test Kits GENERAL SPECIFICATIONS: ALL OPM AND OLS MODELS Available Adapters SC, FC, ST, LC Power 2 AA batteries Operating Temperature -10 °C to 50 °C, 90 % RH (non-condensing) Storage Temperature -30 °C to 60 °C, 90 % RH (non-condensing) Size (H x W x D) 14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in) Weight 0.29 kg (0.65 lb) Notes: a. All specifications valid at 25°C unless otherwise specified. Ordering Information Encircled Flux (EF) Compliant Light Source s Since adoption by the IEC, Encircled Flux (EF) multimode launch requirements are increasingly specified into fibre loss testing job requirements. Meeting EF specification requires technicians use EF qualified test sets. It is important to note IEC 61280-1-4 and TIA-568-14-B, specify EF multimode launch conditions at the end of an EF qualified Reference Grade Test Cord (RGTC) – not directly out source test port. Thus, EF compliance requires an EF Light Source and RGTC used together. AFL offers OLS4 MM/SM light source with designed in Encircled Flux (EF) optics supplied with EF qualified RGTC. OLS4 EF is supplied with one multimode RGTC and one standard 9/125 single-mode test cord. WAVELENGTHS TEST CORDS INCLUDED AFL NO. MM 850/1300 nm SM 1310/1550 nm (1) RGTC, 50 μm, MM, 2-meter (1) 9/125 μm, SM, 2-meter OLS4-EF OPTICAL SPECIFICATIONS: OLS4 AND OLS1-DUAL MODELS MODEL OLS4 EF (MM OPTICAL PORT) OLS4 EF (SM OPTICAL PORT) Wavelength 850 ±30 nm 1300 +30/-20 nm 1310 ±20 nm 1550 ±20 nm Spectral Width 45 nm (typ) 120 nm (typ) 5 nm (max) 5 nm (max) Emitter Type LED Laser Safety Class Class I FDA 21 CFR 1040.10 and 1040.11, IEC 60825-1: 2007-03 Output Power ≥ -24 dBm, 50 μm multimode 0 dBm, 9 μm single-mode Output Stability ±0.1 dB over 8 hours (after 5 minutes warm-up) ±0.05 dB over 1 hour (after 15 minutes warm-up) ±0.1 dB over 8 hours (after 15 minutes warm-up) Tone Output N/A 2 kHz Specifications a OPTICAL SPECIFICATIONS - POWER METERS MODEL OPM5-2D Calibrated Wavelengths 850, 1300, 1310, 1490, 1550 nm Detector Type Germanium (Ge) Measurement Range +6 to -60 dBm Tone Detect Range +6 to -50 dBm +6 to -45 dBm for 850 nm Wavelength ID Range +6 to -50 dBm +6 to -45 dBm for 850 nm Accuracy ±0.25 dB Resolution 0.01 dB Measurement Units dB, dBm, μW
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 3 © 2002-2021, AFL, all rights reserved. 1569, Revision 2, 22.06.21 Specifications are subject to change without notice. Encircled Flux (EF) Compliant Light Sources and Test Kits Ordering Information Encircled Flux (EF) Compliant Test Kits AFL EF compliant loss test kits include: Multimode Test Ports: • Light Source with designed in Encircled Flux (EF) optics paired with one EF qualified RGTC. • 50/125 μm receive test cord Single-mode Test Ports • Light Source with two 9/125 μm test cords (launch / receive) POWER METER LIGHT SOURCE FIBRE TYPE WAVELENGTH (nm ) DYNAMIC RANGE ( d B) AVAILABLE CONNECTORS INCLUDED 2-METER TEST CORDS AFL NO. SOURCE PORT TEST CORD LAUNCH ( μm ) RECEIVE ( μm ) OPM5-2D OLS4-EF MM SM 850, 1300 1310, 1550 36 @ 850/1300 nm 60 @ 1310/1550 nm FC, SC FC, SC, ST, LC MM: RGTC, 50/125 SM: 9/125 MM: 50/125 SM: 9/125 SMLP5-5-EF DESCRIPTION AFL. NO. LIGHT SOURCE CONNECTOR ADAPTERS FC connector adapter 2900-50-0002MR SC connector adapter 2900-50-0003MR ST connector adapter 2900-50-0004MR LC connector adapter 2900-50-0006MR POWER METER CONNECTOR ADAPTERS FC connector adapter 8800-00-0200 SC connector adapter 8800-00-0209 ST connector adapter 8800-00-0202 LC connector adapter 8800-00-0225 DESCRIPTION AFL. NO. SINGLE-MODE TEST CORDS (9/125 μm - 2 METERS) FC/FC, 2m TLL-S1FCFC2M FC/ST, 2m TLL-S1FCST2M FC/SC, 2m TLL-S1FCSC2M SC/ST, 2m TLL-S1SCST2M LC/SC, 2m TLL-S1LCSC2M SC/SC, 2m TLL-S1SCSC2M MATING ADAPTERS (Bulkheads) FC/FC ADPT-FC-DDH-MYL ST/ST ADPT-ST-DDH-MYL SC/FC ADPT-SCFC-STF-MBK SC/SC ADPT-SC-RDF-BU SC/ST ADPT-SCST-RDF-BU CLEANING SUPPLIES One-Click Cleaner SC/ST/FC 8500-05-0001MZ One-Click Cleaner LC 8500-05-0002MZ Cletop –SB Cassette Cleaner 8500-10-0016MZ Cletop –SB Refill Cartridge 8500-10-00017MZ EF MODAL CONTROLLER LAUNCH TEST CORDS (50/125 μm – 2 METRES) Required with all Non-EF Compliant Light Sources and with non-AFL Light Sources FC/FC TLL-S3FCFC2M-EF FC/ST TLL-S3FCST2M-EF SC/FC TLL-S3SCFC2M-EF SC/SC TLL-S3SCSC2M-EF SC/LC TLL-S3SCLC2M-EF MULTIMODE TEST CORDS (9/125 μm - 2 METERS) FC/FC TLL-S3FCFC2M FC/ST TLL-S3FCST2M SC/FC TLL-S3SCFC2M SC/SC TLL-S3SCSC2M SC/LC TLL-S3SCLC2M LC/LC TLL-S3LCLC2M Accessories
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Test and Inspection 4 © 2002-2021, AFL, all rights reserved. 1569, Revision 2, 22.06.21 Specifications are subject to change without notice. Test Management and Reporting Software DESCRIPTION AFL NO. TRM ® 2.0 with Basic License (OTDR Trace/OLTS Viewer, Batch Editor and Reports), USB delivery TRM-00-0900PR Encircled Flux (EF) Compliant Light Sources and Test Kits Recommended Products Qualifications CATEGORY REGULATION/ STANDARD QUALIFICATION CE Marking EU Compliant to relevant EU Directives on health, safety and environmental protection, and certified with CE marking Safety/EMC/EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment FDA Compliant to code of federal regulations FDA 21 CFR 1040.10 and 1040.11 on laser products IEC Compliant to IEC 60825-1 for safety of laser products RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method TIA Compliant to TIA-568.3-D for test and measurement requirements for premises optical fibre cabling and components* IEC Compliant to IEC 11801 for test and measurement requirements for optical fibre cabling for use within premises* EN Compliant to EN 50173 for test and measurement requirements for optical fibre cabling for use within premises* AS/NZS Compliant to AS/NZS 3080 for test and measurement requirements for optical fibre cabling for use within premises* TIA Compliant to TIA-526-7 for test procedures for installed optical fibre cable plant TIA Compliant to TIA-526-14 for test procedures for installed optical fibre cable plant* IEC Compliant to IEC 14763-3 for systems and methods for the inspection and testing of installed optical fibre cabling* AS/NZS Compliant to AS/NZS 14763.3 for systems and methods for the inspection and testing of installed optical fibre cabling* IEC Compliant to IEC 61280-4-1 for test procedures for installed optical fibre cable plant* IEC Compliant to IEC 61280-4-2 for test procedures for installed optical fibre cable plant Generic Requirement IEC Compliant to IEC 61315 for requirements on calibration of fibre-optic power meters * A complementary encircled flux mode conditioner may be needed to comply with encircled flux launch conditions for testing multimode optical fibre cabling and components Fujikura Optical Fibre Identifier • World class signal sensitivity • Trigger lock, positive stop for optimum detection • Integrated optical power meter option One-Click ® Cleaners • Patented single-action • Variety of sizes and types • Low cost per clean Contact AUSSales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about Encircled Flux (EF) Compliant Light Sources and Test Kits. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts
Features:
- EF Compliant as per TIA-568-14-B and IEC 61280-1-4 Ed. 2.0
- 5-Year Warranty
- USB port for transfer of stored results
Applications:
- Certify multimode and single-mode links per TIA/EIA standards
- Passive Optical Network (PON) testing
- Prepared for jobs requiring EF Compliance
Single-mode and Multimode Loss Test Kits
Rugged hand-held light sources from AFL - Encircled Flux (EF) compliant by design.
Encircled Flux Compliance
International standards bodies established Encircled Flux (EF) guidelines (TIA-568-14-B and IEC 61280-1-4 Ed. 2.0) to improve mulitmode fibre measurement repeatability by reducing loss measurement variation to within a target range of ± 10%.
Encircled Flux (EF) Compliant Test Sets

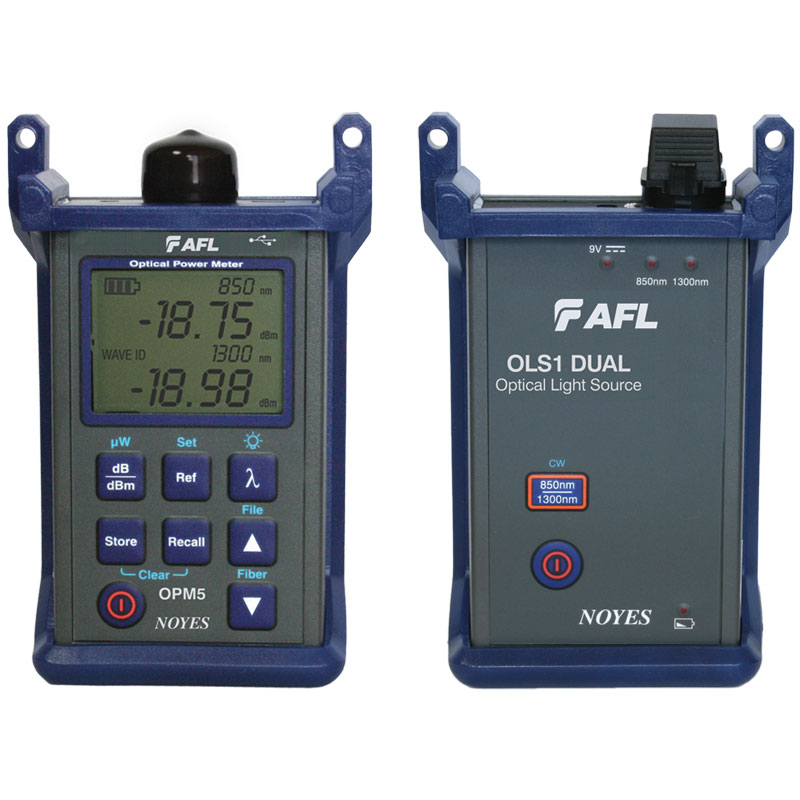

SMLP5-5-EF & SMLP4-4-EF loss test kits combine OLS4-EF quad light source with OPM5 or OPM4 optical power meters providing both single-mode (1310/1550 nm) and multimode (850/1300 nm) loss test capability.
MLP5-2-EF & MLP4-2-EF loss test kits combine OLS1-Dual-EF multimode light source with OPM5 or OPM4 optical power meters providing 850/1300 nm loss test capability.
Faster Test Times with WaveID
OPM5 and OPM4 Power Meters automatically detect WaveID encoded signals from OLS4-EF and OLS1-Dual-EF light sources. Together the source/meter test and display two wavelengths simultaneously – doubling testing efficiency – reducing test time!
OPM5 power meter provides internal storage and USB upload capability for report generation in TRM® 2.0 PC Software.
Flexible Output Connector Adapter Design
Source output ports and OPM detector ports accept removable adapters allowing ports to be inspected and cleaned, while allowing field change of adapter style between FC, SC, ST, and LC connector adapters.
Key Specifications
- SM Optical Port Wavelengths: 1310 and 1550 nm
- SM Dynamic Range: 60 dB
- MM Optical Port Wavelengths: 850 and 1300 nm
- MM Dynamic Range: 40 dB
- Connector adapters: FC, SC, ST, LC switchable (Each kit supplied with one set. Order additional connector adapters separately)
- Battery: 2 x AA Alkaline, optional AC adapter
Ordering Information
Model Numbers:
SMLP5-5-EF-XX-YY SM & MM Test Kit with Data Save and Reporting
SMLP4-4-EF-XX-YY SM & MM Test Kit
MLP5-2-EF-XX-YY MM Test Kit with Data Saving and Reporting
MLP4-2-EF-XX-YY MM Test Kit
Where:
XX = FC or SC (Source UCI adapter Style and Input Connector of RGTC)
YY = FC, SC, ST, or LC (Output connector of RGTC)
Accessories and Connector Adapters
|
Model
|
Description
|
|
2900-50-0002MR
|
FC adapter for source ports
|
|
2900-50-0003MR
|
SC adapter for source ports
|
|
2900-50-0004MR
|
ST adapter for source ports
|
|
2900-50-0006MR
|
LC adapter for source ports
|
|
8800-00-0200
|
FC adapter for power meter
|
|
8800-00-0209
|
SC adapter for power meter
|
|
8800-00-0202
|
ST adapter for power meter
|
|
8800-00-0225
|
LC adapter for power meter
|
|
8800-00-0072PR
|
Universal flip-top dust cap for UCI outputs
|
|
4050-00-0119PR
|
100-240 VAC to 9 VDC
|
