NOYES OLS2-Dual is a hand-held, rugged laser source designed for performing insertion loss measurements on single-mode fiber optic links when used with an optical power meter. When paired with an optical fiber identifier, the OLS2-Dual may be used for fiber identification. The LASER output is stabilized to ensure accurate test results per current TIA/EIA requirements.
498b1ef3dab54343a6dc8ba70fa1aa0c
AFLglobal.com 1 (800) 235-3423 © 2021-2025, AFL, all rights reserved. OLS0-00-2000 Revision AC 2022-03-27 Specifications are subject to change without notice. Test and Inspection OLS Series Light Sources 1 AFL is a trusted supplier of optical testing equipment with more than 30 years of experience and tens of thousands of units in use in the field. AFL’s full range of light sources are used for testing single-mode and/or multimode fiber networks. Sources with wave ID can transmit two or more wavelengths simultaneously – decreasing test time and reducing user errors when paired with AFL wave ID power meters. Designed for the real world: AFL’s light sources were designed to meet the demands of the outside plant environment. They withstand the one-meter drop and have splash resistant controls that are easy to use, even with gloves on. Flexible and efficient: A range of field-swappable output adapters enables access for cleaning optical ports and supports multiple connector styles. The efficient design provides long test time from globally available AA batteries. External power adapter available for extended testing or lab situations. Reduce test time and errors: Wave ID (Dual or Single) decreases test time while reducing technician errors and CW mode provides continuous output (no encoding). Supported output modes: Test Tone (2000, 1000, 330, 270 Hz) for use in fiber identification with AFL brand power meters, OTDRs (with fiber end access) or Optical Fiber Identifier (OFI) products for non-intrusive, mid-span testing. Features • Rugged, dependable, and backed by industry-best 5-year warranty • Generates up to three Wave ID wavelengths simultaneously - slashing test time • Field-swappable connector adapters for maximum flexibility • Long battery life from globally available AA batteries Applications • Certify multimode and single-mode links per TIA/EIA standards • Link loss measurements • Pair with power meters, OTDRs or OFIs for testing • Fiber identification for splicing and continuity checking OLS2 Dual Optical Laser Source
2 AFLglobal.com 1 (800) 235-3423 © 2021-2025, AFL, all rights reserved. OLS0-00-2000 Revision AC 2022-03-27 Specifications are subject to change without notice. Test and Inspection OLS Series Light Sources 2 OLS Series Models and Applications Model MM / SM Wavelengths (nm) Applications OLS1-Dual MM 850, 1300 Ethernet, Token Ring, and FDDI Fiber Links OLS2-Dual SM 1310, 1550 SM Networks, LAN/WAN Testing Specifications a,e Optical Specifications - OLS2-Dual and OLS1-Dual Models Model OLS1-Dual (Single Port b ) OLS2-Dual (Single Port) Wavelength 850 ±30 nm 1300 +30/-20 nm 1310 ±20 nm 1550 ±20 nm Spectral Width 45 nm (typ); 60 nm (max) 120 nm (typ); 170 nm (max) 5 nm (max) Emitter Type LED Laser Safety Class Class I FDA 21 CFR 1040.10 and 1040.11, IEC 60825-1: 2007-03 Output Power >-20 dBm, 62.5 μm multimode c 0 dBm, 9 μm single-mode d Output Stability ±0.1 dB over 8 hours (after 5 minutes warm-up) ±0.05 dB over 1 hour (after 15 minutes warm-up) ±0.1 dB over 8 hours (after 15 minutes warm-up) Tone Output N/A 270 Hz, 330 Hz, 1 kHz, 2 kHz General Specifications: All OLS Models Available Adapters SC FC, ST, LC Power 2 AA batteries, optional AC adapter Battery Life SM port: 72 hours typical (40 hours minimum). MM port: 30 hours typical (20 hours minimum) Operating Temperature -10 °C to 50 °C, 95 % RH (non-condensing) Storage Temperature -30 °C to 60 °C, 95 % RH (non-condensing) Size (H x W x D) 14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in) Weight 0.29 kg (0.65 lb) Notes: a. All specifications valid at 25°C unless otherwise specified. b. May be used to test 50 or 62.5 μm fiber with supplied mandrels. c. Output power will be approximately 3 dB less if a 50 μm mandrel-wrapped jumper is used instead of a 62.5 μm mandrel-wrapped jumper. d. Adjustable 2 dB. e. All OLS products come with the UPC optical port. Ordering Information When ordering, specify connector type at the end of model number (e.g. OLS2-DUAL-SC). All OLS models include protective rubber boot, 2 AA batteries, carry case. AC adapters are available (ordered separately), see table below. Test jumpers and connector adapters are required for operation (purchased separately). Test jumpers with a variety of connector styles and fiber types and adapter caps for most common connectors may be purchased from AFL. AFL NO. Output Wavelengths (nm) Output Ports Emitter Type Wave ID Transmit Available Connectors Power 850 1300 1310 1550 OLS1-DUAL 1 LED FC, SC, ST, LC (2) AA, AC OLS2-DUAL 1 Laser FC, SC, ST, LC (2) AA, AC
AFLglobal.com 1 (800) 235-3423 © 2021-2025, AFL, all rights reserved. OLS0-00-2000 Revision AC 2022-03-27 Specifications are subject to change without notice. Test and Inspection OLS Series Light Sources 3 OLS Connector Adapters and AC Adapter AFL NO. Description 2900-50-0002MR FC connector adapter 2900-50-0003MR SC connector adapter 2900-50-0004MR ST connector adapter 2900-50-0006MR LC connector adapter 8800-00-0072PR Universal flip-top dust cap for UCI outputs 4050-00-0119PR 100-240 VAC to 9 VDC, AC adapter Qualificati ons Category Regulation/Standard Qualification CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking Safety/EMC/EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment FDA Compliant to code of federal regulations FDA 21 CFR 1040.10 and 1040.11 on laser products IEC Compliant to IEC 60825-1 for safety of laser products RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method TIA Compliant to TIA-568.3-D for test and measurement requirements for premises optical fiber cabling and components* IEC Compliant to IEC 11801 for test and measurement requirements for optical fiber cabling for use within premises* EN Compliant to EN 50173 for test and measurement requirements for optical fiber cabling for use within premises* AS/NZS Compliant to AS/NZS 3080 for test and measurement requirements for optical fiber cabling for use within premises* TIA Compliant to TIA-526-7 for test procedures for installed optical fiber cable plant TIA Compliant to TIA-526-14 for test procedures for installed optical fiber cable plant* IEC Compliant to IEC 14763-3 for systems and methods for the inspection and testing of installed optical fiber cabling* AS/NZS Compliant to AS/NZS 14763.3 for systems and methods for the inspection and testing of installed optical fiber cabling* IEC Compliant to IEC 61280-4-1 for test procedures for installed optical fiber cable plant* IEC Compliant to IEC 61280-4-2 for test procedures for installed optical fiber cable plant * A complementary encircled flux mode conditioner may be needed to comply with encircled flux launch conditions for testing multimode optical fiber cabling and components Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about OLS series light sources. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts Recommended Products One-Click ® Cleaners • Patented single-action • Variety of sizes and types • Low cost per clean OFI-BIPM Optical Fiber Identifier • World class signal sensitivity • Trigger lock, positive stop for optimum detection • Integrated optical power meter option
Features:
- 5-Year Product Warranty
- 3-Year Recommended Calibration Interval
- Dual or single Wave ID, CW, Tone Output
- Selectable 270 Hz, 330 Hz, 1 kHz, 2 kHz Tone
- Long battery life with 2 x AA alkaline, optional AC adapter
Applications:
- Certify SM links per TIA/EIA standards
- LAN/WAN Testing
- Fibre identification prior to splicing (with OFI-200D)
Dual Wavelength Laser Source

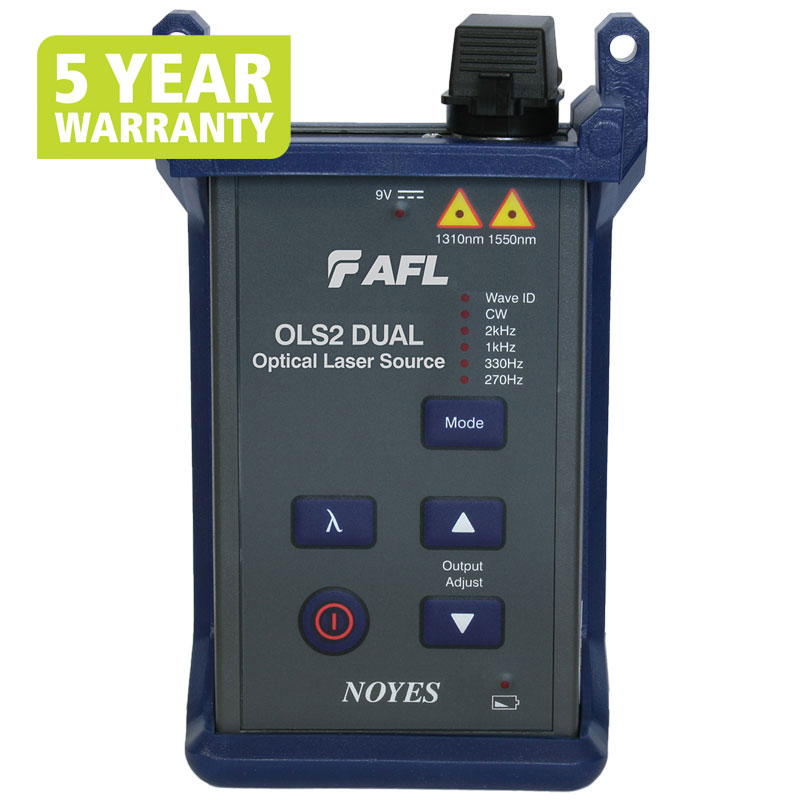

NOYES OLS2 - Dual from AFL is a hand-held, rugged laser source designed for performing insertion loss measurements on single-mode fiber optic links when used with an optical power meter. The LASER output is stabilized to ensure accurate test results per current TIA/EIA requirements.
Equipped with industry standard 2khz test tone, the OLS2-Dual from AFL is an ideal tool to pair with an optical fiber identifier (OFI-200D) for use in fiber identification.
Single-mode output port emits 1310/1550 nm LASER output at CW, WaveID, dual wavelength WaveID, or user selectable Tone.
Faster Test Times with WaveID – In WaveID mode, the NOYES OLS2-Dual encodes each wavelength with a unique WaveID code. When used with a NOYES power meter, the pair can send and receive two wavelengths each test – doubling testing efficiency – reducing test time!
Flexible Output Connector Adapter Design – The OLS2-Dual output port is equipped with UCI based removable adapters to allow the output connectors to be inspected and cleaned, while allowing field change of output style between FC, SC, ST, and LC connector adapters.
The OLS2-Dual is fully N.I.S.T. traceable.
Key Specifications
- Optical Port Wavelengths: 1310 and 1550 nm
- Output Power: 0 dBm, 9 µm single-mode
- Output connector: FC, SC, ST, LC switchable (One style supplied with unit, order others separately)
- Test Tones: 2 kHz, 1 kHz, 330 Hz, 270 Hz
- Battery: 2 x AA Alkaline, optional AC adapter
Ordering Information
Model Number: OLS2-Dual
Accessories and Connector Adapters
|
Model
|
Description
|
|
2900-50-0002MR
|
FC adapter
|
|
2900-50-0003MR
|
SC adapter
|
|
2900-50-0004MR
|
ST adapter
|
|
2900-50-0006MR
|
LC adapter
|
|
8800-00-0072PR
|
Universal flip-top dust cap for UCI outputs
|
|
4050-00-0119PR
|
100-240 VAC to 9 VDC
|
