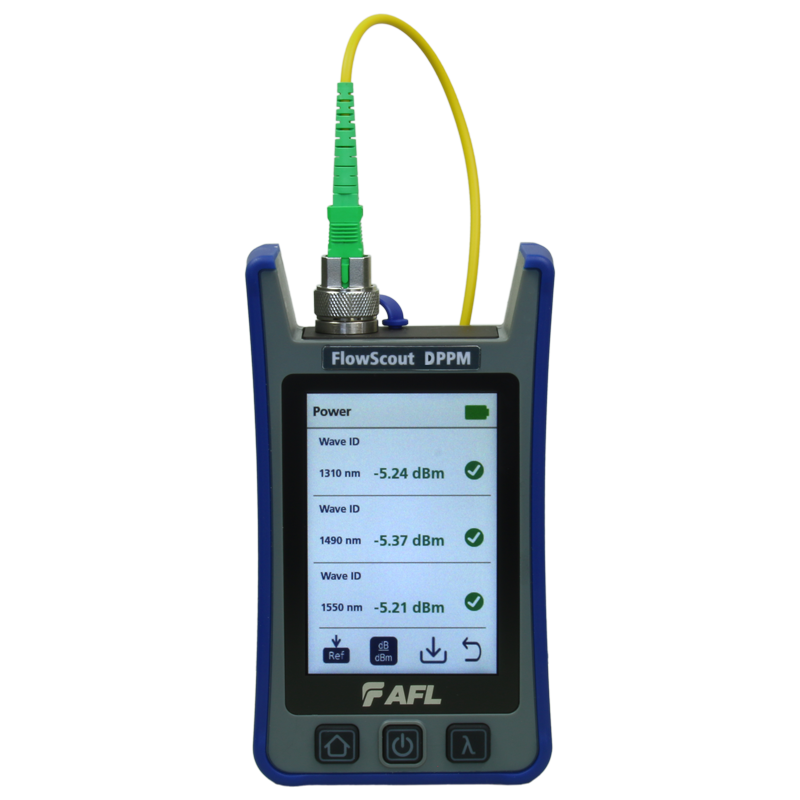

AFL's FlowScout Downstream PON Power Meter (DPPM) is designed to automatically detect and simultaneously measure coexistent downstream PON power levels at 1490 nm GPON/EPON and either 1550 nm RF video or 1577 nm XG/XGS/10GEPON.
87674e6d0c63437e93cdb6a19ec1b87d,126983979bf6401ab029ea559c63125f
AFLglobal.com 1 (800) 235-3423 © 2025, AFL, all rights reserved. DPPM-00-2000 Revision AC 2025-07-17 Specifications are subject to change without notice. Test and Inspection FlowScout ® Downstream PON Power Meter 1 AFL’s FlowScout Downstream PON Power Meter (DPPM) is designed to automatically detect and simultaneously measure coexistent downstream PON power levels at 1490 nm GPON/EPON and either 1550 nm RF video or 1577 nm XG/XGS/10GEPON. Intuitive interface for easy operation: The FlowScout DPPM features a large color touchscreen with a simple icon-driven user interface that displays measured power levels with color-coded pass/fail indications. Measured power levels may be automatically evaluated as pass/fail against ITU-T or user-set min/max limits. The FlowScout DPPM uses a single port to automatically detect PON and broadband wavelengths. Wave ID for reduced test time and errors: The FlowScout DPPM includes a broadband power meter for power and insertion loss measurements. Additional wavelengths can be measured using a companion CW or Wave ID source. When a Wave ID source is used, the power measurement process automatically synchronizes to source wavelengths, reducing test time and eliminating wavelength setting errors. The broadband power meter also automatically detects and reports the presence of 270 Hz, 330 Hz, 1 kHz and 2kHz fiber-identifying tones. Full reporting capabilities: Measured power levels, pass/fail limits and status can be stored in internal memory for download via USB. Test results may be uploaded for subsequent analysis, editing, and reports generation with FlexReports PC software. Efficient and durable: Rugged, ergonomic, and backed by an industry-best 5-year warranty, the hand-held FlowScout DPPM power meter includes IP54 weather protection, making it ideal for many conditions. It provides 16 hours of continuous operation from its rechargeable battery and can also be used while charging from the included AC adapter. A variety of field-replaceable output adapters support multiple connector styles. Basic kits include the FlowScout Downstream PON Power Meter in a convenient soft carry case. Features • Automatically identifies and measures downstream power levels for GPON EPON, RF Video, and XG/XGS/10GEPON. • Single port for PON and broadband wavelengths • Evaluates pass/fail against ITU or user-set min/max limits • Includes broadband power meter with CW, Tone, and Wave ID • Internal storage for 4000 test results • Download results via USB • Reporting with AFL’s FlexReporter ™ software suite • Field-replaceable connector adapters Applications • Verify power levels during PON activation or troubleshooting • Measure insertion loss to FTTH PON subscriber • Perform automatic multi-wavelengths loss measurements • Detect fiber-identifying tones
AFLglobal.com 1 (800) 235-3423 © 2025, AFL, all rights reserved. DPPM-00-2000 Revision AC 2025-07-17 Specifications are subject to change without notice. Test and Inspection FlowScout ® Downstream PON Power Meter 2 Field-replaceable output adapter Field-replaceable output adapters to support multiple connector styles. Large color display Large color touchscreen, visible in direct sunlight, displays a simple-to-use user interface. Rapid pass/fail analysis Measured power levels automatically evaluated against user-set min/max limits. Durable design for field use Rugged design Battery Operated Comprehensive Reporting USB Power Port / Software Upgrades Icon-driven User Interface Test Results Saved in DPPM Internal Memory Test Results Transfer to FlexReports PC Software Set Reference Instant Pass/Fail Analysis User Interface Highlights Product Highlights User-set File Naming UGProject001 OPM001 OLS001 OPM1_OLS1_C001 OPM1_OLS1_C001 OPM1_OLS1_C002 OPM1_OLS1_C003 User-set Power and Loss Pass/Fail Limits Effortless Operation
AFLglobal.com 1 (800) 235-3423 © 2025, AFL, all rights reserved. DPPM-00-2000 Revision AC 2025-07-17 Specifications are subject to change without notice. Test and Inspection FlowScout ® Downstream PON Power Meter 3 Specifications a Optical Spectral Passband PON Detector 1: 1480-1500 nm; PON Detector 2: 1540-1580 nm Broadband Detector: 1260 – 1650 nm Passband Isolation Detector 1: ≥ 40 dB isolation @ 1270, 1310, 1550, 1577, 1625, 1650 nm Detector 2: ≥ 40 dB isolation @ 1270, 1310, 1490, 1625, 1650 nm Calibrated Wavelengths PON Detector 1: 1490 nm; PON Detector 2: 1550 & 1577 nm Broadband Detector: 1270, 1310, 1625, 1650 nm Measurement Range PON Power Meter: +15 to -50 dBm (1490, 1550, 1577 nm) Broadband Power Meter: +15 to -50 dBm (1260 – 1650 nm) Measurement Accuracy ±0.5 dB (within -40 dBm to +23 dBm range) Display Resolution 0.01 dB/dBm ORL >44 dB Measurement Modes Power in dBm, Loss in dB relative to stored reference Stored references Stores separate reference for each calibration wavelength Displays stored references Tone Detection Automatically detects 270 Hz, 330 Hz, 1 kHz, 2 kHz Wave ID Automatically detects and measures power & loss at one or more wavelengths using any AFL’s Wave ID source Results Storage Stores >4,000 results in AFL ATD (XML) file format; Results include test set info, fiber identifying info, timestamp, measured power, wavelength, pass/fail limit, pass/fail status, 0 dB reference power. Connector Adapters Includes user-replaceable SC/APC adapter; accepts FC, LC, ST adapters General Size (H x W x D) 14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in) Weight ≤290 g (≤0.65 lb) Display 3.5 in. color backlit LCD; capacitive touchscreen; 480 x 320 pixels Data Storage Non-volatile memory for field-updateable software and approx. 4000 test records results storage AC Power 120/240 VAC input; 5VDC @ 2A output to USB-C Battery Power User replaceable Li-Ion; IEC 62133-2:2017 and UN38.3 certified Battery Operating Time 16 hours (typical) continuous operation from full charge; Operates while charging Data Interfaces USB-C and Bluetooth BLE 5.1 Operating Temperature -10 oC to +50 oC, 95% RH (non-condensing) Storage Temperature -30 oC to +70 oC, 95% RH (non-condensing) IP Rating IP54 Shock & Vibration Withstands 1 m drop test on all 6 sides CE compliance IEC-61010 and EMC; RoHS compliant Calibration NIST-traceable; ≥3 years between required recalibration Warranty 5 years Notes: a. All specifications valid at 23 °C ± 2 °C unless otherwise specified.
AFLglobal.com 1 (800) 235-3423 © 2025, AFL, all rights reserved. DPPM-00-2000 Revision AC 2025-07-17 Specifications are subject to change without notice. Test and Inspection FlowScout ® Downstream PON Power Meter 4 Ordering Information The FlowScout DPPM Downstream PON Power Meter kit includes rechargeable batteries, SC/APC adapter cap, USB-A to USB-C cable for charging and data transfer, AC plug, and carry case. Quick reference guide is available at www.AFLglobal.com . AFL NO. Description DPPM-100-0902PR Includes: DPPM Downstream PON Power Meter, SC/APC connector adapter, AC charger, and soft carry case Included Accessories 2900-52-0002MR SC connector adapter 8800-00-0072PR Universal flip-top dust cap for UCI outputs 4050-00-0036MR AC charger, USB-A, 90-264VAC, 5V 2.5A. Comes with interchangeable US, UK, EU, and CN/AUS power plugs for AC charger. 6000-00-0036MR USB-A to USB-C charge and data transfer cable 1400-01-0107MZ Soft carry case with strap Accessories AFL NO. Description 8700-00-0218MR Single-mode test jumper, SC/APC to SC/APC, conical ferrule, 2 m, 3 mm jacketed 2900-52-0001MR FC connector adapter 2900-52-0002MR SC connector adapter 2900-52-0003MR ST connector adapter 2900-52-0004MR LC connector adapter 8800-00-0072PR Universal flip-top dust cap for UCI outputs 1400-05-0230PZ Wrist strap 4050-00-0036MR AC charger, USB-A, 90-264VAC, 5V 2.5A. Comes with interchangeable US, UK, EU, and CN/AUS power plugs for AC charger. 6000-00-0036MR USB-A to USB-C charge and data transfer cable 8500-05-0009MZ One-Click Cleaner Mini-500 SC, ST, FC, 500+ cleans 1400-01-0107MZ Soft carry case with strap
AFLglobal.com 1 (800) 235-3423 © 2025, AFL, all rights reserved. DPPM-00-2000 Revision AC 2025-07-17 Specifications are subject to change without notice. Test and Inspection FlowScout ® Downstream PON Power Meter 5 Qualifications Category Regulation/ Standard Qualification CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking UKCA Marking UK Compliant to relevant UK Directives on health, safety, and environmental protection, and certified with the UKCA marking Safety/EMC/EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment FCC Compliant to code of federal regulations FCC 47 CFR 15 on unlicensed transmissions RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method TIA Compliant to TIA-568.3-E for test and measurement requirements for optical fiber cabling and components IEC Compliant to IEC 11801 for test and measurement requirements for optical fiber cabling for use within premises EN Compliant to EN 50173 for test and measurement requirements for optical fiber cabling for use within premises AS/NZS Compliant to AS/NZS 3080 for test and measurement requirements for optical fiber cabling for use within premises TIA Compliant to TIA-526-7 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 14763-3 for systems and methods for the inspection and testing of installed optical fiber cabling AS/NZS Compliant to AS/NZS 14763.3 for systems and methods for the inspection and testing of installed optical fiber cabling IEC Compliant to IEC 61280-4-2 for test procedures for installed optical fiber cable plant Generic Requirement IEC Compliant to IEC 61315 for requirements on calibration of fiber optic power meters Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about OPM8 optical power meters. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts . Recommended Products FOCIS Flex Inspection System • Self-contained, tether-free, hand-held • Auto-focus and auto-centering for fast and easy inspection • IEC, IPC, and user-set pass/fail analysis One-Click ® Cleaners • Patented single-action • Variety of sizes and types • Low cost per clean FlowScout OLS8 Optical Light Source • Large color touchscreen display with intuitive user interface • 5-year product warranty • Integrated LED and laser light sources
Features
- Measures coexistent downstream PON power levels
- GPON/EPON and RF Video or XG/XGS/10GEPON
- Single port for PON and broadband wavelengths
- Evaluates pass/fail against ITU or user-set min/max limits
- Includes broadband power meter with CW, Tone, and Wave ID
- Internal storage for 1000 test results
- Download results via USB
- Reporting with AFL’s FlexReporter™ software suite
- Field-replaceable connector adapters
Applications
- Verify power levels during PON activation or troubleshooting
- Measure insertion loss to FTTH PON subscriber
- Perform automatic multi-wavelengths loss measurements
- Detect fiber-identifying tones
AFL's FlowScout Downstream PON Power Meter (DPPM) is designed to automatically detect and simultaneously measure coexistent downstream PON power levels at 1490 nm GPON/EPON and either 1550 nm RF video or 1577 nm XG/XGS/10GEPON.
Intuitive interface for easy operation: The FlowScout DPPM features a large color touchscreen with a simple icon-driven user interface
that displays measured power levels with color-coded pass/fail indications. Measured power levels may be automatically evaluated as pass/fail
against ITU-T or user-set min/max limits. The FlowScout DPPM uses a single port to automatically detect PON and broadband wavelengths.
Wave ID for reduced test time and errors: The FlowScout DPPM includes a broadband power meter for power and insertion loss
measurements. Additional wavelengths can be measured using a companion CW or Wave ID source. When a Wave ID source is used, the power
measurement process automatically synchronizes to source wavelengths, reducing test time and eliminating wavelength setting errors. The
broadband power meter also automatically detects and reports the presence of 270 Hz, 330 Hz, 1 kHz and 2kHz fiber-identifying tones.
Full reporting capabilities: Measured power levels, pass/fail limits and status can be stored in internal memory for download via USB. Test
results may be uploaded for subsequent analysis, editing, and reports generation with FlexReports PC software.
Efficient and durable: Rugged, ergonomic, and backed by an industry-best 5-year warranty, the hand-held FlowScout DPPM power meter includes IP54 weather protection, making it ideal for many conditions. When fully charged, it provides up to 180 hours of continuous operation from its rechargeable battery and can also be used while charging from the included AC adapter. A variety of field-replaceable output adapters support multiple connector styles. Basic kits include the FlowScout DPPM Downstream PON Power Meter and a quick reference guide in a convenient soft carry case.
