AFL’s Indoor/Outdoor Low Smoke Zero Halogen (LSZH) Breakout Cables are perfectly suited for rugged applications and installations requiring increased performance. LSZH-rated I/O Breakout cables are available from 2-24 count with variable sub-cable dimensions to support specific termination and routing requirements.
1 FIBER OPTIC CABLE Premise Cable © 2013, AFL, all rights reserved. PP-1-00040, Revision 6, 1.4.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 A = FRPE outer jacket B = FRPE sub-cable - 900 μm buffered fiber - water swellable aramid yarn strength members C = strength member D = aramid yarn 2 and 4 Fiber A B C D 6 Fiber A B C D 8 Fiber A B C D 12 Fiber A B C D continued AFL’s Indoor/Outdoor Low Smoke Zero Halogen (LSZH) Breakout Cables are perfectly suited for rugged applications and installations requiring increased performance. LSZH-rated I/O Breakout cables are available from 2-24 count with variable sub-cable dimensions to support specific termination and routing requirements. These cables feature a durable IEC-compliant, zero halogen, UV and fungal resistant outer jacket. Sub-cables can be specified at 2.0 mm, 2.4 mm or 2.9 mm diameters to fit the specific application. Additional strength member is applied to specifically support wedge-style industrial termination schemes. Tested and qualified to the most stringent safety and performance standards, Low Smoke Zero Halogen Breakout cables can be deployed with confidence in the most demanding of conditions. Indoor/Outdoor Low Smoke Zero Halogen Breakout Cable Applications • Harsh Environment • Industrial • Campus Environment Features • Fiber counts from 2-24 • Water-blocked sub-units • Sub-units and tight buffer available in a variety of colors Cable Components A Fiber Specifications CORE SIZE/ FIBER TYPE ISO/ IEC MAXIMUM ATTENUATION (DB/KM) OVERFILL LAUNCH MIN. BANDWIDTH (MHZ•KM) EMB c (MHZ•KM) GIGABIT ETHERNET MIN. LINK DISTANCE (METERS) 10 GIGABIT ETHERNET MIN. LINK DISTANCE (METERS) 850 NM 1300 NM 1550 NM 850 NM 1300 NM 850 NM 1300 NM 850 NM 1300 NM (6) 62.5 Giga-Link™ 300 OM1 3.5 1.2 N/A 200 600 N/A 300 550 32 — (5) 50 Giga-Link™ 600 OM2 3.5 1.5 N/A 500 500 N/A 600 600 82 — (A) 50 Laser-Link 150 OM2 3.0 1.2 N/A 700 500 950 800 550 150 — (L) 50 Laser-Link 300 OM3 3.0 1.2 N/A 1500 500 2000 1000 550 300 — (C) 50 Laser-Link 550 OM4 3.0 1.2 N/A 3500 550 4700 1040 550 550 — (K) AFL G.657.A1 Single-mode OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5000 N/A 10,000 (9) SM OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000 A = FRPE outer jacket B = FRPE sub-cable - 900 μm buffered fiber - water swellable aramid yarn strength members C = strength member D = aramid yarn 2 and 4 Fiber A B C D 6 Fiber A B C D 8 Fiber A B C D
© 2013, AFL, all rights reserved. PP-1-00040, Revision 6, 1.4.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Premise Cable Premise Cable Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE IEC Regulatory RoHS 2002/95/EC EIA/TIA See Typical Performance Table ICEA S-104-696 ISO ITU Telcordia GR-409-CORE Typical Performance Weathering 720 hrs FOTP-89 Low/High Temp Bend -20°C to 70°C FOTP-37 External Freeze FOTP-98 Cyclic Flex 2000 cycles FOTP-104 Impact 1500 impacts FOTP-25 Cold Impact -20°C FOTP-25 Crush Resistance 2200 N/cm FOTP-41 Cable Twist FOTP-85 Rodent-deterrent Jacket Option Available Indoor/Outdoor Low Smoke Zero Halogen Breakout Cable (cont.) Mechanical Data AFL NO. UNITS NOMINAL DIAMETER WEIGHT TENSION LBS (N) BENDING RADIUS INCHES (CM) INCHES (MM) LBS/1000 FT (KG/KM) INSTALLATION LONG TERM INSTALLATION LONG TERM BE002 201##E 2 .30(7.7) 42(62) 300(1334) 90(400) 4.5(11.4) 3.0(7.6) BE004 201##E 4 .30(7.7) 42(62) 300(1334) 90(400) 4.5(11.4) 3.0(7.6) BE006 201##E 6 .35(8.8) 54(81) 300(1334) 90(400) 5.2(13.2) 3.5(8.8) BE012 201##E 12 .50(12.7) 115(171) 600(2667) 180(800) 7.5(19.0) 5.0(12.7) BE024 201##E 24 .57(14.9) 140(208) 600(2667) 180(800) 8.8(22.4) 5.9(14.9) BE002 241##E 2 .34(8.6) 50(75) 300(1334) 90(400) 5.0(12.7) 3.4(8.6) BE004 241##E 4 .34(8.6) 50(75) 300(1334) 90(400) 5.0(12.7) 3.4(8.6) BE006 241##E 6 .40(10.2) 70(104) 300(1334) 90(400) 6.0(15.3) 4.0(10.2) BE012 241##E 12 .58(14.8) 154(230) 600(2667) 180(800) 8.7(22.2) 5.8(14.8) BE024 241##E 24 .66(16.8) 183(273) 600(2667) 180(800) 9.9(25.2) 6.6(16.8) BE002 301##E 2 .39(9.8) 62(93) 300(1334) 90(400) 5.8(14.7) 3.9(9.8) BE004 301##E 4 .39(9.8) 62(93) 300(1334) 90(400) 5.8(14.7) 3.9(9.8) BE006 301##E 6 .45(11.6) 87(130) 300(1334) 90(400) 6.8(17.3) 4.6(11.6) BE012 301##E 12 .71(18.0) 217(323) 600(2667) 180(800) 10.6(27.0) 7.1(18.0) BE024 301##E 24 .79(20.0) 245(365) 600(2667) 180(800) 11.8(30.0) 7.8(20.0) Fiber Types – Replace asterisk ( ) in AFL number with number in the Fiber Specifications table on previous page. # Outer Jacket Color – Replace hashtag (#) in AFL number with number in the Cable Jacket Color table below. Cable Jacket Color Options 1 - Blue 6 - White A - Violet 2 - Orange 7 - Red B - Rose 3 - Green 8 - Black C - Aqua 4 - Brown 9 - Yellow K - Erika Violet (RAL 4003) 5 - Slate Temperature Specifications TEMPERATURE RANGE INSTALLATION -20ºC to +70ºC OPERATING -40ºC to +70ºC STORAGE -40ºC to +70ºC * All jacket colors are UV stable and contain anti-fungal additive. For Best performance, AFL recommends Black Outer Jacket.
Features:
- Fiber counts from 2-24
- Water-blocked sub-units
- Sub-units and tight buffer available in a variety of colors
Applications:
- Harsh Environment
- Industrial
- Campus Environment
AFL’s Indoor/Outdoor Low Smoke Zero Halogen (LSZH) Breakout Cables are perfectly suited for rugged applications and installations requiring increased performance. LSZH-rated I/O Breakout cables are available from 2-24 count with variable sub-cable dimensions to support specific termination and routing requirements. These cables feature a durable IEC-compliant, zero halogen, UV and fungal resistant outer jacket. Sub-cables can be specified at 2.0 mm, 2.4 mm or 2.9 mm diameters to fit the specific application. Additional strength member is applied to specifically support wedge-style industrial termination schemes. Tested and qualified to the most stringent safety and performance standards, Low Smoke Zero Halogen Breakout cables can be deployed with confidence in the most demanding of conditions.
Furcation Tubing,Simplex Cable,Zipcord DualLink and MicroDual Cable,Duct Cable,GelFree Riser NonArmored Loose Tube LV Series GelFree SJ,IndoorOutdoor Armored Tight Buffered Circular Premise Cable,IndoorOutdoor Breakout Cable,IndoorOutdoor Multi unit Plenum Tight Buffered Cable,IndoorOutdoor Multi unit Riser Tight Buffered Cable,IndoorOutdoor Plenum Distribution Cable,IndoorOutdoor Riser Sub unitized MicroCore Cable,IndoorOutdoor Riser Sub unitized MicroCore Cable with SpiderWeb Ribbon Technology,IndoorOutdoor Riser Tight Buffered Cable,LQ Series Plenum rated IndoorOutdoor Loose Tube
1019
Low Smoke Zero Halogen IndoorOutdoor Breakout Cable
Close

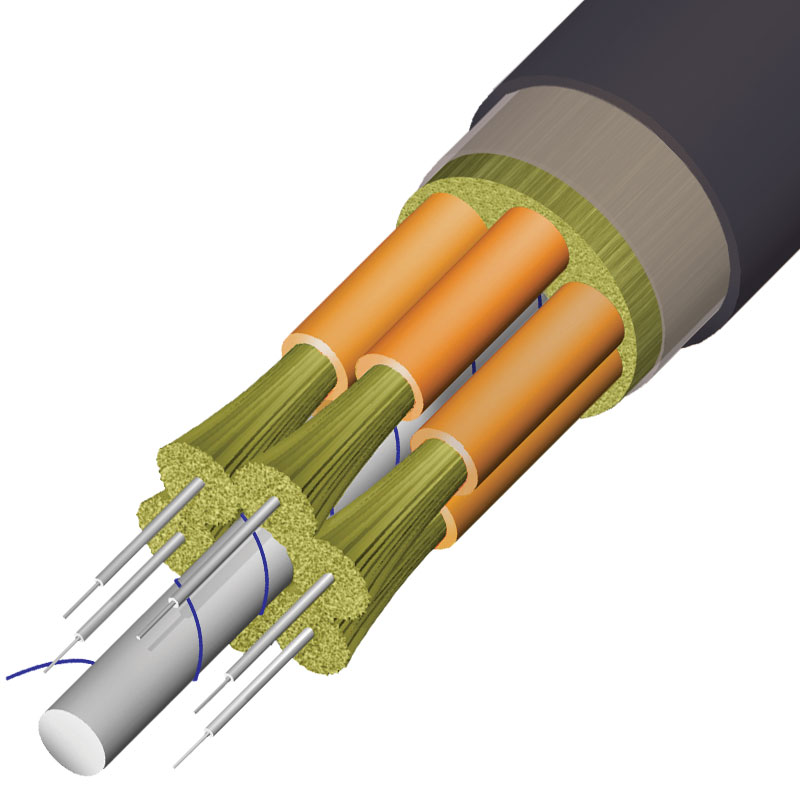

Low Smoke Zero Halogen Indoor/Outdoor Breakout Cable
Features:
- Fiber counts from 2-24
- Water-blocked sub-units
- Sub-units and tight buffer available in a variety of colors
Applications:
- Harsh Environment
- Industrial
- Campus Environment
PRODUCT DESCRIPTION
AFL’s Indoor/Outdoor Low Smoke Zero Halogen (LSZH) Breakout Cables are perfectly suited for rugged applications and installations requiring increased performance. LSZH-rated I/O Breakout cables are available from 2-24 count with variable sub-cable dimensions to support specific termination and routing requirements. These cables feature a durable IEC-compliant, zero halogen, UV and fungal resistant outer jacket. Sub-cables can be specified at 2.0 mm, 2.4 mm or 2.9 mm diameters to fit the specific application. Additional strength member is applied to specifically support wedge-style industrial termination schemes. Tested and qualified to the most stringent safety and performance standards, Low Smoke Zero Halogen Breakout cables can be deployed with confidence in the most demanding of conditions.
