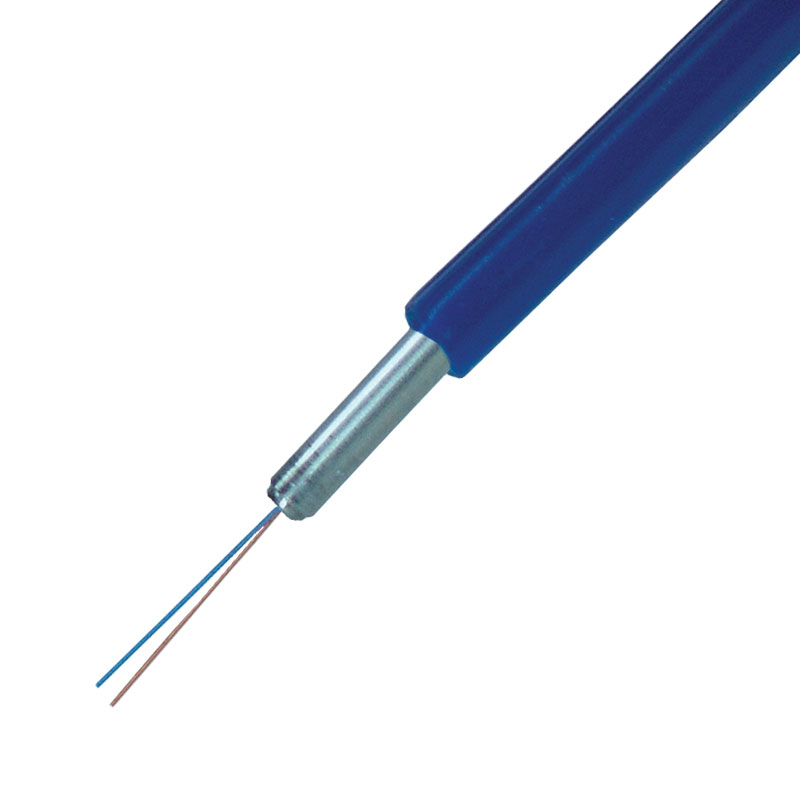

AFL's Low Profile Downhole Cable was specifically designed for land-based wells where economics of sensing are challenging.
08bb2cacea4e4a2fb5beb428b0dbdd15
1 SPECIALTY FIBER OPTIC CABLE Specialty Fiber Optic Cable © 2008, AFL, all rights reserved. PP-1-00078, Revision 4, 2.4.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Low Profile Downhole Cable Features • Small diameter • Low weight • Redundant hermetic seal • Encapsulation options • Lower cost • Patent pending AFL’s unique offering for shallow, land-based wells provides the best combination of ruggedness and size for the price. AFL will customize the design to meet the customer’s needs in order to maximize their return on investment. Options and Specifications PARAMETER VALUE DOUBLE TUBE TRIPLE TUBE Outer Tube Diameter 0.125 0.125 Tube Wall Thickness 0.016 0.024 Tube Material Stainless Steel 316L, Incoloy ™ 825 Fiber coating Carbon Polyimide, Silicone/PFA, Pure Silica Core and others Gel types No gel, high temperature gel, hydrogen scavenging gel Polymer options Polypropylene, PVDF, Nylon, Santoprene ™ STAINLESS STEEL 316L OPTION Weight 21 lbs / 1,000 ft 28 lbs / 1,000 ft Tensile 760 lbs 1,060 lbs Collapse pressure 30,000 psi 44,000 psi Bend radius (dynamic) 12.6" 12.6" INCOLOY ™ 825 OPTION Weight 22 lbs / 1,000 ft 28 lbs / 1,000 ft Tensile 814 lbs 1,134 lbs Collapse pressure 21,000 psi 32,000 psi Bend radius (dynamic) 12.6" 12.6" ENCAPSULATION OPTION Diameter 1/4" Weight Santoprene ™ Polypropylene PVDF Nylon 15 lbs / 1,000 ft 14 lbs / 1,000 ft 28 lbs / 1,000 ft 16 lbs / 1,000 ft Cable Components Hydrogen Scavenging Gel Inner Tube Fiber Inside Tube Outer Tube
Features:
- Small diameter
- Low weight
- Redundant hermetic seal
- High Strength
- High pressure rating
- Patent pending
Applications:
- Oil wells
- Gas wells
- Coiled tubing
AFL's Low Profile Downhole Cable was specifically designed for land-based wells where economics of sensing are challenging. This cable, by its design, is lower cost than what is typically used for downhole sensing. Added benefits, due to its smaller size and weight, are lower shipping costs from factory to the user and then from the user to the well site. The unit to payoff the cable at the well can also be smaller, further reducing the cost of deployment. AFL's Low Profile Downhole cable can be customized with a variety of alloys and outer encapsulations to meet your needs. This cable is well suited for CT or coiled tubing applications due to its size and strength. In addition, with its size and wall thickness, it exceeds the pressure ratings of most applications.
AFL's unique offering for shallow, land-based wells provides the best combination of ruggedness and size for the price.
