AFL Furcation tubing for 250µm Optical Fiber applications.
7661447ea4ee4100bb756331801235fa

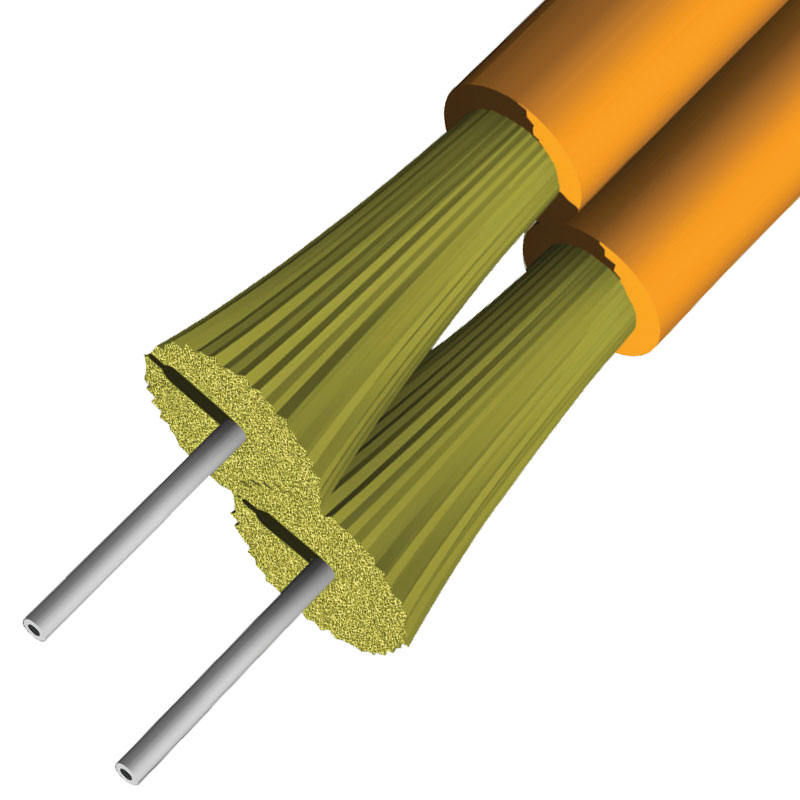

1 FIBER OPTIC CABLE Fiber Optic Cable © 2005, AFL, all rights reserved. PP-1-00049, Revision 8, 10.7.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued Furcation Tubing AFL Furcation tubing offerings reflect the high performance and quality standards present throughout AFL’s complete cordage line. The inner tube allows for smooth and easy fiber insertion while maintaining the integrity required for robust connectorization. Tubing Components Applications • Ribbon and Trunk cable fan-out to single fiber connections Zipcord inner tube aramid yarn outer jacket Simplex inner tube aramid yarn outer jacket Features • Standard diameters • Product is un-printed by default • Custom Print Legend available • Smooth fiber insertion • Low Shrinkage for superior resistance to aging and high temperatures • Ferrule adherence tested using industry standard adhesives Temperature Specifications TEMPERATURE RANGE INSTALLATION -20ºC to +70ºC OPERATING -20ºC to +70ºC STORAGE -40ºC to +70ºC Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE RoHS 2002/95/EC
© 2005, AFL, all rights reserved. PP-1-00049, Revision 8, 10.7.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Fiber Optic Cable Furcation Tubing Ordering Information/Mechanical Data INNER TUBE MATERIAL INNER TUBE SIZE AFL NO. FIBER RECOMENDATION OD ID 3.0 mm 2.4 mm 2.0 mm 1.6 mm SIMPLEX – PVC HYTREL 0.9 mm 0.5 mm SF000@30U#H0 SF000@24U#H0 SF000@20U#H0 SF000@16U#H0 1x 250 μm HYTREL 1.1 mm 0.7 mm SF000@30U#L0 SF000@24U#L0 SF000@20U#L0 X 2x 250 μm HYTREL 2.2 mm 1.6 mm SF000@30U#S0 X X X 1x 900 μm or 12x 250 μm HYTREL 2.2 mm 1.3 mm SF000@30U#T0 X X X 1x 900 μm or 12x 250 μm Polypropylene 0.9 mm 0.35 mm SF000@30U#Y0 SF000@24U#Y0 SF000@20U#Y0 SF000@16U#Y0 1x 250 μm Polypropylene 1.1 mm 0.7 mm SF000@30U#X0 SF000@24U#X0 SF000@20U#X0 X 2x 250 μm Polypropylene 1.5 mm 1.1 mm SF000@30U#W0 SF000@24U#W0 SF000@20U#W0 X 1x 900 μm PVDF 0.9 mm 0.35 mm SF000@30U#P0 SF000@24U#P0 SF000@20U#P0 SF000@16U#P0 1x 250 μm PVDF 0.9 mm 0.5 mm SF000@30U#V0 SF000@24U#V0 SF000@20U#V0 SF000@16U#V0 1x 250 μm PVDF 1.4 mm 1.1 mm SF000@30U#D0 SF000@24U#D0 SF000@20U#D0 X 2x 250 μm PVDF 2.2 mm 1.7 mm SF000@30U#F0 X X X 1x 900 μm or 12x 250 μm SIMPLEX – LSZH* HYTREL 0.9 mm 0.5 mm SE000@30U#H0 SE000@24U#H0 SE000@20U#H0 X 1x 250 μm HYTREL 1.1 mm 0.7 mm SE000@30U#L0 SE000@24U#L0 SE000@20U#L0 X 2x 250 μm HYTREL 2.2 mm 1.6 mm SE000@30U#S0 X X X 1x 900 μm or 12x 250 μm HYTREL 2.2 mm 1.3 mm SE000@30U#T0 X X X 1x 900 μm or 12x 250 μm ZIPCORD – PVC HYTREL 0.9 mm 0.5 mm ZF000@30U#H0 ZF000@24U#H0 ZF000@20U#H0 ZF000@16U#H0 1x 250 μm HYTREL 1.1 mm 0.7 mm ZF000@30U#L0 ZF000@24U#L0 ZF000@20U#L0 X 2x 250 μm HYTREL 2.2 mm 1.6 mm ZF000@30U#S0 X X X 1x 900 μm or 12x 250 μm HYTREL 2.2 mm 1.3 mm ZF000@30U#T0 X X X 1x 900 μm or 12x 250 μm Polypropylene 0.9 mm 0.35 mm ZF000@30U#Y0 ZF000@24U#Y0 ZF000@20U#Y0 ZF000@16U#Y0 1x 250 μm Polypropylene 1.1 mm 0.7 mm ZF000@30U#X0 ZF000@24U#X0 ZF000@20U#X0 X 2x 250 μm Polypropylene 1.5 mm 1.1 mm ZF000@30U#W0 X X X 1x 900 μm PVDF 0.9 mm 0.35 mm ZF000@30U#P0 ZF000@24U#P0 ZF000@20U#P0 ZF000@16U#P0 1x 250 μm PVDF 0.9 mm 0.5 mm ZF000@30U#V0 ZF000@24U#V0 ZF000@20U#V0 ZF000@16U#V0 1x 250 μm PVDF 1.4 mm 1.1 mm ZF000@30U#D0 ZF000@24U#D0 ZF000@20U#D0 X 2x 250 μm PVDF 2.2 mm 1.7 mm ZF000@30U#F0 X X X 1x 900 μm or 12x 250 μm ZIPCORD – LSZH* HYTREL 0.9 mm 0.5 mm ZE000@30U#H0 ZE000@24U#H0 ZE000@20U#H0 X 1x 250 μm HYTREL 1.1 mm 0.7 mm ZE000@30U#L0 ZE000@24U#L0 ZE000@20U#L0 X 2x 250 μm HYTREL 2.2 mm 1.6 mm ZE000@30U#S0 X X X 1x 900 μm or 12x 250 μm HYTREL 2.2 mm 1.3 mm ZE000@30U#T0 X X X 1x 900 μm or 12x 250 μm * NOTE: LSZH products are made with HYTREL inner tubes exclusively to provide a halogen-free content product. Replace hashtag (#) with color option below/ (#) Furcation Tubing Colors Available 1 - Blue 7 - Red K - Erika Violet (RAL 4003) 2 - Orange 8 - Black L - Lime 3 - Green 9 - Yellow 4 - Brown A - Violet 5 - Slate B - Rose 6 - White C - Aqua
Features:
- Industry Standard outer diameters
- Custom print legend
- Smooth fiber insertion
- Low Shrinkage for superior resistance to aging and high temperatures
- Ferrule adherence tested using industry standard adhesives
Applications:
- Ribbon and Trunk cable fan-out to single fiber terminations
AFL Furcation tubing offerings reflect the high performance and quality standards present throughout AFL's complete cordage line. Multiple inner tube materials choices allow for smooth and easy fiber insertion while maintaining the integrity required for robust connectorization.
