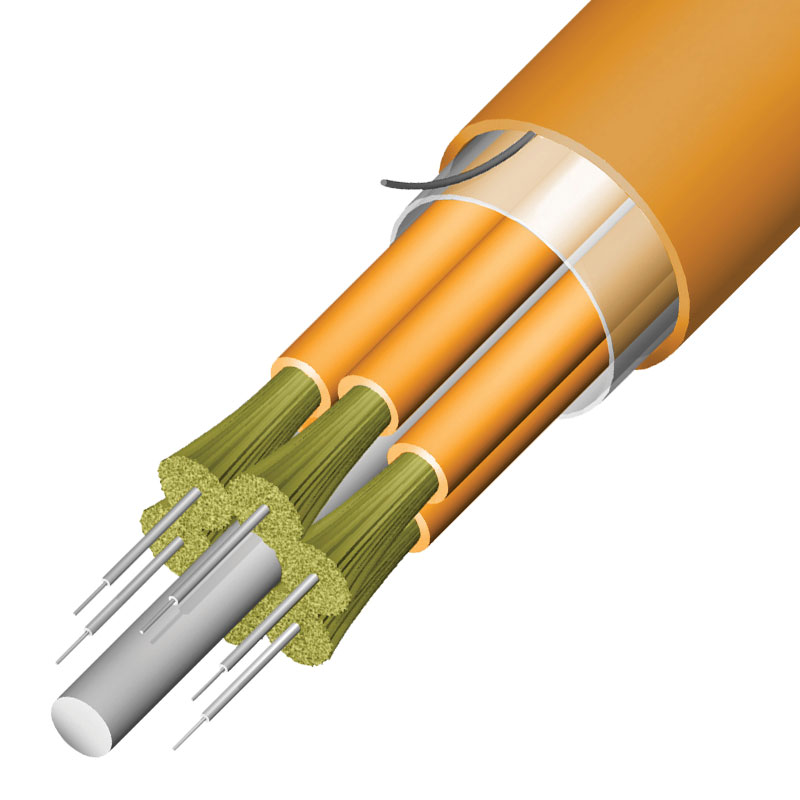

1 FIBER OPTIC CABLE Premise Cable © 2002, AFL, all rights reserved. PP-1-00044, Revision 8, 11.19.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued A Breakout cables combine multiple fiber flexibility with the strength of individually jacketed fibers. Breakout cables from AFL can be terminated for fanout assemblies. Breakout cable is available in counts of 2-24 fibers. Breakout Cable Cable Components Applications • Rugged multi-fiber cross-connects • Intrabuilding "backbone" • Fiber "backbone" to communications closet Features • Fiber count 2-24 • Sub-units printed every 6 inches • Tight buffer and sub-unit jacket are available in a variety of colors Fiber Specifications CORE SIZE/FIBER TYPE ISO/ IEC MAXIMUM ATTENUATION (DB/KM) OVERFILL LAUNCH MIN. BANDWIDTH (MHZ•KM) EMB c (MHZ•KM) GIGABIT ETHERNET MIN. LINK DISTANCE (METERS) 10 GIGABIT ETHERNET MIN. LINK DISTANCE (METERS) 850 NM 1300 NM 1550 NM 850 NM 1300 NM 850 NM 1300 NM 850 NM 1300 NM (6) 62.5 Giga-Link™ 300 OM1 3.5 1.2 N/A 200 600 N/A 300 550 32 — (5) 50 Giga-Link™ 600 OM2 3.5 1.5 N/A 500 500 N/A 600 600 82 — (L) 50 Laser-Link 300 OM3 3.0 1.2 N/A 1,500 500 2,000 1,000 550 300 — (C) 50 Laser-Link 550 OM4 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 — (W) AFL Wideband Multimode OM5 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 — (9) Single-mode (ITU G.652.D/G.657.A1) OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000 Central member Fiber sub-unit - 900 μm tight buffer - Aramid - PVC jacket Core wrap tape Outer jacket Ripcord
© 2002, AFL, all rights reserved. PP-1-00044, Revision 8, 11.19.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Premise Cable Premise Cable Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE MSHA NFPA RoHS 2002/95/EC EIA/TIA 568-A ICEA ISO ITU Telcordia GR-409-CORE Breakout Cable Mechanical Data CABLE TYPE AFL NO. FIBER COUNT NOMINAL DIAMETER WEIGHT TENSION BENDING RADIUS LBS (N) INCHES (CM) INCHES (MM) LBS/1000FT (KG/KM) INSTALLATION LONG TERM INSTALLATION LONG TERM Riser Breakout Cable BR004 241##1 4 0.33 (8.5) 44 (65) 150 (660) 45 (198) 5.1 (12.8) 3.4 (8.5) BR006 241##1 6 0.40 (10.1) 64 (95) 150 (660) 45 (198) 6.0 (15.2) 4.0 (10.1) BR008 241##1 8 0.46 (11.6) 84 (125) 150 (660) 45 (198) 6.9 (17.4) 4.6 (11.6) BR012 241##1 12 0.58 (14.7) 138 (205) 150 (660) 45 (198) 8.7 (22.1) 5.8 (14.7) BR024 241##1 24 0.65 (16.6) 118 (175) 300 (1320) 90 (396) 11.4 (29.0) 7.6 (19.3) Plenum Breakout Cable BP004 301##1 4 0.36 (9.0) 57 (85) 100 (440) 30 (132) 5.3 (13.5) 3.6 (9.0) BP006 301##1 6 0.42 (10.6) 79 (118) 100 (440) 30 (132) 6.3 (15.9) 4.2 (10.6) BP008 301##1 8 0.48 (12.2) 105 (156) 100 (440) 30 (132) 7.2 (18.3) 4.8 (12.2) BP012 301##1 12 0.61 (15.5) 169 (252) 100 (440) 30 (132) 9.2 (23.2) 6.1 (15.5) Fiber Types – please specify fiber type with number in the Fiber Specifications table on previous page. # Outer Jacket/Sub-unit Color – please specify outer jacket/sub-unit color when ordering (see below) Cable Jacket Color Options 1 - Blue 7 - Red 2 - Orange 8 - Black 3 - Green 9 - Yellow 4 - Brown A - Violet 5 - Slate B - Rose 6 - White C - Aqua Temperature Specifications TEMPERATURE RANGE INSTALLATION 0ºC to +70ºC OPERATING 0ºC to +70ºC STORAGE -40ºC to +75ºC
Features:
- Fiber counts 2-24
- Sub-units printed every 6 inches
- Tight buffer and sub-unit jacket are available in a variety of colors
Applications:
- Rugged multi-fiber cross-connects
- Intrabuilding "backbone"
- Fiber "backbone" to communications closet
Breakout cables combine multiple fiber flexibility with the strength of individually jacketed sub-units. Breakout cables from AFL can be terminated for fanout assemblies. Breakout cable is available in counts of 2-24 fibers.
