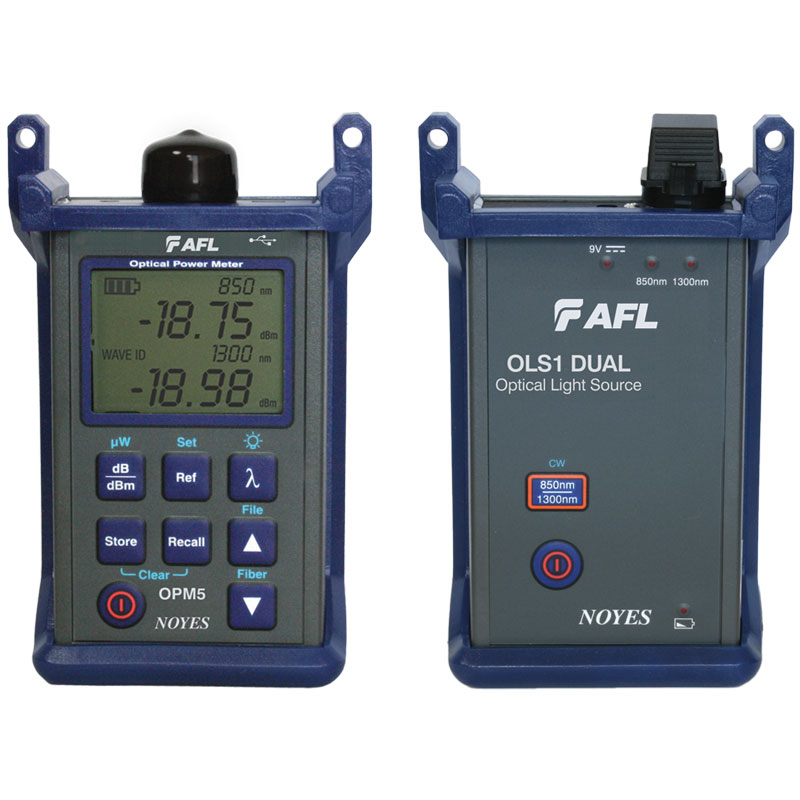

Sources lumineuses & Kits de test - Flux encerclé (EF) conforme par conception pour le test des liaisons par fibre selon TIA/EIA 526-14-B et IEC 61280-4-1 Ed. 2.0.
412d854d4c5748d581d84281c08e18aa,b8a3e2e239734e2199b5e0047aa03b01
1 Test & Inspection AFLglobal.com | 800.235.3423 Optical Loss Testing Encircled Flux (EF) Compliant Light Sources and Test Kits ©2020, AFL, all rights reserved. EFMC-KT-2000 Revision AA 2020-11-19 Specifications are subject to change without notice . Features • EF Complaint light sources and test kits per TIA 526-14-B and IEC 61280-4-1 Ed. 2.0 • EF Compliant by design – no additional equipment required • Industry-leading 5-year warranty • Wave ID for error free testing of multiple wavelengths simultaneously • Test cords included Applications • MMF and SMF testing requiring EF Compliant equipment • Passive Optical Network (PON) testing • Certify multimode and single-mode links to TIA/EIA standards • Certification report generation with TRM ® 2.0 software Designed for use in outside plant environments: AFL OLTS are extremely rugged and withstand one-meter drops, have splash resistant controls that are easy to use with gloves on, and the field-swappable connector adapters provide flexibility and access for cleaning optical ports at time of test. Test faster with fewer errors: AFL’s Wave ID increases test speed by performing simultaneous multi-wavelength testing that cuts loss measurement time in half or more. AFL’s automatic wavelength identification eliminates setup errors and simplifies coordination between users at opposite ends of fiber.
2 Test & Inspection AFLglobal.com | 800.235.3423 Optical Loss Testing Encircled Flux (EF) Compliant Light Sources and Test Kits ©2020, AFL, all rights reserved. EFMC-KT-2000 Revision AA 2020-11-19 Specifications are subject to change without notice . GENERAL SPECIFICATIONS: ALL OPM AND OLS MODELS Available Adapters SC FC, ST, LC Power 2 AA batteries Operating Temperature -10 °C to 50 °C, 90 % RH (non-condensing) Storage Temperature -30 °C to 60 °C, 90 % RH (non-condensing) Size (H x W x D) 14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in) Weight 0.29 kg (0.65 lb) Notes: a. All specifications valid at 25°C unless otherwise specified. OPTICAL SPECIFICATIONS: OLS4 AND OLS1-DUAL MODELS MODEL OLS4 EF (MM Optical Port) OLS4 EF (SM Optical Port) Wavelength 850 ±30 nm 1300 +30/-20 nm 1310 ±20 nm 1550 ±20 nm Spectral Width 45 nm (typ) 120 nm (typ) 5 nm (max) 5 nm (max) Emitter Type LED Laser Safety Class Class I FDA 21 CFR 1040.10 and 1040.11, IEC 60825-1: 2007-03 Output Power ≥ -24 dBm, 50 μm multimode 0 dBm, 9 μm single-mode Output Stability ±0.1 dB over 8 hours (after 5 minutes warm-up) ±0.05 dB over 1 hour (after 15 minutes warm-up) ±0.1 dB over 8 hours (after 15 minutes warm-up) Tone Output N/A 2 kHz Specifications a OPTICAL SPECIFICATIONS - POWER METERS MODEL OPM5-2D Calibrated Wavelengths 850, 1300, 1310, 1490, 1550 nm Detector Type Germanium (Ge) Measurement Range +6 to -60 dBm Tone Detect Range +6 to -50 dBm +6 to -45 dBm for 850 nm Wavelength ID Range +6 to -50 dBm +6 to -45 dBm for 850 nm Accuracy ±0.25 dB Resolution 0.01 dB Measurement Units dB, dBm, μW Ordering Information Encircled Flux (EF) Compliant Light Sources Since adoption by the IEC, Encircled Flux (EF) multimode launch requirements are increasingly specified into fiber loss testing job requirements. Meeting EF specification requires technicians use EF qualified test sets. It is important to note IEC 61280-1-4 and TIA-568-14-B, specify EF multimode launch conditions at the end of an EF qualified Reference Grade Test Cord (RGTC) – not directly out source test port. Thus, EF compliance requires an EF Light Source and RGTC used together. AFL offers OLS4 MM/SM light source with designed in Encircled Flux (EF) optics supplied with EF qualified RGTC. OLS4 EF is supplied with one multimode RGTC and one standard 9/125 single-mode test cord. WAVELENGTHS TEST CORDS INCLUDED AFL NO. MM 850/1300 nm SM 1310/1550 nm (1) RGTC, 50 μm, MM, 2-meter (1) 9/125 μm, SM, 2-meter OLS4-EF
3 Test & Inspection AFLglobal.com | 800.235.3423 Optical Loss Testing Encircled Flux (EF) Compliant Light Sources and Test Kits ©2020, AFL, all rights reserved. EFMC-KT-2000 Revision AA 2020-11-19 Specifications are subject to change without notice . Ordering Information Encircled Flux (EF) Compliant Test Kits AFL EF compliant loss test kits include: Multimode Test Ports: • Light Source with designed in Encircled Flux (EF) optics paired with one EF qualified RGTC. • 50/125 μm receive test cord Single-mode Test Ports: • Light Source with two 9/125 μm test cords (launch / receive) POWER METER LIGHT SOURCE FIBER TYPE WAVELENGTH (nm) DYNAMIC RANGE (dB) AVAILABLE CONNECTORS INCLUDED 2-METER TEST CORDS AFL NO. SOURCE PORT TEST CORD LAUNCH (μm) RECEIVE (μm) OPM5-2D OLS4-EF MM SM 850, 1300 1310, 1550 36 @ 850/1300 nm 60 @ 1310/1550 nm FC, SC FC, SC, ST, LC MM: RGTC, 50/125 SM: 9/125 MM: 50/125 SM: 9/125 SMLP5-5-EF Accessories DESCRIPTION AFL NO. LIGHT SOURCE CONNECTOR ADAPTERS FC connector adapter 2900-50-0002MR SC connector adapter 2900-50-0003MR ST connector adapter 2900-50-0004MR LC connector adapter 2900-50-0006MR POWER METER CONNECTOR ADAPTERS FC connector adapter 8800-00-0200 SC connector adapter 8800-00-0209 ST connector adapter 8800-00-0202 LC connector adapter 8800-00-0225 REFERENCE GRADE LAUNCH CORDS (RGLC) (50/125 μm – 2 meters) FC to FC 8700-04-0001MR FC to SC 8700-04-0002MR FC to LC 8700-04-0003MR FC to ST 8700-04-0004MR SC to FC 8700-04-0005MR SC to SC 8700-04-0006MR SC to LC 8700-04-0007MR SC to ST 8700-04-0008MR MULTIMODE TEST CORDS (50/125 μm – 2 meters) FC/FC 8700-00-0093 SC/ST 8700-00-0064 SC/SC 8700-00-0065 LC/LC 8700-00-0082 DESCRIPTION AFL NO. SINGLE-MODE TEST CORDS (9/125 μm – 2 meters) FC/FC 8700-00-0005 FC/ST 8700-00-0016 ST/ST 8700-00-0017 SC/SC 8700-00-0018 FC/SC 8700-00-0021 SC/ST 8700-00-0022 SC/LC 8700-00-0046 FC/LC 8700-00-0071 LC/LC 8700-00-0097 MATING ADAPTERS (Bulkheads) FC/FC 8400-00-0004MR SC/SC 8400-00-0045MR ST/ST 8400-00-0020 LC/LC 8400-00-0075 CLEANING SUPPLIES One-Click Cleaner SC/ST/FC 8500-05-0001MZ One-Click Cleaner LC 8500-05-0002MZ Cletop –SB Cassette Cleaner 8500-10-0016MZ Cletop –SB Refill Cartridge 8500-10-00017MZ
4 Test & Inspection AFLglobal.com | 800.235.3423 Optical Loss Testing Encircled Flux (EF) Compliant Light Sources and Test Kits ©2020, AFL, all rights reserved. EFMC-KT-2000 Revision AA 2020-11-19 Specifications are subject to change without notice . Test Management and Reporting Software DESCRIPTION AFL NO. TRM ® 2.0 with Basic License (OTDR Trace/OLTS Viewer, Batch Editor and Reports), USB delivery TRM-00-0900PR Recommended Products One-Click ® Cleaners • Patented single-action • Variety of sizes and types • Low cost per clean OFI-BIPM Optical Fiber Identifier • World class signal sensitivity • Trigger lock, positive stop for optimum detection • Integrated optical power meter option Qualificati ons CATEGORY REGULATION/STANDARD QUALIFICATION CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking Safety/EMC/EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment FDA Compliant to code of federal regulations FDA 21 CFR 1040.10 and 1040.11 on laser products IEC Compliant to IEC 60825-1 for safety of laser products RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method TIA Compliant to TIA-568.3-D for test and measurement requirements for premises optical fiber cabling and components* IEC Compliant to IEC 11801 for test and measurement requirements for optical fiber cabling for use within premises* EN Compliant to EN 50173 for test and measurement requirements for optical fiber cabling for use within premises* AS/NZS Compliant to AS/NZS 3080 for test and measurement requirements for optical fiber cabling for use within premises* TIA Compliant to TIA-526-7 for test procedures for installed optical fiber cable plant TIA Compliant to TIA-526-14 for test procedures for installed optical fiber cable plant* IEC Compliant to IEC 14763-3 for systems and methods for the inspection and testing of installed optical fiber cabling* AS/NZS Compliant to AS/NZS 14763.3 for systems and methods for the inspection and testing of installed optical fiber cabling* IEC Compliant to IEC 61280-4-1 for test procedures for installed optical fiber cable plant* IEC Compliant to IEC 61280-4-2 for test procedures for installed optical fiber cable plant Generic Requirement IEC Compliant to IEC 61315 for requirements on calibration of fibre-optic power meters * A complementary encircled flux mode conditioner may be needed to comply with encircled flux launch conditions for testing multimode optical fiber cabling and components . Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about Encircled Flux (EF) Compliant Light Sources and Test Kits. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts
Caractéristiques :
- Sources lumineuses et kits de test des plaintes EF selon TIA 526-14-B et IEC 61280-4-1 Ed. 2.0
- Conformité EF par conception - aucun équipement supplémentaire n'est nécessaire
- Garantie de 5 ans à la pointe de l'industrie
- Wave ID pour un test sans erreur de plusieurs longueurs d'onde simultanément
Les applications:
- Tests MMF et SMF nécessitant un équipement conforme à la norme EF
- Tests de réseaux optiques passifs (PON)
- Certification de liaisons multimodes et monomodes selon les normes TIA/EIA.
- Génération de rapports de certification avec le logiciel TRM® 2.0
Conçu pour être utilisé dans les environnements extérieurs des usines : Les OLTS d'AFL sont extrêmement robustes et résistent à des chutes d'un mètre. Leurs commandes résistantes aux éclaboussures sont faciles à utiliser avec des gants et les adaptateurs de connecteurs interchangeables sur le terrain offrent une grande souplesse et permettent de nettoyer les ports optiques au moment du test.
Testez plus rapidement avec moins d'erreurs : Le Wave ID d'AFL’augmente la vitesse des tests en effectuant des tests simultanés sur plusieurs longueurs d'onde, ce qui réduit de moitié ou plus le temps de mesure des pertes. L'identification automatique des longueurs d'onde d'AFL’élimine les erreurs de configuration et simplifie la coordination entre les utilisateurs situés aux extrémités opposées de la fibre.
Voir la fiche technique pour la liste complète des modèles et des accessoires en option.
