The FlowScout OPM8 optical power meter represents the next generation of smart optical power meters.
250b59e9939b4ab7828c992e2055565b
AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. OPM8-00-2000 Revision AB 2024-09-28 Specifications are subject to change without notice. Test and Inspection FlowScout ® OPM8 Optical Power Meter 1 The FlowScout OPM8 optical power meter represents the next generation of smart optical power meters. Designed on the legacy of AFL/Noyes OPMs, the FlowScout OPM8 provides rapid loss testing with pass/fail results for use in enterprise LAN, data center, PON, and broadband networks. Intuitive operation: With a simple to use interface based on a color touchscreen, fiber technicians can quickly set-up, test, validate, and document installed fiber plant, as well as provide power measurements. The FlowScout OPM8 measures power levels and automatically evaluates them against user-set min/max limits. The large color touchscreen displays detected power levels with color-coded pass/fail indications. Wave ID for reduced test time and errors: When used with a Wave ID light source, such as the FlowScout OLS8, the power meter automatically synchronizes to source wavelengths, reducing test time and eliminating wavelength setting errors. The broadband power meter also automatically detects and reports the presence of 270 Hz, 330 Hz, 1 kHz, and 2 kHz fiber identifying tones. Full reporting capabilities: Measured power levels, pass/fail limits and status can be stored in internal memory for download via USB. Test results may be uploaded for subsequent analysis, editing, and reports generation with FlexReports PC software. Versatile and efficient: Rugged, ergonomic, and backed by an industry-best 5-year warranty, the hand-held FlowScout OPM8 is the most versatile power meter for fiber testing. A range of replaceable output adapters enables access for inspection and cleaning of optical ports and supports multiple connector styles. Equipped with rechargeable batteries and an AC charger, FlowScout OPM8 can operate while charging from AC. Features • Large color touchscreen with icon-driven user interface • Rapid pass/fail analysis based on user-set limits • Proprietary Wave ID functionality for accuracy and reduced test time • Rugged design backed by industry-best 5-year warranty • Internal test results storage • Reports generation using AFL’s FlexReporter ™ Test Results Manager Applications • Enterprise LAN and Data Center fiber networks • FTTH PON networks • High power broadband network testing • Multimode and single-mode fiber networks
AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. OPM8-00-2000 Revision AB 2024-09-28 Specifications are subject to change without notice. Test and Inspection FlowScout ® OPM8 Optical Power Meter 2 Field-replaceable output adapter Field-replaceable output adapters to support multiple connector styles. Large color display Large color touchscreen, visible in direct sunlight, displays a simple to use user interface. Rapid pass/fail analysis Measured power levels automatically evaluated against user-set min/max limits. Durable design for field use Rugged design backed by an industry-best 5-year warranty. Battery Operated Comprehensive Reporting Handheld USB Power Port / Software Upgrades Icon-driven Interface User-set Power and Loss Pass/Fail Limits Test Results Saved in OPM8 Internal Memory Test Results Transfer to FlexReports PC Software User-set File Naming Set Reference Instant Pass/Fail Analysis User Interface Highlights Product Highlights
AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. OPM8-00-2000 Revision AB 2024-09-28 Specifications are subject to change without notice. Test and Inspection FlowScout ® OPM8 Optical Power Meter 3 Specifications a,b Optical Model OPM8-H OPM8-L Calibrated Wavelengths 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1610, 1625, 1650 nm Detector Type Filtered InGaAs InGaAs Measurement Range +26 to -50 dBm +10 to -70 dBm Tone Detect Range +6 to -30 dBm +6 to -25 dBm for 850 nm +10 to -50 dBm +10 to -45 dBm for 850 nm Wavelength ID Range +6 to -30 dBm +6 to -25 dBm for 850 nm +10 to -50 dBm +10 to -45 dBm for 850 nm Measurement Accuracy ± 0.25 dB Display Resolution 0.01 dB/dBm Measurement Units dB, dBm Tone Detection Automatically detects 270 Hz, 330 Hz, 1 kHz, 2 kHz Wave ID Automatically detects and measures power & loss at one or more wavelengths using any AFL Wave ID source Stored References Stores separate reference for each calibration wavelength. Displays stored references Results Storage Stores > 1000 results in AFL .ATD (XML) format General Connector Adapters SC, FC, ST, LC, 2.5 mm Universal, 1.25 mm Universal Power 120/240 VAC input; 5VDC @ 2A output to USB-C Battery User replaceable Li-Pol; IEC 62133-2:2017 and UN38.3 certified Battery Operating Time (typical) c 16 hours continuous use Battery Recharge Time d 3 hours Operating Temperature -10 °C to +50 °C, 95% RH (non-condensing) Storage Temperature -30 °C to +60°C, 95% RH (non-condensing) IP Rating IP54 Shock & Vibration Withstands 1 m drop test on all 6 sides Data Interfaces USB-C and Bluetooth 5.1 (BLE and Bluetooth Classic) Data Storage Non-volatile memory for field-updateable software and results storage Display 3.5 in. color backlit LCD; capacitive touchscreen; 320 X 480 pixels Size (H x W x D) 14.0 x 8.0 x 3.3 cm (5.5 x 3.1 x 1.3 in) Weight ≤300 g (≤0.66 lb) Calibration N.I.S.T. traceable; ≥3 years between required re-calibration Warranty 5 years Notes: a. All specifications valid at 23°C ± 2°C unless otherwise specified. b. Accuracy measured at 25 ºC and -10 dBm per N.I.S.T. standards. c. Operating conditions: Display backlight at minimal brightness, Bluetooth off. d. Charging time data is provided for USB-C 2A charger.
AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. OPM8-00-2000 Revision AB 2024-09-28 Specifications are subject to change without notice. Test and Inspection FlowScout ® OPM8 Optical Power Meter 4 Ordering Information FlowScout OPM8 is available in two models: • OPM8-L (low power range: +10 to -70 dBm) • OPM8-H (high power range: +26 to -50 dBm) All OPM8 models include protective rubber boot, 2.5 mm Universal adapter, rechargeable Li-Pol battery, carry case and data/power cord. Test jumpers and connector adapters are required for operation and must be purchased separately. AFL NO. Description OPM8-SP3-BAS FlowScout OPM8-L Basic Kit. Includes: FlowScout OPM8-L power meter, AC charger and power cable, user guide, FlexReports Basic software with 60-day Advanced software trial and soft carry case. OPM8-SP4-BAS FlowScout OPM8-H Basic Kit. Includes: FlowScout OPM8-H power meter, AC charger and power cable, user guide, FlexReports Basic software with 60-day Advanced software trial and soft carry case. OPM8-SP3-PLUS FlowScout OPM8-L Advanced Kit. Includes: FlowScout OPM8-L power meter, AC charger and power cable, user guide, FlexReports Advanced software and soft carry case. OPM8-SP4-PLUS FlowScout OPM8-H Advanced Kit. Includes: FlowScout OPM8-H power meter, AC charger and power cable, user guide, FlexReports Advanced software trial and soft carry case. Accessories AFL NO. Description 2900-63-0001MR 1.25 mm Universal adapter cap 2900-63-0002MR 2.5 mm Universal adapter cap 2900-63-0003MR SC adapter cap for FlowScout OPM8 2900-63-0004MR LC adapter cap for FlowScout OPM8 2900-63-0005MR ST adapter cap for FlowScout OPM8 2900-63-0006MR FC adapter cap for FlowScout OPM8 8800-02-0087MZ FlowScout OPM8 dust cap 3900-06-0005MR Battery pack, 3.7V,3.0 AH, LI-POL, 3 -wire
AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. OPM8-00-2000 Revision AB 2024-09-28 Specifications are subject to change without notice. Test and Inspection FlowScout ® OPM8 Optical Power Meter 5 Qualificati ons Category Regulation/ Standard Qualification CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking UKCA Marking UK Compliant to relevant UK Directives on health, safety, and environmental protection, and certified with the UKCA marking Safety/EMC/EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment FCC Compliant to code of federal regulations FCC 47 CFR 15 on unlicensed transmissions RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method TIA Compliant to TIA-568.3-E for test and measurement requirements for optical fiber cabling and components IEC Compliant to IEC 11801 for test and measurement requirements for optical fiber cabling for use within premises EN Compliant to EN 50173 for test and measurement requirements for optical fiber cabling for use within premises AS/NZS Compliant to AS/NZS 3080 for test and measurement requirements for optical fiber cabling for use within premises TIA Compliant to TIA-526-7 for test procedures for installed optical fiber cable plant TIA Compliant to TIA-526-14 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 14763-3 for systems and methods for the inspection and testing of installed optical fiber cabling AS/NZS Compliant to AS/NZS 14763.3 for systems and methods for the inspection and testing of installed optical fiber cabling IEC Compliant to IEC 61280-4-1 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 61280-4-2 for test procedures for installed optical fiber cable plant Generic Requirement IEC Compliant to IEC 61315 for requirements on calibration of fiber optic power meters Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about OPM8 optical power meters. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts . Recommended Products FlexScan® FS300 (quad) and FS200 (single-mode) OTDRs • SmartAuto ® 1-button automated testing for fast results • LinkMap ® color-coded icons for easy troubleshooting • FleXpress ® mode (FS200) completes OTDR test in <5 seconds! • Integrated Source, Power Meter and VFL FS200 FS300 FlowScout OLS8 Optical Light Source • Large color touchscreen display with intuitive user interface • 5-year product warranty • Integrated LED and laser light sources
Caractéristiques:
- Grand écran tactile couleur avec interface utilisateur basée sur des icônes
- Analyse rapide Pass/Fail basée sur des limites définies par l’utilisateur
- Fonctionnalité Wave ID propriétaire pour une précision optimale et un temps de test réduit
- Conception robuste, garantie 5 ans, la meilleure du secteur
- Stockage interne des résultats de test
- Génération de rapports avec le logiciel FlexReporter™ Test Results Manager d’AFL
Applications:
- Réseaux fibre dans les LAN d’entreprise et les centres de données
- Réseaux FTTH PON
- Tests de systèmes haut débit et DWDM à haute puissance
- Réseaux fibre multimode et monomode
Mesure de puissance précise, simple et rapide
Le mesureur de puissance optique FlowScout OPM8 représente la nouvelle génération de mesureurs de puissance optique intelligents. Conçu sur l’héritage des OPM AFL/Noyes, le FlowScout OPM8 permet des tests rapides de perte avec résultats Pass/Fail, pour une utilisation dans les réseaux LAN d’entreprise, les centres de données, les réseaux PON et les réseaux haut débit.
L’avantage concurrentiel
Utilisation intuitive: Grâce à une interface simple basée sur un écran tactile couleur, les techniciens fibre peuvent rapidement configurer, tester, valider et documenter l’infrastructure fibre installée, ainsi que fournir des mesures de puissance. Le FlowScout OPM8 mesure les niveaux de puissance et les évalue automatiquement par rapport aux limites minimales et maximales définies par l’utilisateur. Le grand écran tactile couleur affiche les niveaux de puissance détectés avec des indications Pass/Fail codées par couleur.

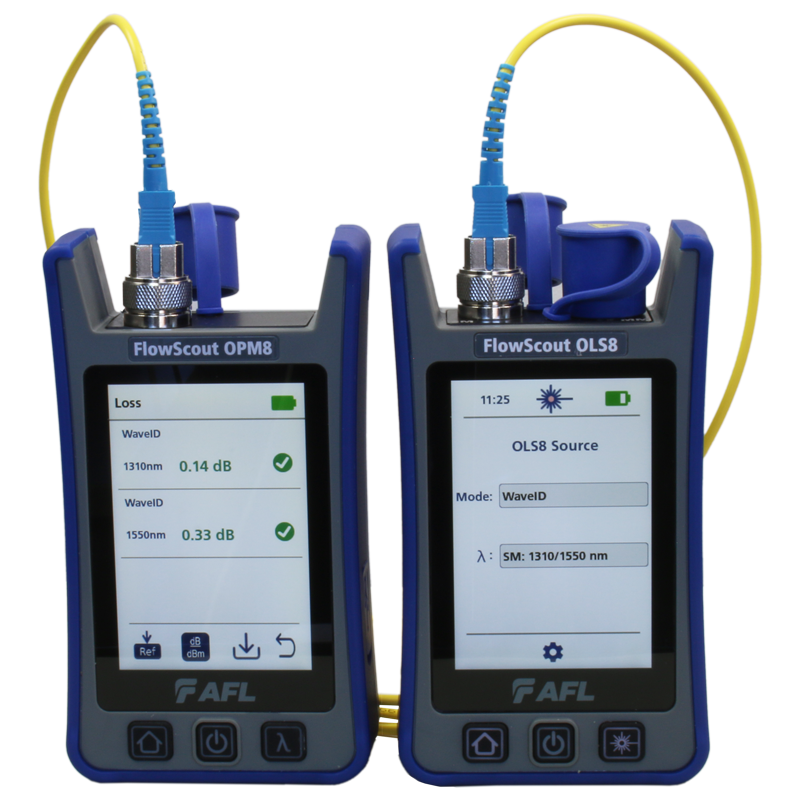

Wave ID pour réduire le temps de test et les erreurs: Utilisé avec une source lumineuse Wave ID, comme le FlowScout OLS8, le mesureur de puissance se synchronise automatiquement avec les longueurs d’onde de la source, réduisant le temps de test et éliminant les erreurs de réglage des longueurs d’onde. Le mesureur de puissance large bande détecte également automatiquement la présence de signaux d’identification de fibre à 270 Hz, 330 Hz, 1 kHz et 2 kHz et les signale.
Capacités complètes de reporting: Les niveaux de puissance mesurés, les limites Pass/Fail et le statut peuvent être stockés dans la mémoire interne pour téléchargement via USB. Les résultats de test peuvent être importés pour analyse, édition et génération de rapports avec le logiciel FlexReports pour PC.
Polyvalent et efficace: Robuste, ergonomique et garanti 5 ans, la meilleure de sa catégorie, le FlowScout OPM8 portable est le mesureur de puissance le plus polyvalent pour les tests de fibres. Une gamme d’adaptateurs de sortie remplaçables permet l’inspection et le nettoyage des ports optiques et prend en charge différents types de connecteurs. Équipé de batteries rechargeables et d’un chargeur secteur, le FlowScout OPM8 peut fonctionner pendant la charge sur AC.
Informations de commande
Le FlowScout OPM8 est disponible en deux modèles :
- OPM8-L (plage basse puissance : +10 à -75 dBm)
- OPM8-H (plage haute puissance : +26 à -50 dBm)
Prêt à en savoir plus ? Consultez la fiche technique ci-dessus ou visitez notre Buyers Guide pour obtenir des informations détaillées sur la commande.
