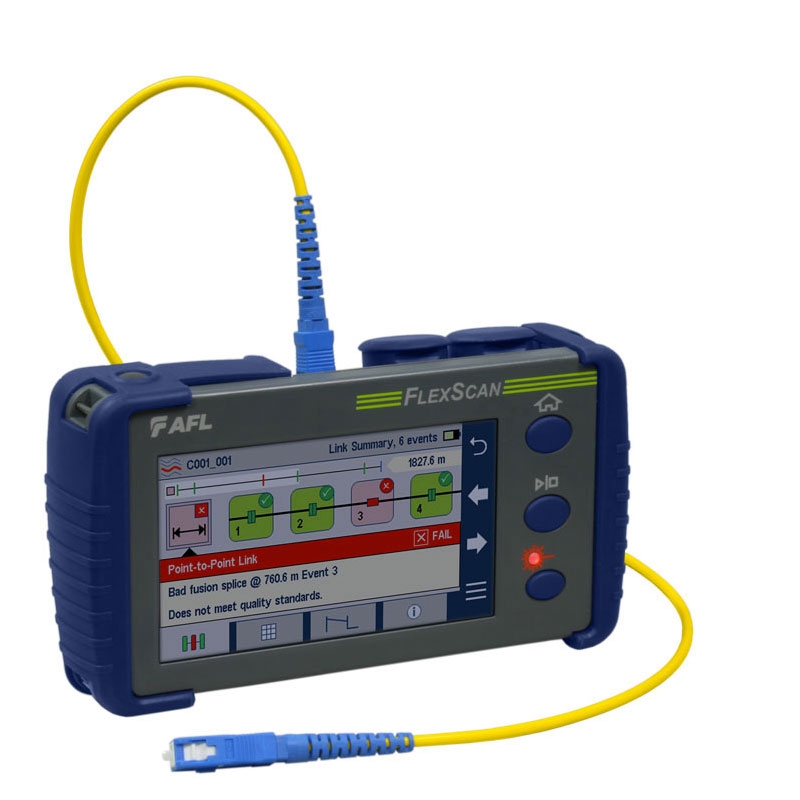

With SmartAuto® FS200 SM OTDR data acquisition, robust event analysis and LinkMap® display, AFL's FlexScan® OTDRs enable even novice technicians to quickly and reliably troubleshoot or completely characterize optical networks. Offering integrated source, power meter, VFL and wireless communications, pocket-sized FlexScans set a new standard for price, performance, portability and ease-of-use.
682eccd7cdf74ff28c01d1c74c342e31
AFLglobal.com 1 (800) 235-3423 © 2015-2026, AFL, all rights reserved. FS200-00-2000 Revision BB 2026-01-08 Specifications are subject to change without notice. Test and Inspection 1 FlexScan ® FS200 Single-mode OTDR AFL’s FlexScan FS200 OTDR is an all-in-one solution for detecting, identifying, locating, and resolving single-mode optical network issues. It is designed for both novice and expert technicians working in a range of environments, from FTTH PON to point-to-point networks. It applies industry-standard or user-set pass/fail criteria and displays results using LinkMap color-coded icons to show the health of the network. FlexScans automate test setup, shorten test time, and simplify results interpretation improving efficiency and reducing costs. All-in-one test capability: The FlexScan FS200 includes an integrated VFL, power meter, and light source. It can be easily paired to AFL’s award- winning FOCIS family of inspection scopes, ensuring technicians have everything they need to locate and quickly resolve optical network issues. FlexScan FS200 is also compatible with AFL's single-mode MPO-24 Switch, significantly reducing test time over MPO-8/12/16/24- or MTP ® -terminated fiber cables. Performance-packed : With SmartAuto multi-pulse acquisition, up to 39 dB dynamic range, and best-in-class as low as 18 m PON dead zone. FlexScan FS200 PON OTDRs test GPON and XGS-PON with up to 1:64 splitter ratio, while still detecting and measuring events only meters apart. Fast! FleXpress mode completes dual-wavelength tests in as low as 5 seconds – 10 x faster than conventional OTDR tests! For multi-fiber testing, FS200s automatically control AFL’s MPO-24 Optical Switch to further reduce multi-fiber test time. Pocket-sized: At 3.5 x 6 x 1.75 in. (86 x 160 x 43 mm) and less than one pound (0.4 kg), FlexScan FS200 OTDRs truly fit in your pocket, yet still provide a large, bright indoor/outdoor touchscreen display, and all-day operation. Multiple sharing and reporting options : Results can be stored internally, saved to a USB, and uploaded via USB cable, Bluetooth (via FlexApp) or Wi-Fi for real-time reporting using the included FlexReports Test Results Manager software. Reports can also be viewed on AFL's FlexApp. Convenient cost-saving kits : FlexScan FS200 bundles are available with options for launch cable, FOCIS Flex connector inspection probe and tips, MPO-24 Optical Switch, and/or AFL’s universal optical fiber identifier (OFI-BIPMe) for significant cost-savings! Optical Port Saver included: AFL's field-replaceable Optical Port Saver, helps to avoid expensive service repairs to replace connectors damaged due to poor cleaning practices and/or normal wear-and-tear. Features • FleXpress ® mode completes OTDR tests as low as 5 seconds • Test up to 1:64 PON with as low as 18 m PON dead zone • Easy to understand LinkMap ® results with pass/fail indications • Single, dual or triple wavelength single-mode • Single port for in- and out-of-service OTDR tests • Integrated source, power meter, VFL (visual fault locator) • Compatible with AFL's single-mode MPO-24 Switch • Rugged, lightweight, hand-held for field use • Includes field-replaceable Optical Port Saver Applications • PON or point-to-point network verification or troubleshooting • Fiber-to-the-antenna verification or troubleshooting • OTDR testing plus insertion loss and power measurements Pocket-sized, Performance-packed, User-friendly, and Affordable Flex Reporter ™ Software Suite Mobile App PC Software
AFLglobal.com 1 (800) 235-3423 © 2015-2026, AFL, all rights reserved. FS200-00-2000 Revision BB 2026-01-08 Specifications are subject to change without notice. Test and Inspection 2 FlexScan ® FS200 Single-mode OTDR Flex Reporter ™ Software Suite Mobile App PC Software Dramatically Reduces Test Time In SmartAuto mode, FlexScan OTDRs automatically analyze and test the network using a variety of network-optimized settings to precisely locate, characterize and identify network events with one button push. Loss and reflectance are measured for connectors, splices, splitters and macro-bends. FlexScan even checks for live fiber and verifies OTDR launch quality before initiating a test. FlexScan’s FleXpress mode completes dual-wavelength tests in seconds, reducing test time by 10x compared to conventional OTDRs. For multi-fiber testing, FlexScans automatically control AFL’s MPO Switch, testing up to 24 fibers at the touch of a button. Simplifies Network Troubleshooting LinkMap with pass/fail indications enable even novice users to easily and accurately troubleshoot optical networks. LinkMap presents an icon-based view of the tested network clearly identifying fiber start, end, connectors, splices, PON splitters, and macro-bends. A LinkMap summary provides end-to-end link length, loss and ORL. Loss and reflectance are displayed with clear pass/fail indications as well as recommended corrective actions for failures. Users can instantly toggle between LinkMap and Trace views. FlexScan FS200 also supports OTDR and Power Meter test setups to be created, saved, transferred to other FlexScans, and recalled in the field, simplifying testing and avoiding user setup errors. Jobs creation capabilities of the FS200s enable users to define OTDR and OPM test sequence and start automated tests with one button push. Connectivity FlexScan OTDRs easily pair with AFL's award-winning FOCIS ® family of connector inspection probes for fast, easy single-fiber and/or multi-fiber connector end-face inspection. FlexScan results can then be transferred via USB cable, Wi-Fi, or Bluetooth and the free FlexApp running on a mobile device for real-time reporting using the included FlexReports Test Results Manager PC-based software. This real-time monitoring can help avoid mistakes in the field that will require future truck rolls. OTDR, OLTS, and VFL Testing with a Single Tool FlexScan optionally includes a Wave ID optical light source (OLS) and optical power meter (OPM). With Wave ID, the OPM auto-synchronizes to a single or multi-wavelength Wave ID optical signal transmitted by an AFL light source. The OPM reports detected wavelengths and measures power and loss at each wavelength, saving significant test time and eliminating setup errors. The integrated VFL’s eye-safe red laser enables users to visually pinpoint the location of macro-bends and fiber breaks often found in splice closures and fiber cabinets.
AFLglobal.com 1 (800) 235-3423 © 2015-2026, AFL, all rights reserved. FS200-00-2000 Revision BB 2026-01-08 Specifications are subject to change without notice. Test and Inspection 3 FlexScan ® FS200 Single-mode OTDR FlexScan OTDRs are available with 1310/1550/1625, 1310/1550/1650, 1310/1550, and 1650 nm only wavelengths. Depending on the model, they are available with integrated optical light source (OLS), optical power meter (OPM), visual fault locator (VFL) and Bluetooth/Wi-Fi. Notes: a. All specifications valid at 23 °C unless otherwise specified. b. FDA 21 CFR 1040.10 & 1040.11, IEC 60825-1: 2014. c. Using 10 ns pulse width. d. SNR=1, longest range and pulse width, 3-minute averaging. e. Maximum distance between two points 1.5 dB down each side of a reflective peak caused by an event with reflectance ≤ -45 dB using 3 or 5 ns pulse. f. Maximum distance from the start of a trace spike caused by an event with a -55 dB (or smaller) reflectance, to the point where the trace returns to and stays within ±0.5 dB of backscatter. Test pulse width is 3 or 5 ns. g. Recovery to within 0.5 dB of backscatter after 1:16 splitter (≤13 dB loss) using 50 ns pulse width. h. Max temperature while charging is +45 °C . Model: FS200-xxx -60 -100 -300 -303 -304 OTDR Emitter Type Laser Safety Class (b) Class I Fiber Type Single-mode Wavelengths (nm) 1650 1310/ 1550 1310/ 1550 1310/ 1550/ 1625 1310/ 1550/ 1650 Center Tolerance (c) 1310/1550/1625/1650 ± 20 nm Dynamic Range (d) (dB) 38 39/37 40/38 39/37/39 39/37/38 Event Dead Zone (e) (m) 0.7 0.7 0.7 0.7 0.7 Atten. Dead Zone (f) (m) 2.3 2.3 2.3 2.3 2.3 PON Dead Zone (g) (m) 40 18/18 18/18 18/18/25 22/22/40 Max Split Ratio 1:64 Pulse Widths 3, 5, 10, 20, 30, 50, 100, 200, 300, 500 ns ; 1, 2, 3, 10 μs; 20 μs Range Settings 250 m to 240 km Data Points Up to 300,000 (Expert mode .SOR file) Data Spacing 5 cm to 16 m Index of Refraction 1.3000 to 1.7000 Distance Uncertainty ±(1 + 0.003% x distance + data point spacing) m Linearity ( dB/dB) ±0.05 Trace File Format Telcordia SR-4731 Issue 2 compatible .SOR Trace Storage Medium 4 GB internal memory (> 5000 traces typical); External USB memory stick Data Transfer to PC USB cable or Bluetooth ® (option) OTDR Modes SmartAuto, Expert, Real-time FleXpress Fast Test FS200-100/300/303/304 only Display Modes LinkMap Summary, LinkMap Events, Trace Refresh Rate Up to 4 Hz (Real-time mode) Live Fiber Protection No OTDR damage with input power ≤ +20 dBm for wavelength(s) in range 1260 to 1675 nm Live Fiber Detection Reports live fiber with input signal ≥ -35 dBm for wavelength(s) in range 1260 to 1675 nm PON Filter Isolation >50 dB for 1260 nm ≤ wavelength ≤1600 nm Live PON OTDR Test 1625 or 1650 nm using filtered detector when interfering downstream power in range 1600-1675 nm <-38 dBm Specifications (a) Model: FS200-xxx -60 -100 -300 -303 -304 Visual Fault Locator (VFL) Emitter Type Visible red laser, 650 ±20 nm Safety Class (b) Class II Output Power 0.8 mW into single-mode fiber (-1 dBm ±0.5 dB) Modes CW, 2 Hz flashing Optical Laser Source - OLS (Optional) Emitter Type Laser Safety Class (b) Class I Fiber Type Single-mode Wavelengths (nm) N/A 1310/ 1550 1310/ 1550 1310/ 1550 1310/ 1550 Center Tolerance ±20 nm (CW mode) Spectral Width ( FWHM ) 5 nm (maximum) Internal Modulation 270 Hz, 330 Hz, 1 kHz, 2 kHz, CW, Wave ID Wave ID Compatible with AFL OPM/OLS Output Power Stability ≤ ±0.1 dB (15 minutes); ≤ ±0.15 dB (8 hours) Output Power -3 dBm ±1.5 dB Optical Power Meter -OPM (Optional) Calibrated Wavelengths 1270, 1310, 1490, 1550, 1577, 1625, 1650 nm Detector Type InGaAs, 1 mm diameter Measurement Range +23 to -50 dBm Tone Detect Range +3 to -35 dBm; 270 Hz, 330 Hz, 1KHz, 2 KHz Accuracy ±0.25 dB Resolution 0.01 dB Measurement Units dB, dBm or Watts (nW, μW, mW) General Size (in boot) 86 x 160 x 43 mm Weight 0.4 kg Operational Temperature (h) -10 °C to +50 °C, 0 to 95 % RH (non-condensing) Storage Temperature -40 °C to +70 °C, 0 to 95 % RH (non-condensing) Power Rechargeable Li-Pol or AC adapter Battery Life >12 hours, Telcordia test conditions Display 4.3 in color touchscreen LCD, 480x272, backlit USB Ports 1 host; 1 micro-USB function Bluetooth (optional) Compatible with Windows PC, Android, iOS Wi-Fi Download results & update software via IEEE 802.11 Wi-Fi
AFLglobal.com 1 (800) 235-3423 © 2015-2026, AFL, all rights reserved. FS200-00-2000 Revision BB 2026-01-08 Specifications are subject to change without notice. Test and Inspection 4 FlexScan ® FS200 Single-mode OTDR Ordering Information Kits include FS200 with Optical Port Saver, AC charger, battery, carry strap, SC/2.5 mm connector adapters, FlexReports, USB cable, and carry case. FS200-XXX-Basic, Plus, PRO, BIPM Kits Order Entry: FS200-[MOD]-[KIT]-[PW]-[C]-[CC]-[LNG]-[AC]-[FR]-[TIP] FS200-300-MPO Kit Order Entry: FS200-300-MPO24-P1-W1-[C]-[LNG]-[AC]-[FRM]-[MC2] FS200-303/304-FTTH PRO Kits Order Entry: FS200-[MOD]-FTTH-PRO-[CC]-[LNG]-[AC] where: [MOD] FS200 FlexScan OTDR Configuration 60 1650 filtered Live PON Troubleshooting OTDR 100 1310/1550 Pt-to-Pt & PON Verification and Troubleshooting OTDR 300 1310/1550 Pt-to-Pt & PON Verification and Troubleshooting OTDR 303 1310/1550/1625 Pt-to-Pt and PON Verification and Troubleshooting OTDR 304 1310/1550/1650 Pt-to-Pt and PON Verification and Troubleshooting OTDR [KIT] FS200 FlexScan Kit Configuration / Kit Contents BAS (a) Includes: FS200, FlexReports Basic, USB cable , soft case PLUS Includes: BAS Kit plus 150 m SMF Fiber Ring, One-Click Cleaner, upgrade to FlexReports Advanced, soft or hard carry case PRO Includes: PLUS Kit plus FOCIS Flex with two user-selected adapter tips FTTH- PRO Includes: BAS Kit, 150 m SC/APC & LC/APC Fiber Rings, FOCIS Flex, SC/APC & LC/APC bulkhead and ferrule adapters, SC & LC One-Click Cleaners, Port Saver, FlexReports Advanced, soft or hard carry case (FS200-303/304 only) BIPM Includes: PRO Kit plus OFI-BIPMe MPO24 Includes: FS200, MPO-24 Switch, MPO launch cable, OTDR to-Switch launch cable, OTDR-to-Switch USB cable, FlexReports Advanced [PW] Power Meter / Wireless Option P0-W0 No Source, Power Meter, or Bluetooth/WiFi (FS200-60/100 only) P0-W1 (b) No Source or Power Meter; Includes Bluetooth/WiFi (FS200-300/304 only) P1-W0 No Bluetooth/WiFi (-303/304 only); Includes Source, Power Meter P1-W1 (b) Includes Source (not included in FS200-60), Power Meter, Bluetooth/Wi-Fi [C] OTDR / Source Connector Type A APC (recommended) U UPC (via installed APC to UPC Port Saver) [CC] (c) Carry Case Option (PLUS, PRO, FTTH-PRO, BIPM Kits) S1 Large soft case for FS200, fiber ring, FOCIS Flex, OFI-BIPMe, accessories S2 Medium soft case for FS200, fiber ring, FOCIS Flex, accessories H1 Hard carry case for FS200, fiber ring, FOCIS Flex, OFI-BIPMe, accessories [LNG] Language ENG English CHS Chinese Simplified CHT Chinese Traditional CZE Czech DEU German DNK Danish FIN Finnish FRA French ITA Italian [LNG] Language JPN Japanese KOR Korean NOR Norwegian POL Polish POR Portuguese SPA Spanish TUR Turkish VNM Vietnamese [AC] Destination Country AC Plugs US USA 2-pin, US EU European Union 2-pin, EU UK United Kingdom 3-pin, UK CN China, Australia 2-pin, SAA [FR] 150 m SMF Fiber Ring Absent N/A in Basic Kits USC/USC FR-SMF-150-USC-USC USC/UFC FR-SMF-150-USC-UFC USC/ULC FR-SMF-150-USC-ULC USC/UST FR-SMF-150-USC-UST ASC/USC FR-SMF-150-ASC-USC [FR] 150 m SMF Fiber Ring ASC/UFC FR-SMF-150-ASC-UFC ASC/ULC FR-SMF-150-ASC-ULC ASC/UST FR-SMF-150-ASC-UST ASC/ASC FR-SMF-150-ASC-ASC ASC/ALC FR-SMF-150-ASC-ALC [TIP] FOCIS Flex Tips and Cleaning (PRO only) Blank Option not available in Basic & PLUS Kits SC SC-UPC bulkhead tip, 2.5 mm UPC ferrule tip, 2.5 mm cleaning FC FC-UPC bulkhead tip, 2.5 mm UPC ferrule tip, 2.5 mm cleaning LC LC-UPC bulkhead tip, 1.25 mm UPC ferrule tip, 1.25 mm cleaning ASC SC-APC bulkhead tip, 2.5 mm APC ferrule tip, 2.5 mm cleaning AFC FC-APC bulkhead tip, 2.5 mm APC ferrule tip, 2.5 mm cleaning ALC LC-APC bulkhead tip, 1.25 mm APC ferrule tip, 1.25 mm cleaning [FRM] Single Mode MPO24 Fiber Ring Type FRM2 MPO-24 to MPO-24 Terminated Fiber Ring FRM6 MPO-24 to MPO-12 Terminated Fiber Ring [MC2] MPO24 Ring Pin Type - Switch to Network AF Female (unpinned) to Female (unpinned) AM Female (unpinned) to Male (pinned) Notes: a. Results can be transferred from FlexScan OTDR to FlexReports using USB cable, or performed wirelessly (W1 option) after downloading free FlexApp. The FlexApp is available as a free download from 'Google play' or 'App Store'. b. FlexScans equipped with Bluetooth option (W1) support Bluetooth transfer of results via FlexApp for remote reporting using FlexReports. c. Basic Kit always ships with S2 (Medium Soft Case); MPO Kit always ships with MPO- specific soft case.
AFLglobal.com 1 (800) 235-3423 © 2015-2026, AFL, all rights reserved. FS200-00-2000 Revision BB 2026-01-08 Specifications are subject to change without notice. Test and Inspection 5 FlexScan ® FS200 Single-mode OTDR Ordering Information Accessories AFL NO. Description 1400-05-0230PZ FlexScan wrist strap 1400-05-0231PZ FlexScan neck strap, 36” 4050-00-0931PR AC charger 100-240 VAC to 5 VDC 1400-01-0111PZ Soft carry case for FS200 kits with FOCIS Flex and Fiber Ring 1400-01-0128PZ Soft carry case for FS200 kits with FOCIS Flex, OFI-BIPMe and Fiber Ring 1400-01-0134PZ Hard carry case for FS200 kits with FOCIS Flex, OFI-BIPMe and Fiber Ring 400-01-0182PZ Soft carry case for FS200 MPO Kit 1400-21-0004PZ Glove case with neck strap and carabiner 4050-00-0033MR Vehicle charger, 12VDC to 5VDC @2A 6000-00-0031MR Cable, USB-micro B, 5 pin, 6' 6000-00-0034PR 5V USB charging cable (1.5 m), type A to barrel (0.9 X 3.2 X 9 mm) Cleaning Supplies One-Clicks, fluid, wipes, etc. See www.AFLglobal.com Field-Replaceable OTDR Connector (Optical Ferrule Port Saver) Protect your OTDR ports from damage due to mating with dirty or damaged launch cables or patch cords or normal wear-and-tear. Equip your FlexScan FS200 with a field-replaceable connector, which installs in seconds and accepts AFL’s tool-free interchangeable SC, LC, FC and ST connector adapters. Replace damaged connectors in the field: When normal wear-and-tear or poor cleaning practices damage the port saver’s end-face, replace it in seconds without having to return the OTDR to a service center for an expensive and time-consuming repair. AFL NO. Description 2900-58-0001MR FlexScan-facing APC female to APC male field-replaceable Port Saver connector 2900-58-0002MR FlexScan-facing APC female to UPC male field-replaceable Port Saver connector 2900-58-0003MR FlexScan-facing UPC female to APC male field-replaceable Port Saver connector 2900-58-0004MR FlexScan-facing UPC female to UPC male field-replaceable Port Saver connector Connector Adapters AFL NO. Connector Adapter OTDR/OLS Port OPM Port VFL Port 2900-50-0002MR 2900-52-0001MR N/A FC 2900-50-0003MR 2900-52-0002MR N/A SC 2900-50-0004MR 2900-52-0003MR N/A ST 2900-50-0006MR 2900-52-0004MR N/A LC 2900-50-0011MR 2900-52-0002MR N/A SC/APC N/A 2900-52-0005MR 2900-50-0007MR 2.5 mm Universal N/A 2900-52-0006MR 2900-50-0010MR 1.25 mm Universal
AFLglobal.com 1 (800) 235-3423 © 2015-2026, AFL, all rights reserved. FS200-00-2000 Revision BB 2026-01-08 Specifications are subject to change without notice. Test and Inspection 6 FlexScan ® FS200 Single-mode OTDR Qualificati ons Category Regulation/Standard Qualification CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking Safety/EMC/EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment Telcordia Compliant to GR-196-CORE 4.5.1 for requirements on electromagnetic interference FCC Bluetooth/Wi-Fi compliant to FCC 47 CFR Part 15C, Part 15.247 subpart C, and FCC Rule Part 1.1.307 (b)(3)(i)(a) SAR FDA Compliant to code of federal regulations FDA 21 CFR 1040.10 and 1040.11 on laser products IEC Compliant to IEC 60825-1 for safety of laser products RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method TIA Compliant to TIA-568.3-D for test and measurement requirements for premises optical fiber cabling and components IEC Compliant to IEC 11801 for test and measurement requirements for optical fiber cabling for use within premises AS/NZS Compliant to AS/NZS 3080 for test and measurement requirements for optical fiber cabling for use within premises TIA Compliant to TIA-526-7 for test procedures for installed optical fiber cable plant TIA Compliant to TIA-526-14 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 14763-3 for systems and methods for the inspection and testing of installed optical fiber cabling AS/NZS Compliant to AS/NZS 14763.3 for systems and methods for the inspection and testing of installed optical fiber cabling IEC Compliant to IEC 61280-4-1 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 61280-4-2 for test procedures for installed optical fiber cable plant Generic Requirement Telcordia Compliant to GR-196-CORE for generic requirements for OTDR-type equipment Telcordia Compliant to SR-4731 Issue 2 for OTDR data format IEC Compliant to IEC 61746-1 for requirements on calibration of OTDR Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about FlexScan FS200 OTDR. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts Recommended Products FOCIS Flex & FOCIS Lightning2 (Multi-Fiber) Inspection • Self-contained, tether-free, hand-held inspection solution • Auto-focus and auto-centering for fast, easy inspection • IEC, IPC and user-defined pass/fail analysis • FOCIS Lightning2: extremely fast multi-fiber auto-analysis for datacom and telecom inspection applications OFI-BIPMe Optical Fiber Identifier • Works on all fiber types including BIF • Trigger lock, positive stop for optimum detection • Integrated optical power meter Test Management and Reporting Software AFL NO. Description RPTS-AD-USB-1 FlexReports Advanced, one seat license on USB RPTS-UP-TRM3-1 FLexReports Advanced, one seat, Upgrade from TRM ® 3 Advanced on USB. Users must have TRM-3 Advanced license FlexReports Basic FlexReports Basic, available for download on AFL Software Resources website FlexApp FlexApp data transfer mobile App, available on Google Play and Apple App Store
Features:
-
Le mode FleXpress® réalise les tests OTDR en seulement 5 secondes.
-
Test PON jusqu’à 1:64 avec une zone morte PON de seulement 18 m.
-
Résultats LinkMap® faciles à comprendre, avec indications de réussite/échec.
-
Monomode à longueur d’onde simple, double ou triple.
-
Port unique pour tests OTDR en service et hors service.
-
Source, power meter et VFL (localisateur visuel de défauts) intégrés.
-
Compatible avec le Switch MPO-24 monomode d’AFL.
-
Robuste, léger et portable, conçu pour une utilisation sur le terrain.
-
Comprend Optical Port Saver remplaçable sur le terrain.
Applications:
-
Vérification ou dépannage de réseaux PON ou point à point.
-
Vérification ou dépannage de Fiber-to-the-Antenna (FTTA).
-
Tests OTDR, ainsi que mesures de perte d’insertion et de puissance.
Tests complets de fibre monomode dans un seul appareil puissant
L’OTDR FlexScan FS200 d’AFL est une solution tout-en-un pour détecter, identifier, localiser et résoudre les problèmes des réseaux optiques monomode. Il est conçu pour les techniciens débutants comme expérimentés, travaillant dans différents environnements, du FTTH PON aux réseaux point à point. Il applique des critères de réussite/échec selon les standards du secteur ou définis par l’utilisateur et affiche les résultats à l’aide d’icônes codées par couleur dans LinkMap, reflétant l’état du réseau. Les FlexScan automatisent la configuration des tests, réduisent le temps de test et simplifient l’interprétation des résultats, améliorant l’efficacité et réduisant les coûts.
Avantage compétitif
Capacité de test tout-en-un: Le FlexScan FS200 inclut une source lumineuse, un power meter et un VFL intégrés. Il peut être facilement associé à la famille de microscopes d’inspection primée FOCIS d’AFL, garantissant que les techniciens disposent de tout le nécessaire pour localiser et résoudre rapidement les problèmes de réseau optique. Le FlexScan FS200 est également compatible avec le Switch MPO-24 monomode d’AFL, réduisant significativement le temps de test sur les câbles à terminaisons MPO-8/12/16/24 ou MTP®.
Performance élevée: Avec acquisition multi-pulses SmartAuto, jusqu’à 39 dB de plage dynamique et une zone morte PON de seulement 18 m, meilleure de sa catégorie. Les OTDR PON FlexScan FS200 testent le GPON et le XGS-PON avec un ratio de splitter allant jusqu’à 1:64, tout en détectant et mesurant des événements séparés de quelques mètres seulement.
Rapide!: Le mode FleXpress complète les tests double-longueur d’onde en seulement 5 secondes, soit 10 fois plus vite que les tests OTDR conventionnels ! Pour les tests multi-fibres, les FS200 contrôlent automatiquement le Switch Optique MPO-24 d’AFL pour réduire encore le temps de test.
Format de poche: Avec des dimensions de 86 x 160 x 43 mm et un poids inférieur à 0,4 kg, les OTDR FlexScan FS200 tiennent facilement dans la poche, tout en offrant un grand écran tactile lumineux pour intérieur/extérieur et une autonomie pour toute la journée.
Options multiples de partage et de rapport: Les résultats peuvent être stockés en interne, sauvegardés sur USB et transférés via câble USB, Bluetooth (via FlexApp) ou Wi-Fi pour un reporting en temps réel avec le logiciel inclus FlexReports Test Results Manager. Les rapports peuvent également être consultés via la FlexApp d’AFL.
Kits pratiques permettant des économies: Les bundles FlexScan FS200 sont disponibles avec options de câble de lancement, sonde et embouts d’inspection FOCIS Flex, Switch Optique MPO-24 et/ou identificateur universel de fibre optique OFI-BIPMe d’AFL, permettant des économies importantes.
Optical Port Saver inclus: Le Port Saver remplaçable sur le terrain aide à éviter des réparations coûteuses dues à des connecteurs endommagés par de mauvaises pratiques de nettoyage ou par l’usure normale.
Choisissez votre configuration
Les OTDR monomode FlexScan FS200 sont disponibles dans une variété de kits et de configurations selon vos besoins de test. Pour les détails spécifiques des kits et les informations de commande, consultez la fiche technique ou notre Guide des acheteurs actuel.
