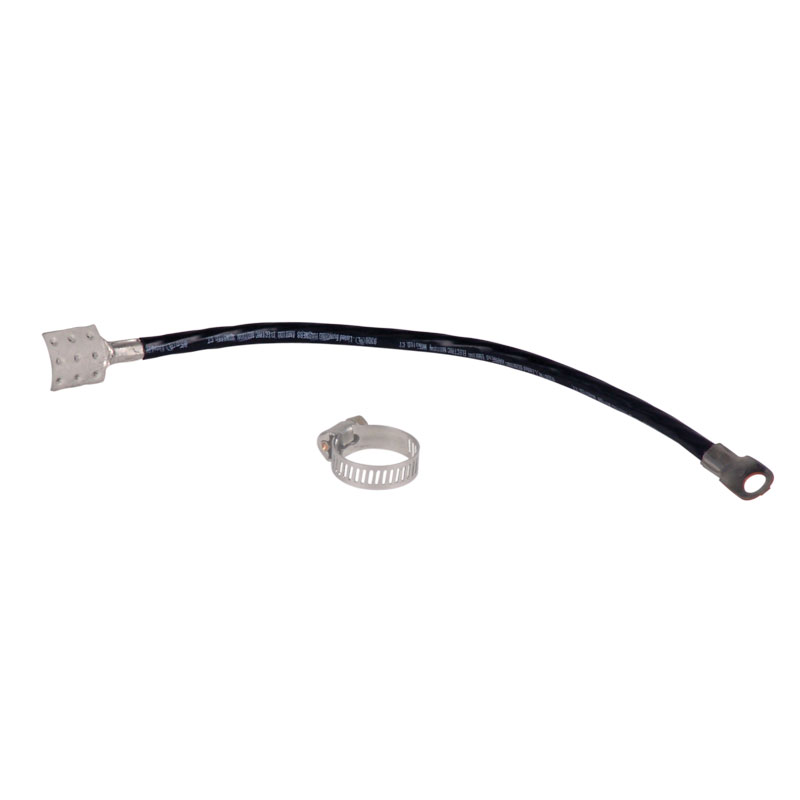

The grounding harness is used with the LG-150, LG-250, and LG-350.
76979b2fe8e44f43ab65102ef0f3bebc
© 2009, AFL, all rights reserved. PP-2-00120, Revision 5, 7.17.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Optical Connectivity continued LightGuard ® Sealed Splice Closure Accessories Ordering Information DESCRIPTION AFL NO. Dual Express Grommets for LG-350XL FC000688 Dual Express Grommets for LG-350XL Used on the express side of the LG-350XL closure for installing additional branches. Use the drop ports for the express cable while the express ports may be used to introduce small branch cables. Minimum cable diameter is 0.380" - 0.560". Ordering Information DESCRIPTION AFL NO. Dual Express Grommets for LG-350 FC000337 Quad Express Grommets for LG-350 FC000421 Dual and Quad Express Grommets for LG-350 Used on the express side of the LG-350 closure for installing additional branches. Use the drop ports for the express cable while the express ports may be used to introduce small branch cables. A 4-drop flat grommet may be used if drops are also required. Cable diameter for dual grommets is 0.26" - 0.44"; for quad, 0.24" - 0.382". Dual Express Grommets Quad Express Grommets Ordering Information DESCRIPTION AFL NO. 4-Port Flat Drop Grommet Kit for LG-350/LG-350-AC FC000422 4-Port Flat Drop Grommet Kit for LG-350/LG-350-AC Used with the LG-350 and LG-350-AC Sealed Closures. Allows for quick addition of drop cables as required. Simply replace the drop port grommets with this grommet kit and install standard flat drop cable or round cable up to 0.25" in diameter. Ordering Information DESCRIPTION AFL NO. Single Cable Grommet Kit for the LG-150/LG-250 FC000704 3-Port Flat Drop Grommet Kit for the LG-150/LG-250 FC000655 Single Cable and 3-Port Flat Drop Grommet Kit for LG-150/LG-250 Used with the LG-150 and LG-250 Sealed Closures. Allows for quick addition of drop cables as required. Simply replace the drop port grommets with this grommet kit. Both closures will accept standard flat drop cable or round cable up to 0.250" in diameter.
© 2009, AFL, all rights reserved. PP-2-00120, Revision 5, 7.17.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Optical Connectivity Optical Connectivity continued LightGuard ® Sealed Splice Closure Accessories (cont.) Ordering Information DESCRIPTION AFL NO. OPGW Cable Bracket for the LG-150/LG-250/LG-350 for 2 cables. FC000683 OPGW Cable Bracket Kit for use when installing Sealed Closures (LG-150/LG-250) to 4 OPGW Cables. FC000746 OPGW Cable Bracket Kit for use when installing Sealed Closures (LG-350) to 4 OPGW Cables. FC000747 OPGW Cable Bracket for LG-150/LG-250/LG-350 Attaches to the outer grounding studs of the LG-150/LG-250 or LG-350 Sealed Closures. Stainless steel hose clamps secure the OPGW cable to the bracket preventing twisting or movement. Ordering Information DESCRIPTION AFL NO. Pole/Wall Mount Bracket for LG-150/LG-250/LG-350/LG-350-AC FC000592 Pole/Wall Mount Bracket for LG-150/LG-250/LG-350 Used with the LG-150, LG-250, LG-350 and LG-350-AC to secure the closures onto poles or walls in a vertical orientation. Slots on the brackets allow for strapping onto steel or cement poles. Ordering Information DESCRIPTION AFL NO. Single Cable Grommet Kit, Drop Port for LG-350-AC FC000628 Express Single Cable Grommet Kit for LG-350 FC000726 Drop Single Cable Grommet Kit for LG-350 FC000727 Single Cable Grommet Kits for LG-350-AC and LG-350 Used with the LG-350-AC when a branch cable is required with the drop cables. May also be used for with the LG-350 as replacement grommets. Simply remove the flat drop grommet and replace with the single cable grommets. Ordering Information DESCRIPTION AFL NO. Universal Aerial Bracket for LG-150/LG-250/LG-350/LG-350-AC FC000006 Extended Offset Bracket FC000208 Universal Aerial Bracket and Extended Offset Bracket Used with the LG-150, LG-250, LG-350 and LG-350-AC for mounting on aerial or messengers.
© 2009, AFL, all rights reserved. PP-2-00120, Revision 5, 7.17.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 3 Optical Connectivity Optical Connectivity LightGuard ® Sealed Splice Closure Accessories (cont.) Ordering Information DESCRIPTION AFL NO. Cable Grounding Kit – Includes harness and hose clamp. One kit needed per cable entry. For use with LG-150/250/350. FC000003 Cable Grounding Harness Kit – Includes (4) 8" ground harnesses constructed of #6 AWG conductor FC000024 Cable Grounding Kit (pack of 5) – Includes harness and hose clamp. For use with LG-150/250/350. FC000040 Cable Ground Kits Used with the LG-150, LG-250 and LG-350. Ordering Information DESCRIPTION AFL NO. O-Ring Replacement Kit – For use with LG-150/250 FC000004 O-Ring Replacement Kit – For use with LG-300XL FC000016 O-Ring Replacement Kit – For use with LG-350. 912231-00-00 O-Ring Replacement Kits Used with the LG-150, LG-250, LG-350 and LG-350XL. Ordering Information DESCRIPTION AFL NO. Strand Mount Hanger Bracket – For use with LG-350XL 912215-00-00 Strand Mount Hanger Bracket for LG-350XL Used with the LG-350XL. Ordering Information DESCRIPTION AFL NO. 1X6 Cable Router Kit FC000070 1x6 Cable Router Kit Used with the LG-150, LG-250, LG-350 and LG-350-AC. Enlarged to show detail
