The 5000HT Series Jumper Connector is specifically designed for ACSS/TW conductors. The HiTemp Jumper Connector is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently.
1d9d61752401476db24988c745894d24

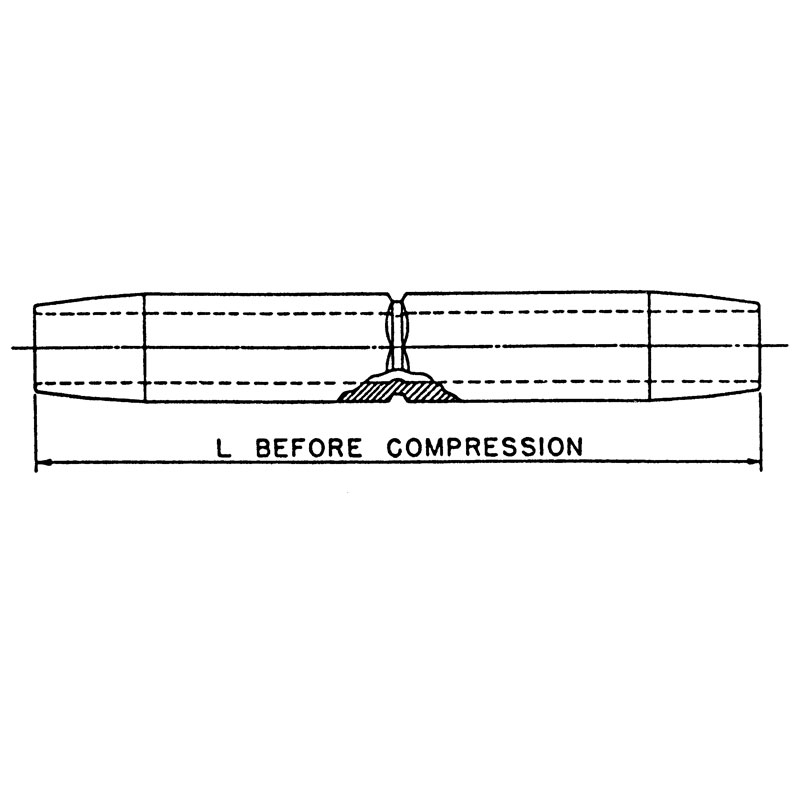

www.AFLglobal.com or 800-866-7385 HiTemp ® © 2003, AFL, all rights reserved. PP-3-00748, Revision 3, 9.13.16 Specifications are subject to change without notice. 319 ACSS/TW ACCESSORIES The 5000HT Series Jumper Connector is specifically designed for ACSS and ACSS/TW conductors The HiTemp Jumper Connector is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently All HiTemp Jumper Connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor For die sizes 30AH and above, end tapers of the compression portions of all compression accessories are supplied with a high voltage finish Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Example: For 954 Cardinal ACSS/TW Conductor, the complete catalog number is: 5030.125HT HiTemp Jumper Connector for ACSS/TW Conductor, 5000HT Series CATALOG NUMBER CONDUCTOR DIE SIZE WEIGHT TOTAL LENGTH L CODE NAME SIZE TYPE STRANDING DIAMETER KCMIL AL/ST IN LBS KG IN MM 5020 781HT Oriole/ACSS/TW 336 4 23 18/7 0 693 20AH 1 0 0 5 17 0 431 5024 938HT Flicker/ACSS/TW 477 0 13 18/7 0 776 24AH 2 0 0 9 19 0 482 5024 938HT Hawk/ACSS/TW 477 0 16 18/7 0 789 24AH 2 0 0 9 19 0 482 5024 938HT Hen/ACSS/TW 477 0 23 18/7 0 825 24AH 2 0 0 9 19 0 482 5024 969HT Parakeet/ACSS/TW 556 5 13 18/7 0 835 24AH 1 9 0 9 19 0 482 5024 969HT Dove/ACSS/TW 556 5 16 20/7 0 852 24AH 1 9 0 9 19 0 482 5024 969HT Calumet/ACSS/TW 565 3 16 18/7 0 858 24AH 1 9 0 9 19 0 482 5024 969HT Mohawk/ACSS/TW 571 7 13 18/7 0 846 24AH 1 9 0 9 19 0 482 5027 106HT Rook/ACSS/TW 636 0 13 19/7 0 890 27AH 2 6 1 2 20 0 508 5027 106HT Grosbeak/ACSS/TW 636 0 16 20/7 0 908 27AH 2 6 1 2 20 0 508 5027 106HT Scoter/ACSS/TW 636 0 23 18/7 0 953 27AH 2 6 1 2 20 0 508 5027 106HT Oswego/ACSS/TW 664 8 16 20/7 0 927 27AH 2 6 1 2 20 0 508 5027 106HT Mystic/ACSS/TW 666 6 13 20/7 0 913 27AH 2 6 1 2 20 0 508 5030 116HT Wabash/ACSS/TW 762 8 16 20/7 0 990 30AH 3 4 1 6 21 0 533 5030 116HT Maumee/ACSS/TW 768 2 13 20/7 0 977 30AH 3 4 1 6 21 0 533 5030 116HT Tern/ACSS/TW 795 0 7 17/7 0 960 30AH 3 4 1 6 21 0 533 5030 116HT Puffin/ACSS/TW 795 0 10 18/7 0 980 30AH 3 4 1 6 21 0 533 5030 116HT Condor/ACSS/TW 795 0 13 20/7 0 993 30AH 3 4 1 6 21 0 533 5030 122HT Drake/ACSS/TW 795 0 16 20/7 1 010 30AH 3 4 1 6 21 0 533 5030 122HT Canary/ACSS/TW 900 0 13 30/7 1 055 30AH 3 2 1 5 21 0 533 5030 122HT Fraser/ACSS/TW 946 7 10 35/7 1 077 30AH 3 2 1 5 21 0 533 5030 122HT Phoenix/ACSS/TW 954 0 5 30/7 1 044 30AH 3 2 1 5 21 0 533 5030 122HT Rail/ACSS/TW 954 0 7 32/7 1 061 30AH 3 2 1 5 21 0 533 5030 125HT Cardinal/ACSS/TW 954 0 13 20/7 1 084 30AH 3 0 1 4 21 0 533 5030 122HT Kettle/ACSS/TW 957 2 7 32/7 1 060 30AH 3 2 1 5 21 0 533 Notes: 1 HiTemp AFL Filler Compound (AFCHT) Requirements are on page 340 2 Installation Instructions for Jumper Connectors are on page 350 3 For more information on die selction and ordering instructions, see the Tools and Equipment section of this catalog
www.AFLglobal.com or 800-866-7385 HiTemp ® © 2003, AFL, all rights reserved. PP-3-00748, Revision 3, 9.13.16 Specifications are subject to change without notice. 320 ACSS/TW ACCESSORIES HiTemp Jumper Connector for ACSS/TW Conductor, 5000HT Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE WEIGHT TOTAL LENGTH L CODE NAME SIZE TYPE STRANDING DIAMETER KCMIL AL/ST IN LBS KG IN MM 5030 122HT Suwannee/ACSS/TW 959 6 16 22/7 1 108 30AH 3 2 1 5 21 0 533 5030 122HT Columbia/ACSS/TW 966 2 13 21/7 1 092 30AH 3 2 1 5 21 0 533 5034 128HT Snowbird/ACSS/TW 1033 5 5 30/7 1 089 34AH 4 7 2 1 22 0 558 5034 128HT Ortolan/ACSS/TW 1033 5 7 32/7 1 102 34AH 4 7 2 1 22 0 558 5034 134HT Curlew/ACSS/TW 1033 5 13 22/7 1 128 34AH 4 3 2 0 22 0 558 5034 128HT — 1080 0 7 20/7 1 131 34AH 4 7 2 1 22 0 558 5034 128HT Avocet/ACSS/TW 1113 0 5 30/7 1 129 34AH 4 7 2 1 22 0 558 5034 134HT Bluejay/ACSS/TW 1113 0 7 33/7 1 143 34AH 4 3 2 0 22 0 558 5034 138HT Finch/ACSS/TW 1113 0 13 38/19 1 185 34AH 4 3 2 0 22 0 558 5034 134HT Genesee/ACSS/TW 1158 0 7 33/7 1 165 34AH 4 3 2 0 22 0 558 5034 138HT Hudson/ACSS/TW 1158 4 13 26/7 1 196 34AH 4 4 2 0 22 0 558 5034 134HT Cheyenne/ACSS/TW 1168 1 5 30/7 1 155 34AH 4 3 2 0 22 0 558 5034 138HT Oxbird/ACSS/TW 1192 5 5 30/7 1 167 34AH 4 4 2 0 22 0 558 5034 138HT Bunting/ACSS/TW 1192 5 7 33/7 1 181 34AH 4 4 2 0 22 0 558 5036 144HT Grackle/ACSS/TW 1192 5 13 38/19 1 225 36AH 5 1 2 3 23 0 584 5034 138HT Yukon/ACSS/TW 1233 6 13 38/19 1 245 34AH 4 4 2 0 22 0 558 5034 138HT Nelson/ACSS/TW 1257 1 7 35/7 1 213 34AH 4 4 2 0 22 0 558 5036 144HT Scissortail/ACSS/TW 1272 0 5 30/7 1 202 36AH 5 1 2 3 23 0 584 5034 138HT Catawba/ACSS/TW 1272 0 5 30/7 1 203 34AH 4 4 2 0 22 0 558 5036 144HT Bittern/ACSS/TW 1272 0 7 35/7 1 220 36AH 5 1 2 3 23 0 584 5036 147HT Pheasant/ACSS/TW 1272 0 13 39/19 1 264 36AH 5 0 2 3 23 0 584 5036 144HT Thames/ACSS/TW 1334 6 13 39/19 1 290 36AH 5 1 2 3 23 0 584 5036 147HT Dipper/ACSS/TW 1351 5 7 35/7 1 256 36AH 5 0 2 3 23 0 584 5038 150HT Martin/ACSS/TW 1351 5 13 39/19 1 300 38AH 6 0 2 7 24 0 609 5036 144HT Mackenzie/ACSS/TW 1359 7 7 36/7 1 259 36AH 5 1 2 3 23 0 584 5034 138HT Truckee/ACSS/TW 1372 5 5 30/7 1 248 34AH 4 4 2 0 22 0 558 5038 150HT Bobolink/ACSS/TW 1431 0 7 36/7 1 291 38AH 6 0 2 7 24 0 609 5038 156HT Plover/ACSS/TW 1431 0 13 37/19 1 337 38AH 5 7 2 6 24 0 609 5038 156HT Merrimack/ACSS/TW 1433 6 13 39/19 1 340 38AH 5 7 2 6 24 0 609 5038 156HT Miramichi/ACSS/TW 1455 3 7 36/7 1 302 38AH 5 7 2 6 24 0 609 5038 156HT St Croix/ACSS/TW 1467 8 5 33/7 1 292 38AH 5 7 2 6 24 0 609 5038 156HT Rio Grande/ACSS/TW 1533 3 13 39/19 1 382 38AH 5 7 2 6 24 0 609 5038 156HT Potomac/ACSS/TW 1557 4 7 36/7 1 345 38AH 5 7 2 6 24 0 609 5038 156HT Platte/ACSS/TW 1569 0 5 33/7 1 334 38AH 5 7 2 6 24 0 609 5040 162HT Lapwing/ACSS/TW 1590 0 7 36/7 1 358 40AH 6 7 3 1 25 0 635 5040 162HT Falcon/ACSS/TW 1590 0 13 42/19 1 408 40AH 6 7 3 1 25 0 635 5040 162HT Pecos/ACSS/TW 1622 0 13 39/19 1 424 40AH 6 7 3 1 25 0 635 5040 162HT Schuylkill/ACSS/TW 1657 4 7 36/7 1 386 40AH 6 7 3 1 25 0 635 5042 168HT James/ACSS/TW 1730 6 13 34/19 1 470 42AH 7 0 3 2 25 0 635 5040 162HT Pee Dee/ACSS/TW 1758 6 7 37/7 1 427 40AH 6 7 3 1 25 0 635 5042 178HT Chukar/ACSS/TW 1780 0 8 37/19 1 445 42AH 7 0 3 2 25 0 635 5042 178HT Cumberland/ACSS/TW 1926 9 13 42/19 1 545 42AH 7 0 3 2 25 0 635 5042 178HT Athabaska/ACSS/TW 1949 6 7 42/7 1 504 42AH 7 0 3 2 25 0 635 5044 184HT Powder/ACSS/TW 2153 8 8 64/19 1 602 44AH 7 8 3 6 25 0 635 5044 184HT Bluebird/ACSS/TW 2156 0 8 64/19 1 608 44AH 7 8 3 6 25 0 635 5048 191HT Santee/ACSS/TW 2627 3 8 64/19 1 762 48AH 8 9 4 0 27 0 682
Features:
- Specially tempered aluminum
- Standard AH and SH dies
Applications:
- Compression jumper for ACSS/TW conductors
The 5000HT Series Jumper Connector is specifically designed for ACSS/TW conductors. The HiTemp® Jumper Connector is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently. All HiTemp Jumper Connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM-rated strength of the conductor. For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
Comealongs and HiTemp Comealongs for ACSR AAC AAAC ACAR ACSS and ACSSTW Conductors,AFL Filler Compound,Alnox Electrical Joint Compound,Alnox UG Electrical Joint Compound,HiTemp® AFL Filler Compound (AFCHT™),HiTemp® AFL Universal Compound (HiTUC),No. 2 Electrical Joint Compound,HiTemp® Compression Dead Ends for ACSS Conductors,HiTemp® Compression Dead Ends for ACSS/TW Conductors,HiTemp® Compression Joints for ACSS Conductors,HiTemp® Compression Joints for ACSS/TW Conductors,HiTemp® Compression Jumper for ACSS Conductors,HiTemp® Compression Repair Sleeve for ACSS Conductors,HiTemp® Compression Repair Sleeve for ACSS/TW Conductors,HiTemp® Compression Tee Connector for ACSS Conductors
685
HiTemp® Compression Jumper for ACSS/TW Conductors
Close
HiTemp® Compression Jumper for ACSS/TW Conductors
Features:
- Specially tempered aluminum
- Standard AH and SH dies
Applications:
- Compression jumper for ACSS/TW conductors
PRODUCT DESCRIPTION
The 5000HT Series Jumper Connector is specifically designed for ACSS/TW conductors. The HiTemp® Jumper Connector is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently. All HiTemp Jumper Connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM-rated strength of the conductor. For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
