The 5500HT Series Tee Connector is a permanent drop specifically designed for ACSS conductors. It is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently.
1d9d61752401476db24988c745894d24

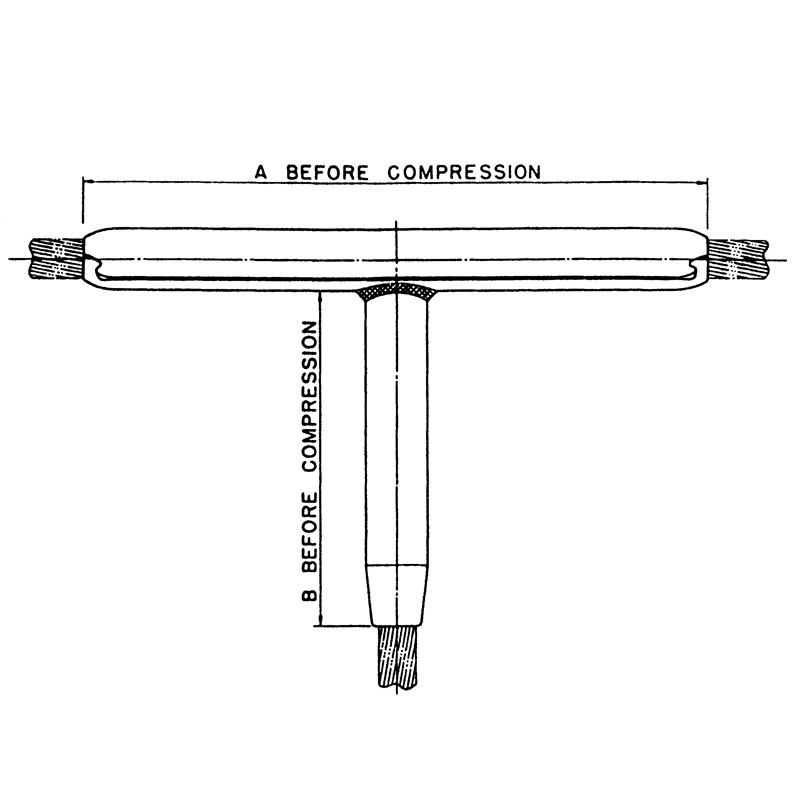

www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 303 HiTemp ® ACSS ACCESSORIES Step 1: Determine Run Catalog Number Determine the run catalog number based on the conductor being used Step 2: Determine Branch Catalog Number Determine the branch catalog number based on the conductor being used Step 3: Assemble Catalog Number Example: For a Tee Connector with a run conductor of 795 Drake ACSS Conductor and a branch conductor of 954 Cardinal ACSS Conductor, the complete catalog number is: 5530.3-30.125HT The 5500HT Series Tee Connector is a permanent drop specifically designed for ACSS conductors It is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently The run portion incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed The branch portion of the tee connector is designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish Ordering Instructions HiTemp Tee Connector for ACSS Conductor, Open Run, 5500HT Series Branch Catalog Number Run Catalog Number + Notes: 1 HiTemp AFL Filler Compound (AFCHT) Requirements are on page 340 2 Installation Instructions for Tee Connectors are on page 353
www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 304 HiTemp ® ACSS ACCESSORIES HiTemp Tee Connector for ACSS Conductor, Open Run, 5500HT Series (cont.) Partial Catalog Number Conductor Die Size Weight Run Length A Branch Length B Code Name Size Strand - ing Diameter Run Branch kcmil Al/St in lbs kg in mm in mm 5576 3 -76 688HT Partridge/ACSS 266 8 26/7 0 642 76AH 1 9 0 9 18 0 457 10 5 267 5520 3 -20 781HT Woodcock/ACSS 336 4 22/7 0 701 20AH 2 6 1 2 22 5 572 11 6 295 5520 3 -20 812HT Linnet/ACSS 336 4 26/7 0 720 20AH 2 6 1 2 22 5 572 11 6 295 5520 3 -20 781HT Oriole/ACSS 336 4 30/7 0 741 20AH 2 6 1 2 22 5 572 11 6 295 5520 3 -20 812HT Ptarmigan/ACSS 397 5 20/7 0 752 20AH 2 5 1 1 22 5 572 11 6 295 5520 3 -20 812HT Brant/ACSS 397 5 24/7 0 772 20AH 2 5 1 1 22 5 572 11 6 295 5520 3 -20 844HT Ibis/ACSS 397 5 26/7 0 783 20AH 2 5 1 1 22 5 572 11 6 295 5520 3 -20 844HT Lark/ACSS 397 5 30/7 0 806 20AH 2 5 1 1 22 5 572 11 6 295 5520 3 -20 875HT Tailorbird/ACSS 477 0 20/7 0 823 20AH 2 5 1 1 22 5 572 11 6 295 5524 3 -24 938HT Flicker/ACSS 477 0 24/7 0 846 24AH 3 9 1 8 23 5 597 12 3 311 5524 3 -24 938HT Hawk/ACSS 477 0 26/7 0 858 24AH 3 9 1 8 23 5 597 12 3 311 5524 3 -24 938HT Hen/ACSS 477 0 30/7 0 883 24AH 3 9 1 8 23 5 597 12 3 311 5524 3 -24 969HT Sapsucker/ACSS 556 5 22/7 0 901 24AH 3 8 1 7 23 5 597 12 3 311 5524 3 -24 969HT Parakeet/ACSS 556 5 24/7 0 914 24AH 3 8 1 7 23 5 597 12 3 311 5527 3 -27 100HT Dove/ACSS 556 5 26/7 0 927 27AH 5 3 2 4 26 3 667 12 8 311 5527 3 -27 100HT Eagle/ACSS 556 5 30/7 0 953 27AH 5 3 2 4 26 3 667 12 8 326 5527 3 -27 100HT Peacock/ACSS 605 0 24/7 0 953 27AH 5 3 2 4 26 3 667 12 8 326 5527 3 -27 100HT Squab/ACSS 605 0 26/7 0 966 27AH 5 3 2 4 26 3 667 12 8 326 5527 3 -27 106HT Wood Duck/ACSS 605 0 30/7 0 994 27AH 5 2 2 4 26 3 667 12 8 326 5527 3 -27 106HT Teal/ACSS 605 0 30/19 0 994 27AH 5 2 2 4 26 3 667 12 8 326 5527 3 -27 106HT Goldfinch/ACSS 636 0 22/7 0 963 27AH 5 2 2 4 26 3 667 12 8 326 5527 3 -27 106HT Rook/ACSS 636 0 24/7 0 977 27AH 5 2 2 4 26 3 667 12 8 326 5527 3 -27 106HT Grosbeak/ACSS 636 0 26/7 0 990 27AH 5 2 2 4 26 3 667 12 8 326 5527 3 -27 106HT Scoter/ACSS 636 0 30/7 1 019 27AH 5 2 2 4 26 3 667 12 8 326 5527 3 -27 106HT Egret/ACSS 636 0 30/19 1 019 27AH 5 2 2 4 26 3 667 12 8 326 5527 3 -27 106HT Flamingo/ACSS 666 6 24/7 1 000 27AH 5 2 2 4 26 3 667 12 8 326 5527 3 -27 106HT Gannet/ACSS 666 6 26/7 1 014 27AH 5 2 2 4 26 3 667 12 8 326 5530 3 -30 109HT Stilt/ACSS 715 5 24/7 1 036 30AH 6 6 3 0 27 1 689 13 4 341 5530 3 -30 109HT Starling/ACSS 715 5 26/7 1 051 30AH 6 6 3 0 27 1 689 13 4 341 5530 3 -30 116HT Redwing/ACSS 715 5 30/19 1 081 30AH 6 6 3 0 27 1 689 13 4 341 5530 3 -30 116HT Cuckoo/ACSS 795 0 24/7 1 092 30AH 6 4 2 9 27 1 689 13 4 341 5530 3 -30 122HT Drake/ACSS 795 0 26/7 1 108 30AH 6 4 2 9 27 1 689 13 4 341 5530 3 -30 116HT Macaw/ACSS 795 0 42/7 1 055 30AH 6 4 2 9 27 1 689 13 4 341 5530 3 -30 116HT Tern/ACSS 795 0 45/7 1 063 30AH 6 4 2 9 27 1 689 13 4 341 5530 3 -30 116HT Condor/ACSS 795 0 54/7 1 092 30AH 6 4 2 9 27 1 689 13 4 341 5530 3 -30 122HT Mallard/ACSS 795 0 30/19 1 140 30AH 6 3 2 9 27 1 689 13 4 341 5530 3 -30 122HT Ruddy/ACSS 900 0 45/7 1 131 30AH 6 3 2 9 27 1 689 13 4 341 5530 3 -30 122HT Canary/ACSS 900 0 54/7 1 162 30AH 6 3 2 9 27 1 689 13 4 341 5530 3 -30 122HT Corncrake/ACSS 954 0 20/7 1 165 30AH 6 3 2 9 27 1 689 13 4 341 5530 3 -30 125HT Redbird/ACSS 954 0 24/7 1 196 30AH 6 2 2 8 27 1 689 13 4 341 5530 3 -30 122HT Rail/ACSS 954 0 45/7 1 165 30AH 6 30 2 9 27 1 689 13 4 341
www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 305 HiTemp ® ACSS ACCESSORIES HiTemp Tee Connector for ACSS Conductor, Open Run, 5500HT Series (cont.) Partial Catalog Number Conductor Die Size Weight Run Length A Branch Length B Code Name Size Strand - ing Diameter Run Branch kcmil Al/St in lbs kg in mm in mm 5530 3 -30 125HT Towhee/ACSS 954 0 48/7 1 175 30AH 6 2 2 8 27 1 689 13 4 341 5530 3 -30 125HT Cardinal/ACSS 954 0 54/7 1 196 30AH 6 2 2 8 27 1 689 13 4 341 5534 3 -34 134HT Canvasback/ACSS 954 0 30/19 1 248 34AH 8 7 4 0 28 1 714 14 1 357 5534 3 -34 128HT Snowbird/ACSS 1033 5 42/7 1 203 34AH 8 9 4 0 28 1 714 14 1 357 5534 3 -34 134HT Ortolan/ACSS 1033 5 45/7 1 212 34AH 8 9 4 0 28 1 714 14 1 357 5534 3 -34 134HT Curlew/ACSS 1033 5 54/7 1 245 34AH 8 7 4 0 28 1 714 14 1 357 5534 3 -34 134HT Bluejay/ACSS 1113 0 45/7 1 259 34AH 8 7 4 0 28 1 714 14 1 357 5534 3 -34 138HT Finch/ACSS 1113 0 54/19 1 293 34AH 8 7 4 0 28 1 714 14 1 357 5534 3 -34 138HT Bunting/ACSS 1192 5 45/7 1 302 34AH 8 6 3 9 28 1 714 14 1 357 5536 3 -36 144HT Grackle/ACSS 1192 5 54/19 1 338 36AH 9 4 4 3 29 0 737 14 6 371 5536 3 -36 144HT Bittern/ACSS 1272 0 45/7 1 345 36AH 9 4 4 3 29 0 737 14 6 371 5536 3 -36 144HT Diver/ACSS 1272 0 48/7 1 357 36AH 9 4 4 3 29 0 737 14 6 371 5536 3 -36 147HT Pheasant/ACSS 1272 0 54/19 1 382 36AH 9 3 4 2 29 0 737 14 6 371 5536 3 -36 147HT Dipper/ACSS 1351 5 45/7 1 386 36AH 9 3 4 2 29 0 737 14 6 371 5538 3 -38 156HT Martin/ACSS 1351 5 54/19 1 424 38AH 11 1 5 0 29 9 759 15 2 386 5538 3 -38 150HT Bobolink/ACSS 1431 0 45/7 1 427 38AH 11 1 5 0 29 9 759 15 2 386 5538 3 -38 156HT Plover/ACSS 1431 0 54/19 1 465 38AH 10 8 4 9 29 9 759 15 2 386 5538 3 -38 156HT Nuthatch/ACSS 1510 0 45/7 1 466 38AH 11 8 5 4 29 9 759 16 2 411 5540 3 -40 162HT Parrot/ACSS 1510 0 54/19 1 505 40AH 12 6 5 7 30 8 781 15 8 400 5540 3 -40 162HT Ratite/ACSS 1590 0 42/7 1 492 40AH 12 6 5 7 30 8 781 15 8 400 5540 3 -40 162HT Lapwing/ACSS 1590 0 45/7 1 504 40AH 12 6 5 7 30 8 781 15 8 400 5540 3 -40 162HT Falcon/ACSS 1590 0 54/19 1 544 40AH 12 6 5 7 30 8 781 15 8 400 5542 3 -42 178HT Chukar/ACSS 1780 0 84/19 1 602 42AH 14 2 6 5 31 6 803 16 4 416 5542 3 -42 178HT Mockingbird/ACSS 2034 5 72/7 1 681 42AH 14 2 6 5 31 6 803 16 4 416 5542 3 -42 178HT Roadrunner/ACSS 2057 0 76/19 1 700 42AH 14 2 6 5 31 6 803 16 4 416 5544 3 -44 184HT Bluebird/ACSS 2156 0 84/19 1 762 44AH 15 9 7 2 32 5 826 16 0 406 5544 3 -44 181HT Kiwi/ACSS 2167 0 72/7 1 735 44AH 15 9 7 2 32 5 826 16 0 406 5544 3 -44 188HT Thrasher/ACSS 2312 0 76/19 1 802 44AH 15 9 7 2 32 5 826 16 0 406 5548 3 -48 197HT Joree/ACSS 2515 0 76/19 1 880 48AH 20 9 9 5 32 5 826 16 0 406
Features:
- Specially tempered aluminum
- Standard AH and SH dies
Applications:
- Compression tee connector for ACSS conductors
The 5500HT Series Tee Connector is a permanent drop specifically designed for ACSS conductors. It is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently.
The run portion incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed.
The branch portion of the tee connector is designed for limited tension use, maintaining a minimum of 40% of the ASTM-rated strength of the conductor.
For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
Comealongs and HiTemp Comealongs for ACSR AAC AAAC ACAR ACSS and ACSSTW Conductors,AFL Filler Compound,Alnox Electrical Joint Compound,Alnox UG Electrical Joint Compound,HiTemp® AFL Filler Compound (AFCHT™),HiTemp® AFL Universal Compound (HiTUC),No. 2 Electrical Joint Compound,HiTemp® Compression Dead Ends for ACSS Conductors,HiTemp® Compression Dead Ends for ACSS/TW Conductors,HiTemp® Compression Joints for ACSS Conductors,HiTemp® Compression Joints for ACSS/TW Conductors,HiTemp® Compression Jumper for ACSS Conductors,HiTemp® Compression Jumper for ACSS/TW Conductors,HiTemp® Compression Repair Sleeve for ACSS Conductors,HiTemp® Compression Repair Sleeve for ACSS/TW Conductors
679
HiTemp® Compression Tee Connector for ACSS Conductors
Close
HiTemp® Compression Tee Connector for ACSS Conductors
Features:
- Specially tempered aluminum
- Standard AH and SH dies
Applications:
- Compression tee connector for ACSS conductors
PRODUCT DESCRIPTION
The 5500HT Series Tee Connector is a permanent drop specifically designed for ACSS conductors. It is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently.
The run portion incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed.
The branch portion of the tee connector is designed for limited tension use, maintaining a minimum of 40% of the ASTM-rated strength of the conductor.
For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
