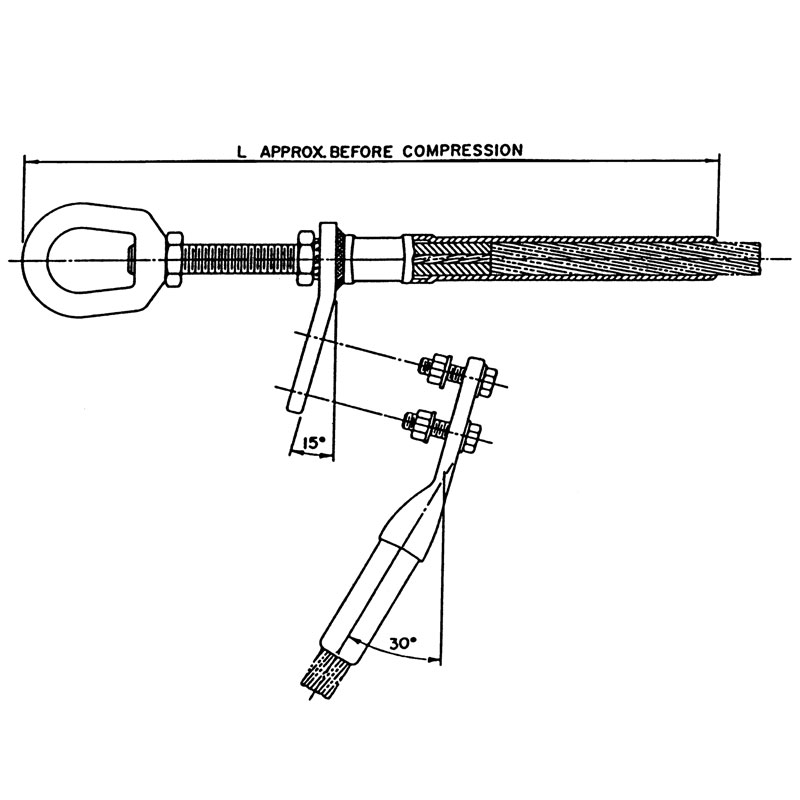

159 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Dead Ends are designed for fast and easy installation. By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM rated strength. The core grip eliminates the need for a steel compression barrel. The steel eye is pre-com - pressed and the dead end pre-filled, eliminating installation steps. The dead end tongue and terminal pad are each constructed with a 15º angle, which permits the terminal connector to be bolted in either the straight or the 30º position. Both sides of the pad are finished, creating excellent electrical contact surfaces. For pad to pad connections, AFL recommends the use of No. 2 EJC. The end tapers of all compression accessories are supplied with a high voltage finish for die sizes 12CD and above. Corona bolts are furnished standard on 15º terminals for these section sizes. The square edges of bolted pads of the compression accessories could cause Corona. Pads with rounded edges and corners can be supplied by adding the catalog suffix 'EHV'. Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT'. For an assembly with a terminal connector, leave blank. Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV'. ( ≥ 345 kV) For Standard Finish, leave blank . ( < 345 kV) Step 4: Assemble Catalog Number Example: For a vertical eye dead end with no terminal and EHV finish for 795 Drake, the complete catalog number is: VES126NTEHV Assy Catalog Number Terminal Connector EHV Finish + + Notes: 1. Assembly Catalog Number includes dead end, core grip, terminal connector and aluminum hardware. 2. Eye Dimensions are on page 257. 3. Pad Dimensions are on page 257. 4. Installation Instructions for Dead Ends are on page 265. 5. Installation Instructions for Terminals are on page 272. 6. For more information on die selection and ordering instructions, see Tools and Equipment in this catalog. Quick Compress Dead Ends for ACSR Conductor, Eye Type, Single Tongue, VES/HES Series VES Style HES Style © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 160 Quick Compress ® QuickCompress ® – ACSR Quick Compress Dead Ends for ACSR Conductor, Eye Type, Single Tongue, VES/HES Series (cont.) ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE STRANDING DIAMETER VERTICAL EYE HORIZONTAL EYE KCMIL AL/ST IN LBS KG IN MM VES075 HES075 Owl 266.8 6/7 0.633 07CD 1.9 0.86 11.5 292 B VES072 HES072 Waxwing 266.8 18/1 0.609 07CD 1.9 0.86 11.5 292 B VES076 HES076 Partridge 266.8 26/7 0.642 07CD 1.9 0.86 11.5 292 B VES085 HES085 Ostrich 300.0 26/7 0.680 08CD 2.4 1.09 12.3 313 B VES082 HES082 Merlin 336.4 18/1 0.684 08CD 2.3 1.04 12.3 313 B VES086 HES086 Linnet 336.4 26/7 0.720 08CD 2.4 1.09 12.3 313 B VES096 HES096 Oriole 336.4 30/7 0.741 09CD 3.2 1.45 13.8 351 B VES083 HES083 Chickadee 397.5 18/1 0.743 08CD 2.3 1.04 12.3 313 B VES095 HES095 Brant 397.5 24/7 0.772 09CD 3.2 1.45 13.8 351 B VES096 HES096 Ibis 397.5 26/7 0.783 09CD 3.2 1.45 13.8 351 B VES106 HES106 Lark 397.5 30/7 0.806 10CD 3.7 1.68 14.7 373 B VES092 HES092 Pelican 477.0 18/1 0.814 09CD 3.2 1.45 13.8 351 B VES095 HES095 Flicker 477.0 24/7 0.846 09CD 3.2 1.45 13.8 351 B VES105 HES105 Hawk 477.0 26/7 0.858 10CD 3.7 1.68 14.7 373 B VES116 HES116 Hen 477.0 30/7 0.883 11CD 5.7 2.59 15.9 403 D VES102 HES102 Osprey 556.5 18/1 0.879 10CD 3.7 1.68 14.7 373 B VES105 HES105 Parakeet 556.5 24/7 0.914 10CD 3.7 1.68 14.7 373 B VES106 HES106 Dove 556.5 26/7 0.927 10CD 3.7 1.68 14.7 373 B VES117 HES117 Eagle 556.5 30/7 0.953 11CD 5.7 2.59 15.9 403 D VES115 HES115 Peacock 605.0 24/7 0.953 11CD 5.7 2.59 15.9 403 D VES116 HES116 Squab 605.0 26/7 0.966 11CD 5.7 2.59 15.9 403 D VES126 HES126 Teal 605.0 30/19 0.994 12CD 6.5 2.59 16.7 424 D VES103 HES103 Kingbird 636.0 18/1 0.940 10CD 3.7 1.68 14.7 373 B VES115 HES115 Rook 636.0 24/7 0.977 11CD 5.7 2.59 15.9 403 D VES116 HES116 Grosbeak 636.0 26/7 0.990 11CD 5.7 2.59 15.9 403 D VES126 HES126 Egret 636.0 30/19 1.019 12CD 6.5 2.95 16.7 424 D VES101 HES101 Swift 636.0 36/1 0.930 10CD 3.7 1.68 14.7 373 B VES115 HES115 Flamingo 666.6 24/7 1.000 11CD 5.7 2.59 15.9 403 D VES115 HES115 Stilt 715.5 24/7 1.036 11CD 5.7 2.59 15.9 403 D VES126 HES126 Starling 715.5 26/7 1.051 12CD 6.5 2.95 16.7 424 D VES136 HES136 Redwing 715.5 30/19 1.081 13CD 8.7 3.95 19.0 483 D VES125 HES125 Cuckoo 795.0 24/7 1.092 12CD 6.5 2.95 16.7 424 D VES126 HES126 Drake 795.0 26/7 1.108 12CD 6.5 2.95 16.7 424 D VES146 HES146 Mallard 795.0 30/19 1.140 14CD 10.0 4.54 19.8 503 D VES111 HES111 Coot 795.0 36/1 1.040 11CD 5.6 2.54 15.9 403 D 161 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Quick Compress Dead Ends for ACSR Conductor, Eye Type, Single Tongue, VES/HES Series (cont.) ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE STRANDING DIAMETER VERTICAL EYE HORIZONTAL EYE KCMIL AL/ST IN LBS KG IN MM VES123 HES123 Tern 795.0 45/7 1.063 12CD 6.5 2.95 16.7 424 D VES125 HES125 Condor 795.0 54/7 1.093 12CD 6.5 2.95 16.7 424 D VES124 HES124 Ruddy 900.0 45/7 1.131 12CD 6.5 2.95 16.7 424 D VES135 HES135 Canary 900.0 54/7 1.162 13CD 8.7 3.95 19.0 483 D VES121 HES121 Catbird 954.0 36/1 1.140 12CD 6.4 2.90 16.7 424 D VES133 HES133 Rail 954.0 45/7 1.165 13CD 8.6 3.90 19.0 483 D VES135 HES135 Cardinal 954.0 54/7 1.196 13CD 8.7 3.95 19.0 483 D VES131 HES131 Tanger 1033.5 36/1 1.186 13CD 8.5 3.86 19.0 483 D VES134 HES134 Oriolian 1033.5 45/7 1.212 13CD 8.6 3.90 19.0 483 D VES145 HES145 Curlew 1033.5 54/7 1.244 14CD 9.9 4.49 19.8 503 D VES143 HES143 Bluejay 1113.0 45/7 1.259 14CD 9.9 4.49 19.8 503 D VES145 HES145 Finch 1113.0 54/19 1.293 14CD 9.9 4.49 19.8 503 D VES144 HES144 Bunting 1192.5 45/7 1.302 14CD 9.9 4.49 19.8 503 D VES155 HES155 Grackle 1192.5 54/19 1.333 15CD 11.0 4.99 20.6 524 D VES153 HES153 Bittern 1272.0 45/7 1.345 15CD 10.9 4.49 20.6 524 D VES155 HES155 Pheasant 1272.0 54/19 1.382 15CD 11.0 4.99 20.6 524 D VES154 HES154 Dipper 1351.5 45/7 1.385 15CD 11.0 4.99 20.6 524 D VES155 HES155 Martin 1351.5 54/19 1.424 15CD 11.0 4.99 20.6 524 D VES163 HES163 Bobolink 1431.0 45/7 1.427 16CD 13.8 6.26 22.3 567 D VES165 HES165 Plover 1431.0 54/19 1.465 16CD 13.9 6.30 22.3 567 D VES164 HES164 Nuthatch 1510.5 45/7 1.466 16CD 13.8 6.26 22.3 567 D VES165 HES165 Parrot 1510.5 54/19 1.506 16CD 13.9 6.30 22.3 567 D VES164 HES164 Lapwing 1590.0 45/7 1.504 16CD 13.8 6.26 22.3 567 D VES175 HES175 Falcon 1590.0 54/19 1.545 17CD 17.1 7.76 23.1 586 E VES174 HES174 Chukar 1780.0 84/19 1.602 17CD 17.0 7.71 23.1 586 E VES183 HES183 — 2034.0 72/7 1.681 18CD 18.5 8.39 23.9 607 E VES194 HES194 Bluebird 2156.0 84/19 1.762 19CD 23.5 10.66 26.2 665 E VES193 HES193 Kiwi 2167.0 72/7 1.737 19CD 23.4 10.61 26.2 665 E VES193 HES193 Thrasher 2312.0 76/19 1.802 19CD 23.4 10.61 26.2 665 E VES203 HES203 Joree 2515.0 76/19 1.880 20CD 24.9 11.29 27.0 686 E © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 162 Quick Compress ® QuickCompress ® – ACSR The Quick Compress Dead Ends are designed for fast and easy installation. By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM rated strength. The core grip eliminates the need for a steel compression barrel. The steel eye is precom-pressed and the dead end pre-filled, eliminat - ing installation steps. The dead end tongue and terminal pad are each constructed with a 15º angle, which permits the terminal connector to be bolted in either the straight or the 30º position. Both sides of the pad are finished, creating excellent electrical contact surfaces. For pad to pad connections, AFL recommends the use of No. 2 EJC. The end tapers of all compression accessories are supplied with a high voltage finish for die sizes 12CD and above. Corona bolts are furnished standard on 15º terminals for these section sizes. The square edges of bolted pads of the compression accessories could cause Corona. Pads with rounded edges and corners can be supplied by adding the catalog suffix 'EHV'. Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT'. For an assembly with a terminal connector, leave blank. Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV'. ( ≥ 345 kV) For Standard Finish, leave blank. ( < 345 kV) Step 4: Assemble Catalog Number. Example: For a vertical eye dead end with no terminal and EHV finish for 795 Drake, the complete catalog number is: VED128NTEHV Assy Catalog Number Terminal Connector EHV Finish + + Notes: 1. Assembly Catalog Number includes dead end, core grip, two terminal connectors and aluminum hardware. 2. Eye Dimensions are on page 257. 3. Pad Dimensions are on page 257. 4. Installation Instructions for Dead Ends are on page 265. 5. Installation Instructions for Terminals are on page 272. 6. For more information on die selection and ordering instructions, see Tools and Equipment in this catalog. Quick Compress Dead Ends for ACSR Conductor, Eye Type, Double Tongue, VED/HED Series HED Style VED Style 163 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Quick Compress Dead Ends for ACSR Conductor, Eye Type, Double Tongue, VED/HED Series (cont.) ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE STRANDING DIAMETER VERTICAL EYE HORIZONTAL EYE KCMIL AL/ST IN LBS KG IN MM VED075 HED075 Owl 266.8 6/7 0.633 07CD 2.8 1.27 11.5 292 B VED072 HED072 Waxwing 266.8 18/1 0.609 07CD 2.8 1.27 11.5 292 B VED076 HED076 Partridge 266.8 26/7 0.642 07CD 2.8 1.27 11.5 292 B VED085 HED085 Ostrich 300.0 26/7 0.680 08CD 3.4 1.54 12.3 313 B VED082 HED082 Merlin 336.4 18/1 0.684 08CD 3.4 1.54 12.3 313 B VED086 HED086 Linnet 336.4 26/7 0.720 08CD 3.4 1.54 12.3 313 B VED096 HED096 Oriole 336.4 30/7 0.741 09CD 4.4 2.00 13.8 351 B VED083 HED083 Chickadee 397.5 18/1 0.743 08CD 3.4 1.54 12.3 313 B VED095 HED095 Brant 397.5 24/7 0.772 09CD 4.4 2.00 13.8 351 B VED096 HED096 Ibis 397.5 26/7 0.783 09CD 4.4 2.00 13.8 351 B VED106 HED106 Lark 397.5 30/7 0.806 10CD 5.3 2.40 14.7 373 B VED092 HED092 Pelican 477.0 18/1 0.814 09CD 4.3 1.95 13.8 351 B VED095 HED095 Flicker 477.0 24/7 0.846 09CD 4.3 1.95 13.8 351 B VED105 HED105 Hawk 477.0 26/7 0.858 10CD 5.3 2.40 14.7 373 B VED116 HED116 Hen 477.0 30/7 0.883 11CD 7.9 3.58 15.9 403 D VED102 HED102 Osprey 556.5 18/1 0.879 10CD 5.3 2.40 14.7 373 B VED105 HED105 Parakeet 556.5 24/7 0.914 10CD 5.3 2.40 14.7 373 B VED106 HED106 Dove 556.5 26/7 0.927 10CD 5.3 2.40 14.7 373 B VED117 HED117 Eagle 556.5 30/7 0.953 11CD 7.9 3.58 15.9 403 D VED115 HED115 Peacock 605.0 24/7 0.953 11CD 7.9 3.58 15.9 403 D VED116 HED116 Squab 605.0 26/7 0.966 11CD 7.9 3.58 15.9 403 D VED126 HED126 Teal 605.0 30/19 0.994 12CD 9.2 4.17 16.7 424 D VED103 HED103 Kingbird 636.0 18/1 0.940 10CD 5.3 2.4 14.7 373 B VED115 HED115 Rook 636.0 24/7 0.977 11CD 7.9 3.58 15.9 403 D VED116 HED116 Grosbeak 636.0 26/7 0.990 11CD 7.9 3.58 15.9 403 D VED126 HED126 Egret 636.0 30/19 1.019 12CD 9.2 4.17 16.7 424 D VED101 HED101 Swift 636.0 36/1 0.930 10CD 5.3 2.40 14.7 373 B VED115 HED115 Flamingo 666.6 24/7 1.000 11CD 7.9 3.58 15.9 403 D VED115 HED115 Stilt 715.5 24/7 1.036 11CD 7.9 3.58 15.9 403 D VED126 HED126 Starling 715.5 26/7 1.051 12CD 9.2 4.17 16.7 424 D VED136 HED136 Redwing 715.5 30/19 1.081 13CD 11.8 5.36 19.0 483 D VED125 HED125 Cuckoo 795.0 24/7 1.092 12CD 9.2 4.17 16.7 424 D VED126 HED126 Drake 795.0 26/7 1.108 12CD 9.2 4.17 16.7 424 D VED146 HED146 Mallard 795.0 30/19 1.140 14CD 13.6 6.17 19.8 503 D VED111 HED111 Coot 795.0 36/1 1.040 11CD 7.8 3.64 15.9 403 D © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 164 Quick Compress ® QuickCompress ® – ACSR ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE STRANDING DIAMETER VERTICAL EYE HORIZONTAL EYE KCMIL AL/ST IN LBS KG IN MM VED123 HED123 Tern 795.0 45/7 1.063 12CD 9.2 4.17 16.7 424 D VED125 HED125 Condor 795.0 54/7 1.093 12CD 9.2 4.17 16.7 424 D VED124 HED124 Ruddy 900.0 45/7 1.131 12CD 9.2 4.17 16.7 424 D VED135 HED135 Canary 900.0 54/7 1.162 13CD 11.8 5.35 19.0 483 D VED121 HED121 Catbird 954.0 36/1 1.140 12CD 9.1 4.13 16.7 424 D VED133 HED133 Rail 954.0 45/7 1.165 13CD 11.7 5.31 19.0 483 D VED135 HED135 Cardinal 954.0 54/7 1.196 13CD 11.8 5.35 19.0 483 D VED131 HED131 Tanger 1033.5 36/1 1.186 13CD 11.6 5.26 19.0 483 D VED134 HED134 Ortolan 1033.5 45/7 1.212 13CD 11.7 5.31 19.0 483 D VED145 HED145 Curlew 1033.5 54/7 1.244 14CD 13.5 6.12 19.8 503 D VED143 HED143 Bluejay 1113.0 45/7 1.259 14CD 13.5 6.12 19.8 503 D VED145 HED145 Finch 1113.0 54/19 1.293 14CD 13.5 6.12 19.8 503 D VED144 HED144 Bunting 1192.5 45/7 1.302 14CD 13.5 6.12 19.8 503 D VED155 HED155 Grackle 1192.5 54/19 1.333 15CD 15.0 6.80 20.6 524 D VED153 HED153 Bittern 1272.0 45/7 1.345 15CD 14.9 6.76 20.6 524 D VED155 HED155 Pheasant 1272.0 54/19 1.382 15CD 15.0 6.80 20.6 524 D VED154 HED154 Dipper 1351.5 45/7 1.385 15CD 15.0 6.80 20.6 524 D VED155 HED155 Martin 1351.5 54/19 1.424 15CD 15.0 6.80 20.6 524 D VED163 HED163 Bobolink 1431.0 45/7 1.427 16CD 18.4 8.35 22.3 567 D VED165 HED165 Plover 1431.0 54/19 1.465 16CD 18.5 8.39 22.3 567 D VED164 HED164 Nuthatch 1510.5 45/7 1.466 16CD 18.4 8.35 22.3 567 D VED165 HED165 Parrot 1510.5 54/19 1.506 16CD 18.5 8.39 22.3 567 D VED164 HED164 Lapwing 1590.0 45/7 1.504 16CD 18.4 8.35 22.3 567 D VED175 HED175 Falcon 1590.0 54/19 1.545 17CD 22.8 10.34 23.1 586 E VED174 HED174 Chukar 1780.0 84/19 1.602 17CD 22.8 10.34 23.1 586 E VED183 HED183 ---------- 2034.0 72/7 1.681 18CD 24.8 11.25 23.9 607 E VED194 HED194 Bluebird 2156.0 84/19 1.762 19CD 30.9 14.02 26.2 665 E VED193 HED193 Kiwi 2167.0 72/7 1.737 19CD 30.8 13.97 26.2 665 E VED193 HED193 Thrasher 2312.0 76/19 1.802 19CD 30.8 13.97 26.2 665 E VED203 HED203 Joree 2515.0 76/19 1.880 20CD 32.7 14.83 27.0 686 E Quick Compress Dead Ends for ACSR Conductor, Eye Type, Double Tongue, VED/HED Series (cont.) 165 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Dead Ends are designed for fast and easy installation. By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM rated strength. The core grip elimi - nates the need for a steel compression barrel. The adjustable steel clevis is pre-compressed and the dead end pre-filled, eliminating installation steps. The dead end tongue and terminal pad are each constructed with a 15º angle, which permits the terminal connector to be bolted in either the straight or the 30º position. Both sides of the pad are finished, creating excellent electrical contact surfaces. For pad to pad connections, AFL recommends the use of No. 2 EJC. The end tapers of all compression accessories are supplied with a high voltage finish for die sizes 12CD and above. Corona bolts are furnished standard on 15º terminals for these section sizes. The square edges of bolted pads of the compression accessories could cause Corona. Pads with rounded edges and corners can be supplied by adding the catalog suffix 'EHV'. Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT'. For an assembly with a terminal connector, leave blank. Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV'. ( ≥ 345 kV) For Standard Finish, leave blank. ( < 345 kV) Step 4: Assemble Catalog Number. Example: For an adjustable clevis dead end with no terminal and EHV finish for 795 Drake, the complete catalog number is: ACS126NTEHV Assy Catalog Number Terminal Connector EHV Finish + + Notes: 1. Assembly Catalog Number includes dead end, core grip, terminal connector and aluminum hardware. 2. Clevis Dimensions are on page 258. 3. Pad Dimensions are on page 257. 4. Installation Instructions for Dead Ends are on page 265. 5. Installation Instructions for Terminals are on page 272. 6. For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog. Quick Compress Dead Ends for ACSR Conductor, Adjustable Clevis Type, Single Tongue, ACS Series © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 166 Quick Compress ® QuickCompress ® – ACSR Quick Compress Dead Ends for ACSR Conductor, Adjustable Clevis Type, Single Tongue, ACS Series (cont.) ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE NAME SIZE STRANDING DIAMETER KCMIL AL/ST IN LBS KG IN MM ACS075 Owl 266.8 6/7 0.633 07CD 4.4 2.00 19.3 489 B ACS072 Waxwing 266.8 18/1 0.609 07CD 4.4 2.00 19.3 489 B ACS076 Partridge 266.8 26/7 0.642 07CD 4.4 2.00 19.3 489 B ACS085 Ostrich 300.0 26/7 0.680 08CD 5.2 2.36 20.2 513 B ACS082 Merlin 336.4 18/1 0.684 08CD 5.1 2.31 20.2 513 B ACS086 Linnet 336.4 26/7 0.720 08CD 5.2 2.36 20.2 513 B ACS096 Oriole 336.4 30/7 0.741 09CD 6.3 2.86 21.7 551 B ACS083 Chickadee 397.5 18/1 0.743 08CD 5.1 2.31 20.2 513 B ACS095 Brant 397.5 24/7 0.772 09CD 6.3 2.86 21.7 551 B ACS096 Ibis 397.5 26/7 0.783 09CD 6.3 2.86 21.7 551 B ACS106 Lark 397.5 30/7 0.806 10CD 6.8 3.08 22.5 572 B ACS092 Pelican 477.0 18/1 0.814 09CD 6.3 2.86 21.7 551 B ACS095 Flicker 477.0 24/7 0.846 09CD 6.3 2.86 21.7 551 B ACS105 Hawk 477.0 26/7 0.858 10CD 6.8 3.08 22.5 572 B ACS116 Hen 477.0 30/7 0.883 11CD 11.3 5.13 25.9 659 D ACS102 Osprey 556.5 18/1 0.879 10CD 6.8 3.08 22.5 572 B ACS105 Parakeet 556.5 24/7 0.914 10CD 6.8 3.08 22.5 572 B ACS106 Dove 556.5 26/7 0.927 10CD 6.8 3.08 22.5 572 B ACS117 Eagle 556.5 30/7 0.953 11CD 11.3 5.13 25.9 659 D ACS115 Peacock 605.0 24/7 0.953 11CD 11.3 5.13 25.9 659 D ACS116 Squab 605.0 26/7 0.966 11CD 11.3 5.13 25.9 659 D ACS126 Teal 605.0 30/19 0.994 12CD 12.1 5.49 26.8 679 D ACS103 Kingbird 636.0 18/1 0.940 10CD 6.8 3.08 22.5 572 B ACS115 Rook 636.0 24/7 0.977 11CD 11.3 5.13 25.9 659 D ACS116 Grosbeak 636.0 26/7 0.990 11CD 11.3 5.13 25.9 659 D ACS126 Egret 636.0 30/19 1.019 12CD 12.1 5.49 26.8 679 D ACS101 Swift 636.0 36/1 0.930 10CD 6.8 3.08 22.5 572 B ACS115 Flamingo 666.6 24/7 1.000 11CD 11.3 5.13 25.9 659 D ACS115 Stilt 715.5 24/7 1.036 11CD 11.3 5.13 25.9 659 D ACS126 Starling 715.5 26/7 1.051 12CD 12.1 5.49 26.8 679 D ACS136 Redwing 715.5 30/19 1.081 13CD 15.3 6.94 28.7 729 D ACS125 Cuckoo 795.0 24/7 1.092 12CD 12.1 5.49 26.8 679 D ACS126 Drake 795.0 26/7 1.108 12CD 12.1 5.49 26.8 679 D ACS146 Mallard 795.0 30/19 1.140 14CD 16.5 7.48 29.5 749 D ACS111 Coot 795.0 36/1 1.040 11CD 11.2 5.08 25.9 659 D ACS123 Tern 795.0 45/7 1.063 12CD 12.1 5.49 26.8 679 D ACS125 Condor 795.0 54/7 1.093 12CD 12.1 5.49 26.8 679 D 167 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Quick Compress Dead Ends for ACSR Conductor, Adjustable Clevis Type, Single Tongue, ACS Series (cont.) ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE NAME SIZE STRANDING DIAMETER KCMIL AL/ST IN LBS KG IN MM ACS124 Ruddy 900.0 45/7 1.131 12CD 12.1 5.49 26.8 679 D ACS135 Canary 900.0 54/7 1.162 13CD 15.3 6.94 28.7 729 D ACS121 Catbird 954.0 36/1 1.140 12CD 12.0 5.44 26.8 679 D ACS133 Rail 954.0 45/7 1.165 13CD 15.2 6.89 28.7 729 D ACS135 Cardinal 954.0 54/7 1.196 13CD 15.3 6.94 28.7 729 D ACS131 Tanger 1033.5 36/1 1.186 13CD 15.1 6.85 28.7 729 D ACS134 Ortolan 1033.5 45/7 1.212 13CD 15.2 6.89 28.7 729 D ACS145 Curlew 1033.5 54/7 1.244 14CD 16.4 7.44 29.5 749 D ACS143 Bluejay 1113.0 45/7 1.259 14CD 16.4 7.44 29.5 749 D ACS145 Finch 1113.0 54/19 1.293 14CD 16.4 7.44 29.5 749 D ACS144 Bunting 1192.5 45/7 1.302 14CD 16.4 7.44 29.5 749 D ACS155 Grackle 1192.5 54/19 1.333 15CD 17.5 7.94 31.3 770 D ACS153 Bittern 1272.0 45/7 1.345 15CD 17.4 7.89 30.3 770 D ACS155 Pheasant 1272.0 54/19 1.382 15CD 17.5 7.94 30.3 770 D ACS154 Dipper 1351.5 45/7 1.385 15CD 17.5 7.94 30.3 770 D ACS155 Martin 1351.5 54/19 1.424 15CD 17.5 7.94 30.3 770 D ACS163 Bobolink 1431.0 45/7 1.427 16CD 23.9 10.84 34.4 873 D ACS165 Plover 1431.0 54/19 1.465 16CD 24.0 10.89 34.4 873 D ACS164 Nuthatch 1510.5 45/7 1.466 16CD 23.9 10.84 34.4 873 D ACS165 Parrot 1510.5 54/19 1.506 16CD 24.0 10.89 34.4 873 D ACS164 Lapwing 1590.0 45/7 1.504 16CD 23.9 10.84 34.4 873 D ACS175 Falcon 1590.0 54/19 1.545 17CD 27.2 12.34 35.3 895 E ACS174 Chukar 1780.0 84/19 1.602 17CD 27.1 12.29 35.3 895 E ACS183 ---------- 2034.0 72/7 1.681 18CD 28.6 12.97 36.0 914 E ACS194 Bluebird 2156.0 84/19 1.762 19CD 37.3 16.92 38.2 970 E ACS193 Kiwi 2167.0 72/7 1.737 19CD 37.2 16.87 38.2 970 E ACS193 Thrasher 2312.0 74/19 1.802 19CD 37.2 16.87 38.2 970 E ACS203 Joree 2515.0 74/19 1.880 20CD 38.6 17.51 39.0 991 E © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 168 Quick Compress ® QuickCompress ® – ACSR The Quick Compress Dead Ends are designed for fast and easy installation. By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM rated strength. The core grip elimi - nates the need for a steel compression barrel. The adjustable steel eye is pre-compressed and the dead end pre-filled, eliminating installation steps. The dead end tongue and terminal pad are each constructed with a 15º angle, which permits the terminal connector to be bolted in either the straight or the 30º position. Both sides of the pad are finished, creating excellent electrical contact surfaces. For pad to pad connections, AFL recommends the use of No. 2 EJC. The end tapers of all compression accessories are supplied with a high voltage finish for die sizes 12CD and above. Corona bolts are furnished standard on 15º terminals for these section sizes. The square edges of bolted pads of the compression accessories could cause Corona. Pads with rounded edges and corners can be supplied by adding the catalog suffix 'EHV'. Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT'. For an assembly with a terminal connector, leave blank. Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV'. ( ≥ 345 kV) For Standard Finish, leave blank. ( < 345 kV) Step 4: Assemble Catalog Number. Example: For an adjustable eye dead end with no terminal and EHV finish for 795 Drake, the complete catalog number is: AES126NTEHV Assy Catalog Number Terminal Connector EHV Finish + + Notes: 1. Assembly Catalog Number includes dead end, core grip, terminal connector and aluminum hardware. 2. Eye Dimensions are on page 258. 3. Pad Dimensions are on page 257. 4. Installation Instructions for Dead Ends are on page 265. 5. Installation Instructions for Terminals are on page 272. 6. For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog. Quick Compress Dead Ends for ACSR Conductor, Adjustable Eye Type, Single Tongue, AES Series 169 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Quick Compress Dead Ends for ACSR Conductor, Adjustable Eye Type, Single Tongue, AES Series (cont.) ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE STRANDING DIAMETER KCMIL AL/ST IN LBS KG IN MM AES075 Owl 266.8 6/7 0.633 07CD 2.7 1.22 16.4 418 B AES072 Waxwing 266.8 18/1 0.609 07CD 2.7 1.22 16.4 418 B AES076 Partridge 266.8 26/7 0.642 07CD 2.7 1.22 16.4 418 B AES085 Ostrich 300.0 26/7 0.680 08CD 3.9 1.77 17.8 453 B AES082 Merlin 336.4 18/1 0.684 08CD 3.8 1.72 17.8 453 B AES086 Linnet 336.4 26/7 0.720 08CD 3.9 1.77 17.8 453 B AES096 Oriole 336.4 30/7 0.741 09CD 5.7 2.59 19.7 501 B AES083 Chickadee 397.5 18/1 0.743 08CD 3.8 1.72 17.8 453 B AES095 Brant 397.5 24/7 0.772 09CD 5.7 2.59 19.7 501 B AES096 Ibis 397.5 26/7 0.783 09CD 5.7 2.59 19.7 501 B AES106 Lark 397.5 30/7 0.806 10CD 6.2 2.81 20.5 521 B AES092 Pelican 477.0 18/1 0.814 09CD 5.7 2.59 19.7 501 B AES095 Flicker 477.0 24/7 0.846 09CD 5.7 2.59 19.7 501 B AES105 Hawk 477.0 26/7 0.858 10CD 6.2 2.81 20.5 521 B AES116 Hen 477.0 30/7 0.883 11CD 9.3 4.22 23.3 591 D AES102 Osprey 556.5 18/1 0.879 10CD 6.2 2.81 20.5 521 B AES105 Parakeet 556.5 24/7 0.914 10CD 6.2 2.81 20.5 521 B AES106 Dove 556.5 26/7 0.927 10CD 6.2 2.81 20.5 521 B AES117 Eagle 556.5 30/7 0.953 11CD 9.3 4.22 23.3 591 D AES115 Peacock 605.0 24/7 0.953 11CD 9.3 4.22 23.3 591 D AES116 Squab 605.0 26/7 0.966 11CD 9.3 4.22 23.3 591 D AES126 Teal 605.0 30/19 0.994 12CD 10.1 4.58 24.1 611 D AES103 Kingbird 636.0 18/1 0.940 10CD 6.2 2.81 20.5 521 B AES115 Rook 636.0 24/7 0.977 11CD 9.3 4.22 23.3 591 D AES116 Grosbeak 636.0 26/7 0.990 11CD 9.3 4.22 23.3 591 D AES126 Egret 636.0 30/19 1.019 12CD 10.1 4.58 24.1 611 D AES101 Swift 636.0 36/1 0.930 10CD 6.2 2.81 20.5 521 B AES115 Flamingo 666.6 24/7 1.000 11CD 9.3 4.22 23.3 591 D AES115 Stilt 715.5 24/7 1.036 11CD 9.3 4.22 23.3 591 D AES126 Starling 715.5 26/7 1.051 12CD 10.1 4.58 24.1 611 D AES136 Redwing 715.5 30/19 1.081 13CD 14.2 6.44 26.5 673 D AES125 Cuckoo 795.0 24/7 1.092 12CD 10.1 4.58 24.1 611 D AES126 Drake 795.0 26/7 1.108 12CD 10.1 4.58 24.1 611 D AES146 Mallard 795.0 30/19 1.140 14CD 15.4 6.99 27.3 694 D AES111 Coot 795.0 36/1 1.040 11CD 9.2 4.17 23.3 591 D AES123 Tern 795.0 45/7 1.063 12CD 10.1 4.58 24.1 611 D © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 170 Quick Compress ® QuickCompress ® – ACSR Quick Compress Dead Ends for ACSR Conductor, Adjustable Eye Type, Single Tongue, AES Series (cont.) ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE STRANDING DIAMETER KCMIL AL/ST IN LBS KG IN MM AES125 Condor 795.0 54/7 1.093 12CD 10.1 4.58 24.1 611 D AES124 Ruddy 900.0 45/7 1.131 12CD 10.1 4.58 24.1 611 D AES135 Canary 900.0 54/7 1.162 13CD 14.2 6.44 26.5 673 D AES121 Catbird 954.0 36/1 1.140 12CD 10.1 4.54 24.1 611 D AES133 Rail 954.0 45/7 1.165 13CD 14.1 6.40 26.5 673 D AES135 Cardinal 954.0 54/7 1.196 13CD 14.2 6.44 26.5 673 D AES131 Tanger 1033.5 36/1 1.186 13CD 14.0 6.35 26.5 673 D AES134 Ortolan 1033.5 45/7 1.212 13CD 14.1 6.40 26.5 673 D AES145 Curlew 1033.5 54/7 1.244 14CD 15.3 6.94 27.3 694 D AES143 Bluejay 1113.0 45/7 1.259 14CD 15.3 6.94 27.3 694 D AES145 Finch 1113.0 54/19 1.293 14CD 15.3 6.94 27.3 694 D AES144 Bunting 1192.5 45/7 1.302 14CD 15.3 6.94 27.3 694 D AES155 Grackle 1192.5 54/19 1.333 15CD 16.5 7.48 28.1 714 D AES153 Bittern 1272.0 45/7 1.345 15CD 16.4 7.44 28.1 714 D AES155 Pheasant 1272.0 54/19 1.382 15CD 16.5 7.48 28.1 714 D AES154 Dipper 1351.5 45/7 1.385 15CD 16.5 7.48 28.1 714 D AES155 Martin 1351.5 54/19 1.424 15CD 16.5 7.48 28.1 714 D AES163 Bobolink 1431.0 45/7 1.427 16CD 23.6 10.70 31.7 806 D AES165 Plover 1431.0 54/19 1.465 16CD 23.7 10.75 31.7 806 D AES164 Nuthatch 1510.5 45/7 1.466 16CD 23.6 10.70 31.7 806 D AES165 Parrot 1510.5 54/19 1.506 16CD 23.7 10.75 31.7 806 D AES164 Lapwing 1590.0 45/7 1.504 16CD 23.6 10.70 31.7 806 D AES175 Falcon 1590.0 54/19 1.545 17CD 26.9 12.20 32.5 826 E AES174 Chukar 1780.0 84/19 1.602 17CD 26.8 12.16 32.5 826 E AES183 — 2034.0 72/7 1.681 18CD 26.3 12.84 33.3 845 E AES194 Bluebird 2156.0 84/19 1.762 19CD 34.1 15.47 35.2 895 E AES193 Kiwi 2167.0 72/7 1.737 19CD 34.0 15.42 35.2 895 E AES193 Thrasher 2312.0 76/19 1.802 19CD 34.0 15.42 35.2 895 E AES203 Joree 2515.0 76/19 1.880 20CD 35.7 16.19 36.1 915 E
